2-5499345-4 datasheet, PDF - EEWORLD Datasheet

2-5499345-4: DescriptionA/L UNIV HDR 20P RA SHT LAT BL; CategoryThe connector The connector; File Size275KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

2-5499345-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2-5499345-4	-	-	View	Buy Now

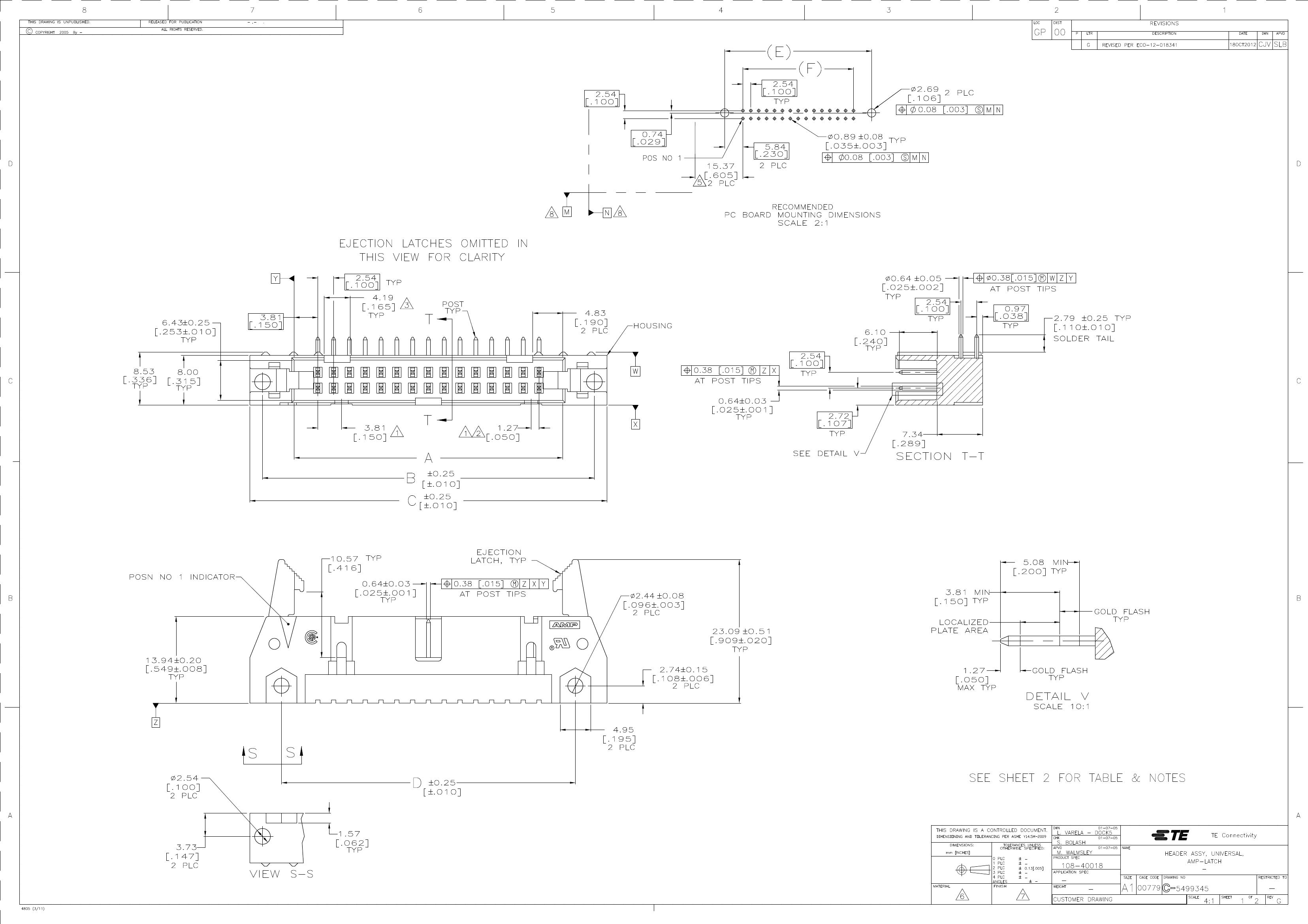

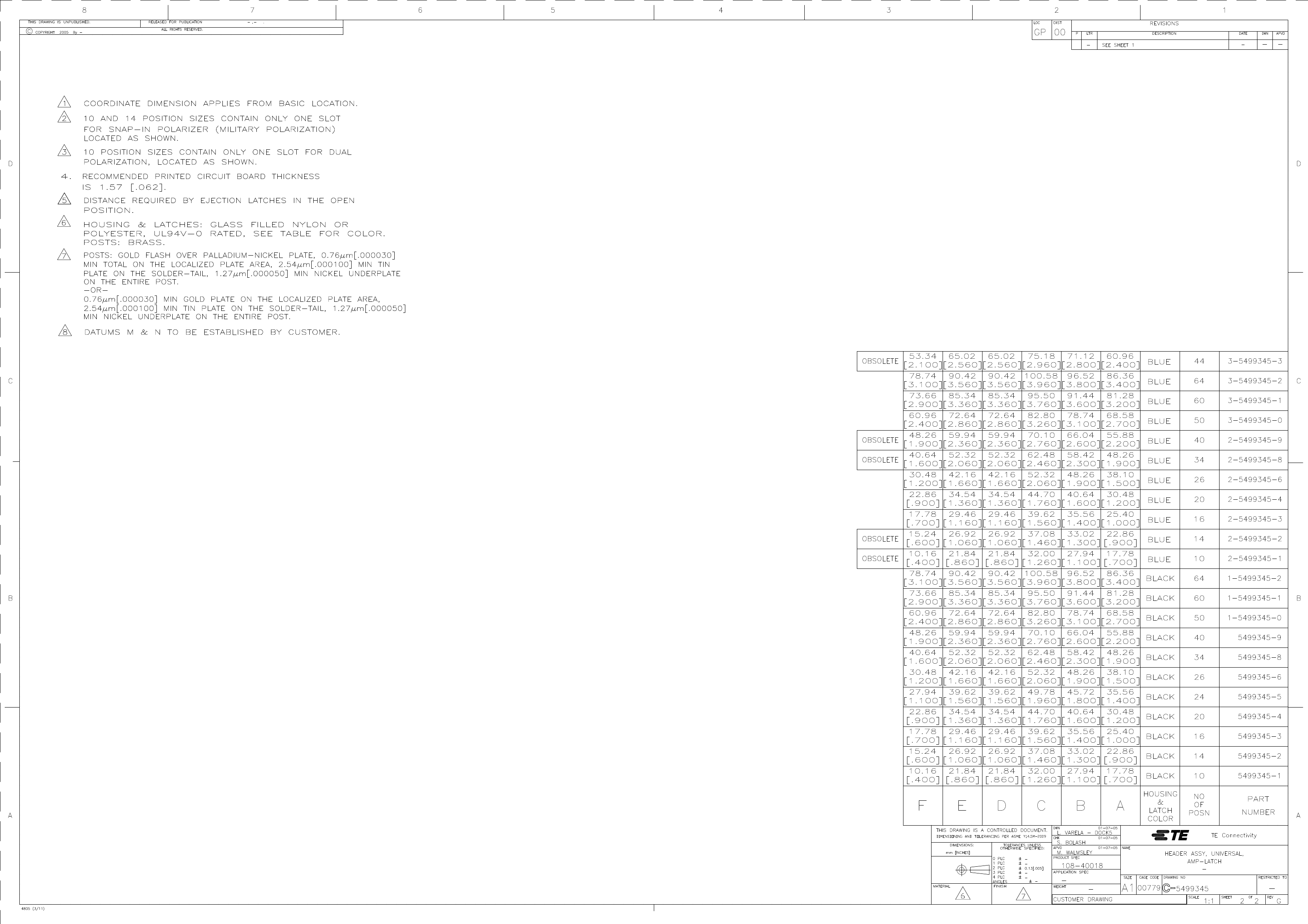

A/L UNIV HDR 20P RA SHT LAT BL

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	7 weeks
Other features	AMP-LATCH
Board mount options	HOLE .099-.111
body width	0.336 inch
subject depth	0.549 inch
body length	1.76 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
MIL compliance	NO
Manufacturer's serial number	5499345
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	NO
Mixed contacts	NO
Installation option 1	LATCH & EJECT
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.11 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	20
Base Number Matches	1
