TD-120-G-A datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> TD-120-G-A

Preview

TD-120-G-A: DescriptionBoard Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, ROHS COMPLIANT; CategoryThe connector The connector; File Size282KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

TD-120-G-A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TD-120-G-A	-	-	View	Buy Now

TD-120-G-A Overview

Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, ROHS COMPLIANT

TD-120-G-A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1613431397
package instruction	ROHS COMPLIANT
Reach Compliance Code	not_compliant
Country Of Origin	Singapore, USA
ECCN code	EAR99
Factory Lead Time	2 weeks
Samacsys Description	Samtec TD Series, 2.54mm Pitch 40 Way 2 Row Straight PCB Header, Solder Termination, 1A
Samacsys Manufacturer	SAMTEC
Samacsys Modified On	2023-03-07 16:10:32
YTEOL	9.1
body width	0.2 inch
body length	2 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (20) OVER NICKEL (50)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	RND PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	TD
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	20u inch
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.156 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	40

Preview

Download Datasheet

View All

REVISION A

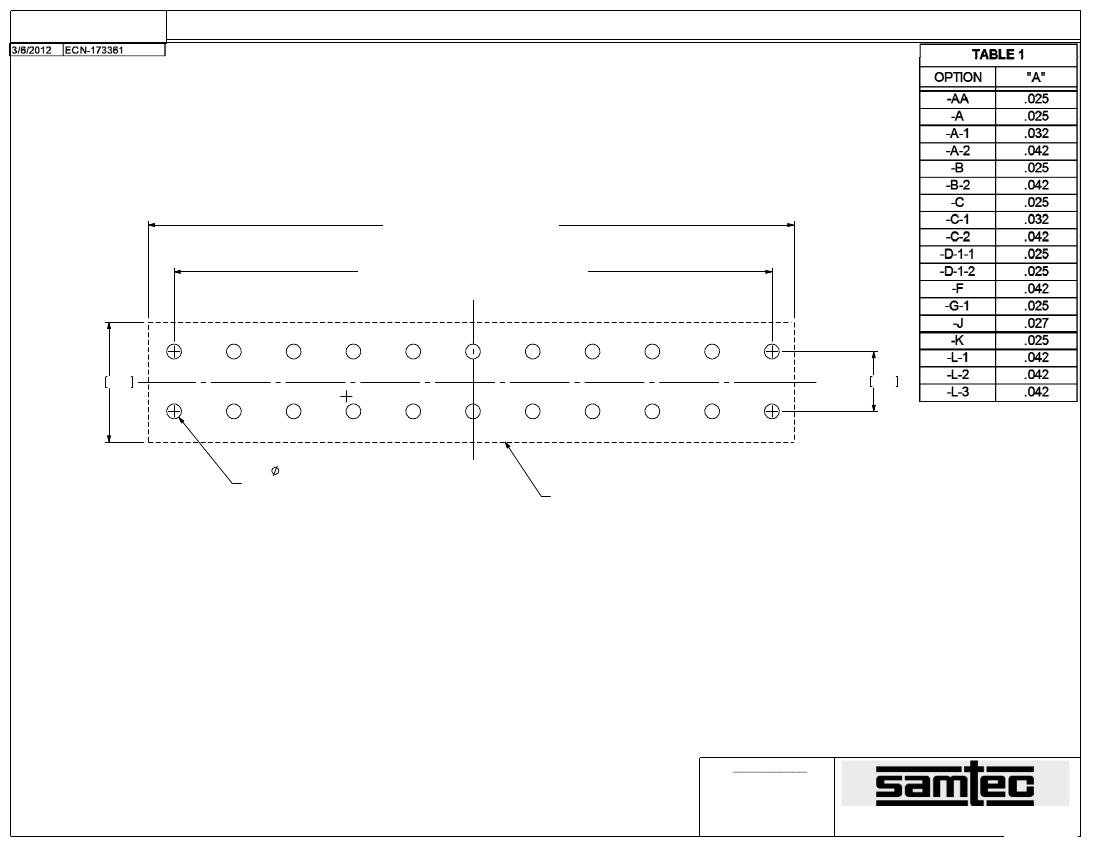

RECOMMENDED PCB LAYOUT FOR TD-1XX-X-X

(NO OF POSITIONS x .100 [2.54])

(NO OF POSITIONS x .100 [2.54] -.100[2.54]

C

L

.200 5.08

C

L

.100 2.54

"A"

(PTH)

(SEE TABLE 1)

CONNECTOR OUTLINE

ALL DIMENSIONS ARE SYMMETRIC ABOUT THE CENTERLINE.

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

F:\DWG\MISC\Mktg\Footprnt\TD-1XX-X-X-FOOTPRINT.SLDDRW

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

code: 55322

e-Mail: info@SAMTEC.com

SHEET

1

OF

1
