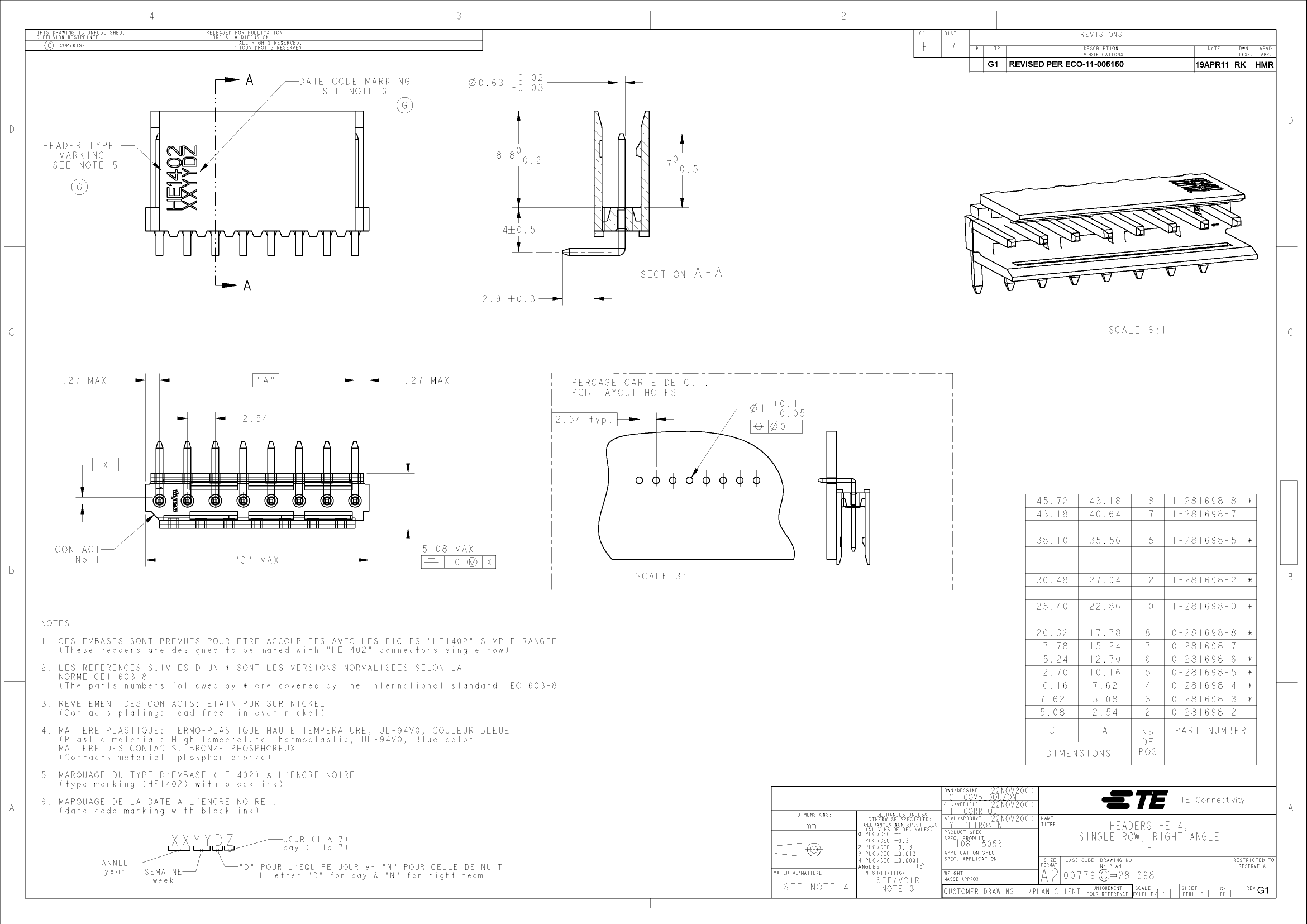

HEADER HE14 RA 6 P
| Parameter Name | Attribute value |
| Brand Name | AMP |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Maker | TE Connectivity |
| Reach Compliance Code | compliant |
| Factory Lead Time | 12 weeks 2 days |
| Samacsys Confidence | |
| Samacsys Status | Released |
| Samacsys PartID | 190424 |
| Samacsys Pin Count | 6 |
| Samacsys Part Category | Connector |
| Samacsys Package Category | Header, Shrouded |
| Samacsys Footprint Name | 281698-6 |
| Samacsys Released Date | 2019-06-28 16:43:40 |
| Is Samacsys | N |
| Other features | AMPMODU |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | TIN |
| Contact completed and terminated | Tin (Sn) |
| Contact point gender | MALE |
| Contact material | PHOSPHOR BRONZE |
| DIN compliance | NO |
| Filter function | NO |
| IEC compliance | NO |
| JESD-609 code | e3 |
| MIL compliance | NO |
| Manufacturer's serial number | 281698 |
| Mixed contacts | NO |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of rows loaded | 1 |
| Options | GENERAL PURPOSE |
| Terminal pitch | 2.54 mm |
| Termination type | SOLDER |
| Total number of contacts | 6 |
| UL Flammability Code | 94V-0 |
| Base Number Matches | 1 |
| 281698-6 | DSC520-04KM2T | DSC6043JL2B-016.0000 | 1-281698-2 | 10118615-529006TLF | 281698-2 | PTN0502H2290BBTP | |
|---|---|---|---|---|---|---|---|
| Description | HEADER HE14 RA 6 P | VIDEO CLOCK GENERATOR | CMOS Output Clock Oscillator, 16MHz Nom | HEADER HE14 RA 12 P | Board Connector, 29 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, | HEADER HE14 RA 2 P | Fixed Resistor, Thin Film, 0.1W, 229ohm, 75V, 0.1% +/-Tol, 50ppm/Cel, Surface Mount, 0502, CHIP |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant | compliant | not_compliant |
| Is it Rohs certified? | conform to | conform to | - | conform to | conform to | conform to | incompatible |
| Other features | AMPMODU | MEMS clock generators | AEC-Q100; ENABLE/DISABLE FUNCTION; TUBE | STANDARD: IEC 603-8 | - | - | ANTI-SULFUR; LASER TRIMMABLE; NON-INDUCTIVE |
| Connector type | BOARD CONNECTOR | - | - | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | - |
| Contact to complete cooperation | TIN | - | - | NOT SPECIFIED | GOLD (30) OVER NICKEL (50) | NOT SPECIFIED | - |
| Contact completed and terminated | Tin (Sn) | - | - | Tin (Sn) | Gold (Au) - with Nickel (Ni) barrier | Tin (Sn) | - |
| Contact point gender | MALE | - | - | MALE | MALE | MALE | - |
| Contact material | PHOSPHOR BRONZE | - | - | PHOSPHOR BRONZE | COPPER ALLOY | NOT SPECIFIED | - |
| DIN compliance | NO | - | - | NO | NO | NO | - |
| Filter function | NO | - | - | NO | NO | NO | - |
| IEC compliance | NO | - | - | YES | NO | NO | - |
| JESD-609 code | e3 | - | - | e3 | e4 | e3 | e0 |
| MIL compliance | NO | - | - | NO | NO | NO | - |
| Mixed contacts | NO | - | - | NO | NO | NO | - |
| Installation method | RIGHT ANGLE | - | - | RIGHT ANGLE | STRAIGHT | RIGHT ANGLE | - |
| Installation type | BOARD | - | - | BOARD | BOARD | BOARD | - |
| Number of rows loaded | 1 | - | - | 1 | 1 | 1 | - |
| Options | GENERAL PURPOSE | - | - | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | - |
| Terminal pitch | 2.54 mm | 0.5 mm | - | 2.54 mm | 2.54 mm | 2.54 mm | - |
| Termination type | SOLDER | - | - | SOLDER | SOLDER | SOLDER | - |
| Total number of contacts | 6 | - | - | 12 | 29 | 2 | - |
| Objectid | - | 4000257746 | 7271711888 | - | 1244760202 | - | 145042389300 |
| package instruction | - | 5 X 3.20 MM, ROHS COMPLIANT, QFN-20 | - | LEAD FREE | - | ROHS COMPLIANT | CHIP |
| YTEOL | - | 6.1 | 6.71 | - | 9.1 | - | 7.9 |
