BL21-45SVTT-018U

Description
Board Connector, 18 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Plug
CategoryThe connector    The connector
File Size110KB,1 Pages
ManufacturerMPE-Garry GmbH
Environmental Compliance
Download Datasheet Parametric View All

BL21-45SVTT-018U Overview

Board Connector, 18 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Plug

BL21-45SVTT-018U Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid304293577
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresROHS COMPLIANT
body width0.138 inch
subject depth0.181 inch
body length0.466 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationSN
Contact completed and terminatedTin (Sn)
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
Dielectric withstand voltage700VAC V
insulator materialTHERMOPLASTIC
JESD-609 codee3
Manufacturer's serial number521
Plug contact pitch0.05 inch
Match contact row spacing0.05 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
PCB contact row spacing3.9116 mm
Rated current (signal)1 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch1.27 mm
Termination typeSURFACE MOUNT
Total number of contacts18
PRODUCT GROUP 8 -
MALE AND FEMALE HEADER 2,00/1,27/1,00/0,80/0,50 mm
FEMALE HEADER „SMD“ 1,27 mm
ID: 322

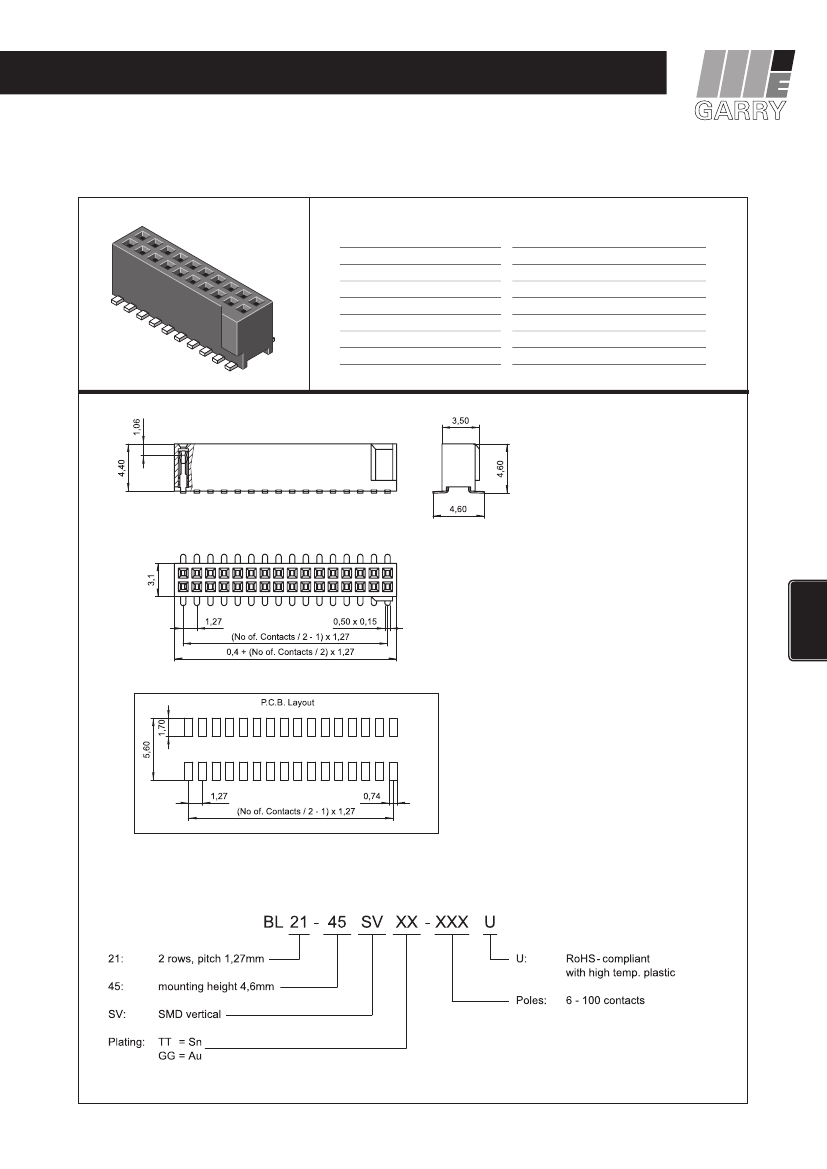

BL 21-45SV
Series 521
TECHNICAL DATA
Pitch
Insulating Material
Contact Material
Rated Current
Rated Voltage
Withstanding Voltage
Operating Temperature
Maximum Soldering Temperature
1,27 mm
high temp. thermoplast UL94V-0
phosphor bronze
1 Amp.
100 V
RMS
/150 V
DC
500 V
AC
for one minute
-40°C to +105°C
260°C for 10 seconds
All dimensions in mm.
Other dimensions upon request.
MPE-Garry GmbH · Schäfflerstraße 13 · 87629 Füssen · Germany · Tel.: +49 (0) 83 62 / 91 56-0 · Fax.: +49 (0) 83 62 / 91 56-520
e-mail: vk@mpe-connector.de · www.mpe-connector.de
239
8
| 1,27 mm
