ECS-260-8-47Q-JTU-TR datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> ECS-260-8-47Q-JTU-TR

ECS-260-8-47Q-JTU-TR: DescriptionParallel - Fundamental Quartz Crystal,; CategoryPassive components Crystal/resonator; File Size771KB，1 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/; Environmental Compliance

Download Datasheet Parametric View All

ECS-260-8-47Q-JTU-TR Overview

Parallel - Fundamental Quartz Crystal,

ECS-260-8-47Q-JTU-TR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7059837574
package instruction	SMD, 4 PIN
Reach Compliance Code	compliant
YTEOL	7.25
Other features	AEC-Q200; TR
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	10 µW
frequency stability	0.002%
frequency tolerance	20 ppm
JESD-609 code	e4
load capacitance	8 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	26 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
physical size	L1.6XB1.2XH0.3 (mm)/L0.063XB0.047XH0.012 (inch)
Series resistance	100 Ω
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

Low profile

1.6 x 1.2 mm Footprint

RoHS Compliant (2011/65/EU)

MSL: 1

Lead Finish: Au

AEC-Q200 Qualified

ECX-1247Q

SMD CRYSTAL

The ECX-1247Q is a very compact SMD Crystal with a

1.6 x 1.2 mm footprint. AEC-Q200 Qualified.

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Frequency Range

Frequency Tolerance

Frequency Stability

Shunt Capacitance

Load Capacitance

Drive Level

Operating Temperature

Storage Temperature

Aging (Per Year)

CONDITIONS

ECX-1247Q

MIN

26.000

TYP

MAX

40.000

± 30 *

± 50 *

UNITS

MHz

ppm

µW

°C

ppm

at +25°C

-40 to +85°C

Specify in P/N

-40

@ +25°C ±3°C

100

+85

+125

±5

EQUIVALENT SERIES RESISTANCE/MODE OF OSCILLATION

FREQUENCY RANGE

(MHz)

MODE OF OSC MAX ESR

Ω

FREQUENCY RANGE

(MHz)

MODE OF OSC MAX ESR

Ω

26.00 ~ 29.999

Fundamental

100

30.000 ~ 40.000

Fundamental

DIMENSIONS (mm)

Pad Connections

In/Out

Gnd

Out/In

Gnd

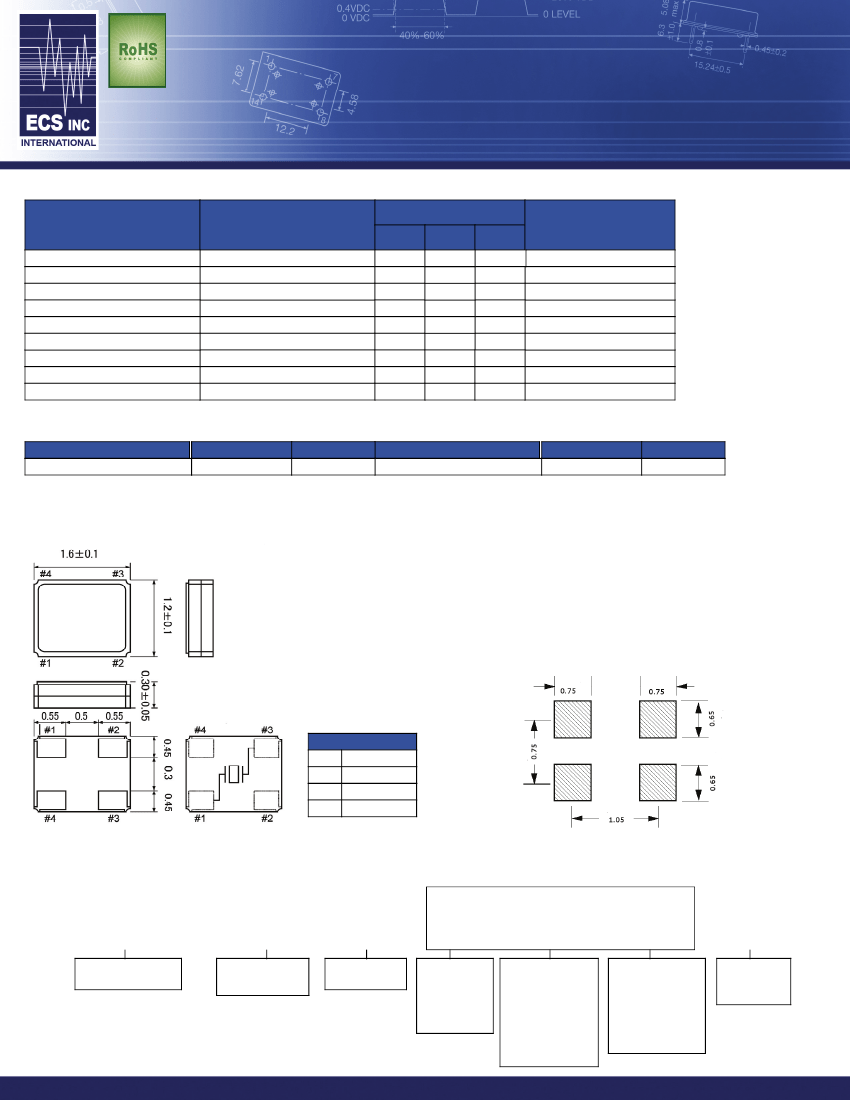

Figure 1) Top, Side, Bottom, End views and

Crystal Connection (Top View)

Figure 2) Suggested Land Pattern

Custom Options

PART NUMBERING GUIDE: Example ECS-260-8-47Q-TR

ECS - Frequency Abbreviation - Load Capacitance - Package

260 = 26.000 MHz

See P/N Guide

8 =8 pF

S=Series

47Q =

ECX-1247Q

Tolerance

Blank = Std

A = ± 25 ppm

J = ± 20 ppm

R = ± 15 ppm

C = ± 10 ppm

* Stability

Blank = Std

D = ± 100 ppm

E = ± 50 ppm

G = ± 30 ppm

H = ± 25 ppm

T = ± 20 ppm

W = ± 15 ppm

K = ± 10 ppm

Temp Range

Blank = Std

L = -10 ~ +70°C

M = -20 ~ +70°C

N = -40 ~ +85°C

P = -40 ~ +105°C

S = -40 ~ +125°C

U = -55 ~ +125°C

- Packaging

TR= Tape

& Reel

3K/Reel

*Consult Factory for available stability

options over extended temp range.

Rev. 5/16

www.ecsxtal.com

1105 South Ridgeview Road

Olathe, KS 66062

Phone: 913.782.7787

Fax: 913.782.6991
