THERMAL SENSORS / CIRCUIT PROTECTORS
TECHNOLOGY OF TOMORROW
CIRCUIT PROTECTORS
DISK TYPE VARISTORS
PEAK CURRENT
NV D_U

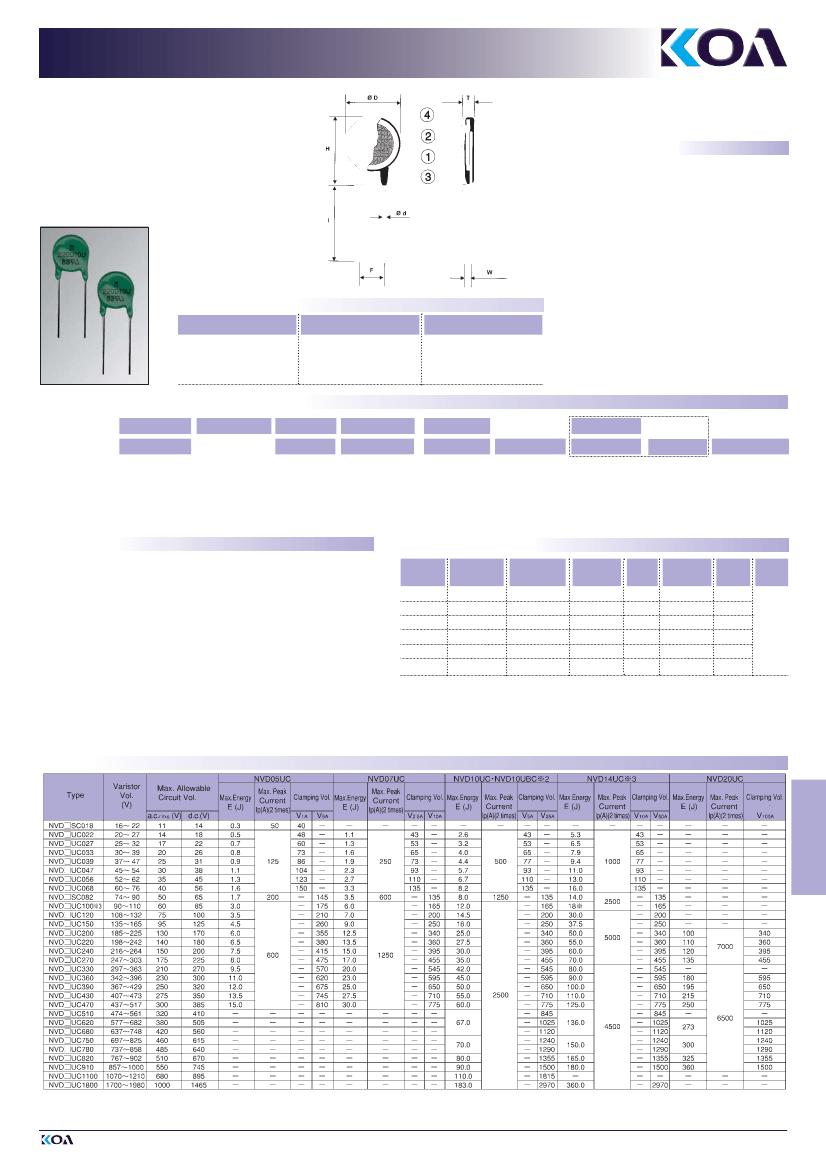

STRUCTURE
1
2
3
4
Disk of zinc oxide grains
Electrodes
Lead wire
Epoxy resin overcoating
(UL94V-0)
IDENTIFICATION
PRODUCT CODE
NV D_U
COATING COLOR
Dark Green
MARKING
Black, Alpha Numeric
(Abbreviation of P/N
and Production Lot No.)
TYPE DESIGNATION (HOW TO ORDER)
Sn/Pb Part No.
Pb-free Part No.
Specifications given herein may be changed at any time without prior notice.
Please confirm technical specifications before you order and/or use.
NV
NV
PRODUCT CODE
270
D
D
10
10
DISC DIAMETER
07 = 7mm
05, 07, 10,
14, 20
UB
UB
U-SERIES
U = Power up
S = Standard
UB = Power up type
(5mm pitch)
TB2
C
TERMINATION
SURFACE
MATERIAL
C: SnCu
*Please see “PACKAGING”
*
A
PACKAGING
A: Ammo
MHT
TAPING &
FORMING
270
VARISTOR
VOLTAGE
VARISTOR
VOLTAGE
DISC TYPE
Unit: V
Below 100V: 3 digits
22V –> 022
Above 100V: real number
1800V –> 1800
‘Blank’: Bulk
Unit: V
Below 100V: 3 digits
22V –> 022
Above 100V: real number
1800V –> 1800
FEATURES
■
Varistors own two-way symmetries and can absorb positive and
negative surges
■
Able to withstand high current and high energy handling capability
■
Wide operating voltage range
■
Ideal for use as countermeasure for inductive lightning surges of
equipment which is connected to DC and AC lines
■
Absorption of surge voltages from inductive load of motors, relays etc.
and protection of semiconductor elements from excessive voltage
■
Flame retardant epoxy resin overcoating (UL94 V-0)
■
Products (82V or over) of this series are recognized
by UL1449 (File No. E79023)
■
Products (200V or over) of this series are recognized
by UL1414 (File No. E123805)
■
Storage temperature range: -40°C…+125°C
■
Operating temperature range: -40°C…+85°C
DIMENSIONS (mm)
TYPE
ø D max.*
(DISK ø)
D 05 U
7 or 7.5
D 07 U
9 or 9.5
D 10 U
12 to 13.5
D 10 UB
12
D 14 U
16 to 17
D 20 U
23 to 24
H max.*
10 or 10.5
12 or 12.5
15 to 16.5
15
20.5 to 21.5
24.5 or 22.5
T max.*
4.3 to 5.9
4.3 to 5.9
4.3 to 14.4
4.3 to 5.3
4.3 to 14.4
5.8 to 10.8
F
5±1
5±1
7.5 ± 1
5±1
7.5 ± 1
10 ± 1
W*
1.4 to 2.4
1.0 to 2.4
1.0 to 1.1
1.0 to 2.3
1.0 to 11.6
2.1 to 5.9
ød
0.6
0.6
0.8
0.6
0.8
1.0
l
30 min.
* Dimensions vary according to the varistor voltage.
RATING
THERMAL SENSORS
CIRCUIT PROTECTORS
■
Enter disc diameter
*
2
Manufacturing range of NVD10UBC is varistor voltages 22…270. *
3
NVD14C100 is applied.
Use the varistor within the specified values as there is a risk of destruction of the varistor when the impulse power over the maximum energy is applied.
EUROPE GmbH • Kaddenbusch 6 • D-25578 Dägeling / ITZEHOE • PHONE: +49 (0) 48 21 / 89 89-0 • FAX: +49 (0) 48 21/ 89 89 89 • Internet: www.koaeurope.de
Revision: 5. Nov. 2004
THERMAL SENSORS / CIRCUIT PROTECTORS
TECHNOLOGY OF TOMORROW
CIRCUIT PROTECTORS,
DISK TYPE VARISTORS, PEAK CURRENT, NV D_U
CHARACTERISTICS (Ta = +25°C)

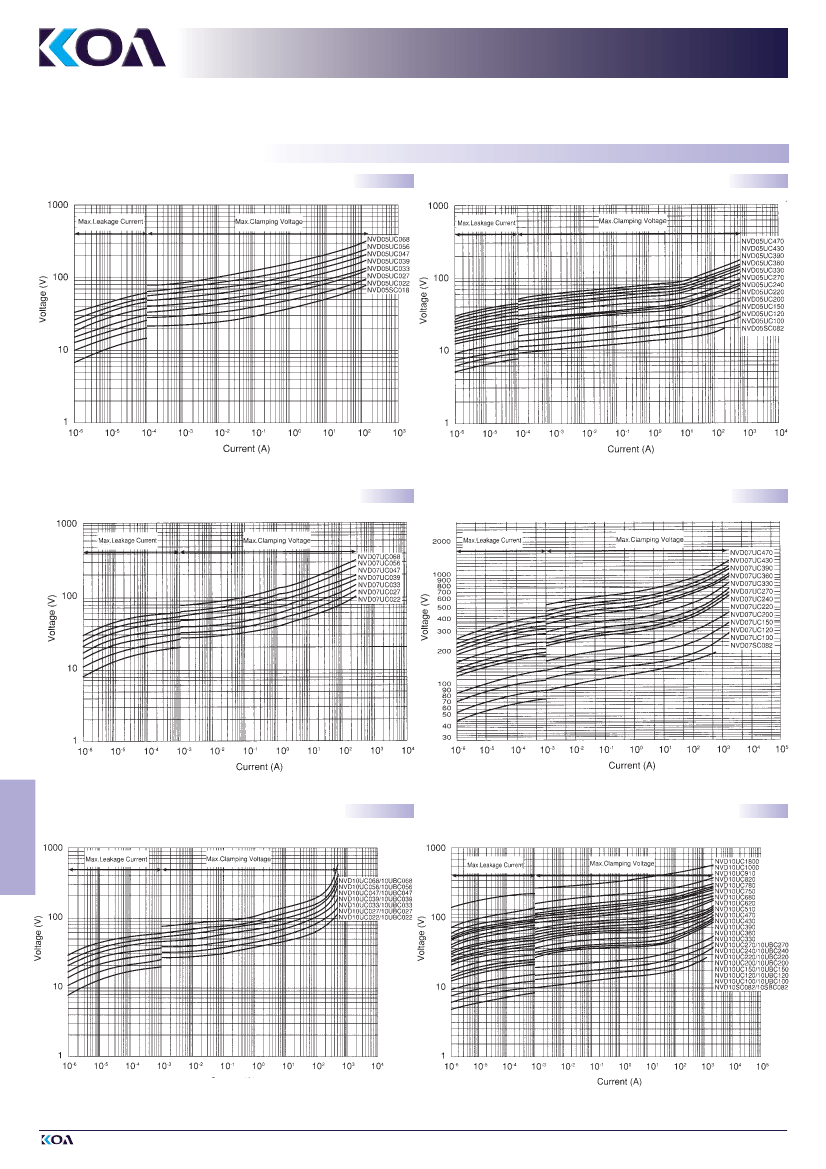

VOLTAGE vs. CURRENT (NVD05: 18V…68V)
VOLTAGE vs. CURRENT (NVD05: 82V…470V)
VOLTAGE vs. CURRENT (NVD07UC: 22V…68V)
VOLTAGE vs. CURRENT (NVD07: 82V…470V)
THERMAL SENSORS
CIRCUIT PROTECTORS
VOLTAGE vs. CURRENT (NVD10U(B):
22V…68V)
VOLTAGE vs.CURRENT (NVD10U(B):
82V…1800V)
EUROPE GmbH • Kaddenbusch 6 • D-25578 Dägeling / ITZEHOE • PHONE: +49 (0) 48 21 / 89 89-0 • FAX: +49 (0) 48 21/ 89 89 89 • Internet: www.koaeurope.de
Revision: 5. Nov. 2004
Specifications given herein may be changed at any time without prior notice.
Please confirm technical specifications before you order and/or use.
THERMAL SENSORS / CIRCUIT PROTECTORS
TECHNOLOGY OF TOMORROW
CIRCUIT PROTECTORS,
DISK TYPE VARISTORS, PEAK CURRENT, NV D_U
CHARACTERISTICS (Ta = +25°C)

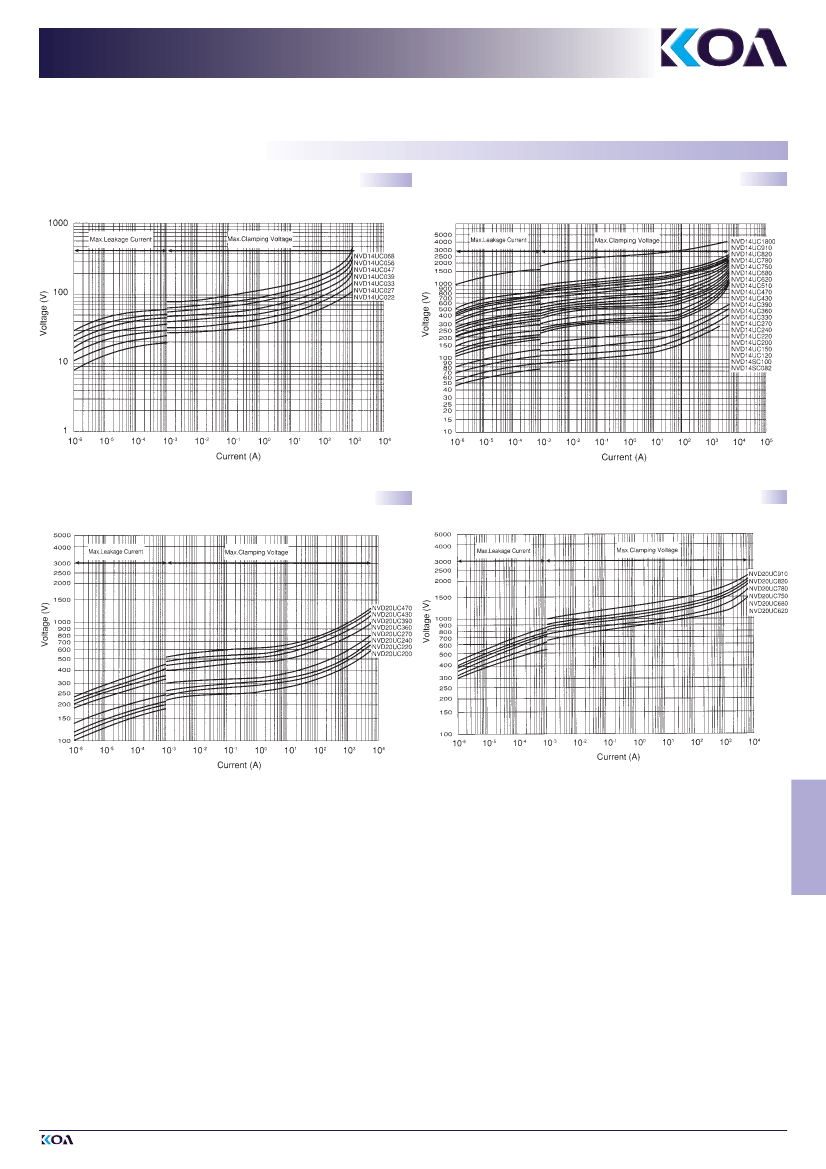

VOLTAGE vs. CURRENT (NVD14UC: 22V…68V)
VOLTAGE vs. CURRENT (NVD14: 82V…1800V)
Specifications given herein may be changed at any time without prior notice.
Please confirm technical specifications before you order and/or use.
VOLTAGE vs. CURRENT (NVD20UC: 200V…470V)
VOLTAGE vs. CURRENT (NVD20UC: 620V…910V)
EUROPE GmbH • Kaddenbusch 6 • D-25578 Dägeling / ITZEHOE • PHONE: +49 (0) 48 21 / 89 89-0 • FAX: +49 (0) 48 21/ 89 89 89 • Internet: www.koaeurope.de
Revision: 5. Nov. 2004
