1-1734829-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 1-1734829-4

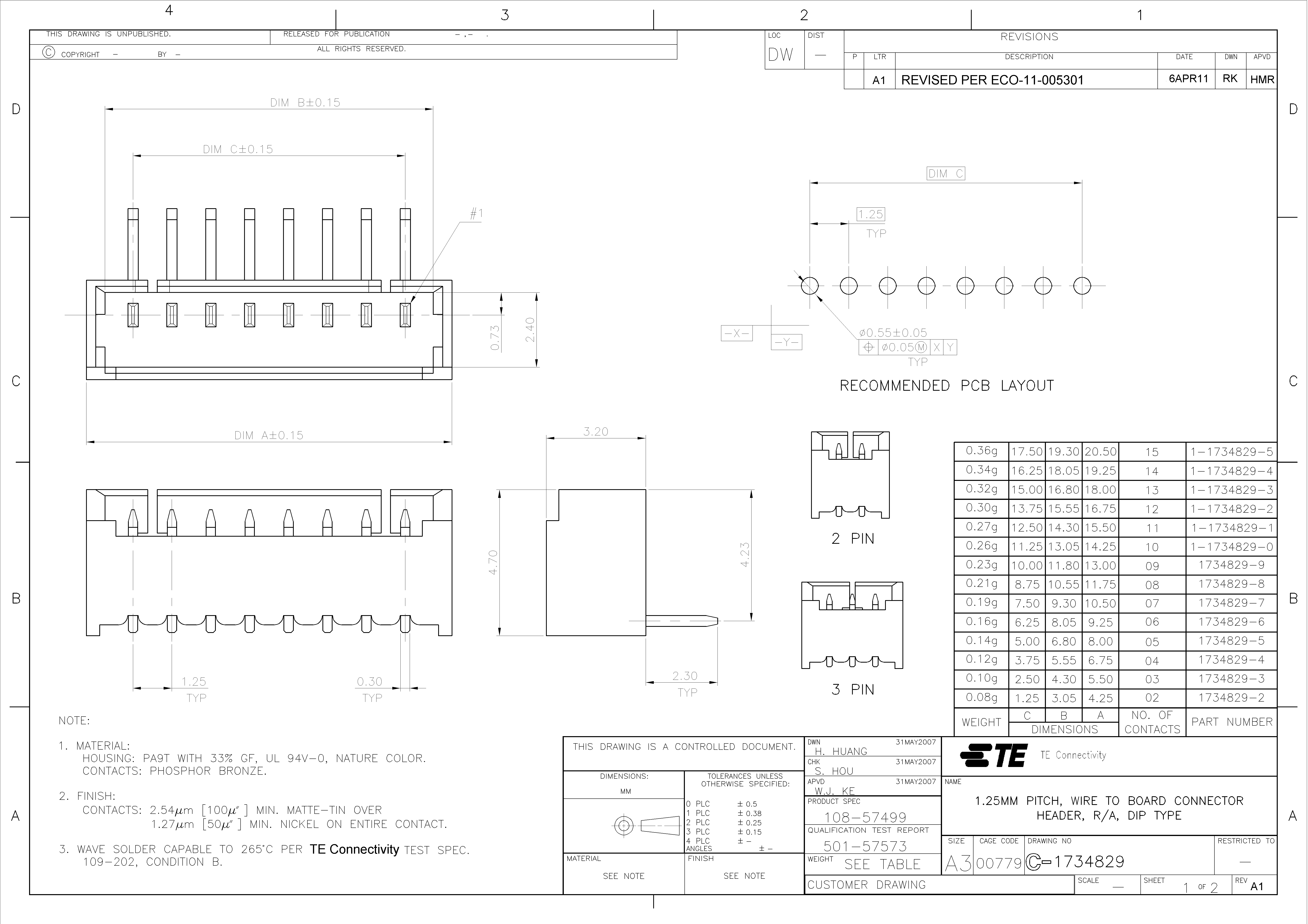

1-1734829-4: Description1.25 WTB HDR DIP, 14 POS; CategoryThe connector; File Size135KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

1-1734829-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1-1734829-4	-	-	View	Buy Now

1-1734829-4 Overview

1.25 WTB HDR DIP, 14 POS

1-1734829-4 Parametric

Parameter Name	Attribute value
PCB Connector Component Types	PCB mounting header
Connector System	wire to board
Connector type	Partially hooded
Sealable	no
Connectors and terminals terminate to	A printed circuit board
stress relief	Without
Cable type	Separate conductor
Connector terminal load status	Fully loaded
PCB mounting direction	right angle
Number of Positions	14
Rows	1
Backwall/Post Interruptions	Withou
Operating voltage (VDC)	125
Operating voltage (VAC)	125
Terminal base material	Phosphor bronze
PCB terminal termination area plating materials	tin
Terminal contact plating material	Nickel base tin plating
Terminal contact part plating material surface coating	matte
Terminal type	Pin
Contact Current Rating (Max) (A)	.8
PCB terminal termination area plating materials	tin
PCB terminal termination area plating material surface coating	matte
PCB terminal termination area plating thickness	2.54 µm [ 100 µin ]
Terminal layout	Direct plug-in
PCB Termination Methods	Through hole
Termination cylinder length	.091 in, 2.3 mm
PCB installation method	Through hole
PCB mounting alignment	Without
joint fixation	Without
PCB installation and fixation	Without
Connector mounting type	board mounting
Terminal positioning force	Without
Centerline (Pitch)	1.25 mm [ .049 in ]
Shell color	nature
Shell material	PA 9T GF
length	19.25 mm [ .7579 in ]
high	3.2 mm [ .126 in ]
tail length	2.3 mm [ .091 in ]
width	4.7 mm [ .185 in ]
Cable size (AWG)	32 – 26
Working group temperature range	-25 – 85 °C [ -13 – 185 °F ]
pick and place cover	Without
Applicable to	440146-x
UL flammability rating	UL 94V-0

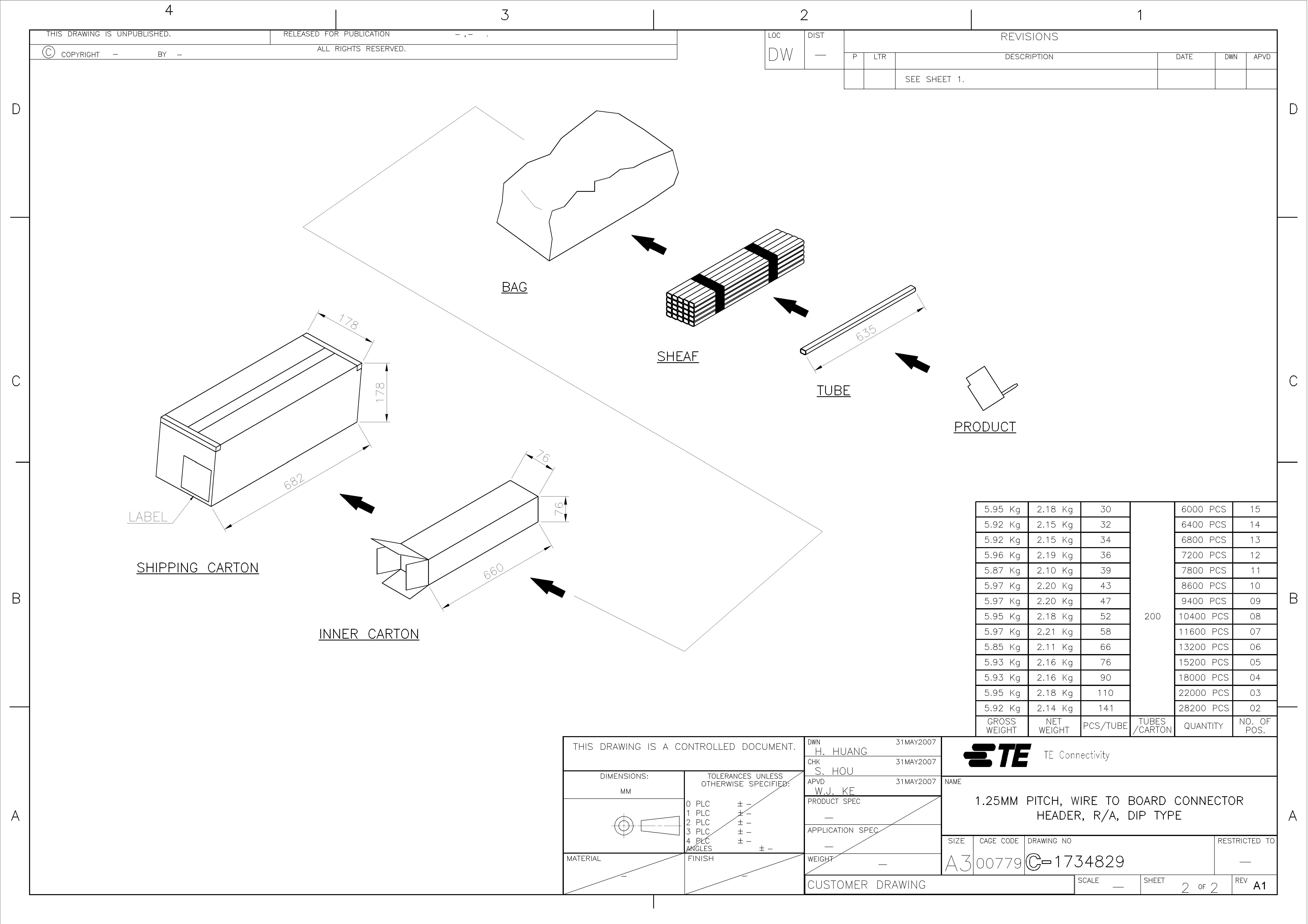

Encapsulation method	tube, tube/box
Package quantity	32
