GRPB462MWCN-RC: Descriptionconn header .050" 92pos; CategoryThe connector The connector; File Size261KB，1 Pages; ManufacturerSullins Connector Solutions

Download Datasheet Parametric View All

GRPB462MWCN-RC Overview

conn header .050" 92pos

GRPB462MWCN-RC Parametric

Parameter Name	Attribute value
Maker	Sullins Connector Solutions
Reach Compliance Code	compli
body width	0.134 inch
subject depth	0.115 inch
body length	2.3 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
insulator material	NYLON
Manufacturer's serial number	GRP
Plug contact pitch	0.05 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.098 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	92

Preview

Download Datasheet

View All

8

7

6

5

4

3

2

1

REVISIONS

REV.

A

B

F

ECO. NO

1555

1660

1871

DESCRIPTION

INITIAL RELEASE

ADD TOLERANCE TO TABLE

UPDATE POSITION TABLE, TEXT & TOLERANCE

BLOCK

DATE

12/06/07

04/15/08

2/2/2009

BY

ASK

JH

F

C

E

B

E

.134 3.40

D

A

.098 2.50

.050 1.27

.065 1.65

.039 1.00

C

.118 3.00

.050 1.27

.016 0.40

.050 1.27

01-20, 0.20mm MAX.

21-50, 0.30mm MAX.

A

C

B

.050 1.27

NOTES:

1. INSULATOR MATERIAL: NYLON 9T.

*PROCESSING TEMPERATURE = 260° C FOR 10 SEC.

2. CONTACT MATERIAL: BRASS.

3. PLATING: GOLD FLASH OVERALL.

4. OPERATING TEMPERATURE: -40°C TO +105° C.

5. INSULATION RESISTANCE: 5000 MEGA OHM MIN.

6. CONTACT RESISTANCE: 20 MILLI OHM MAX.

7. DIELECTRIC WITHSTANDING: AC 500V.

8. UL FLAMMABILITY RATING: 94V-0.

9. CURRENT RATING: 1 AMP.

*INDICATED TEMPERATURE AND TIME IS FOR COMPONENT

INSULATOR. HIGHER PROCESSING TEMPERATURES MAY BE USED,

PROVIDED HEAT IS APPLIED FROM BACK SIDE OF PCB, AND INSULATOR

DOES NOT EXCEED INDICATED TEMPERATURE AND TIME.

8

7

6

5

B

.050 1.27

.028±.002 0.70±0.05

RECOMMENDED PCB HOLE LAYOUT

A

Pb

R

oHS COMPLIANT

4

DIMENSIONS ARE IN INCHES[MM]

TOLERANCES:

ANGULAR:

.XX= .012 [.30]

.XXX= .008 [.20]

.XXXX= .004 [.10]

SURFACE FINISH: 63 Ra

UNLESS OTHERWISE SPECIFIED:

DRAWN

DATE

NAME

12/08/08

JH

REMOVE ALL BURRS AND SHARP EDGES .010 MAX

THE INFORMATION HEREIN CONTAINS

PROPIETARY INFORMATION OF

SULLINS ELECTRONICS AND IS NOT

DESCRIPTION

TO BE REPRODUCED, USED OR

DISCLOSED TO OTHERS FOR ANY

PURPOSE EXCEPT AS SPECIFICALLY

PART NUMBER

AUTHORIZED IN WRITING BY AN

OFFICER OF SULLINS ELECTRONICS.

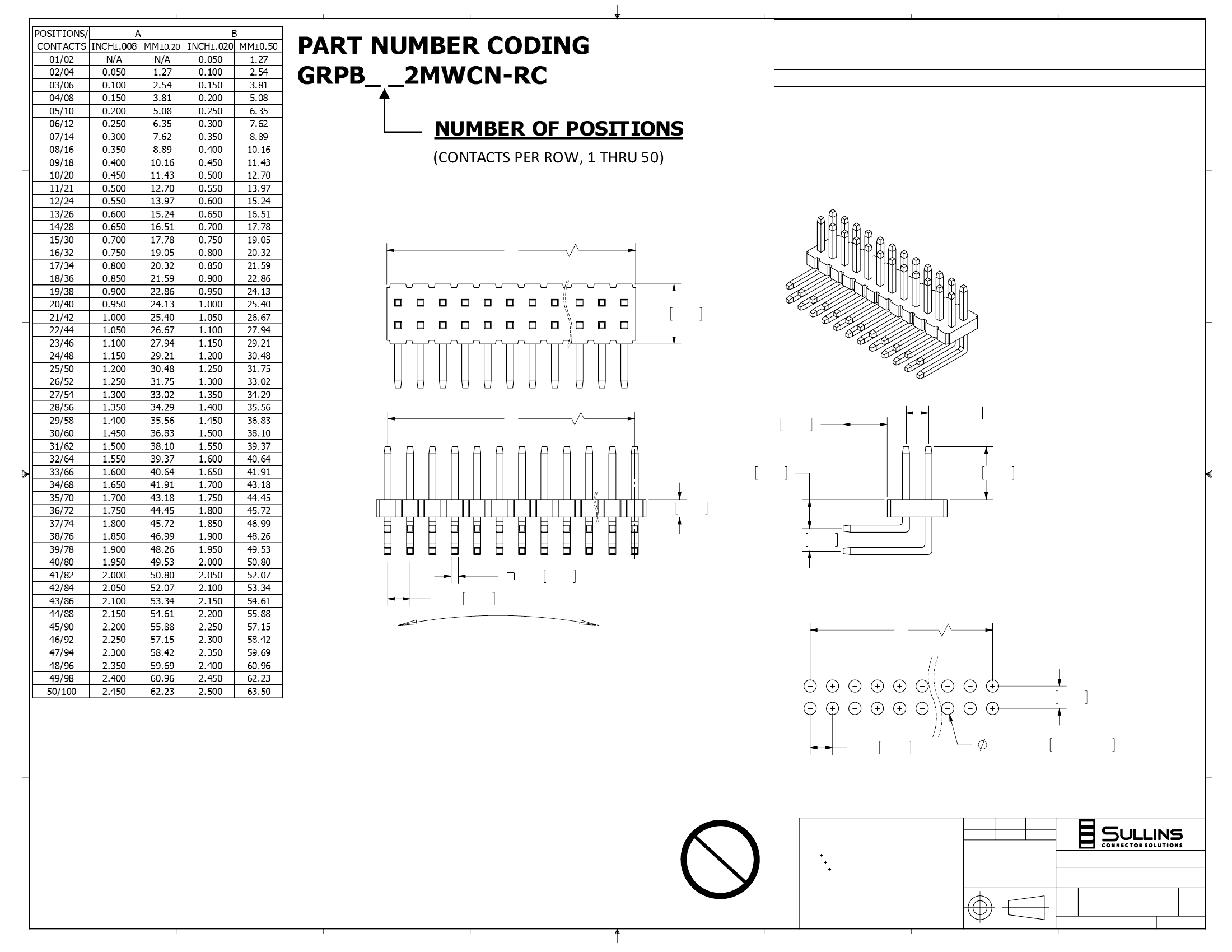

.050" DUAL ROW MALE HEADER, RA

A

GRPB_ _2MWCN-RC-RC

SIZE DWG. NO.

INTERPRET DIMENSIONS AND GEOMETRIC

TOLERANCING

PER: ANSI Y14.5M-1994

3

2

SCALE: 8:1

1

C

REV

11020

C

SHEET 1 OF 1

FILE NAME: Z:\COMPONENTS\Taiwan\11020, GRPB_ _2MWCN-RC PRINT: 2/2/2009
