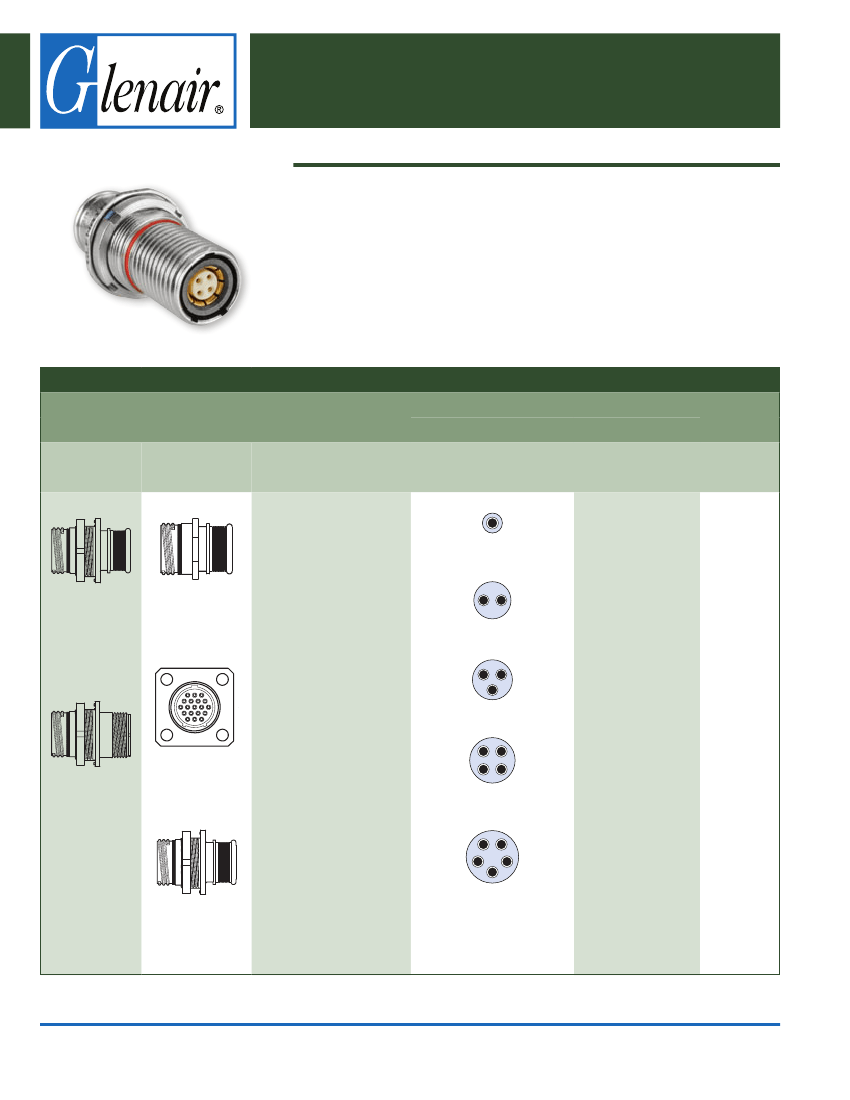

Sr. 801 Receptacles
Mighty Mouse Connectors with Size #8 Quadrax,
Twinax, Coax or Power Contacts
Series 801 Receptacles
SERIES 801 RECEPTACLE CONNECTORS WITH SIZE #8 CONTACTS
New Mighty Mouse contact arrangements accept size #8 contacts for power, Ethernet or high
frequency coax applications. Series 801 Mighty Mouse receptacles feature damage-resistant
double-start ACME mating threads. Available for rear panel jam nut mounting, in-line or square
flange styles, these receptacles are supplied with power contacts (contact types P or S). Or, specify
contact types A or B for connectors supplied less power contacts for use with quadrax, twinax
or coax contacts purchased separately. Contacts are crimp type and are snap-in, rear-release
with plastic extraction tool sold separately. Aluminum or stainless steel shell, thermoplastic
insulators, fluorosilicone rubber seals.
Optional wire sealing boot is recommended. See boot ordering information on page 9.
How to Order
Sample Part Number
801-010
Series
-02
Shell Style
Z1
Shell Material / Finish
17-3
Shell Size- Insert
Arrangement
P
Contact Type
Connector supplied
with size #8 power
contacts
Pin, with #8 power
contacts
A
Shell Key
Position
A
Aluminum / Electroless
Nickel
RoHS Compliant
M
8-1
Normal
Alternate
Key
Positions:
P
S
Receptacle
with Banding
Platform
801-009
For Free-Hanging
Cables
In-Line
-01
Aluminum / Cadmium with
Olive Drab Chromate
Aluminum / Zinc-Nickel
with Non-Reflective Black
Chromate
RoHS Compliant
Aluminum / Nickel-PTFE
RoHS Compliant
Stainless Steel /
Passivated
RoHS Compliant
NF
ZR
16-2
Socket, with #8
power contacts
Connector
supplied without
contacts. (Order
quadrax, twinax
or coax contacts
separately.)
Pin connector, less
contacts
Socket connector,
less contacts
C
D
E
F
B
17-3
MT
Receptacle
with Accessory
Thread
801-010
For Front or Rear
Mounting
Square Flange
-02
Z1
19-4
A
B
For Rear Panel
Mounting
Jam Nut
-07
21-5
© 2012 Glenair, Inc.
Dimensions in inches (millimeters) and are subject to change without notice.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com
6
E-Mail: sales@glenair.com
Mighty Mouse Connectors with Size #8 Quadrax,
Twinax, Coax or Power Contacts
Series 801 Receptacles

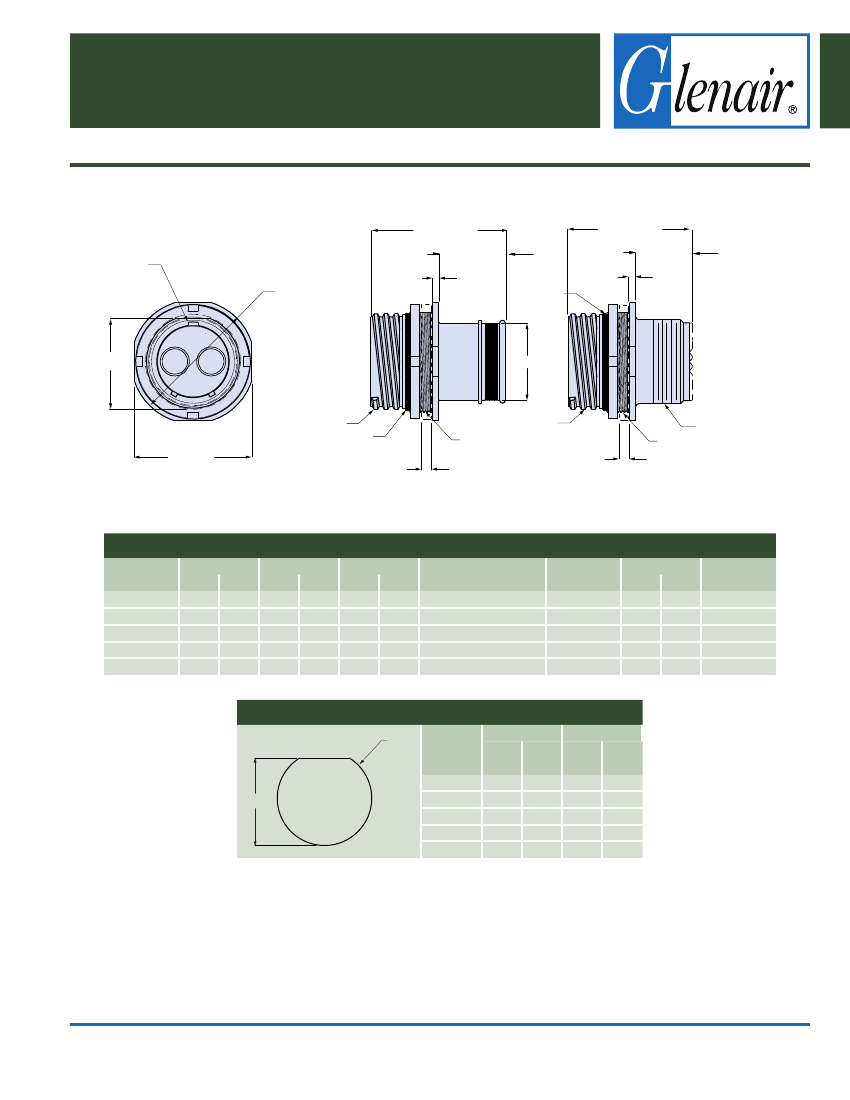

SERIES 801 JAM NUT RECEPTACLES
1.295 (32.89)
1.400 (35.56)
MAX
MAX
.530 (13.46)
MAX
.060 (1.5)
.060 (1.5)
RED FULL MATE
INDICATOR BAND
MASTER
KEYWAY
.400 (10.16)
MAX
øA
1 2
B FLAT
øF
C FLAT
D THREAD
RED FULL MATE
INDICATOR BAND
.100(2.54) MAX
PANEL THICKNESS
D THREAD
E THREAD
G THREAD
E THREAD
.100(2.54) MAX
PANEL THICKNESS
801-010-07
WITH ACCESSORY
ATTACHMENT THREAD
801-009-07
WITH BAND PLATFORM
Dimensions
Shell Size-
Arr.
8-1
16-2
17-3
19-4
21-5
ØA
In.
mm.
.755
1.264
1.325
1.450
1.625
19.77
B Flat
In.
mm.
.536
13.61
C Flat
In.
mm.
.723
18.36
D
Thread
.5000-.05P-.1L-DS-2A
E Thread
UN-2A
.5625-32
1.0625-20
1.125-28
1.250-28
1.375-28
ØF
In.
mm.
.445
.805
.850
.956
1.110
11.30
G Thread
UNEF-2A
.5000-28
32.11 1.022
33.66 1.096
36.83 1.225
41.28 1.345
25.96 1.230
27.84 1.290
31.12 1.415
34.16
1.577
31.24 1.000-.1P-.2L-DS-2A
32.77 1.0625-.1P-.2L-DS-2A
35.94 1.1875-.1P-.2L-DS-2A
40.06 1.3125-.1P-.2L-DS-2A
20.45
.9375-20
21.59
.9375-20
24.28 1.0625-18
28.19
1.1875-18
Jam Nut Panel Cutout
ØB
Shell
Size
8
16
17
19
A Flat
.542
1.028
1.102
1.233
1.354
13.77
26.11
27.99
31.32
34.39
ØB
.573
1.075
1.135
1.260
1.385
14.55
27.31
28.83
32.00
35.18
In.
mm.
In.
mm.
± .002 ± 0.05 ± .002 ± 0.05
A
21
© 2012 Glenair, Inc.
Dimensions in inches (millimeters) and are subject to change without notice.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com
7
E-Mail: sales@glenair.com
Sr. 801 Receptacles
Sr. 801 Receptacles
16-2 ARRANGEMENT
SHOWN FOR REFERENCE
B BSC
TYP
ØC
Mighty Mouse Connectors with Size #8 Quadrax,
Twinax, Coax or Power Contacts
Series 801 Receptacles

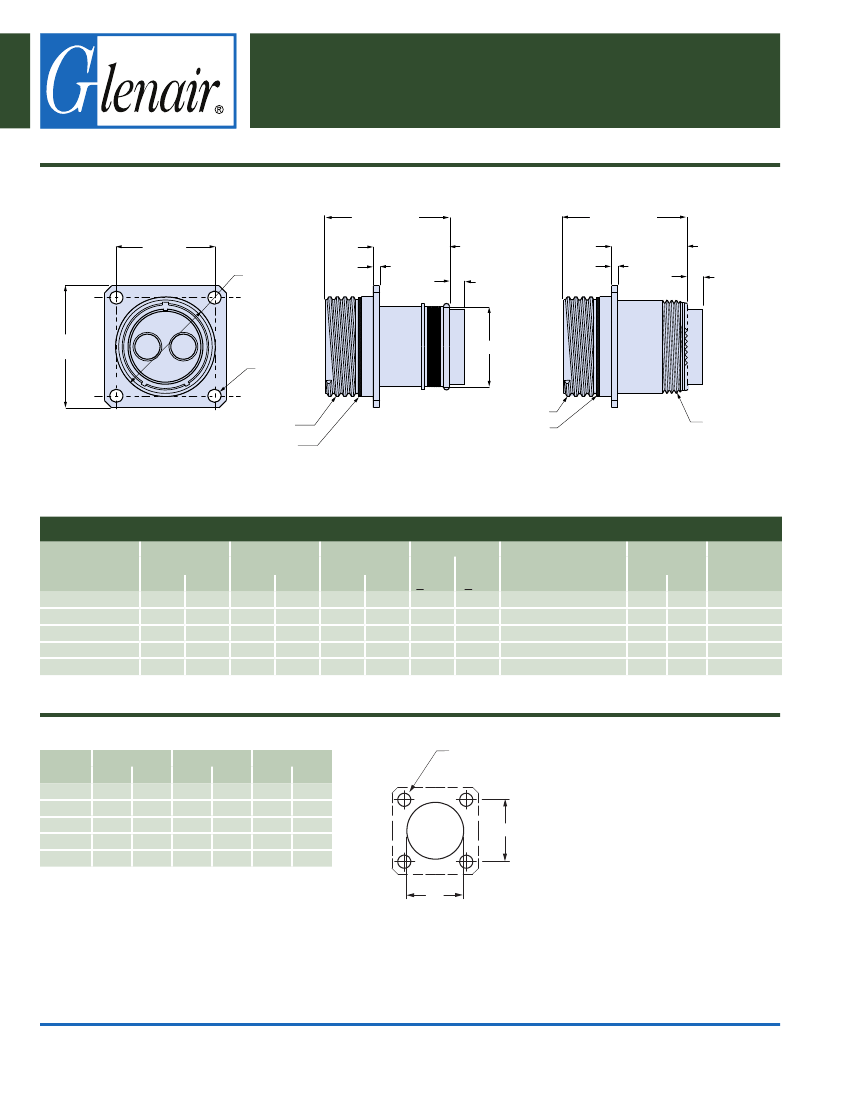

SERIES 801 SQUARE FLANGE RECEPTACLES
1.240 (31.50)
MAX
.530 (13.5) MAX
.060 (1.50)
.150 (3.81)
MAX
.060 (1.50)
1.240 (31.50)
MAX
.400 (10.16)
MAX
.150 (3.81)
MAX
A SQ
TYP
1 2
ØD
4 PLCS
øF
E THREAD
RED FULL MATE
INDICATOR BAND
E THREAD
RED FULL MATE
INDICATOR BAND
801-009-02
WITH BAND PLATFORM
801-010-02
WITH ACCESSORY
ATTACHMENT THREAD
G THREAD
Dimensions
Shell Size-
Arr.
8-1
16-2
17-3
19-4
21-5
A
In.
.712
1.219
1.280
1.432
1.430
mm.
18.08
30.96
32.51
36.37
36.32
B BSC
In.
mm.
.545
.981
1.060
1.191
1.205
13.84
24.92
26.92
30.25
30.61
ØC
In.
mm.
.938
1.625
1.700
1.900
1.938
23.83
41.28
43.18
48.26
49.23
ØD
In.
mm.
+.003 +.08
.093
.128
.128
.128
.128
2.36
3.25
3.25
3.25
3.25
E
Thread
.5000-.05P-.1L-DS-2A
1.000-.1P-.2L-DS-2A
1.0625-.1P-.2L-DS-2A
1.1875-.1P-.2L-DS-2A
1.3125-.1P-.2L-DS-2A
ØF
In.
mm.
.445
.805
.850
.956
1.110
11.30
G Thread
UNEF-2A
.5000-28
20.45
.9375-20
21.59
.9375-20
24.28 1.0625-18
28.19
1.1875-18
SQUARE FLANGE PANEL CUTOUT
Shell
Size
8
16
17
19
21
In
ØA
mm.
13.08
In
B
mm.
13.84
24.92
26.92
30.25
30.61
In
ØC
ø C ± .003 (0.08)
2.36
3.25
3.25
3.25
3.25
mm.
.515
1.015
1.078
1.203
1.325
.545
.093
.128
.128
.128
.128
25.78
.981
27.38 1.060
30.56 1.191
33.66 1.205
B BSC
øA
© 2012 Glenair, Inc.
Dimensions in inches (millimeters) and are subject to change without notice.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com
8
E-Mail: sales@glenair.com
Mighty Mouse Connectors with Size #8 Quadrax,
Twinax, Coax or Power Contacts
Series 801 Receptacles

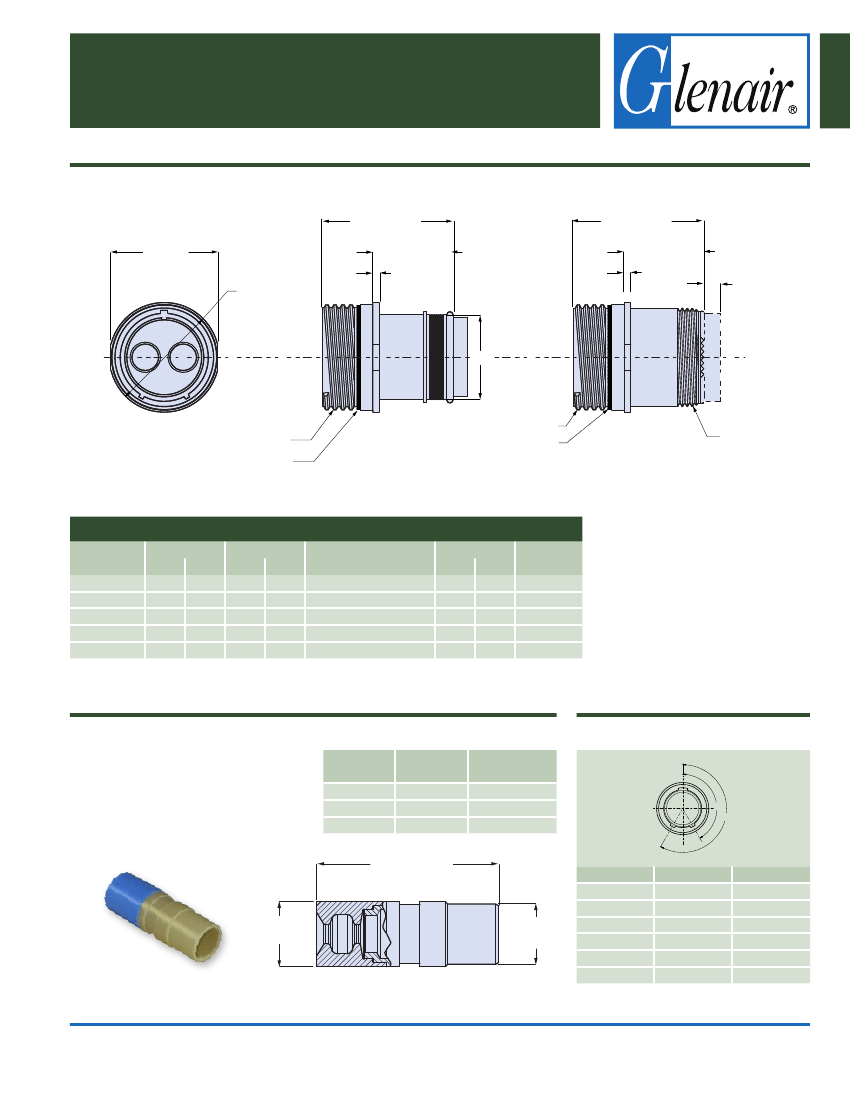

SERIES 801 IN-LINE RECEPTACLES
16-2 ARRANGEMENT
SHOWN FOR REFERENCE
B FLAT
1.240 (31.50)
MAX
.530 (13.5) MAX
.060 (1.50)
ØA
1.240 (31.50)
MAX
.060 (1.50)
.400 (10.16)
MAX
.150 (3.81)
MAX
1 2
øD
C THREAD
RED FULL MATE
INDICATOR BAND
E THREAD
RED FULL MATE
INDICATOR BAND
801-009-01
WITH BAND PLATFORM
801-010-01
WITH ACCESSORY
ATTACHMENT THREAD
E THREAD
Dimensions
Shell Size-
Arr.
8-1
16-2
17-3
19-4
21-5
ØA
In.
mm.
.540
1.040
1.110
1.243
1.405
13.72
B Flat
In.
mm.
.510
12.95
C
Thread
.5000-.05P-.1L-DS-2A
ØD
In.
mm.
.445
.805
.850
.956
1.110
11.30
E Thread
UNEF-2A
.5000-28
26.42 1.010
28.19 1.070
31.57 1.191
35.69 1.385
25.65 1.000-.1P-.2L-DS-2A
27.18 1.0625-.1P-.2L-DS-2A
30.25 1.1875-.1P-.2L-DS-2A
35.18
1.3125-.1P-.2L-DS-2A
20.45
.9375-20
21.59
.9375-20
24.28 1.0625-18
28.19
1.1875-18
SEALING BOOT
Sealing boot provides wire seal. Slide boot
onto wire before terminating contact. After
contact is installed in connector, slide boot
forward into connector grommet to seal
the contact cavity. "F" suffix on contact part
number specifies contact supplied with boot.
See table for wire size.
Wire Dia.
(in.)
.090 - .130
.130 - .170
.170 - .205
RECEPTACLE KEY POSITIONS
Wire Dia.
(mm.)
2.3 - 3.3
3.3 - 4.3
4.3 - 5.2
Part Number
859-042-01
859-042-02
859-042-03
A°
B°
.985 (25.02)
MAX
.326
(8.28)
Position
A
B
C
D
E
F
.350
(8.89)
150°
75°
95°
140°
75°
95°
A°
210°
210°
230°
275°
275°
210°
Printed in U.S.A.
B°
© 2012 Glenair, Inc.
Dimensions in inches (millimeters) and are subject to change without notice.
CAGE Code 06324
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com
9
E-Mail: sales@glenair.com
Sr. 801 Receptacles
