280389-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 280389-2

280389-2: Description2X4P MODU II SHRD HDR,RT ANG,0.38AU; CategoryThe connector The connector; File Size251KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

280389-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	280389-2	-	-	View	Buy Now

280389-2 Overview

2X4P MODU II SHRD HDR,RT ANG,0.38AU

280389-2 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	11 weeks
Other features	AMPMODU, SHROUDED
body width	0.276 inch
subject depth	0.685 inch
body length	0.5 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (15)
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1050VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED THERMOPLASTIC
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	16u inch
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.138 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	8
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

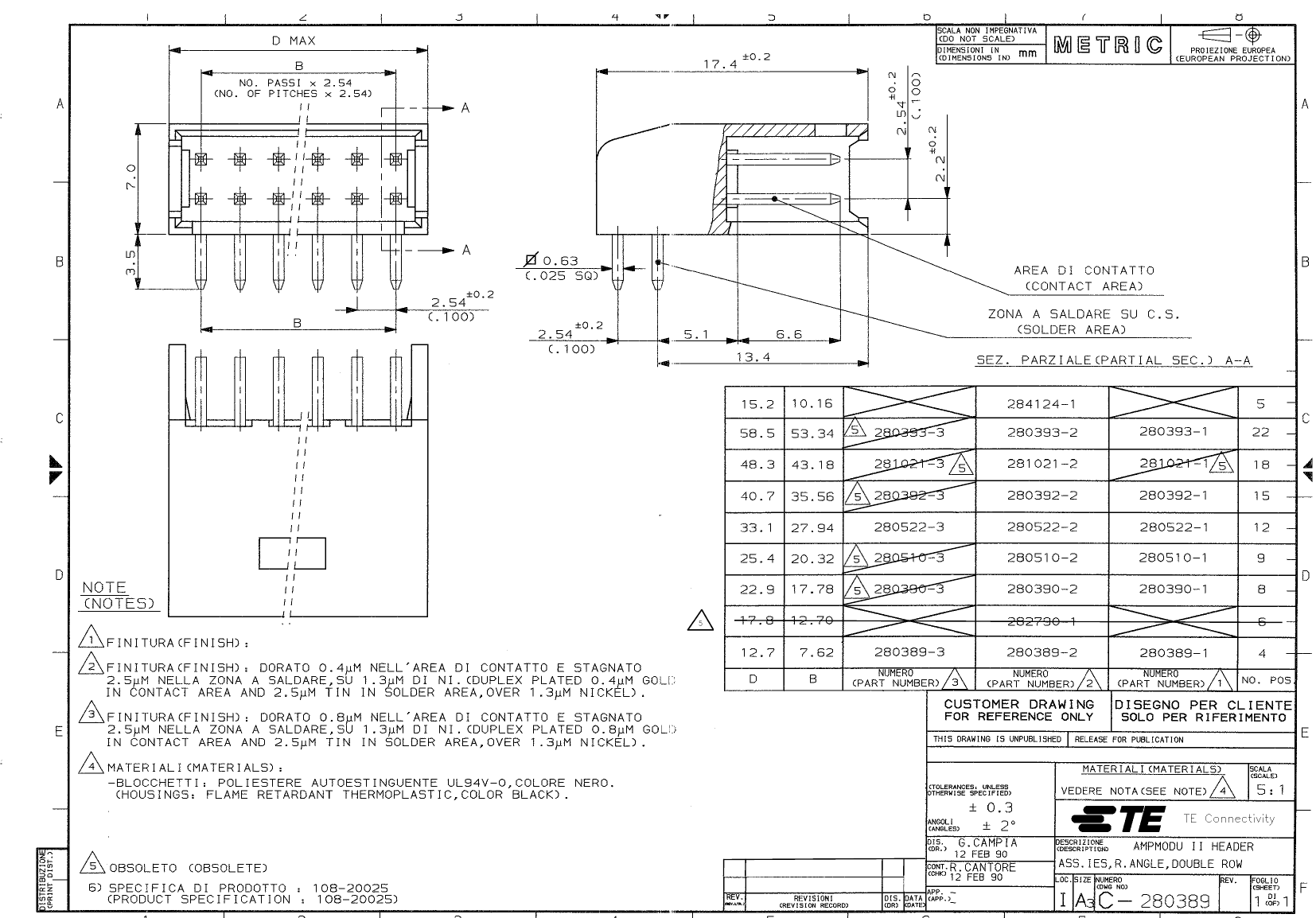

3-5µm TIN OVER 1.27µm NICKEL

TIN AND GOLD PLATED CONTACTS: BRASS

AC3

NOTE 1 UPDATED TO ADD NICKEL

UNDERLAYER

KJK

22AUG

2016

AC1

AC3

280389-2 Related Products

	280389-2	280522-1	280522-2	280390-1	280390-2	280389-3
Description	2X4P MODU II SHRD HDR,RT ANG,0.38AU	2X12P MODU II SHRD HDR, RT ANG,TIN	2X12P MODU II SHRD HDR, RT ANG,AU	2X8P MODU II SHRD HDR, RT ANG,TIN	2X8P MODU II SHRD HDR,RT ANG,0.38AU	2X4P MODU II SHRD HDR,RT ANG,0.76AU
Brand Name	AMP	AMP	AMP	AMP	AMP	AMP
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compli	compli	compli	compli	compliant	compliant
Factory Lead Time	11 weeks	34 weeks	34 weeks	30 weeks 5 days	30 weeks 5 days	20 weeks 5 days
body width	0.276 inch	0.276 inch	0.276 inch	0.276 inch	0.276 inch	0.276 inch
subject depth	0.685 inch	0.685 inch	0.685 inch	0.685 inch	0.685 inch	0.685 inch
body length	0.5 inch	1.303 inch	1.303 inch	0.902 inch	0.902 inch	0.5 inch
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (15)	TIN	NOT SPECIFIED	TIN	GOLD (15)	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	BRASS	PHOSPHOR BRONZE	BRASS	PHOSPHOR BRONZE	BRASS	BRASS
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO	NO	NO	NO	NO
Dielectric withstand voltage	1050VAC V	1050VAC V	1050VAC V	1050VAC V	1050VAC V	1050VAC V
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	GLASS FILLED THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	GLASS FILLED THERMOPLASTIC
MIL compliance	NO	NO	NO	NO	NO	NO
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Plating thickness	16u inch	138u inch	16u inch	138u inch	16u inch	31u inch
Rated current (signal)	3 A	3 A	3 A	3 A	3 A	3 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	8	24	12	16	16	8
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1
ECCN code	EAR99	EAR99	EAR99	EAR99	-	EAR99
Other features	AMPMODU, SHROUDED	AMPMODU, SHROUDED	-	AMPMODU, SHROUDED	AMPMODU, SHROUDED	AMPMODU, SHROUDED
Contact completed and terminated	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	-
JESD-609 code	e3	e3	e3	e3	e3	-
