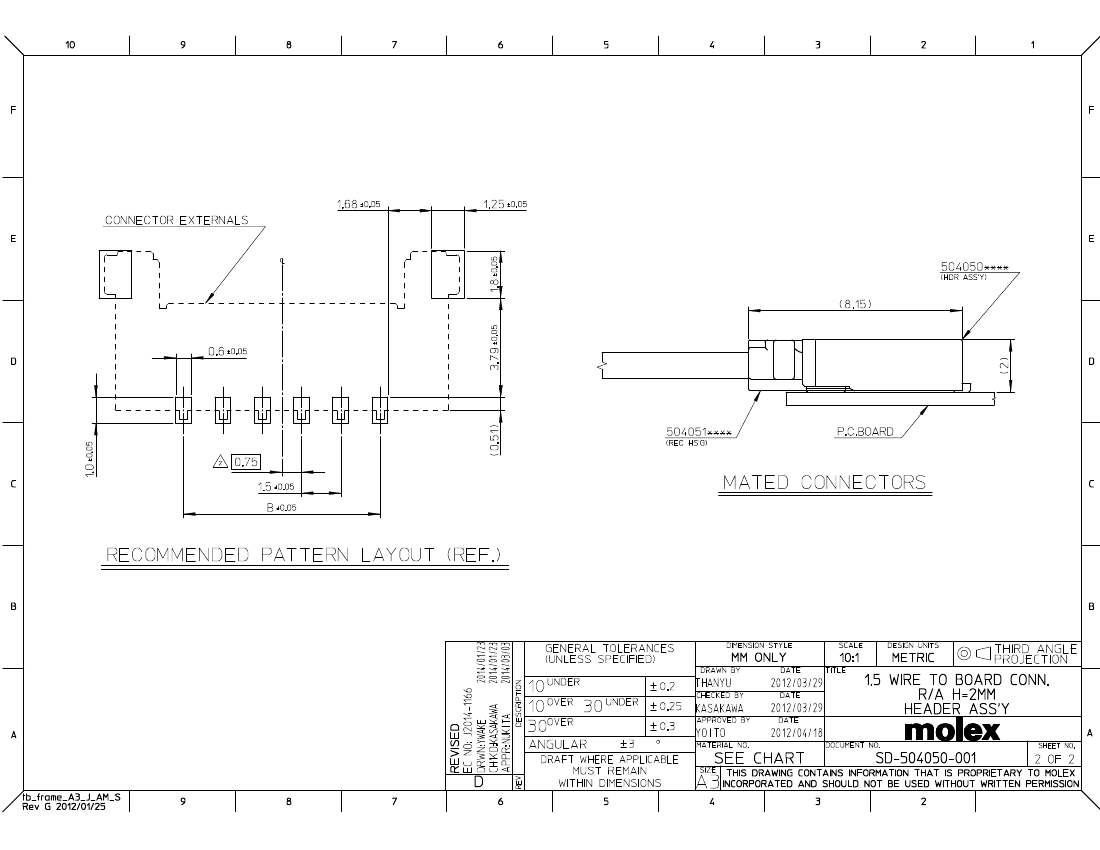

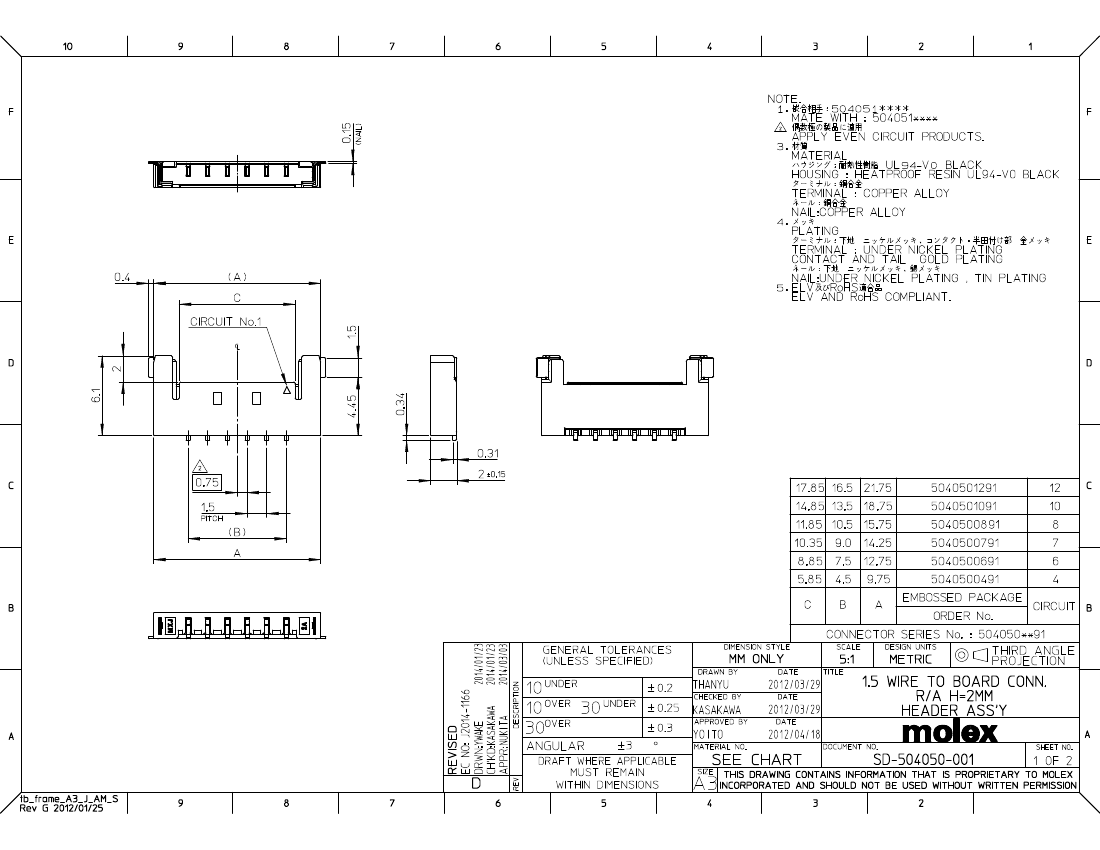

conn wire TO board RA 10pos

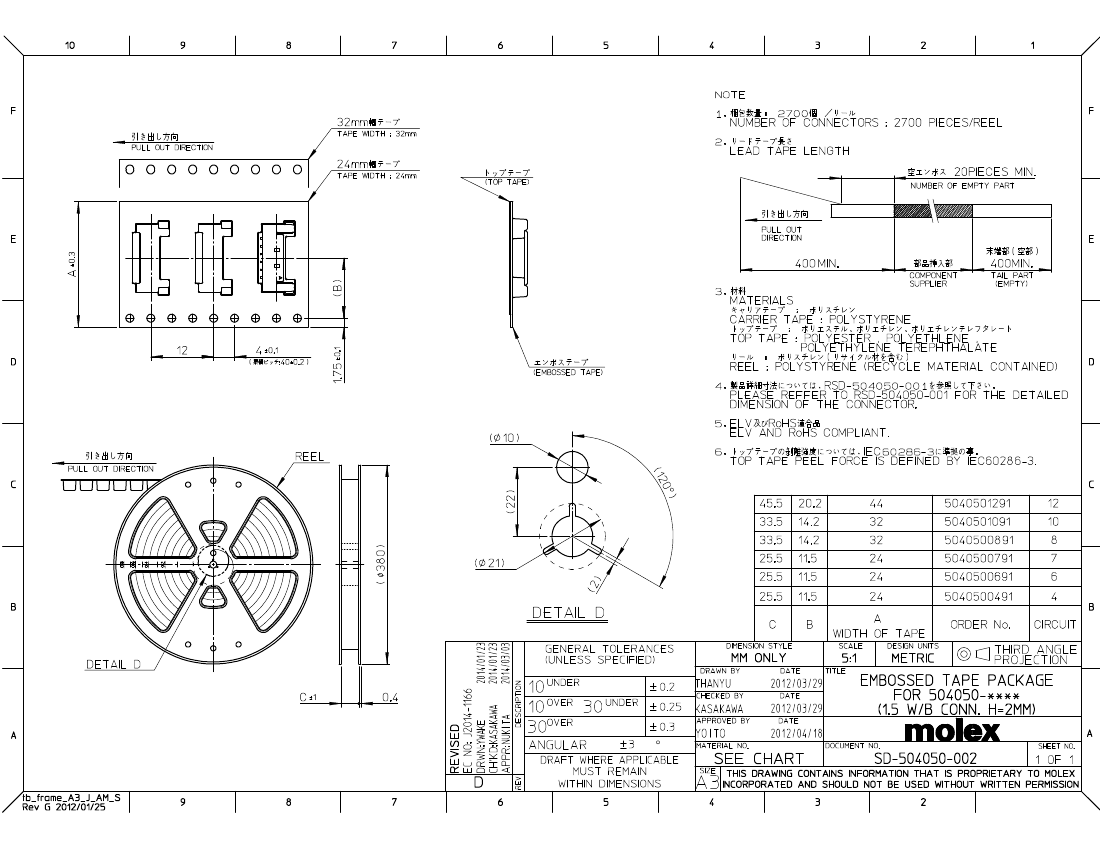

| Parameter Name | Attribute value |
| Is it Rohs certified? | conform to |
| Maker | Molex |
| package instruction | ROHS COMPLIANT |
| Reach Compliance Code | compli |
| ECCN code | EAR99 |
| Factory Lead Time | 16 weeks |
| Board mount options | FITTING NAIL |
| body width | 0.079 inch |
| subject depth | 0.254 inch |
| body length | 0.77 inch |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | GOLD OVER NICKEL |
| Contact completed and terminated | GOLD OVER NICKEL |
| Contact point gender | MALE |
| Contact material | COPPER ALLOY |
| contact mode | RECTANGULAR |
| Contact resistance | 20 mΩ |
| DIN compliance | NO |
| Durability | 30 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| Insulation resistance | 1000000000 Ω |
| Insulator color | BLACK |
| insulator material | THERMOPLASTIC |
| MIL compliance | NO |
| Manufacturer's serial number | 504050 |
| Plug contact pitch | 0.059 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO |
| Installation option 1 | LOCKING |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 1 |
| Number of rows loaded | 1 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -25 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 2 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal pitch | 1.5 mm |
| Termination type | SURFACE MOUNT |
| Total number of contacts | 10 |
| UL Flammability Code | 94V-0 |
| Base Number Matches | 1 |
| 5040501091 | 5040500691 | 5040500491 | 5040500891 | 5040500791 | |
|---|---|---|---|---|---|
| Description | conn wire TO board RA 10pos | conn wire TO board RA 6pos | conn wire TO board RA 4pos | 15 WB header ass'Y embtp pkg 8P | conn wire TO board RA 7pos |
| Is it Rohs certified? | conform to | conform to | - | - | conform to |
| Maker | Molex | Molex | - | - | Molex |
| Reach Compliance Code | compli | compli | - | - | compliant |
| Factory Lead Time | 16 weeks | 16 weeks | - | - | 16 weeks |
| body width | 0.079 inch | 0.079 inch | - | - | 0.079 inch |
| subject depth | 0.254 inch | 0.24 inch | - | - | 0.24 inch |
| body length | 0.77 inch | 0.503 inch | - | - | 0.561 inch |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | - | - | BOARD CONNECTOR |
| Contact to complete cooperation | GOLD OVER NICKEL | AU ON NI | - | - | AU ON NI |
| Contact completed and terminated | GOLD OVER NICKEL | GOLD OVER NICKEL | - | - | GOLD OVER NICKEL |
| Contact point gender | MALE | FEMALE | - | - | FEMALE |
| Contact material | COPPER ALLOY | COPPER ALLOY | - | - | COPPER ALLOY |
| contact mode | RECTANGULAR | RECTANGULAR | - | - | RECTANGULAR |
| Contact resistance | 20 mΩ | 20 mΩ | - | - | 20 mΩ |
| Insulation resistance | 1000000000 Ω | 1000000000 Ω | - | - | 1000000000 Ω |
| Insulator color | BLACK | BLACK | - | - | BLACK |
| Manufacturer's serial number | 504050 | 504050 | - | - | 504050 |
| Plug contact pitch | 0.059 inch | 0.059 inch | - | - | 0.059 inch |
| Installation option 1 | LOCKING | LOCKING | - | - | LOCKING |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | - | - | RIGHT ANGLE |
| Installation type | BOARD | BOARD | - | - | BOARD |
| Number of connectors | ONE | ONE | - | - | ONE |
| PCB row number | 1 | 1 | - | - | 1 |
| Number of rows loaded | 1 | 1 | - | - | 1 |
| Maximum operating temperature | 85 °C | 85 °C | - | - | 85 °C |
| Minimum operating temperature | -25 °C | -25 °C | - | - | -25 °C |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | - | - | RECTANGULAR |
| polarization key | POLARIZED HOUSING | POLARIZED HOUSING | - | - | POLARIZED HOUSING |
| Guideline | UL | UL | - | - | UL |
| reliability | COMMERCIAL | COMMERCIAL | - | - | COMMERCIAL |
| Terminal pitch | 1.5 mm | 1.4986 mm | - | - | 1.4986 mm |
| Termination type | SURFACE MOUNT | SURFACE MOUNT | - | - | SURFACE MOUNT |
| Total number of contacts | 10 | 6 | - | - | 7 |
| Base Number Matches | 1 | 1 | - | - | 1 |
