F211JF152H250R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> F211JF152H250R

F211JF152H250R: DescriptionCAPACITOR, METALLIZED FILM; CategoryPassive components capacitor; File Size2MB，24 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com; Environmental Compliance

Download Datasheet Parametric View All

F211JF152H250R Overview

CAPACITOR, METALLIZED FILM

F211JF152H250R Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1277555456
package instruction	, 2810
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	6.93
capacitance	0.0015 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYPHENYLENE SULPHIDE
high	6.5 mm
JESD-609 code	e3
length	7.2 mm
Manufacturer's serial number	SMR
negative tolerance	2.5%
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package form	Radial
method of packing	Ammo Pack
positive tolerance	2.5%
Rated (AC) voltage (URac)	160 V
Rated (DC) voltage (URdc)	250 V
series	SMR
size code	2810
Terminal surface	Matte Tin (Sn)
Terminal pitch	5 mm
width	2.5 mm

Preview

Download Datasheet

View All

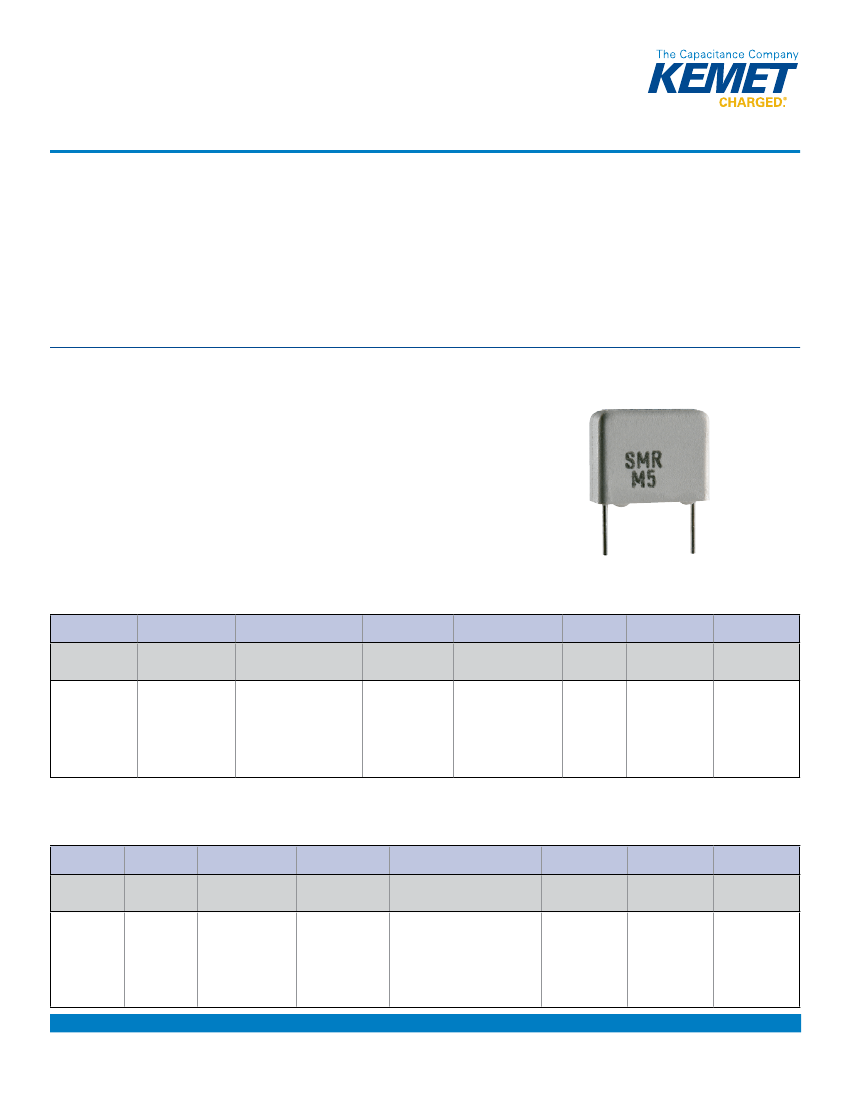

General Purpose, Pulse and DC Transient Suppression

SMR Series Metallized Polyphenylene Sulfide Film, +150°C,

5.0 – 27.5 mm Lead Spacing, 50 – 400 VDC

Overview

The SMR Series is a metallized polyphenylene sulfide film

capacitor with vacuum-evaporated aluminum electrodes. Radial

leads of tinned wire are electrically welded to the contact metal

layer on the ends of the capacitor winding. The capacitor

is encapsulated in self-extinguishing material meeting the

requirements of UL 94 V–0.

Applications

Typical applications include automotive and other applications

with high ambient temperatures, as well as those requiring high

stability and low losses. The capacitor offers excellent sound

quality in audio applications.

Benefits

Voltage range: 50 – 400 VDC; 30 – 200 VAC

Capacitance range: 0.001 – 22 µF

Lead spacing: 5 – 27.5 mm

Capacitance tolerance: ±10%, ±20%, ±2.5% and ±5%

on request

• Climatic category: 55/150/56, IEC 60068–1

• Tape and reel packaging in accordance with IEC 60286–2

•

• RoHS Compliant and

lead-free terminations

• Category temperature

range -55 to +150°C

• Rated temperature

+125°C

Legacy Part Number System

SMR

Series

Metallized PPS

Lead Spacing (mm)

5 = 5.0

7.5 = 7.5

10 = 10.0

15 = 15.0

22.5 = 22.5

27.5 = 27.5

104

Capacitance Code (pF)

First two digits indicate

the two most significant

digits of the capacitance

value in picofarads. The

third digit is the number of

following zeros.

Capacitance

Tolerance

H = ±2.5%

J = ±5%

K = ±10%

M = ±20%

Rated Voltage (VDC)

50 = 50

63 = 63

100 = 100

250 = 250

400 = 400

J01

Size Code

Lead Length

BULK

Lead and

Packaging Code

See Ordering

Options Table

See

Letter "L" followed

Dimension by lead length

Table

in mm

New KEMET Part Number System

Capacitor

Class

F = Film

211

Series

Metallized

PPS

Lead Spacing (mm)

J = 5.0

K = 7.5

A = 10.0

B = 15.0

D = 22.5

F = 27.5

Size Code

See Dimension

Table

104

Capacitance Code (pF)

First two digits indicate the

two most significant digits

of the capacitance value in

picofarads. The third digit is

the number of following zeros.

Capacitance

Tolerance

R = ±2.5%

J = ±5%

K = ±10%

M = ±20%

050

Rated Voltage

(VDC)

050 = 50

063 = 63

100 = 100

250 = 250

400 = 400

Lead and

Packaging Code

See Ordering

Options Table

One world. One KEMET

F3072_SMR • 2/6/2013
