9-146273-0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 9-146273-0

9-146273-0: Description80 MODII HDR DRVT B/A .100 CL; CategoryThe connector The connector; File Size254KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

9-146273-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	9-146273-0	-	-	View	Buy Now

9-146273-0 Overview

80 MODII HDR DRVT B/A .100 CL

9-146273-0 Parametric

Parameter Name	Attribute value
Brand Name	TE Connectivity
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	compli
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrie
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	146273
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	80
Base Number Matches	1

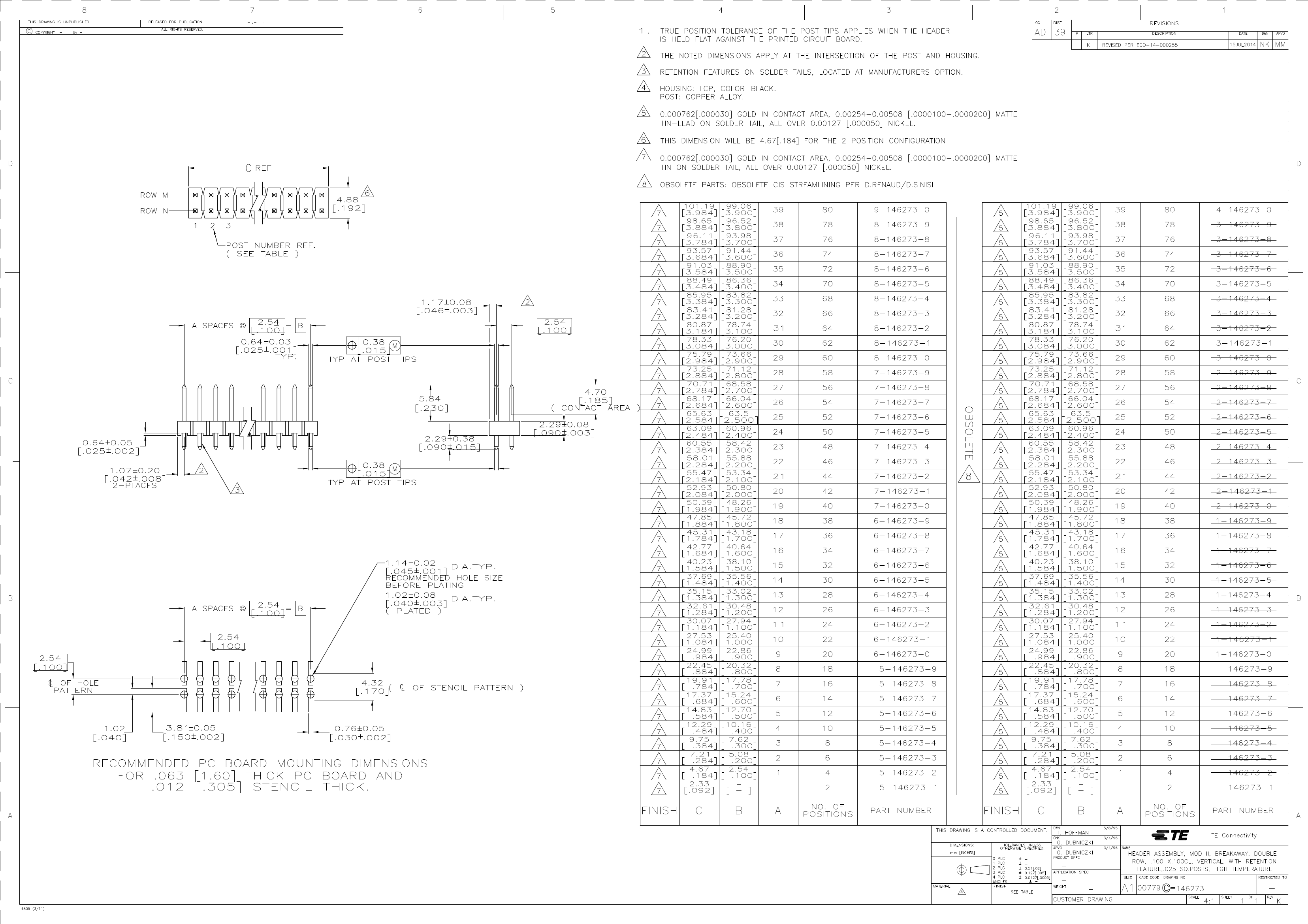

Preview

Download Datasheet

View All

9-146273-0 Related Products

	9-146273-0	6-146273-8	6-146273-5	6-146273-2	4-146273-0
Description	80 MODII HDR DRVT B/A .100 CL	36 MODII HDR DRVT B/A .100 CL W/HD	30 MODII HDR DRVT B/A .100 CL W/HD	24 MODII HDR DRVT B/A .100 CL W/HD	80 MODII HDR DRST B/A 100 W/HD
Connector type	BOARD CONNECTOR	separation	separation	separation	BOARD CONNECTOR
PCB Connector Component Types	-	PCB mounting header	PCB mounting header	PCB mounting header	-
Sealable	-	no	no	no	-
Connectors and terminals terminate to	-	A printed circuit board	A printed circuit board	A printed circuit board	-
Line spacing	-	2.54 mm [ .1 in ]	2.54 mm [ .1 in ]	2.54 mm [ .1 in ]	-
sealing ring	-	Without	Without	Without	-
stabilizing device	-	Without	Without	Without	-
plate support	-	with	with	with	-
stress relief	-	Without	Without	Without	-
Connector terminal load status	-	Fully loaded	Fully loaded	Fully loaded	-
PCB mounting direction	-	vertical	vertical	vertical	-
Number of Positions	-	36	30	24	-
Rows	-	2	2	2	-
keying	-	no	no	no	-
Cylinder size	-	.64 mm [ .025 in ]	.64 mm [ .025 in ]	.64 mm [ .025 in ]	-
Terminal base material	-	nickel	nickel	nickel	-
PCB terminal termination area plating materials	-	tin	tin	tin	-
Solder tail terminal plating material surface coating	-	matte	matte	matte	-
Terminal protection	-	Without	Without	Without	-
Terminal shape	-	square	square	square	-
Terminal type	-	Pin	Pin	Pin	-
Terminal Contact Plating Thickness (µin)	-	30	30	30	-
Terminal contact plating material	-	gold	gold	gold	-
PCB Termination Methods	-	Through Hole - Solder	Through Hole - Solder	Through Hole - Solder	-
Termination cylinder length	-	2.29 mm [ .09 in ]	2.29 mm [ .09 in ]	2.29 mm [ .09 in ]	-
Terminal plating thickness	-	2.54 – 5.08 µm [ 100 – 200 µin ]	2.54 – 5.08 µm [ 100 – 200 µin ]	2.54 – 5.08 µm [ 100 – 200 µin ]	-
Terminal plating materials	-	Nickel base tin plating	Nickel base tin plating	Nickel base tin plating	-
PCB mounting fixation type	-	Fixed solder tail	Fixed solder tail	Fixed solder tail	-
PCB installation and fixation	-	with	with	with	-
Panel mount features	-	Without	Without	Without	-
Engage connector latch	-	Without	Without	Without	-
PCB installation method	-	Through hole soldering	Through hole soldering	Through hole soldering	-
joint alignment	-	Without	Without	Without	-
Centerline (Pitch)	-	2.54 mm [ .1 in ]	2.54 mm [ .1 in ]	2.54 mm [ .1 in ]	-
Shell material	-	LCP (Liquid Crystal Polymer)	LCP (Liquid Crystal Polymer)	LCP (Liquid Crystal Polymer)	-
Shell color	-	black	black	black	-
PCB thickness (recommended)	-	1.6 mm [ .063 in ]	1.6 mm [ .063 in ]	1.6 mm [ .063 in ]	-
Joint post length	-	5.84 mm [ .23 in ]	5.84 mm [ .23 in ]	5.84 mm [ .23 in ]	-
High temperature compatible	-	yes	yes	yes	-
High temperature shell	-	yes	yes	yes	-
Applicable to	-	Match female end	Match female end	Match female end	-
High speed serial data connector	-	no	no	no	-
Ignored load location	-	none	none	none	-
