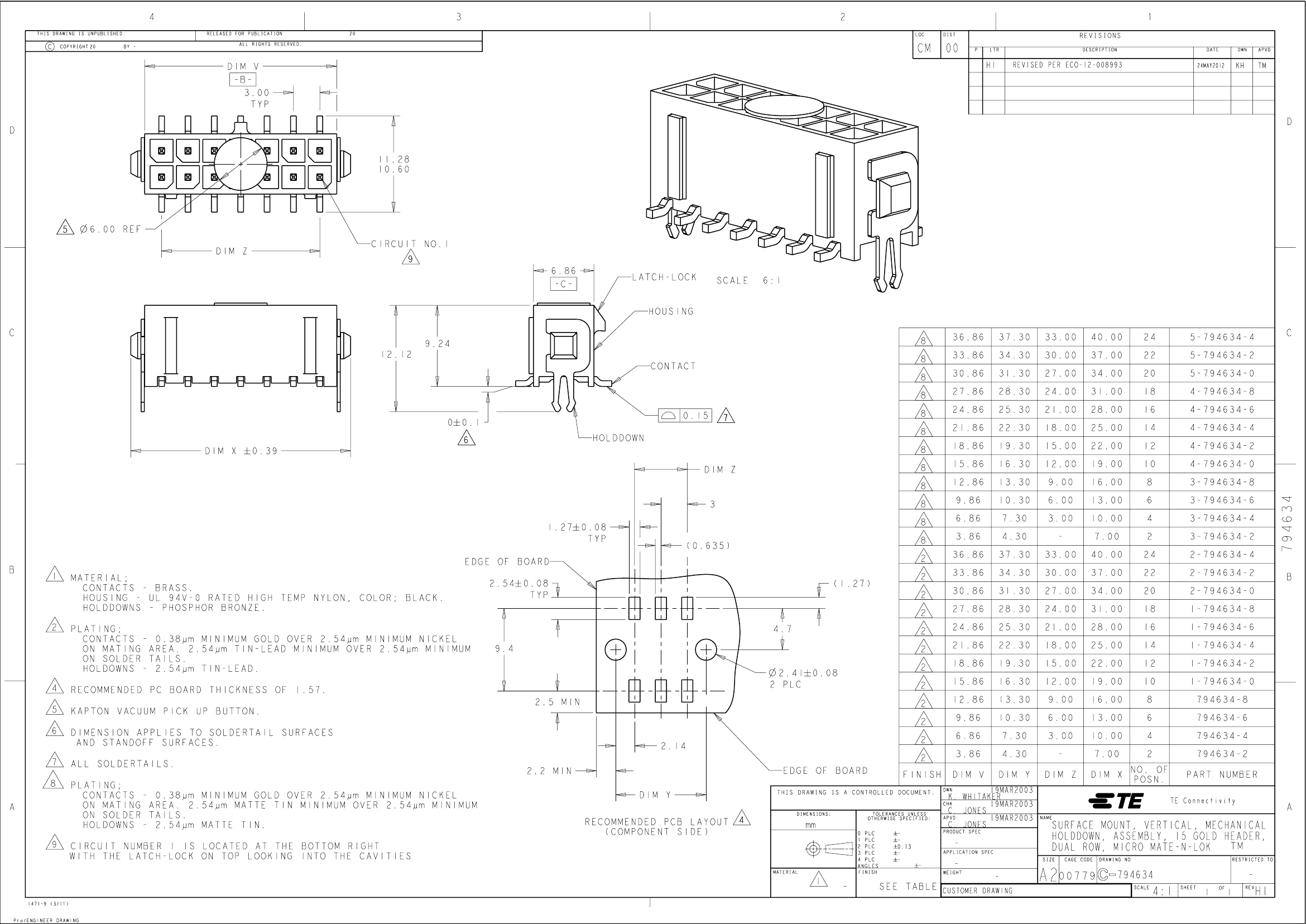

5-794634-2 |
4-794634-8 |
| Description |
22P MICRO MNL ASSY,VRT,SMT LF |
18P MICRO MNL ASSY,VRT,SMT LF |
| Brand Name |
AMP |
AMP |
| Is it lead-free? |
Lead free |
Lead free |
| Is it Rohs certified? |
conform to |
conform to |
| package instruction |
ROHS COMPLIANT |
ROHS COMPLIANT |
| Reach Compliance Code |
compli |
compliant |
| Other features |
POLARIZATION |
MATE-N-LOK |
| body width |
0.27 inch |
0.27 inch |
| subject depth |
0.364 inch |
0.364 inch |
| body length |
1.456 inch |
1.22 inch |
| Body/casing type |
PLUG |
PLUG |
| Connector type |
POWER CONNECTOR |
COMBINATION LINE CONNECTOR |
| Contact to complete cooperation |
NOT SPECIFIED |
NOT SPECIFIED |
| Contact point gender |
MALE |
MALE |
| Contact material |
NOT SPECIFIED |
NOT SPECIFIED |
| contact mode |
RECTANGULAR |
RECTANGULAR |
| Contact style |
SQ PIN-SKT |
SQ PIN-SKT |
| DIN compliance |
NO |
NO |
| Dielectric withstand voltage |
1500VAC V |
1500VAC V |
| Durability |
75 Cycles |
75 Cycles |
| empty shell |
NO |
NO |
| Filter function |
NO |
NO |
| IEC compliance |
NO |
NO |
| Insulation resistance |
100000000 Ω |
100000000 Ω |
| Insulator color |
BLACK |
BLACK |
| insulator material |
NYLON |
NYLON |
| MIL compliance |
NO |
NO |
| Plug contact pitch |
0.118 inch |
0.118 inch |
| Plug information |
2-794617-2 |
1-794617-8 |
| Mixed contacts |
NO |
NO |
| Installation option 1 |
LOCKING |
LOCKING |
| Installation option 2 |
LATCHING |
LATCHING |
| Installation method |
STRAIGHT |
STRAIGHT |
| Installation type |
BOARD |
BOARD |
| Number of connectors |
ONE |
ONE |
| PCB row number |
2 |
2 |
| Number of rows loaded |
2 |
2 |
| Maximum operating temperature |
105 °C |
105 °C |
| Minimum operating temperature |
-40 °C |
-40 °C |
| Options |
GENERAL PURPOSE |
GENERAL PURPOSE |
| PCB contact pattern |
RECTANGULAR |
RECTANGULAR |
| PCB contact row spacing |
9.398 mm |
9.398 mm |
| Plating thickness |
15u inch |
15u inch |
| polarization key |
POLARIZED HOUSING |
POLARIZED HOUSING |
| Rated current (signal) |
5 A |
5 A |
| Guideline |
CSA,UL,VDE |
CSA, UL |
| reliability |
COMMERCIAL |
COMMERCIAL |
| Shell material |
NYLON |
POLYAMIDE |
| Terminal pitch |
2.9972 mm |
2.9972 mm |
| Termination type |
SURFACE MOUNT |
SURFACE MOUNT |
| Total number of contacts |
22 |
18 |
| UL Flammability Code |
94V-0 |
94V-0 |
| Evacuation force-minimum value |
.6672 N |
.6672 N |
| Base Number Matches |
1 |
1 |
