FTSH-110-01-L-D-RA datasheet, PDF

Datasheet> All Categories > The connector> The connector> FTSH-110-01-L-D-RA

FTSH-110-01-L-D-RA: Descriptionconn headr 20pos DL .05" R/A; CategoryThe connector The connector; File Size662KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

FTSH-110-01-L-D-RA Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FTSH-110-01-L-D-RA	-	-	View	Buy Now

FTSH-110-01-L-D-RA Overview

conn headr 20pos DL .05" R/A

FTSH-110-01-L-D-RA Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	2 weeks
Samacsys Descripti	20 position, High Reliability Header Strips, 0.050" pitch, Dual-Row Vertical
Other features	ELP
body width	0.135 inch
subject depth	0.207 inch
body length	0.497 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrie
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Plating thickness	10u inch
reliability	COMMERCIAL
Terminal length	0.09 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	20

Preview

Download Datasheet

View All

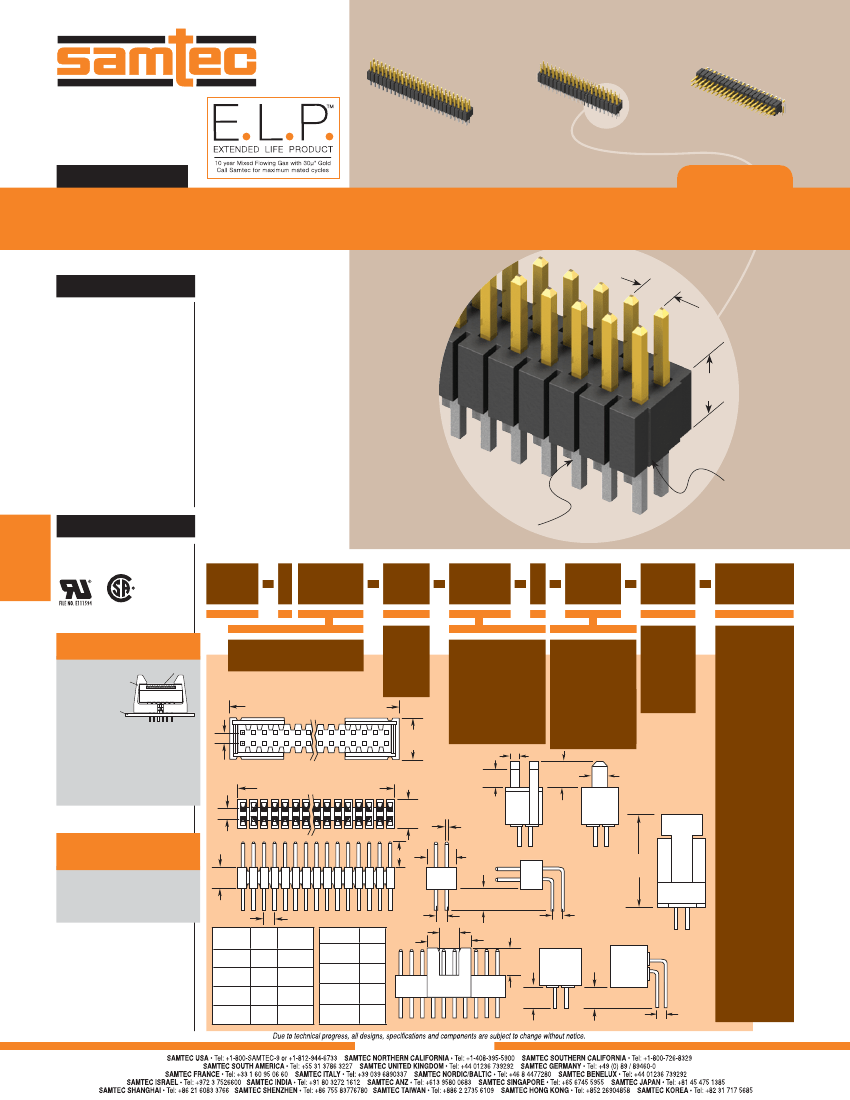

F-214 (Rev 24JUL14)

FTSH–120–02–L–D

FTSH–120–01–L–D–RA

FTSH–125–01–F–D

(1,27 mm) .050"

FTSH SERIES

THROUGH-HOLE MICRO HEADER

SPECIFICATIONS

For complete speciﬁcations

see www.samtec.com?FTSH

Insulator Material:

Black Liquid

Crystal Polymer

Terminal Material:

Phosphor Bronze

Plating:

Sn or Au over

50µ" (1,27 µm) Ni

Current Rating (FTSH/CLP):

3.3 A per pin

(1 pin powered per row)

Operating Temp Range:

-55°C to +125°C

RoHS Compliant:

Yes

Mates with:

FFSD, FFTP, CLP, FLE

Impedance matched

for high speed

applications

(Mated with

CLP Series)

(1,27 mm) .050"

micro pitch

(2,51 mm)

.099"

Processing:

Lead-Free Solderable:

Yes

Mates with

socket strips

or IDC cable

Through-hole,

right angle or

Surface Mount

Optional end

shrouds and

ejector shrouds

RECOGNITIONS

For complete scope

of recognitions see

www.samtec.com/quality

FTSH

FILE NO: 090871_0_000

NO. PINS

PER ROW

LEAD

STYLE

Specify

LEAD

STYLE

from

chart

100

PLATING

OPTION

TAIL

OPTION

Leave

blank for

straight tail

OTHER

OPTIONS

LOCKING CLIP

FFSD

For single

STRIP ASSEMBLY

mating

LOCKING

CLIP

cycle

with the

FFSD.

BOARD

Specify -LC after tail option.

Lead Style -01 and

10 pins/row minimum.

5-9 pins/row not available

in combination with keying

shroud (-K).

02 thru 50

–F

= Gold ﬂash on post,

Matte Tin on tail

Leave blank for

RIght Angle

No. of positions x (1,27) .050 +

(4,78)

.188

–L

= 10µ" (0,25 µm)

Gold on post,

Matte Tin on tail

(1,17) .046

= Polarized Position

(Specify position

of omited pin)

(Not available

with -EX options)

(3,05)

.120

(1,91)

.075

DIA

–“XXX”

–RA

= Right

Angle

= End Shroud

(Style –02 & –03)

9 pins/row min.

–ES

–EP

= End Shroud

with Guide Post

(Style –02 & –03)

9 pins/row min.

(1,27)

.050

–EX OPTION SHOWN

No. of positions x (1,27) .050

–EL

= End Shroud

with Board Lock

(Style –02 & –03)

9 pins/row min.

(2,29)

.090

100

(3,43)

.135

ALSO AVAILABLE

(MOQ Required)

• Molded Pick & Place pads

• Other platings

Contact Samtec.

(1,27)

.050

(2,51)

.099

(0,40)

.016

(3,43)

.135

(2,29)

.090

(2,16) .085

(3,20)

.126

(2,29)

.090

(2,29)

.090

–EL

–EP

(11,18)

.440

= Ejector Shroud

(Style –01 only)

10 pins/row min.

25 pins/row max.

–RA not available

–EJ

(1,27) .050

(1,27)

.050

LEAD

STYLE

– 01

Note:

See SFM/TFM for

positive alignment feature.

Note:

Some sizes, styles and

options are non-standard,

non-returnable.

– 02

– 03

– 04

MATES OPTION

(5,08)

WITH

.200

– ES

(1,55)

(3,05) FFSD,

.061

–RA

(1,27)

.050

–K

–EJ

= Keying Shroud

(For mating

with FFSD

Style –01 only,

05, 08, 10, 13, 17,

20 & 25 pins/row

only and 13, 17,

20 & 25 only

with shrouds)

.120 CLP-DH

(1,91)

FLE

.075

(1,65) CLP-D

.065

(3,81)

N/A

.150

– EJ

– EP

– EL

(15,77)

.621

(5,87)

.231

(6,53)

.257

–K

–ES

–RA –ES

(1,27)

.050

WWW.SAMTEC.COM

FTSH-110-01-L-D-RA Related Products

	FTSH-110-01-L-D-RA	FTSH-106-04-L-D-RA	FTSH-104-01-L-D-RA	FTSH-120-01-F-D-RA-K	FTSH-106-04-F-D-RA	FTSH-107-01-L-D-RA	FTSH-132-01-L-D-RA	FTSH-108-01-L-D-RA	FTSH-120-01-F-D-RA	FTSH-108-01-F-D-RA
Description	conn headr 20pos DL .05" R/A	conn header 12pos dual .05" R/A	conn header 8pos dual .05" R/A	conn header 40pos dual .05" smd	conn header 12pos dual .05" R/A	conn header 14pos dual .05" R/A	conn header 64pos dual .05" R/A	conn header 16pos dual .05" T/H	conn header 40pos dual .05" R/A	conn header 16pos dual .05" R/A
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compli	compli	compli	compli	compli	compli	compli	compli	compli	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	ELP	ELP	ELP	KEY SHROUD	ELP	ELP	ELP	ELP	ELP	ELP
body width	0.135 inch	0.135 inch	0.135 inch	0.135 inch	0.135 inch	0.135 inch	0.135 inch	0.135 inch	0.135 inch	0.135 inch
subject depth	0.207 inch	0.207 inch	0.207 inch	0.333 inch	0.207 inch	0.207 inch	0.207 inch	0.207 inch	0.207 inch	0.207 inch
body length	0.497 inch	0.297 inch	0.197 inch	0.997 inch	0.297 inch	0.347 inch	1.6 inch	0.397 inch	1 inch	0.397 inch
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)	GOLD (10) OVER NICKEL (50)	GOLD (10) OVER NICKEL (50)	GOLD FLASH OVER NICKEL (50)	GOLD FLASH OVER NICKEL (50)	GOLD (10) OVER NICKEL (50)	GOLD (10) OVER NICKEL (50)	GOLD (10) OVER NICKEL (50)	GOLD FLASH OVER NICKEL (50)	GOLD FLASH OVER NICKEL (50)
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrie	Tin (Sn) - with Nickel (Ni) barrie	Tin (Sn) - with Nickel (Ni) barrie	Tin (Sn) - with Nickel (Ni) barrie	Tin (Sn) - with Nickel (Ni) barrie	Matte Tin (Sn) - with Nickel (Ni) barrie	Tin (Sn) - with Nickel (Ni) barrie	Tin (Sn) - with Nickel (Ni) barrie	Tin (Sn) - with Nickel (Ni) barrie	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Plug contact pitch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch
Match contact row spacing	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Plating thickness	10u inch	10u inch	10u inch	3u inch	3u inch	10u inch	10u inch	10u inch	FLASH inch	3u inch
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Termination type	SOLDER	SOLDER	SOLDER	SURFACE MOUNT	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	20	12	8	40	12	14	64	16	40	16
Maker	SAMTEC	SAMTEC	-	SAMTEC	-	SAMTEC	SAMTEC	-	SAMTEC	-
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	-	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Factory Lead Time	2 weeks	2 weeks	2 weeks	2 weeks	-	2 weeks	2 weeks	-	8 weeks	-
insulator material	LIQUID CRYSTAL POLYMER (LCP)	-	-	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	-	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Installation option 1	LOCKING	-	-	LOCKING	LOCKING	LOCKING	-	LOCKING	-	LOCKING
Terminal length	0.09 inch	-	-	0.09 inch	0.09 inch	0.09 inch	0.09 inch	0.09 inch	0.09 inch	0.09 inch
