Data sheet
Industrial Ethernet
IE-XM-ST/ST
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com

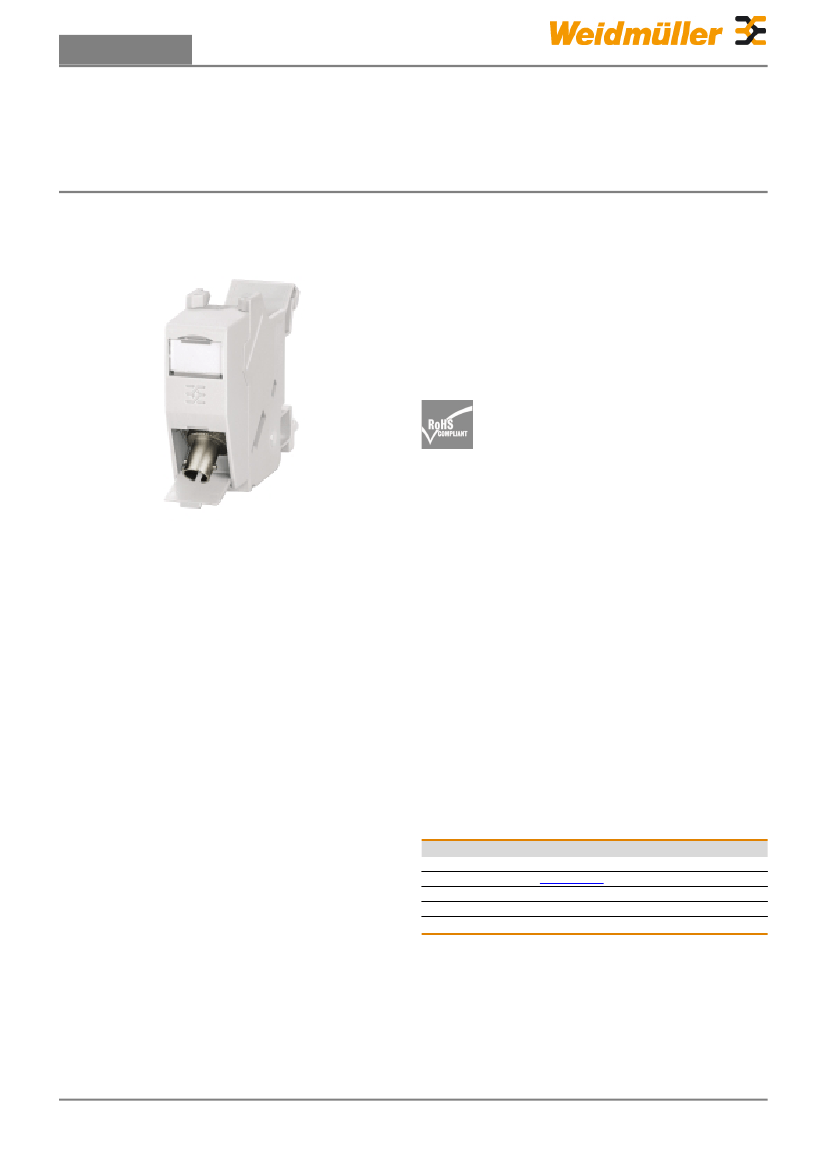

Mounting rail outlet, ST junction design according to IEC
61754-2
General ordering data
Type
Order No.
Version
GTIN (EAN)
Qty.
IE-XM-ST/ST
8808340000
Terminal rail outlet, ST-ST coupler, IP 20
4032248505920
1 pc(s).
Creation date April 17, 2015 6:14:54 PM CEST
Catalogue status 20.03.2015 / We reserve the right to make technical changes.
1
Data sheet
Industrial Ethernet
IE-XM-ST/ST
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
27.6 g
Dimensions and weights
Net weight
Temperatures
Operating temperature, max.
Storage temperature
70 °C
Operating temperature
Installation temperature
-25 °C...70 °C
Downloads
GOST Approval
POCC
DE.ME25.B01411.pdf
General data
Colour
Configuration
Inspection window for
labelling
1 TE pitch dimension
acc. to DIN 43880. insta-
compatible
ST
PA 66, UL 94: V-0
750
TS 35
Connection 1
Description of article
Insertion loss
Protection degree
Light Grey
ST
ST-ST coupler
< 0.15 dB
IP 20
Connection 2
Housing main material
Plugging cycles
Type of mounting
Standards
Connector standard
IEC 61754-2
Classifications
ETIM 3.0
ETIM 5.0
UNSPSC
eClass 6.2
eClass 8.1
EC001264
EC001264
43-17-27-10
27-25-05-04
19-17-01-25
ETIM 4.0
ETIM 6.0
eClass 5.1
eClass 7.1
eClass 9.0
EC001264
EC001264
27-25-05-04
27-25-05-04
19-17-01-25
Approvals
Approvals
ROHS
Conform
Creation date April 17, 2015 6:14:54 PM CEST
Catalogue status 20.03.2015 / We reserve the right to make technical changes.
2
Data sheet
Industrial Ethernet
IE-XM-ST/ST
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Drawings
Dimensioned drawing
Creation date April 17, 2015 6:14:54 PM CEST
Catalogue status 20.03.2015 / We reserve the right to make technical changes.
3
