Preview

5035480620: Descriptionconn rcpt btb 6pos dual vert smd; CategoryThe connector; File Size296KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

5035480620 Overview

conn rcpt btb 6pos dual vert smd

5035480620 Parametric

Parameter Name	Attribute value
Datasheets

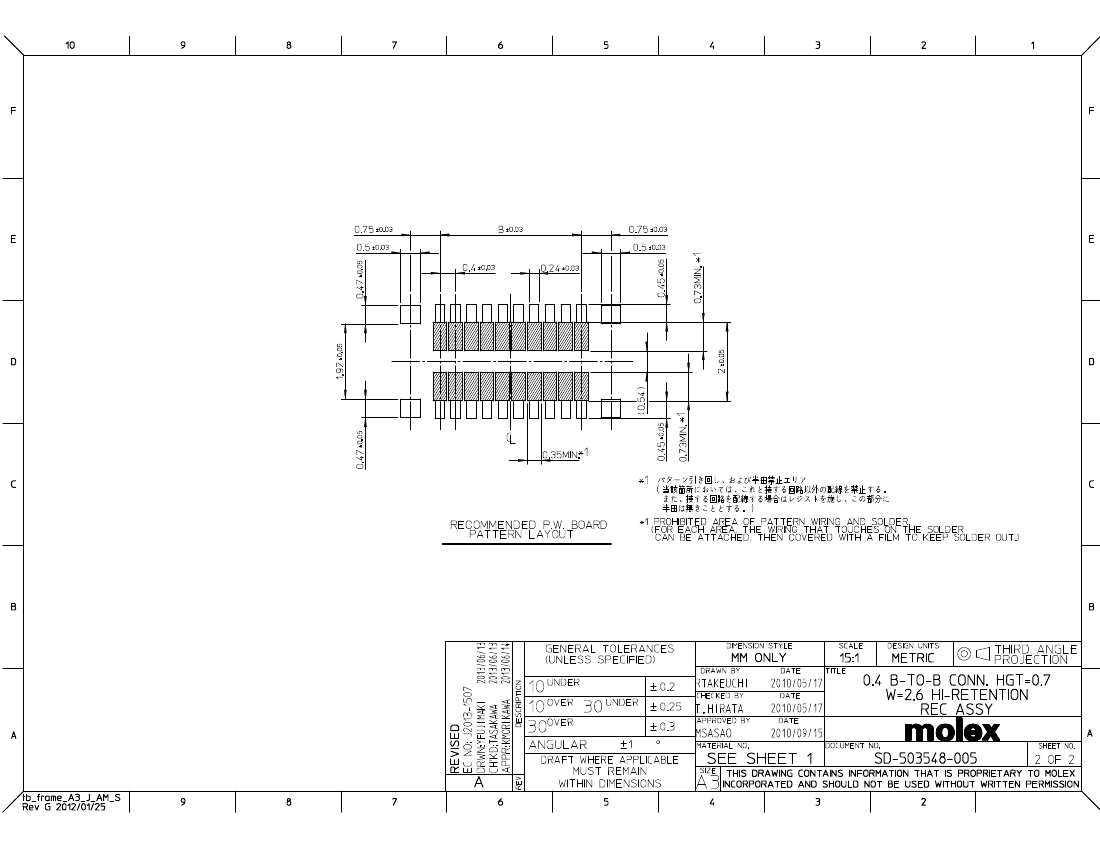

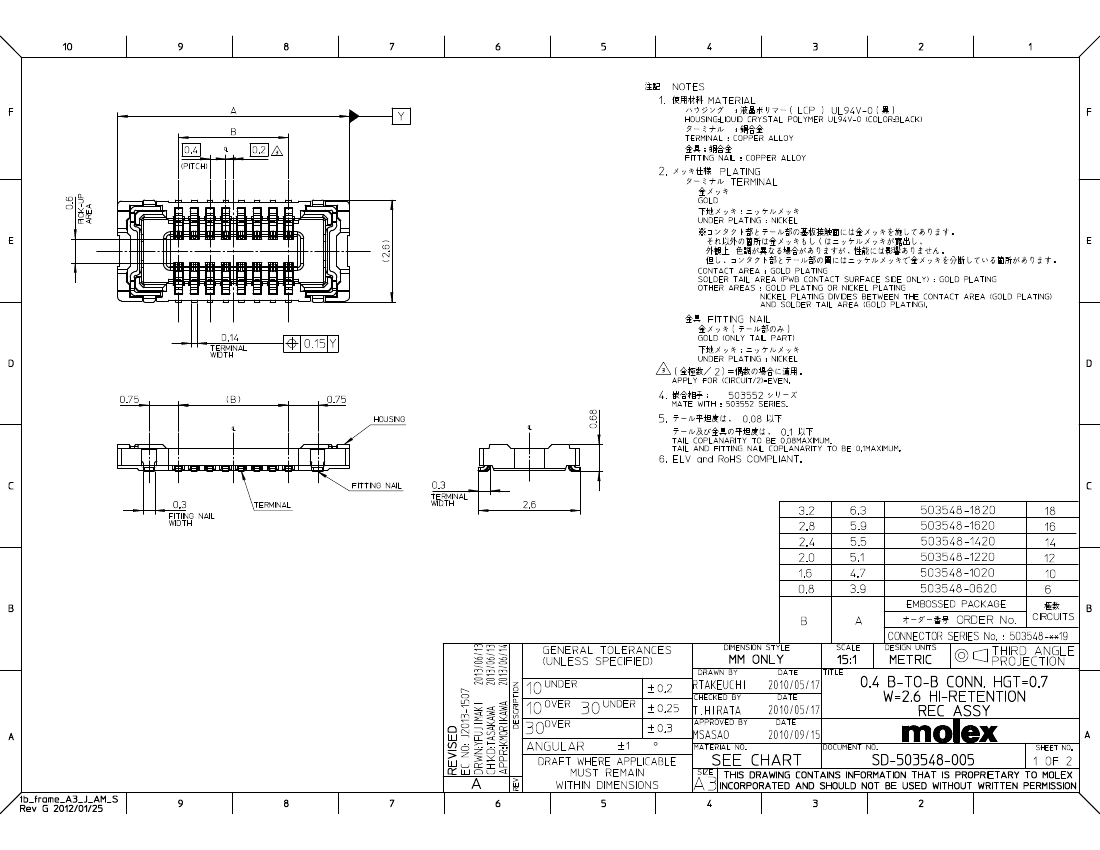

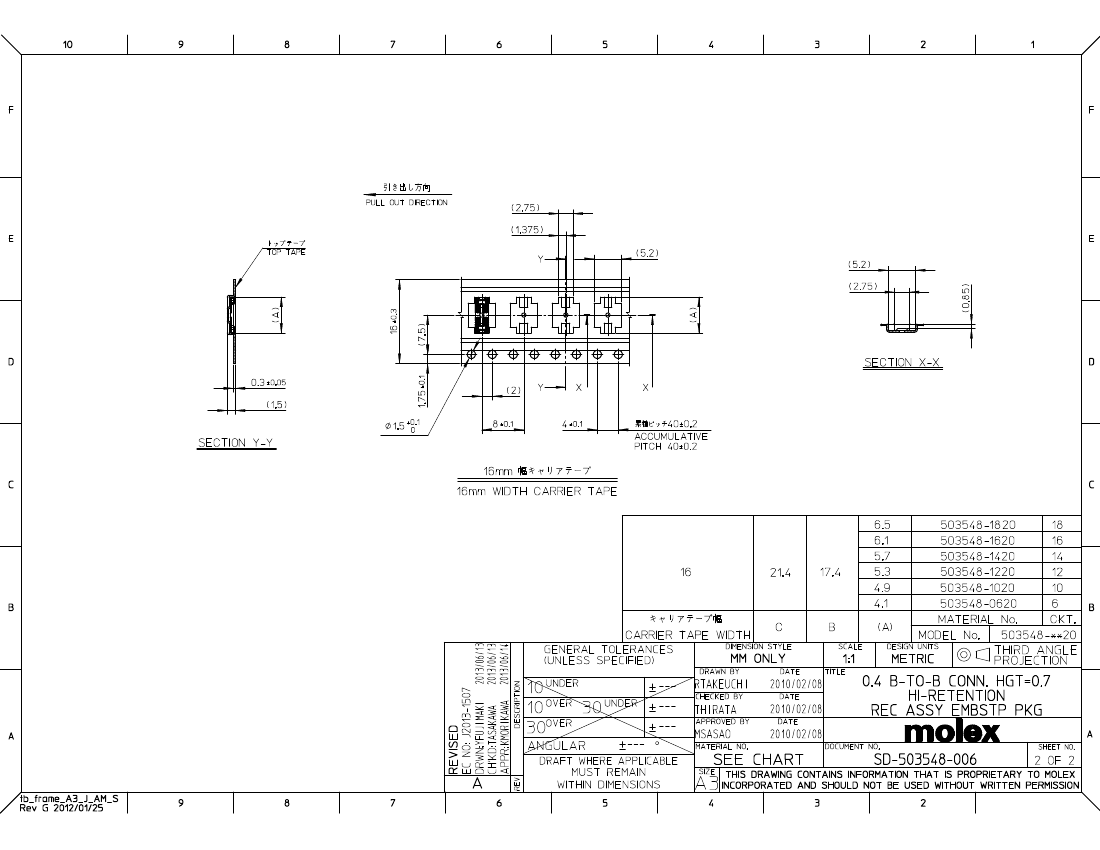

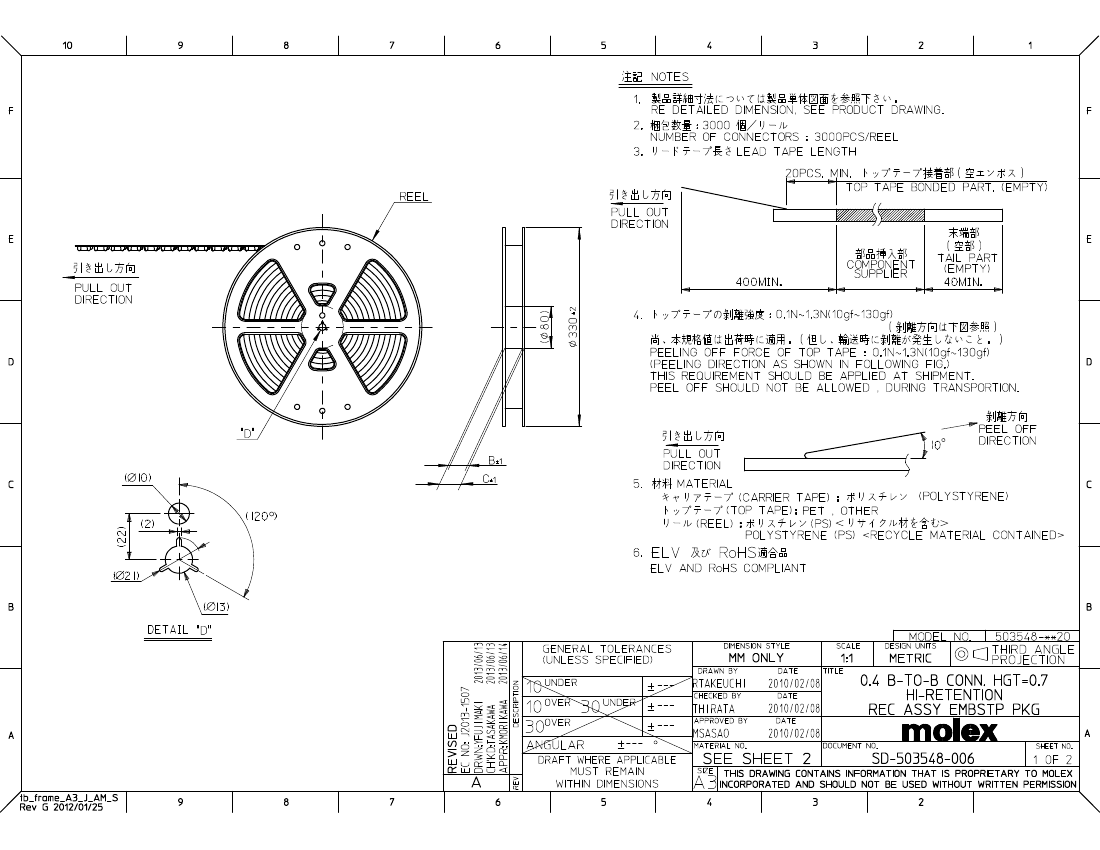

503548 Series Drawing
503548, 503552 Product Spec
Product Photos
5035480620
RoHS Informati
5035480620 Cert of Compliance
3D Model
503548-0620.s
503548-0620 .pdf
Standard Package	1
Category	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Packaging	Cut Tape (CT)
Connector Type	Receptacle, Center Strip Contacts
Number of Positions	6
Pitch	0.016" (0.40mm)
Number of Rows	2
Mounting Type	Surface Mou
Features	Solder Retenti
Contact Finish	Gold
Contact Finish Thickness	-
Mated Stacking Heights	0.7mm
Height Above Board	0.027" (0.68mm)
Dynamic Catalog	SlimStack™ Series
Mating Products	WM4664DKR-ND - CONN PLUG BTB 6POS DUAL VERT SMDWM4664CT-ND - CONN PLUG BTB 6POS DUAL VERT SMDWM4664TR-ND - CONN PLUG BTB 6POS DUAL VERT SMD
Other Names	WM4639CT

Preview

Download Datasheet

View All

5035480620 Related Products

	5035480620	5035481620	5035481820	5035481420	5035481220
Description	conn rcpt btb 6pos dual vert smd	conn rcpt btb 16pos DL vert smd	conn rcpt btb 18pos DL vert smd	conn rcpt 14ckt dual vert smd	conn rcpt btb 12pos DL vert smd
Standard Package	1	3,000	3,000	3,000	-
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	-
Family	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	-
Packaging	Cut Tape (CT)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	-
Connector Type	Receptacle, Center Strip Contacts	Receptacle, Center Strip Contacts	Receptacle, Center Strip Contacts	Receptacle, Center Strip Contacts	-
Number of Positions	6	16	18	14	-
Pitch	0.016" (0.40mm)	0.016" (0.40mm)	0.016" (0.40mm)	0.016" (0.40mm)	-
Number of Rows	2	2	2	2	-
Mounting Type	Surface Mou	Surface Mou	Surface Mou	Surface Mou	-
Features	Solder Retenti	Solder Retenti	Solder Retenti	Solder Retenti	-
Contact Finish	Gold	Gold	Gold	Gold	-
Mated Stacking Heights	0.7mm	0.7mm	0.7mm	0.7mm	-
Height Above Board	0.027" (0.68mm)	0.027" (0.68mm)	0.027" (0.68mm)	0.027" (0.68mm)	-
Dynamic Catalog	SlimStack™ Series	SlimStack™ Series	SlimStack™ Series	-	-
Mating Products	WM4664DKR-ND - CONN PLUG BTB 6POS DUAL VERT SMDWM4664CT-ND - CONN PLUG BTB 6POS DUAL VERT SMDWM4664TR-ND - CONN PLUG BTB 6POS DUAL VERT SMD	WM4666DKR-ND - CONN PLUG BTB 16POS DL VERT SMDWM4666CT-ND - CONN PLUG BTB 16POS DL VERT SMDWM4666TR-ND - CONN PLUG BTB 16POS DL VERT SMD	WM6881DKR-ND - CONN PLUG BTB 18POS DL VERT SMDWM6881CT-ND - CONN PLUG BTB 18POS DL VERT SMDWM6881TR-ND - CONN PLUG BTB 18POS DL VERT SMD	5035521420-ND - CONN PLUG 14CKT DUAL VERT SMD	-
Other Names	WM4639CT	503548-1620WM4663TR	503548-1820WM6879TR	503548-1420	-
