942-95462-10015 datasheet, PDF

Datasheet> All Categories > The connector> Connector bracket> 942-95462-10015

942-95462-10015: DescriptionCable Assembly; CategoryThe connector Connector bracket; File Size71KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

942-95462-10015 Overview

Cable Assembly

942-95462-10015 Parametric

Parameter Name	Attribute value
Objectid	1922069197
Reach Compliance Code	unknown
Connector bracket type	CABLE ASSEMBLY

Preview

Download Datasheet

View All

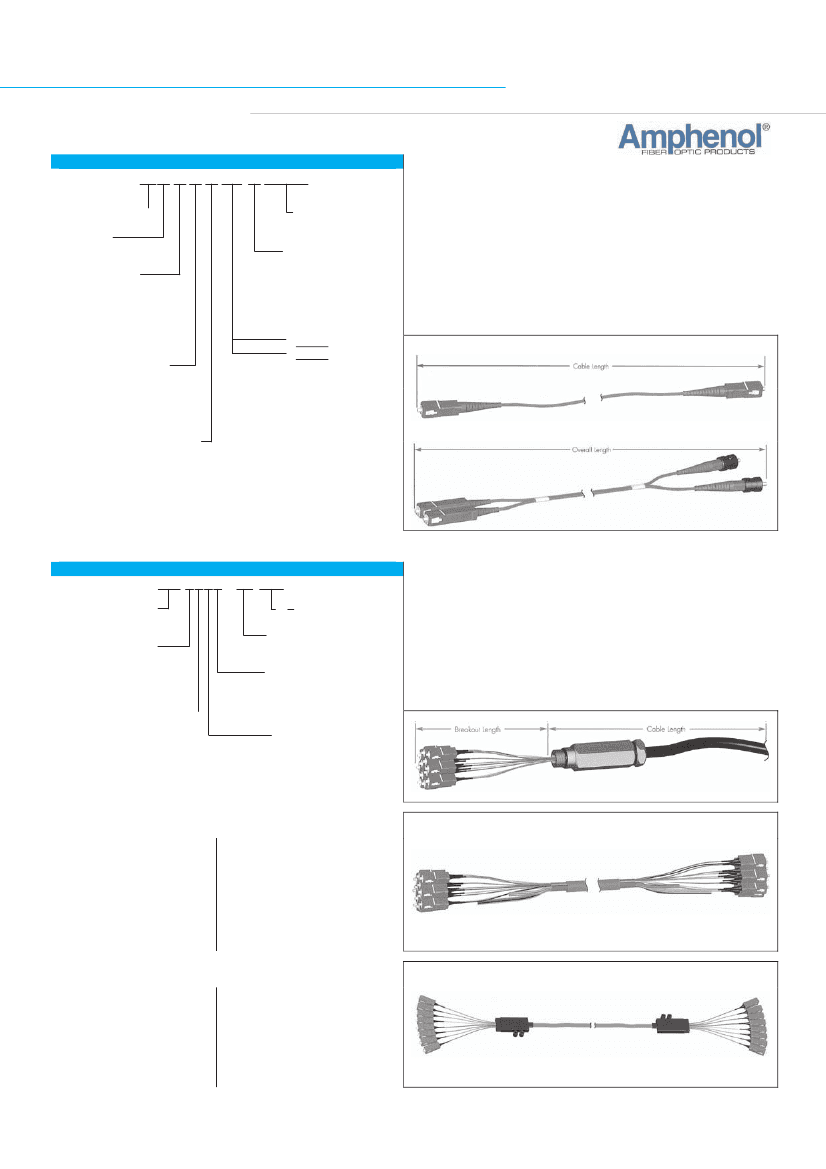

Amphenol

Fiber Optic Interconnects

942/3

Fibre Optic Cable Assemblies

Cable assemblies made and tested to the customer’s specifications.

Part Number System:

94X-X X X XX-X XXXX

Cable Assemblies

MODE

2: Single Mode

3: Multi Mode

CABLE TYPE

2: 2mm Jacketed**

3: 3mm Jacketed**

5: 900µm Jacketed

6: 1.6mm Jacketed* *

9: 900µm Tight Buffered

** Zipcord only

Features

100% optically tested

Accurate convex spherical polishing used with a back reflection of –

55dB or better

Right Angle boot improves reliability by providing maximum

protection against violating the minimum bend radius of the cable

CABLE LENGTH

e.g. 0015 = 15m

BOOT TYPE

1: Standard

2: R/A Side A

3: R/A Side B

4: R/A Side A&B

CONNECTOR

Side B

Side A

2: FC

4: ST II

5: ST

6: SC

A: LX.5

B: LX.5 Duplex*

C: LC

D: LC Duplex*

E: SC Duplex*

J: MT-RJ (Male)*

R: MT-RJ

(Female)*

* Zipcord (Duplex) application

Notes

For Hybrid Cable Assemblies, use the lowest number first (i.e. SC

to FC: 942-225426-10015)

LX.5, LC and MT-RJ jumpers are not available for 3mm jacketed

cable

R/A boots are not available with 900µm fibre and certain connectors

ASSEMBLY TYPE

0: Pigtail

1: Jumper

2: Duplex Jumper

5: Duplex Pigtail

FIBRE SIZE/POLISH TYPE

1: M/M 50/125

2: M/M 62.5/125

0: S/M Super

5: S/M Ultra

4: S/M 8º Angle

962

Service Drop Cable/Node Cable

Service Cable Assemblies made and tested to customer specifications

Part Number System:

962-XXXX0-XX XXX

Cable Assemblies

SingleMode

ASSEMBLY TYPE

1: Unarmored Pigtail

2: Unarmored Jumper

3: Armored Pigtail

4: Armored Jumper

CONNECTOR/POLISH TYPE

1: SC/UPC

7: STII/UPC

2: SC/APC

8: ST/UPC

4: FC/UPC

A: LX.5/UPC

5: FC/APC

B: LX.5/APC

D: LC/UPC

CABLE LENGTH

e.g. 010 = 10m

BREAKOUT LENGTH

e.g. 10 = 10cm

FANOUT TYPE

1: 900µm Transparent

2: 2mm Colour Leads

3: 3mm Colour Leads

FIBRE COUNT

1: 2 Fibres 2: 4 Fibres

3: 6 Fibres 4: 8 Fibres

5: 10 Fibres

6: 12 Fibres

Features

5/8” – 24 Feed-Thru adapter spins independently, preventing cable

and furcation tubes from twisting during installation

Standard non-armored cable meets OFNR/FT-4 and IEEE

flammability requirements

Breakout leads are colour coded for easy-identification

Thermal Stability, less than 0.5dB variation in insertion loss

between -40ºC to 75ºC

Anodized Aluminum or Stainless Steel Adapters available

Multiple O-ring design offers superior weather protection

Engineered

Multi-Fibre Assemblies

Assembly Types

Pigtail or Jumper

Cable Types

Indoor Distribution Cable

Outside Plant Cable

Fibre Count

2, 4, 6, 8, 10, 12, 24, 48, 72,

96 and 144

Connector Type

LX.5/LX.5 Duplex, SC/SC Duplex

LC/LC Duplex, ST/ST II, MT-RJ,

Fibre/Polish Type

M/M 50/125 & 62.5/125

S/M Super, Ultra & Angle

Engineered

Ribbon Cable Assemblies

Assembly Types

Pigtail or Jumper

Cable Type

8 Fibre S/M & M/M Bare

8 Fibre S/M & M/M Jacketed

12 Fibre S/M & M/M Bar

12 Fibre S/M & M/M Jacketed

Connector Type

LX.5/LX.5 Duplex, SC/SC Duplex

LC/LC Duplex, ST/ST II, MT-RJ,

Fibre/Polish Type

M/M 50/125 & 62.5/125

S/M Super, Ultra & Angle

S-4
