5146888-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5146888-1

5146888-1: Description1FHP,64,30A/S,S,C,S10,12,13,15; CategoryThe connector The connector; File Size151KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

5146888-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5146888-1	-	-	View	Buy Now

5146888-1 Overview

1FHP,64,30A/S,S,C,S10,12,13,15

5146888-1 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TE Connectivity
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	15 weeks
Is Samacsys	N
Board mount options	PEG
subject depth	0.329 inch
body length	1.413 inch
Body/casing type	PLUG
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	CENTRONIC
DIN compliance	NO
Dielectric withstand voltage	250VAC V
Durability	100 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	5146888
Plug contact pitch	0.039 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	110 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.302 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.8 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	64
Base Number Matches	1

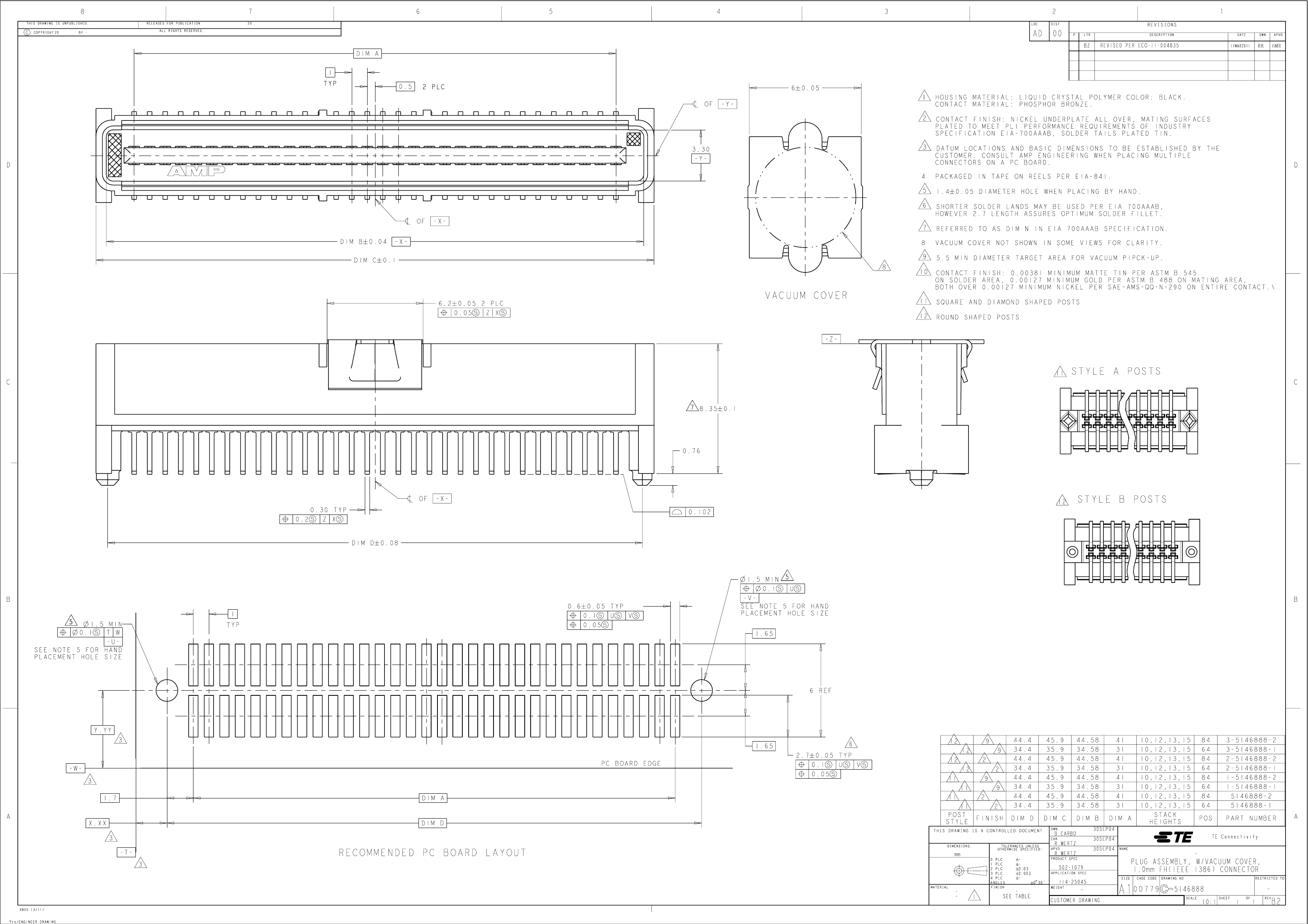

Preview

Download Datasheet

View All

5146888-1 Related Products

	5146888-1	5146888-2	2-5146888-1	2-5146888-2	3-5146888-2
Description	1FHP,64,30A/S,S,C,S10,12,13,15	1FHP,84,30A/S,S,C,S10,12,13,15	HEADER CONNECTOR,PCB MNT,PLUG,64 CONTACTS,PIN,0.039 PITCH,SURFACE MOUNT TERMINAL,LOCKING,BLACK	HEADER CONNECTOR,PCB MNT,PLUG,84 CONTACTS,PIN,0.039 PITCH,SURFACE MOUNT TERMINAL,LOCKING,BLACK	HEADER CONNECTOR,PCB MNT,PLUG,84 CONTACTS,PIN,0.039 PITCH,SURFACE MOUNT TERMINAL,LOCKING,BLACK
Maker	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity
Reach Compliance Code	compliant	compliant	compliant	unknown	unknown
Is Samacsys	N	N	N	N	N
Board mount options	PEG	PEG	PEG	PEG	PEG
subject depth	0.329 inch	0.329 inch	0.329 inch	0.329 inch	0.329 inch
body length	1.413 inch	1.807 inch	1.413 inch	1.807 inch	1.807 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	AU ON NI	AU ON NI	AU ON NI
Contact point gender	MALE	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	CENTRONIC	CENTRONIC	CENTRONIC	CENTRONIC	CENTRONIC
Dielectric withstand voltage	250VAC V	250VAC V	250VAC V	250VAC V	250VAC V
Durability	100 Cycles	100 Cycles	100 Cycles	100 Cycles	100 Cycles
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)
Plug contact pitch	0.039 inch	0.039 inch	0.039 inch	0.039 inch	0.039 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2
Number of rows loaded	2	2	2	2	2
Maximum operating temperature	110 °C	110 °C	110 °C	110 °C	110 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	3.302 mm	3.302 mm	3.302 mm	3.302 mm	3.302 mm
Plating thickness	30u inch	30u inch	30u inch	30u inch	50u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	0.8 A	0.8 A	0.8 A	0.8 A	0.8 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	1 mm	1 mm	0.9906 mm	0.9906 mm	0.9906 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	64	84	64	84	84
Base Number Matches	1	1	1	1	1
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier	-	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Manufacturer's serial number	5146888	-	5146888	5146888	5146888
