Amphenol
D Subminiature Interconnects
17H/G17H
Materials
Housing
Contacts
Shell
Board-locks
Screw-locks
– 94V-0 thermoplastic
– P/B with 50µ” Ni
– Carbon steel
– P/B
– Brass
– 5A
– 250VAC/rms 60Hz
DSub Stacked Right Angle PCB Mount
Durability
Gold Flash
15µ” Gold
30µ” Gold
– 75 cycles
– 125 cycles
– 250 cycles
Specifications
According to Mil-C-24308/NFC93425/HE507
8.38
±0.38
(.330±.015)
Electrical
Current
Voltage
Approvals
UL
CSA
– File E64911
– File LR57744

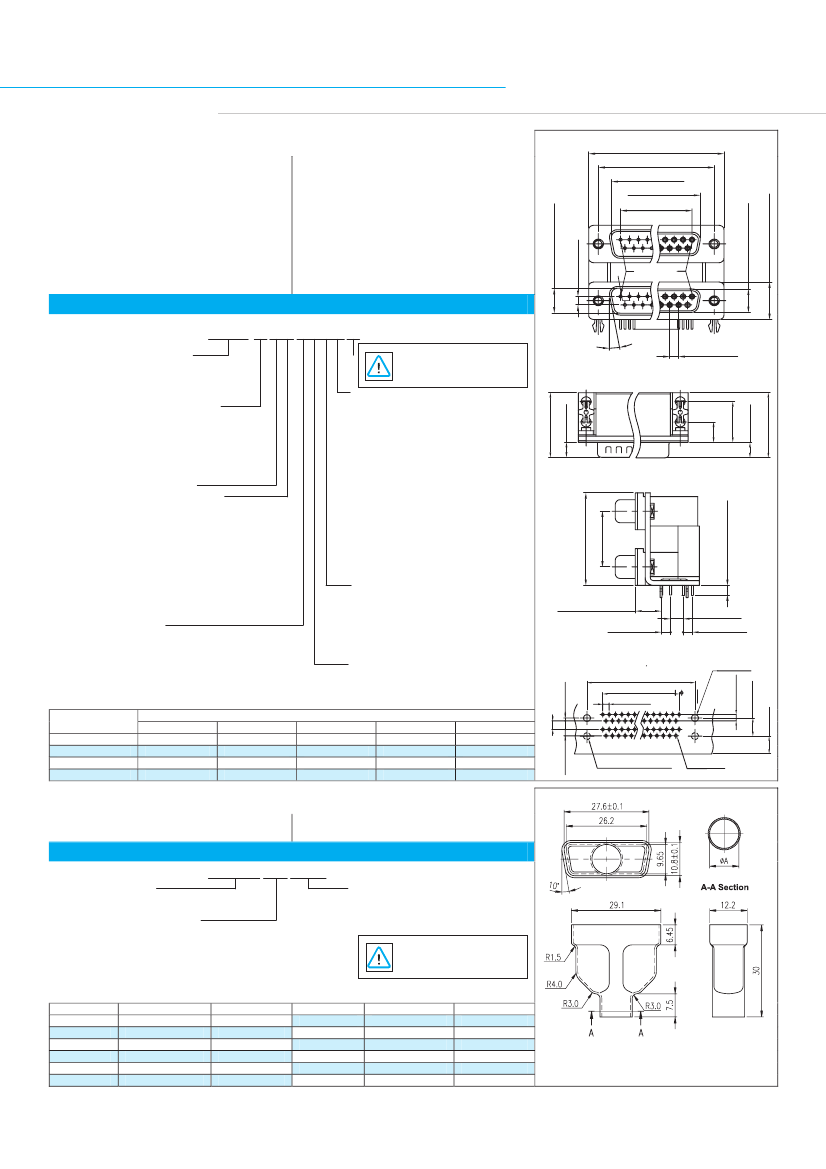

2.84 (.112)
POSITION #1
Part Number System:
XXXX X XX XXXX X
Stacked DSub R/A PCB
17H: Supplied from Europe
G17H: Supplied from Asia
SPACING BETWEEN PORTS
See F* on drawing
1: 15.88mm
2: 19.05mm
3: 22.86mm
TOP CONNECTOR TYPE
BOTTOM CONNECTOR TYPE
1: 9 Position male
2: 9 Position female
3: 15 Position male
4: 15 Position female
5: 25 Position male
6: 25 Position female
7: 15 Position HI DENSITY female
8: 50 Position SCSI-2 female
CONTACT FINISH
0: Gold Flash
1: 15µ” Gold
2: 30µ” Gold
3: Full gold flash
PNS-17H Rev.F
Suffix may be added to Part Number.
This Suffix is for Internal use mainly.
Additional Suffix ‘EU’ or ‘LF’ may be
added for RoHS compliant product.
10°
2.77 (.109)
BOARD MOUNT OPTION
0:
∅3.05mm
clear hole (x4)
1: #4-40 threaded hole (x4)
2: Dual Arrowhead board-lock
3: Quad Arrowhead board-lock
FRONT SHELL FINISH
0: Zinc chromate
1: Tin/Lead over Nickel
2: Nickel
8.08 (.318±.01)
2.84 (.112)
3.81 (.150)
2.84 (.112)
Recommanded P.C.B. Layout
1.27 (.050)
B±0.13 (.005)
E±0.05 (.002)
2.77 (.109)
ø3.05 (.120)
3.3
±0.13
(.130±.005)
FLANGE MOUNTING OPTION
0: #4-40 threaded hole
1: #4-40 threaded screw-lock
installed
2: #4-40 threaded hole with
#4-40 threaded screw-lock
bulk-packed
3:
∅3.05mm
clear hole
4: M3 threaded hole
5: M3 screw-lock installed
6: #4-40 threaded hole with
M2.6 screw-lock bulk-packed
7: #4-40 threaded screw-lock
clinch-mounted installed
16.08 (.633)
7.9
±0.13
(.311±.015)
8
(.315)
2.84 (.112)
8.08 (.318)
E±0.05 (.002)
G**
3.81 (.150)
F*
No. of
Positions
9
15
25
15 HI DENSITY
A
30.84
39.24
53.04
30.84
B
24.99
33.32
47.04
24.99
Dimensions
C
16.92
24.70
38.96
16.92
D
16.24
24.56
38.38
16.24
E
11.09
19.39
33.24
10.31
2.84 (.112)
only for quad boardlock
ø1.02 (.040)
G17ZC
DSub Shield Can for Over-moulding
Materials
Can
– Cold rolled steel tin plated
Shielding can used in conjunction with a over-
moulding process
Part Number System:
G17ZC XX XXX
DSub PCB Shield
For over-molding
NUMBER OF POSITIONS
Standard & (High Density)
09: 9 Position (15)
15: 15 Position (26)
25: 25 Position (44)
37: 37 Position (62)
50: 50 Position (78)
Serial No.
001
002
003
001
002
003
AMTA/ASF-D
SERIAL NUMBER
See table
Suffix may be added to Part Number.
This Suffix is for Internal use mainly.
Additional Suffix ‘EU’ or ‘LF’ may be
added for RoHS compliant product.
G17ZC.pdf
No. of Positions
9
9
9
15
15
15
Dim. A
7.2
9.5
10.8
7.2
9.5
10.8
Serial No.
001
002
003
001
001
002
No. of Positions
25
25
25
37
50
50
Dim. A
7.2
9.5
10.8
14
11
13
Typical Product for
15 Position Standard D-Sub
26 Position High Density D-Sub
8 (.315)
25.7 (1.01)
5.9 (.232)
6.1 (.240)
25.5 (1)
12.55
±0.38
(.494±.015)
A±0.38 (.015)
B±0.13 (.005)
C±0.13 (.005)
D±0.13 (.005)
F-8
