2-1761606-3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2-1761606-3

2-1761606-3: DescriptionIDC LOW PRO HDR 10P VERT LG LAT BLUE; CategoryThe connector The connector; File Size191KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

2-1761606-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2-1761606-3	-	-	View	Buy Now

2-1761606-3 Overview

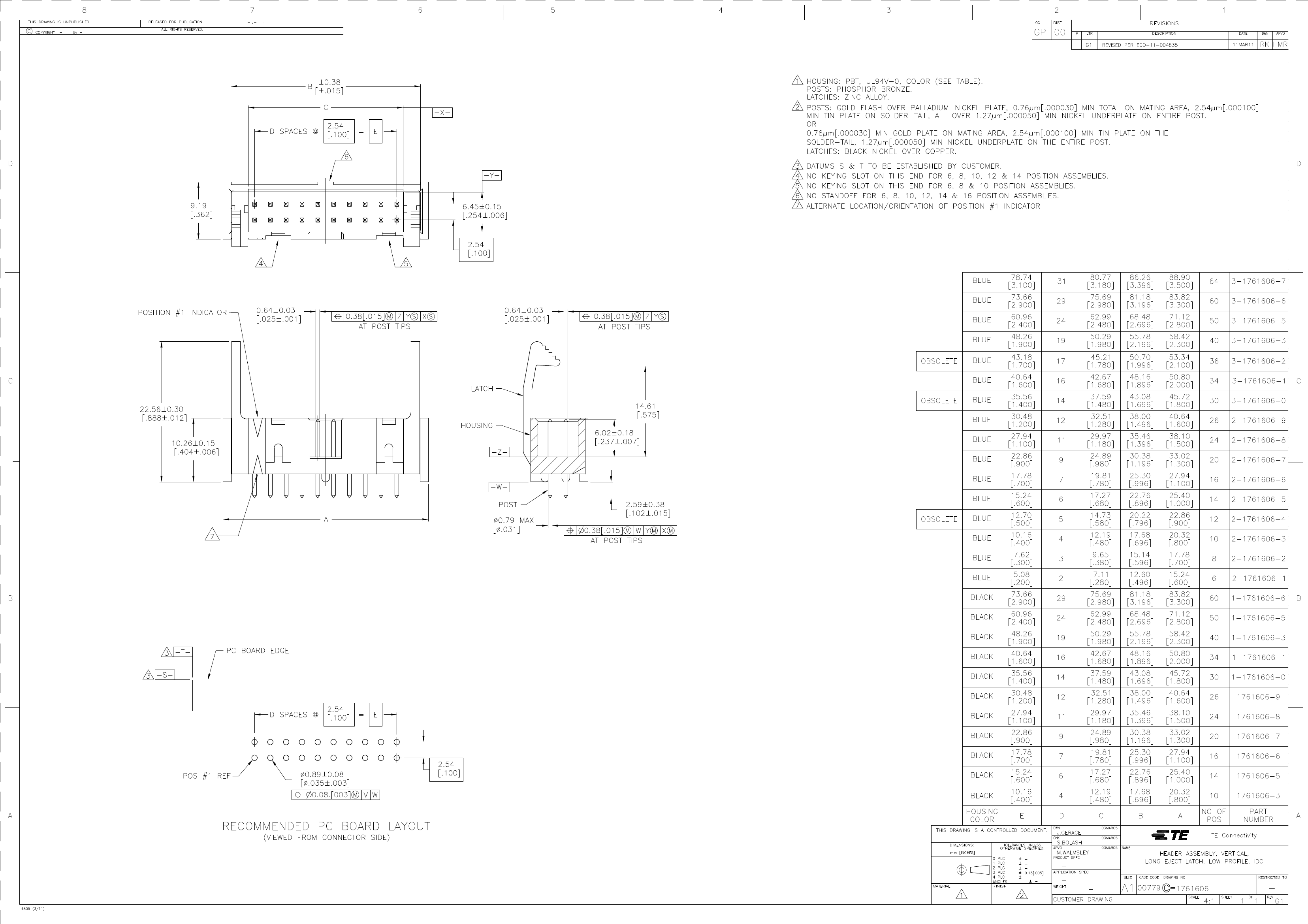

IDC LOW PRO HDR 10P VERT LG LAT BLUE

2-1761606-3 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Factory Lead Time	11 weeks
Samacsys Confidence	4
Samacsys Status	Released
Samacsys PartID	190347
Samacsys Pin Count	10
Samacsys Part Category	Connector
Samacsys Package Category	Header, Shrouded
Samacsys Footprint Name	2-1761606-3
Samacsys Released Date	2017-09-08 15:58:42
Is Samacsys	N
Other features	POLARIZED
body width	0.362 inch
subject depth	0.404 inch
body length	0.8 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLUE
insulator material	POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LATCH & EJECT
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.102 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	10
UL Flammability Code	94V-0
Base Number Matches	1
