MX-0410-DET-2000-10M0000000 Overview

Sine Output Oscillator, 10MHz Nom,

MX-0410-DET-2000-10M0000000 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid4005050947
Reach Compliance Codecompliant
Ageing0.02 PPM/FIRST YEAR
Frequency Adjustment - MechanicalNO
frequency stability0.0004%
input power2 W
Installation featuresTHROUGH HOLE MOUNT
Number of terminals5
offset frequency1 kHz
Nominal operating frequency10 MHz
Maximum operating temperature70 °C
Minimum operating temperature
Oscillator typeSINE
Output impedance50 Ω
Oven power supply voltage5V
phase noise-145 dBc/Hz
physical size51mm X 51mm X 14.84mm
Maximum supply voltage5.25 V
Minimum supply voltage4.75 V
Nominal supply voltage5 V
surface mountNO
Preheating power4.5 W
Maximum warm-up time5 Minute

MX-0410-DET-2000-10M0000000 Preview

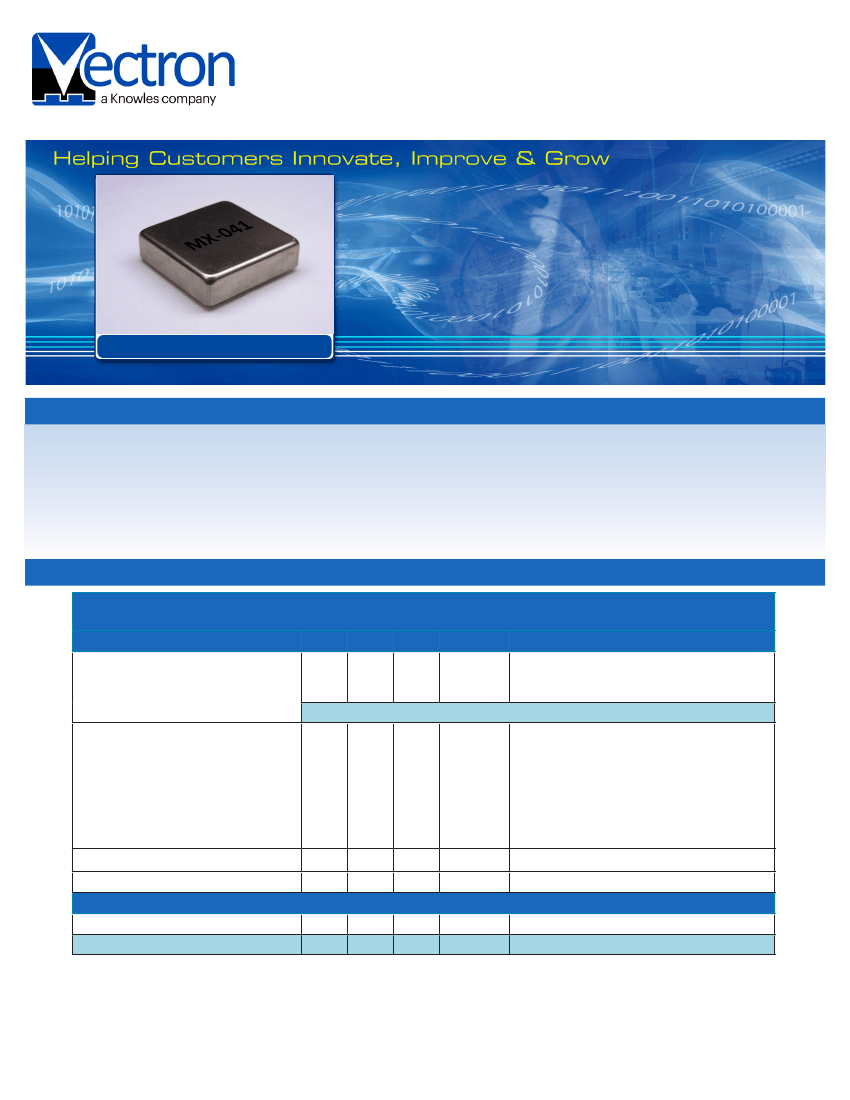

Oven Controlled Crystal Oscillator
MX-041
MX-041
Features
SC-Cut resonator
Frequency Range: 5 MHZ to 20 MHZ
Low Package Height
Temperature stability to 0.4 ppb
Aging rate 0.1 ppb/day
Frequency range 5 to 20 MHz
Standard frequencies: 5, 10, 20 MHz
Applications
• CDMA2000, WiMax, LTE and UMTS Base Stations
• Test and Measurement Equipment
• Broadcast Reference Standard
Performance Specifications
Frequency Stabilities
1
(Stabilities listed for 10 MHz. For stabilities above 10 MHz values may degrade. Please contact factory)
Parameter
vs. operating temperature range (refer-
enced to +25°C)
Min
-0.2
-0.4
-0.6
-50
-0.1
-0.1
-1
-0.1
-20
-10
-75
-10
Typ
Max
+0.2
+0.4
+0.6
+50
+0.1
+0.1
+1
+0.1
+20
+10
+75
+10
5
Units
ppb
ppb
ppb
ppb
ppb
ppb
ppb
ppb
ppb
ppb
ppb
ppb
minutes
VDC
VDC
Condition
0… +70°C
-20… +70°C
-40… +85°C (+5V version)
at time of shipment, nominal EFC
VS ± 5%
Load ± 5%
after 24 hours of operation
after 72 hours of operation
after 72 hours of operation
after 72 hours of operation
to ± 10 ppb of final frequency (1 hour) @25°C
For better stability refer to the MX-042 datasheet.
Initial Tolerance
vs. supply voltage change
vs. load change
vs aging/ day
vs aging/ day
vs. aging / 1 year
vs. aging / year (following years)
vs. aging/ 10 years
Retrace
2
Warm-up Time
Supply voltage (Standard)
Supply voltage (Option)
4.75
11.4
5.0
12.0
Supply Voltage (Vs)
5.25
12.6
Vectron International • 267 Lowell Road, Unit 102, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
Performance Specifications
Supply Voltage (Vs)
Parameter
Supply Voltage
Min
4.75
11.4
Typical
5.0
12.0
Max
5.25
12.6
4.5
2.0
Units
VDC
VDC
Watts
Watts
Watts
Watts
Condition
Ordering code D
Ordering code B , temp stability T and J only
during warm-up, all temperatures
steady state @ +25°C
steady state @ -40°C
steady state @ +85°C
time required to achieve 90% of amplitude
Power Consumption
eference Voltage (Vref ) - when
specified for custom units.
4.25
1.0
RF Output
Start Time
Signal [standard]
Load
Signal Level (Vol)
Signal Level (Voh)
Duty Cycle
Signal
Load
Output Power @ 5.0V,12 V
Harmonics
Subharmonics
Tuning range
Linearity
Tuning Slope
Input Impedance
Bandwidth Modulation
Control Voltage Range
150
0.0
0
2.5
2
5
4
100
±150
5
Positive
kOhm
Hz
VDC
VDC
with Vs=12.0V
with Vs=5.0V
+5
50
+7
+9
-40
-40
±250
3.5
45
55
Sine Wave
Ω
dBm
dBc
dBc
ppb
%
frequencies >= 10 MHz
(fixed frequency option available)
15
0.5
1
HCMOS
pF
VDC
VDC
%
@ (Voh-Vol)/2
2
s
Frequency Tuning (EFC)
Reference Voltage Output (Vref )
the MX-041 can be conffigured with a reference voltage on pin 2. This configuration requires a custom part number. Please contact the
factory for ordering information.
Reference Voltage (Vref ) - when
specified for custom units.
3.92
4.9
4.0
5
4.08
5.1
VDC
VDC
with Vs = 5.0 VDC
with Vs =12 VDC
Vectron International • 267 Lowell Road, Unit 102, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
Additional Parameters
Parameter
Min
Typical
Max
-95
-125
-140
-145
-145
3e-12
5e-12
1e-11
5e-11
Units
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
Condition
1 Hz
10 Hz
100 Hz
1 kHz
10 kHz
1 s tau
10 s tau
100 s tau
1000 s tau
Phase noise
3
@ 10MHz
For lower phase noise, please review the OX-174 or OX-204 datasheet.
Allan Deviation
@ 10MHz
For oscillators with lower ADEV requirements. Please review the OX-174 datasheet.
For oscillators with TDEV and MTIE requirements. Please review the OX-172 datasheet.
g-sensitivity
1
ppb/g
g-sensitivity of 0.5 ppb/g available in this package size. Please contact factory for ordering information.
For g-sensitivity <0.5 ppb/g, please review the OX-043 series.
Weight
55
15.0
Output load
25
50
open
g
VDC
pF
Ohms
CMOS
Sine
Operable temperature range implies the
device will continue to operate with no long-
term damage to unit; however, it will not be
specification compliant outside the operating
temperature range.
Absolute Maximum Ratings
Operable temperature range
-55
+95
°C
Environmental and Product Classification
Shock (Endurance)
Sine Vibration (Endurance)
Random Vibration (Endurance)
Humidity
Seal
Altitude
Resistance to Soldering Heat
Terminal Strength
Moisture Sensitive Level
RoHS
Storage Temperature Range
MIL-STD-202, Method 213, Condition J, 30g 11 ms
MIL-STD-202, Method 201 and 204, Condition A, except 5g to 500 Hz, 1 sweep each axis
MIL-STD-202, Method 214, Condition I-D
MIL-STD-202, Method 103, Condition B, 100% rh
MIL-STD-202, Method 112, Condition D, hermetic, washable
MIL-STD-202, Method 105, sea level to space
MIL-STD-202, Method 210, Condition A,B,C
MIL-STD-202, Method 211, Condition C (5 bends at 45
o
, 2 lbs)
1
6 (fully compliant)
-55
+125
°C
Vectron International • 267 Lowell Road, Unit 102, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com

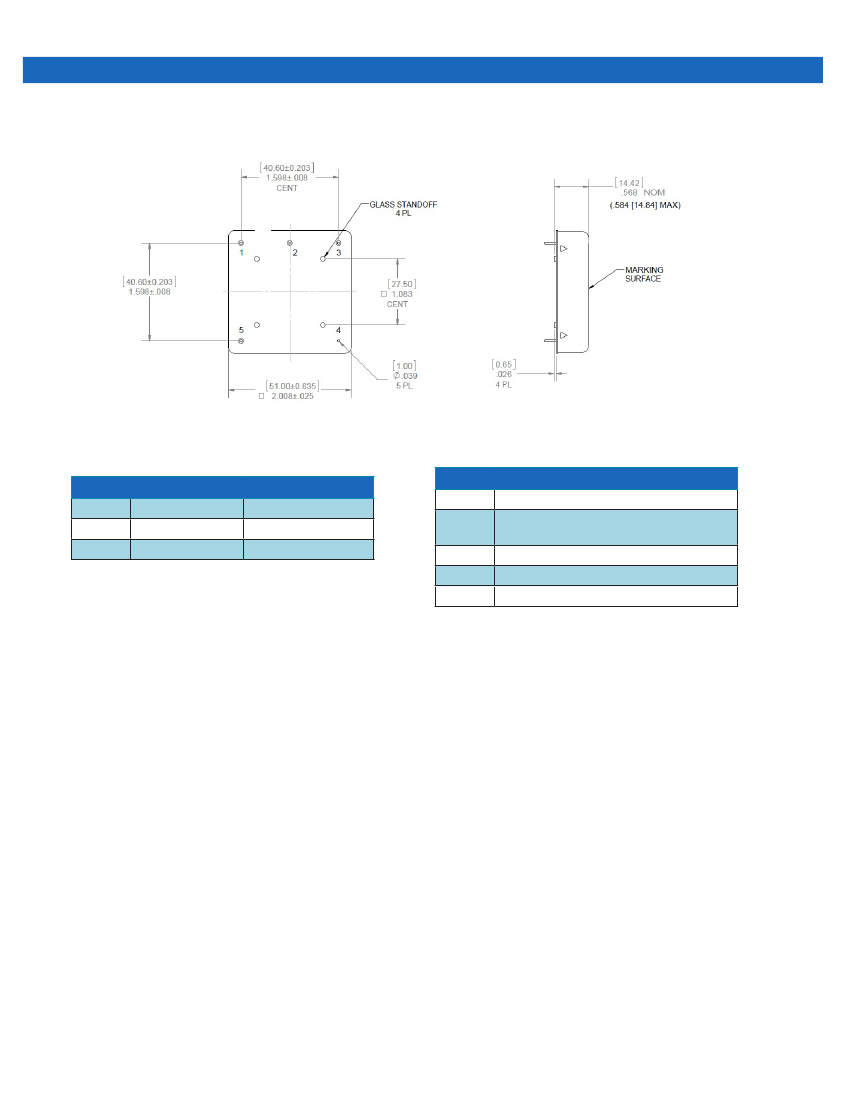

Outline Drawing / Enclosure
Dimensions in inches, [ ] in mm.
Type A
Code
0
Height “H”
14.84
Pin Length “L”
7.5
Pin Connections
1
2
3
4
5
Electronic Frequency Control (EFC)
N/C
Optional Reference Voltage
RF Output
Ground (Case)
Supply Voltage Input (Vs)
Vectron International • 267 Lowell Road, Unit 102, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
Ordering Information
MX - 041 0 - D A J - 400 1 - 10M0000000
Product Family
MX: OCXO
Model
041
Height
0: A14.84mm
Supply Voltage
B: 12 Vdc
D: 5 Vdc
RF Output Code
A: HCMOS
E: Sinewave
Frequency
5M00000000
Frequency Control
10M0000000
0:Fixed frequency
20M0000000
1: Electrical Tuning (EFC) (others available on
request)
Stability Code
109: ±1ppb
800: ±0.8ppb
600: ±0.6ppb
400: ±0.4ppb (temp codes T and J only)
200: ±0.2ppb (temp code T only)
Temperature Range
E: -40°C to +85°C (supply voltage D only)
D: -40°C to +70°C
J: -20°C to +70°C
T: 0°C to +70°C
-40 to +85
o
C
(supply voltage D only)
600
109
Stability code - Temperature and Frequency Options
Frequency
5 to 10 MHz
> 10 MHz
0 to +70
o
C
200
400
-20 to +70
o
C
400
600
-40 to +70
o
C
600
800
Additional ordering options available include custom heights, custom aging rates, custom temperature ranges, custom
temperature stabilities, custom phase noise requirements, improved g-sensitivity, and oscillators with voltage reference output on
pin 2. These modifications require a custom dash number - please contact the factory for additional information.
Additional Ordering Options
Design Tools
Vectron stocks the following items for small orders and prototype development:
MX-0410-DEJ-2001-10M0000000
Vectron stocks the following evaluation board for this product:
OCXO Evaluation Board
Application Notes:
None
Notes:
1. Unless otherwise stated, all values are valid after warm-up time and refer to typical conditions for supply voltage, frequency
control voltage, load, and temperature (25°C).
2. Retrace defined as f1-fo where fo is the reading after the unit has been on power for 24 hours, and f1 is the frequency after 24
hours off followed by 60 minutes on.
3. Phase noise degrades with increasing output frequency.
4. Not all options and codes available at all frequencies.
For Additional Information, Please Contact
USA:
Europe:
Asia:
Vectron International
267 Lowell Road, Unit 102
Hudson, NH 03051
Tel: 1.888.328.7661
Fax: 1.888.329.8328
Vectron International
Landstrasse, D-74924
Neckarbischofsheim, Germany
Tel: +49 (0) 3328.4784.17
Fax: +49 (0) 3328.4784.30
Vectron International
68 Yin Cheng Road(C), 22nd Floor
One LuJiaZui
Pudong, Shanghai 200120, China
Tel: +86 21 6194 6886
Fax: +86 21 6194 6699
Disclaimer
Vectron International reserves the right to make changes to the product(s) and or information contained herein without notice. No liability is assumed as a result of their use or application.
No rights under any patent accompany the sale of any such product(s) or information.
Rev: 11/24/2014 jar
Vectron International • 267 Lowell Road, Unit 102, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
