2mm Shrouded Male Connectors from Mill-Max
Mill-Max adds 2mm pitch products to our family of shrouded male pin connectors for higher density applica-
tions. Like our .100” pitch series, these connectors are effective where a robust, secure connection is demanded,
such as frequently mated interconnects and blind mate situations. These double row connectors come in 4 to
100 pin configurations and are available in through-hole, right-angle and surface mount termination styles.
Through-hole solder tail style:
Series 832-10-XXX-10-052000
(XX=4 to 100 pins)
Right-angle through-hole style:
Series 832-10-XXX-20-052000
(XX=4 to 100 pins)
Surface mount gull wing style:
Series 832-10-XXX-30-052000
(XX=4 to 100 pins)
The shroud of the connector extends above the pins affording full protection during handling, assembly, con-
necting and disconnecting. Further, the shroud limits the amount of misalignment between connectors during
mating and de-mating – acting as a guide for blind mate applications. Mill-Max also offers a mating socket,
P/N:
833-13-XXX-10-002000,
which is keyed to provide a polarized connector pair when mated with any of the
shrouded headers.
The three termination styles offer through-hole and surface mount options to address a variety of applications
such as: vertical board-to-board, perpendicular board-to-board and cable- (via flex circuit) to- board.
All three connectors are dual row with 2mm spacing pin-to-pin and row-to-row. The connector body is molded
from Ryton, a high temperature, durable thermoplastic with excellent thermal stability, chemical resistance
and a flammability rating of UL94 V-0. The pins are made of precision-machined brass and are gold-plated to
provide a secure and reliable connection. The socket receptacles are also precision-machined and fitted with
Mill-Max’s high reliability contact; both components are gold-plated. These connectors are RoHS compliant and
suitable for lead-free reflow processes.
3D Connector models are available upon request for product engineering development.
Contact Mill-Max Technical Services for custom design options.
For more information, please visit:
www.mill-max.com/PR640.
(5/13 -- PR640)
Mill-Max Mfg. Corp. • 190 Pine Hollow Road, Oyster Bay, NY 11771
516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

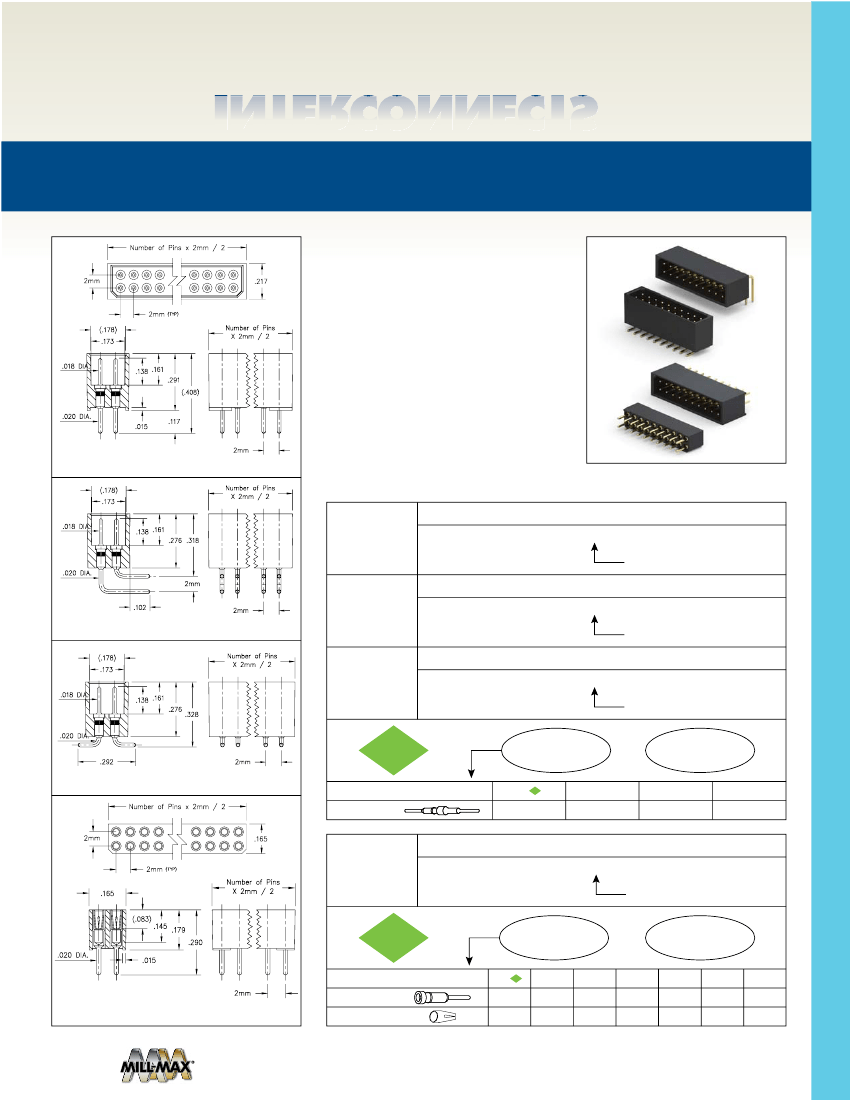

INTERCONNECTS
mm GRID (.020” DIA. PINS), SHROUDED STRAIGHT,
Number of Pins x 2mm / 2
2mm
.217
2mm
(.178)
.173
(TYP)
Number of Pins
X 2mm / 2
Shrouded pin interconnects available with
straight Series 832...10-052 or surface mount
832...30-052 and use MM
#3143
pins. Series
832...20-052 right angle interconnects use
MM
#3160
and
#3161
pins. See page 214 for
details
Series 833...10-002 with keying features use
MM
#1802
and accept pin diameters from
.015”-.025”. See page
169
for details
Receptacles use Hi-Rel, Low force, 4-finger
BeCu
#30 contact
rated at 3 amps. See page
253 for details
.018 DIA.
.138 .161
.291
(.408)
.020 DIA.
.015
.117
2mm
FIG. 1
(.178)
.173
Number of Pins
X 2mm / 2
Insulators
are high temperature thermoplastic,
suitable for all soldering operations
ORDERING INFORMATION
Series
830...10-052
Straight
Pin Header
.018 DIA.
.138 .161
.276 .318
FIG. 1
832-10-1_
_-10-052000
Specify number of
pins
004-100
.020 DIA.
2mm
Series
832...20-052
2mm
Right Angle Pin Header
.102
FIG. 2
(.178)
.173
Number of Pins
X 2mm / 2
FIG. 2
832-10-1_
_-20-052000
Specify number of
pins
004-100
Series
832...30-052
Surface Mount
Pin Header
.018 DIA.
.138 .161
.276
.328
FIG. 3
RoHS - 2
832-10-1_
_-30-052000
Specify number of
pins
XX=Plating
Code
See
Below
10
10
” Au
004-100
For
Electrical, Mechanical
& Enviromental Data,
See page 264
.020 DIA.
.292
2mm
2011/65/EU
FIG. 3
Number of Pins x 2mm / 2
2mm
.165
SPECIFY
PLATING
CODE
XX=
Pin Plating
2mm
(TYP)
.165
Number of Pins
X 2mm / 2
FIG. 4
RoHS - 2
833-13-1
_ _-10-002000
Specify number of
pins
XX=Plating
Code
See
Below
13
10
” Au
30 ” Au
004-100
For
Electrical, Mechanical
& Enviromental Data,
See page 264
(.083)
.145
.179
.290
2011/65/EU
.020 DIA.
.015
SPECIFY
PLATING
CODE
XX=
2mm
FIG. 4
Sleeve (Pin)
Contact (Clip)
PAGE 45.1 | INTERCONNECTS
Series
833...10-002
Double Row Keying
Socket
PCB Design
