2X8P AMPMODU II SHRD HDR,ST,0.38AU

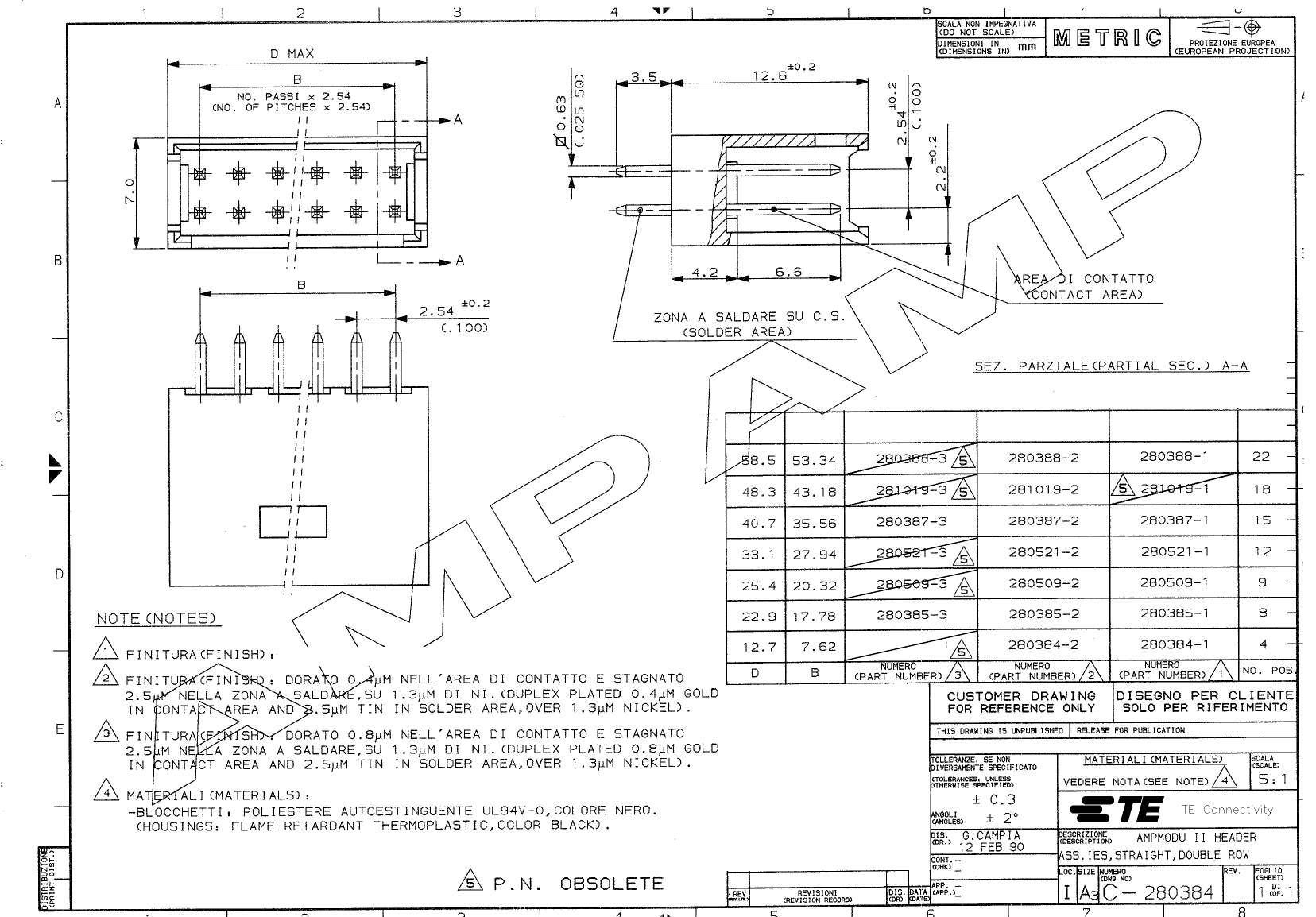

| Parameter Name | Attribute value |
| Brand Name | AMP |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Maker | TE Connectivity |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Factory Lead Time | 34 weeks |
| Samacsys Description | 16 way 2 row,(2x8),shrouded header |
| Other features | AMPMODU |
| body width | 0.276 inch |
| subject depth | 0.496 inch |
| body length | 0.902 inch |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact completed and terminated | Gold (Au) |
| Contact point gender | MALE |
| Contact material | NOT SPECIFIED |
| contact mode | RECTANGULAR |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 1000VAC V |
| Filter function | NO |
| IEC compliance | NO |
| Insulation resistance | 5000000000 Ω |
| Insulator color | BLACK |
| insulator material | THERMOPLASTIC |
| JESD-609 code | e4 |
| MIL compliance | NO |
| Plug contact pitch | 0.1 inch |
| Match contact row spacing | 0.1 inch |
| Mixed contacts | NO |
| Installation option 1 | LOCKING |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -65 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 2.54 mm |
| Plating thickness | 16u inch |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 3 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Terminal length | 0.138 inch |
| Terminal pitch | 2.54 mm |
| Termination type | SOLDER |
| Total number of contacts | 16 |
| UL Flammability Code | 94V-0 |
| Base Number Matches | 1 |
| 280385-2 | 280509-2 | 280387-2 | 280384-1 | 280385-1 | |
|---|---|---|---|---|---|
| Description | 2X8P AMPMODU II SHRD HDR,ST,0.38AU | 18 POS .100DR MODU- | 2X15P MODU II SHRD HDR,ST,0.38AU | 2X4P AMPMODU II SHRD HDR, ST, TIN | 2X8P AMPMODU II SHRD HDR, ST, TIN |
| Brand Name | AMP | AMP | AMP | AMP | AMP |
| Is it lead-free? | Lead free | Lead free | Lead free | Lead free | Lead free |
| Is it Rohs certified? | conform to | conform to | conform to | conform to | conform to |
| Reach Compliance Code | compliant | compli | compliant | compliant | compliant |
| Factory Lead Time | 34 weeks | 34 weeks | 30 weeks 5 days | 30 weeks 5 days | 34 weeks |
| Other features | AMPMODU | AMPMODU | AMPMODU | AMPMODU | AMPMODU |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact point gender | MALE | MALE | MALE | MALE | MALE |
| Filter function | NO | NO | NO | NO | NO |
| Mixed contacts | NO | NO | NO | NO | NO |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD |
| Number of rows loaded | 2 | 2 | 2 | 2 | 2 |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 16 | 18 | 30 | 8 | 16 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 |
| Maker | TE Connectivity | - | TE Connectivity | TE Connectivity | - |
| body width | 0.276 inch | 0.275 inch | 0.276 inch | - | 0.275 inch |
| subject depth | 0.496 inch | 0.496 inch | 0.496 inch | - | 0.496 inch |
| body length | 0.902 inch | 1 inch | 1.602 inch | - | 0.9 inch |
| Contact to complete cooperation | NOT SPECIFIED | NOT SPECIFIED | - | TIN | - |
| Contact completed and terminated | Gold (Au) | - | Tin (Sn) - with Nickel (Ni) barrier | Tin (Sn) | - |
| Contact material | NOT SPECIFIED | BRASS | - | PHOSPHOR BRONZE | - |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR | - | RECTANGULAR |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | - | SQ PIN-SKT |
| DIN compliance | NO | NO | - | NO | - |
| IEC compliance | NO | NO | - | NO | - |
| Insulator color | BLACK | BLACK | BLACK | - | BLACK |
| insulator material | THERMOPLASTIC | THERMOPLASTIC | THERMOPLASTIC | - | THERMOPLASTIC |
| JESD-609 code | e4 | - | e3 | e3 | - |
| MIL compliance | NO | NO | - | NO | - |
| Plug contact pitch | 0.1 inch | 0.1 inch | .100 inch | - | 0.1 inch |
| Match contact row spacing | 0.1 inch | 0.1 inch | - | - | 0.1 inch |
| Installation option 1 | LOCKING | LOCKING | - | - | LOCKING |
| Number of connectors | ONE | ONE | ONE | - | ONE |
| PCB row number | 2 | 2 | 2 | - | 2 |
| Maximum operating temperature | 105 °C | 105 °C | 105 °C | - | - |
| Minimum operating temperature | -65 °C | -65 °C | -65 °C | - | - |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR | - | RECTANGULAR |
| PCB contact row spacing | 2.54 mm | 2.54 mm | 2.54 mm | - | 2.54 mm |
| Plating thickness | 16u inch | - | 197u inch | - | 197u inch |
| Guideline | UL, CSA | UL | CSA, UL | - | UL |
| Terminal length | 0.138 inch | 0.137 inch | 0.138 inch | - | 0.137 inch |
