2-1735104-1 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 2-1735104-1

Preview

2-1735104-1: DescriptionSAS BACKPLANE RECEPT, VERTICAL; CategoryThe connector The connector; File Size381KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

2-1735104-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2-1735104-1	-	-	View	Buy Now

2-1735104-1 Overview

SAS BACKPLANE RECEPT, VERTICAL

2-1735104-1 Parametric

Parameter Name	Attribute value
Brand Name	TE Connectivity
Is it Rohs certified?	conform to
Objectid	2027100898
Reach Compliance Code	compliant
Factory Lead Time	13 weeks
Samacsys Description	SAS BACKPLANE RECEPT, VERTICAL
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2020-10-11 10:54:34
YTEOL	9.15
Board mount options	BOARD LOCK
subject depth	0.387 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NOT APPLICABLE
Contact material	NOT SPECIFIED
DIN compliance	NO
Electromagnetic interference shielding	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	POLYETHYLENE
MIL compliance	NO
Power Connector Ratings	1.5A
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Number of ports	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Panel mounting	NO
Plating thickness	30u inch
Rated current (signal)	1.5 A
Guideline	UL
Terminal length	0.083 inch
Terminal pitch	1.27 mm
Termination type	SOLDER AND SURFACE MOUNT
Total number of contacts	29
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

4

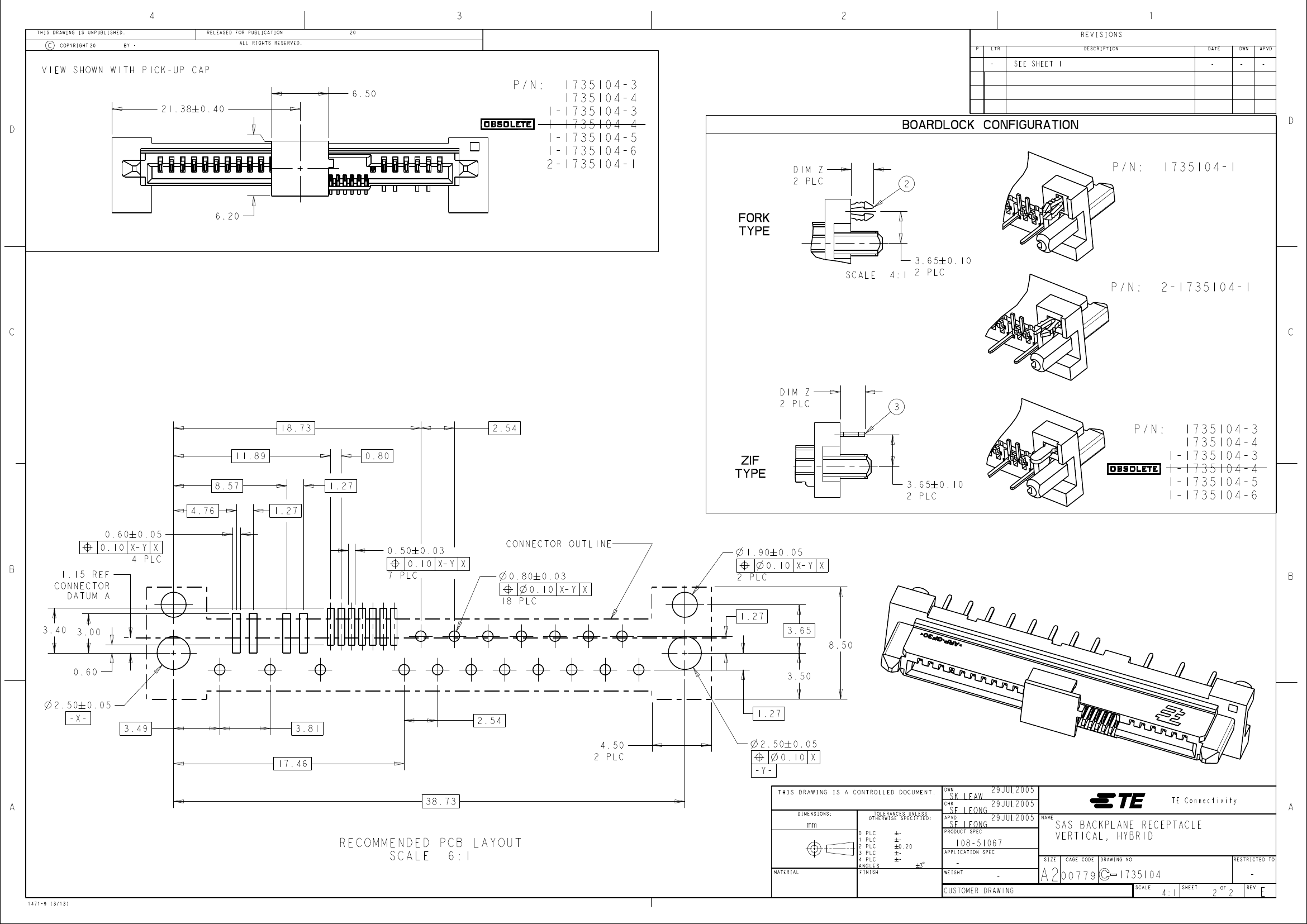

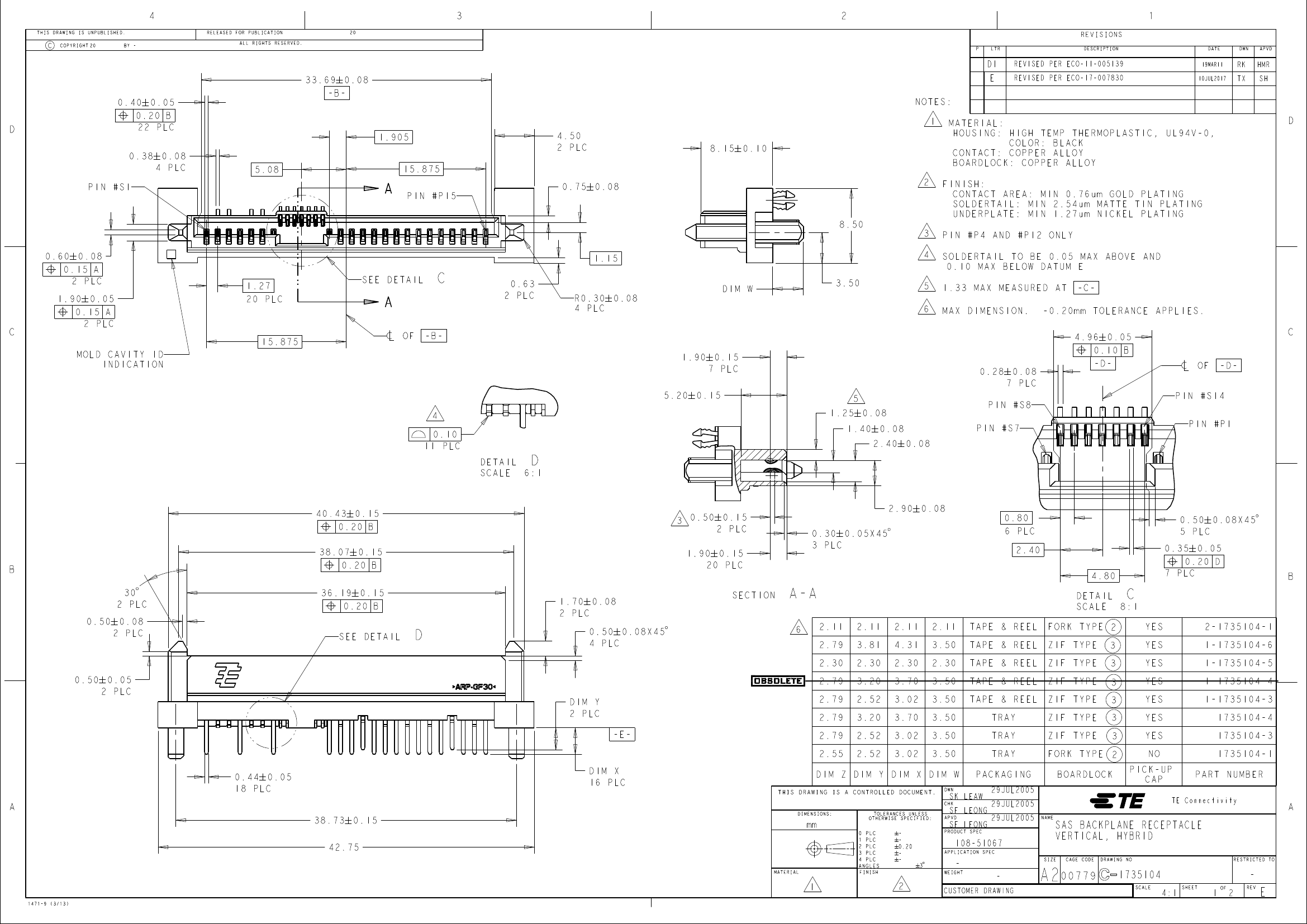

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

20

3

2

REVISIONS

P

LTR

DESCRIPTION

1

DATE

DWN

APVD

C

COPYRIGHT

20

D1

33.69

0.40

0.05

-B-

0.08

NOTES:

1.905

5.08

15.875

PIN #P15

0.75

0.08

4.50

2 PLC

1

8.15

0.10

2

E

REVISED PER ECO-11-005139

REVISED PER ECO-17-007830

19MAR11

10JUL2017

RK

TX

HMR

SH

D

22 PLC

0.38

PIN #S1

0.08

4 PLC

MATERIAL:

HOUSING: HIGH TEMP THERMOPLASTIC, UL94V-0,

COLOR: BLACK

CONTACT: COPPER ALLOY

BOARDLOCK: COPPER ALLOY

FINISH:

CONTACT AREA: MIN 0.76um GOLD PLATING

SOLDERTAIL: MIN 2.54um MATTE TIN PLATING

UNDERPLATE: MIN 1.27um NICKEL PLATING

PIN #P4 AND #P12 ONLY

SOLDERTAIL TO BE 0.05 MAX ABOVE AND

0.10 MAX BELOW DATUM E

1.33 MAX MEASURED AT

MAX DIMENSION.

-C-

D

8.50

0.60

0.08

2 PLC

1.90

0.05

2 PLC

MOLD CAVITY ID

INDICATION

15.875

1.27

SEE DETAIL

1.15

3

4

C

20 PLC

0.63

2 PLC

R0.30 # 0.08

4 PLC

DIM W

3.50

5

6

-0.20mm TOLERANCE APPLIES.

4.96

0.05

-D-

PIN #S14

PIN #P1

C

-B-

1.90

0.15

7 PLC

5

0.28

0.08

7 PLC

C

-D-

5.20

4

11 PLC

DETAIL

SCALE

0.15

1.25

0.08

2.40

0.08

PIN #S8

PIN #S7

1.40

6:1

2.90

0.30 0.05 X45 $

3 PLC

0.08

D

40.43

0.15

3 0.50

0.15

2 PLC

0.80

6 PLC

2.40

4.80

DETAIL

SCALE

8:1

2

3

2

YES

NO

PICK-UP

CAP

0.50 0.08 X45 $

5 PLC

0.35 # 0.05

7 PLC

38.07

0.15

B

30 $

2 PLC

0.50

0.08

2 PLC

36.19

0.15

1.70 0.08

2 PLC

1.90 0.15

20 PLC

SECTION

A-A

6

2.11

2.79

2.30

2.11

3.81

2.30

3.20

2.52

3.20

2.52

DIM Y

2.11

4.31

2.30

3.70

3.02

3.70

3.02

DIM X

2.11

3.50

2.30

3.50

DIM W

DWN

CHK

C

B

SEE DETAIL

D

0.50 0.08 X45 $

4 PLC

TAPE

& REEL

TRAY

FORK TYPE

ZIF TYPE

FORK TYPE

BOARDLOCK

2-1735104-1

1-1735104-6

1-1735104-5

1-1735104-4

1-1735104-3

1735104-4

1735104-3

1735104-1

PART NUMBER

TE Connectivity

0.50

0.05

2 PLC

2.79

DIM Y

2 PLC

-E-

2.79

2.55

0.44 0.05

18 PLC

DIM X

16 PLC

DIM Z

PACKAGING

29JUL2005

NAME

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

A

SK LEAW

SF LEONG

38.73

0.15

mm

APVD

A

42.75

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

0.20

-

PRODUCT SPEC

SF LEONG

APPLICATION SPEC

108-51067

-

SIZE

SAS BACKPLANE RECEPTACLE

VERTICAL, HYBRID

CAGE CODE

DRAWING NO

RESTRICTED TO

3 $

WEIGHT

1

1471-9 (3/13)

2

-

CUSTOMER DRAWING

A2

00779

1735104

SCALE

4:1

SHEET

1

OF

2

REV

-

E

2-1735104-1 Related Products

	2-1735104-1	1735104-4	1735104-1	1735104-3	1-1735104-5
Description	SAS BACKPLANE RECEPT, VERTICAL	SAS BACKPLANE RECEPT, VERTICAL	SAS BACKPLANE RECEPT, VERTICAL	SAS BACKPLANE RECEPT, VERTICAL	SAS BACKPLANE RECEPT, VERTICAL
Connector type	BOARD CONNECTOR	female end	female end	female end	female end
Number of ports	1	1	1	-	-
shell	-	Without	Without	Without	Without
Connectors and terminals terminate to	-	A printed circuit board	A printed circuit board	A printed circuit board	A printed circuit board
Product grouping	-	SAS	SAS	SAS	SAS
Outlet configuration	-	SAS backplane, hybrid	SAS backplane, hybrid	SAS backplane, hybrid	SAS backplane, hybrid
Stackable	-	no	no	no	no
Number of Positions	-	29	29	29	29
Rows	-	1	1	1	1
PCB mounting direction	-	vertical	vertical	vertical	vertical
Terminal base material	-	copper alloy	copper alloy	copper alloy	copper alloy
Terminal Contact Plating Thickness (µin)	-	30	30	30	30
Terminal contact plating material	-	gold	gold	gold	gold
Termination cylinder length	-	3.7 mm [ .146 in ]	3.02 mm [ .119 in ]	3.02 mm [ .119 in ]	2.3 mm [ .091 in ]
PCB mounting fixation type	-	welding nails	plate lock	welding nails	welding nails
PCB installation and fixation	-	with	with	with	with
PCB installation method	-	surface mount, through hole	surface mount, through hole	surface mount, through hole	surface mount, through hole
Board lock type	-	ZIF	cross	ZIF	ZIF
Plate lock plating material	-	Nickel base tin plating	Nickel base tin plating	Nickel base tin plating	Nickel base tin plating
Plate lock length	-	2.79 mm [ .109 in ]	2.55 mm [ .1 in ]	2.79 mm [ .109 in ]	2.3 mm [ .09 in ]
plate lock material	-	copper alloy	copper alloy	copper alloy	copper alloy
Shell color	-	black	black	black	black
Shell material	-	thermoplastic	thermoplastic	thermoplastic	thermoplastic
Height above PC board	-	9.85 mm [ .387 in ]	9.85 mm [ .387 in ]	9.85 mm [ .387 in ]	9.85 mm [ .387 in ]
High temperature shell	-	yes	yes	yes	yes
UL flammability rating	-	UL 94V-0	UL 94V-0	UL 94V-0	UL 94V-0
Encapsulation method	-	Pallets, boxes and pallets	Pallets, boxes and pallets	Pallets, boxes and pallets	tape reel
Package quantity	-	540	540	540	150
