40-9809M: Descriptionconn D-sub housing plug 9pos; CategoryThe connector; File Size54KB，1 Pages; ManufacturerEmerson; Environmental Compliance

Download Datasheet Parametric Compare View All

40-9809M Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	40-9809M	-	-	View	Buy Now

40-9809M Overview

conn D-sub housing plug 9pos

40-9809M Parametric

Parameter Name	Attribute value
Datasheets
40-9809M
Product Photos
40-9809M
Standard Package	50
Category	Connectors, Interconnects
Family	D-Sub, D-Shaped Connectors - Housings
Packaging	Tray
Connector Style	Plug
Connector Type	Plug for Male Contacts
Number of Positions	9
Number of Rows	2
Shell Size, Connector Layou	1 (DE, E)
Contact Type	Signal
Mounting Type	Free Hanging (In-Line)
Flange Feature	Housing/Shell (Unthreaded)
Features	Grounding Indents
Shell Material, Finish	Steel, Nickel Plated
Shell Finish Thickness	-
Note	Contacts Not Provided
Ingress Protecti	-
Operating Temperature	-
Mating Cycles	-
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Col	Black
Dynamic Catalog	98 Series
Mating Products	367-1191-ND - CONN D-SUB HOUSING RECEPT 9POS
Associated Produc	367-1172-ND - CONN D-SUB PIN CRIMP GOLD 1=100367-1154-ND - CONN D-SUB PIN CRIMP GOLD 1=100
Other Names	367-1194409809M

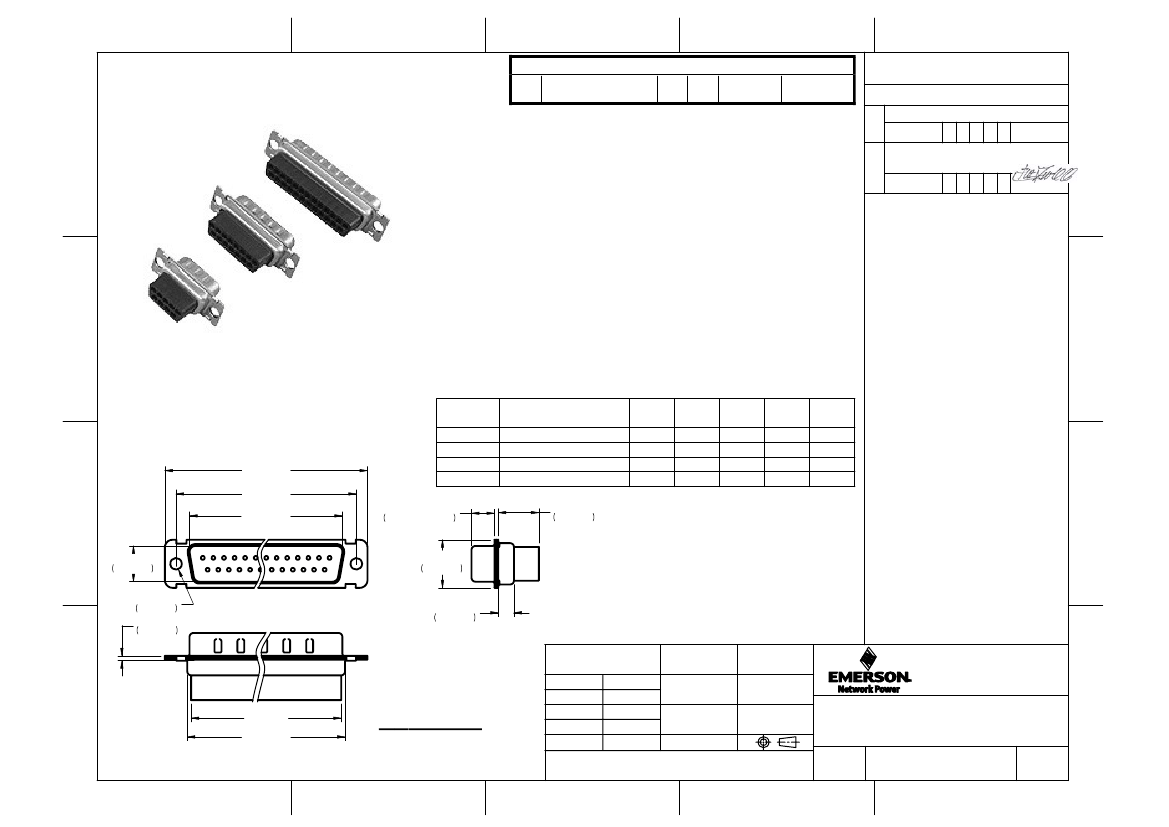

Preview

Download Datasheet

View All

5

4

3

40-9809M-CUST

(SEE TABLE 1)

2

CONTROLLED DOCUMENT

Rev

02

Rel'd Date

Jul11,11

DRAWING NO.

1

40-9809M-CUST(SEE TABLE I)

P/N

REVISIONS

01

02

OFFICIAL RELEASE

11-26-09

Y

U

Y

U

T

H

Description:

9 Pin Crimp Type Plug

40-9809M

98 Series D-Sub Connector

N/A

D

Part No:

Application:

Crimp Tool:

Impedance:

CHANGE SHELL PLATING FROM

YELLOW ZINC TO NICKEL

10-15-10

J

Y

U

T

H

D

ECO-10-0166

Frequency Range: N/A

Material:

Shell

Steel, Nickel plated

Insulator PBT+30%Fiber-grass,UL94-V0 Black

C

RoHS Compliance: Yes

Technical Detail:

N/A

C

TABLE I

Part Number

40-9809M

40-9815M

40-9825M

40-9837M

6.0 ±0.35

.236in ±.014

Description

9 Pin Crimp Type Plug

15 Pin Crimp Type Plug

25 Pin Crimp Type Plug

37 Pin Crimp Type Plug

10.60

.417in

A

(mm)

30.80

39.15

53.00

69.30

B

(mm)

24.99

33.32

47.04

63.50

C

(mm)

16.92

25.25

38.96

55.42

D

(mm)

19.20

27.70

41.28

57.30

E

(mm)

15.20

23.70

37.28

53.30

A

u

0.35

B

u

0.10

B

8.36

.329in

2-

O

3.05

.120in

1.35

.053in

C

u

0.15

B

12.6

.496in

MAX

4.1

.161in

CUSTOMER COPY

TOLERANCE UNLESS DRAWN BY

OTHERWISE SPECIFIED

JEAN.JIN

DATE

10-15-10

DATE

10-15-10

A

E

REF

DECIMALS

X

X.X

X.XX

ANGLES

mm

CHECKED BY

Connectivity

Solutions

TITLE

A

D

u

0.20

DIM OUTLINE

+

0.5

-

+

0.3

-

+

0.2

-

+

0.5

-

BETTY.YU

THOMAS

U/M

mm

APPROVED BY DATE

THIS DRAWING WAS PRODUCED BY COMPUTER,

DO NOT SCALE DRAWING OR UPDATE MANUALLY.

v

9 PIN CRIMP TYPE PLUG

(SEE TABLE I)

SHEET

1 OF 1

DRAWING NO.

SIZE

40-9809M-CUST

(SEE TABLE I)

A

5

4

3

2

1

40-9809M Related Products

	40-9809M	40-9815M	40-9825M
Description	conn D-sub housing plug 9pos	conn D-sub housing plug 15pos	conn D-sub housing plug 25pos
Standard Package	50	50	50
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	D-Sub, D-Shaped Connectors - Housings	D-Sub, D-Shaped Connectors - Housings	D-Sub, D-Shaped Connectors - Housings
Packaging	Tray	Bulk	Bulk
Connector Style	Plug	D-Sub	D-Sub
Connector Type	Plug for Male Contacts	Plug for Male Contacts	Plug for Male Contacts
Number of Positions	9	15	25
Number of Rows	2	2	2
Shell Size, Connector Layou	1 (DE, E)	2 (DA, A)	3 (DB, B)
Contact Type	Signal	Signal	Signal
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)
Flange Feature	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded)
Features	Grounding Indents	Grounding Indents	Grounding Indents
Shell Material, Finish	Steel, Nickel Plated	Steel, Nickel Plated	Steel, Nickel Plated
Note	Contacts Not Provided	Contacts Not Provided	Contacts Not Provided
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Col	Black	Black	Black
Dynamic Catalog	98 Series	98 Series	98 Series
Mating Products	367-1191-ND - CONN D-SUB HOUSING RECEPT 9POS	367-1193-ND - CONN D-SUB HOUSING RECEPT 15POS	367-1163-ND - CONN D-SUB HOUSING RECEPT 25POS
Associated Produc	367-1172-ND - CONN D-SUB PIN CRIMP GOLD 1=100367-1154-ND - CONN D-SUB PIN CRIMP GOLD 1=100	367-1172-ND - CONN D-SUB PIN CRIMP GOLD 1=100367-1154-ND - CONN D-SUB PIN CRIMP GOLD 1=100	367-1172-ND - CONN D-SUB PIN CRIMP GOLD 1=100367-1154-ND - CONN D-SUB PIN CRIMP GOLD 1=100
Other Names	367-1194409809M	367-1190409815M	367-1189409825M
