2-353081-2: DescriptionRectangular Power Connector, 3 Contact(s), Male, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size177KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

2-353081-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2-353081-2	-	-	View	Buy Now

2-353081-2 Overview

Rectangular Power Connector, 3 Contact(s), Male, Solder Terminal, Receptacle

2-353081-2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1940508204
Reach Compliance Code	compliant
Factory Lead Time	14 weeks 6 days
Samacsys Description	Body Features: Primary Product Color Black \| Configuration Features: PCB Mount Orientation Horizontal \| Number of Rows 1 \| Number of Positions 3 \| Contact Features: Contact Current Rating (Max) 30 AMP \| Contact Mating Area Plating Material Thickness 15 MICIN \| Contact Mating Area Plating Material Gold \| Contact Mating Area Plating Material Thickness .38 MICM \| Contact Type Pin \| Housing Features: Centerline (Pitch) .4 INCH \| Centerline (Pitch) 10.16 MM \| Housing Material Polyester GF \| Industry Standards: U
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2024-04-03 09:25:58
YTEOL	7.3
Other features	POLARIZED
Board mount options	SOLDERABLE RETENTION CLIPS
body width	0.547 inch
subject depth	1.26 inch
body length	1.556 inch
Body/casing type	RECEPTACLE
Connector type	RECTANGULAR POWER CONNECTOR
Contact arrangement	S0P3
Contact to complete cooperation	NOT APPLICABLE
Contact point gender	MALE
Contact material	NOT APPLICABLE
Contact resistance	2 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Durability	25 Cycles
Electromagnetic interference shielding	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
maximum insertion force	9.7856 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Power Connector Ratings	30A
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of ports	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Panel mounting	NO
Plating thickness	15u inch
polarization key	POLARIZED
Rated current (signal)	30 A
Guideline	UL
Terminal length	0.149 inch
Terminal pitch	10.16 mm
Termination type	SOLDER
Total number of contacts	3
UL Flammability Code	94V-0
Evacuation force-minimum value	.973 N

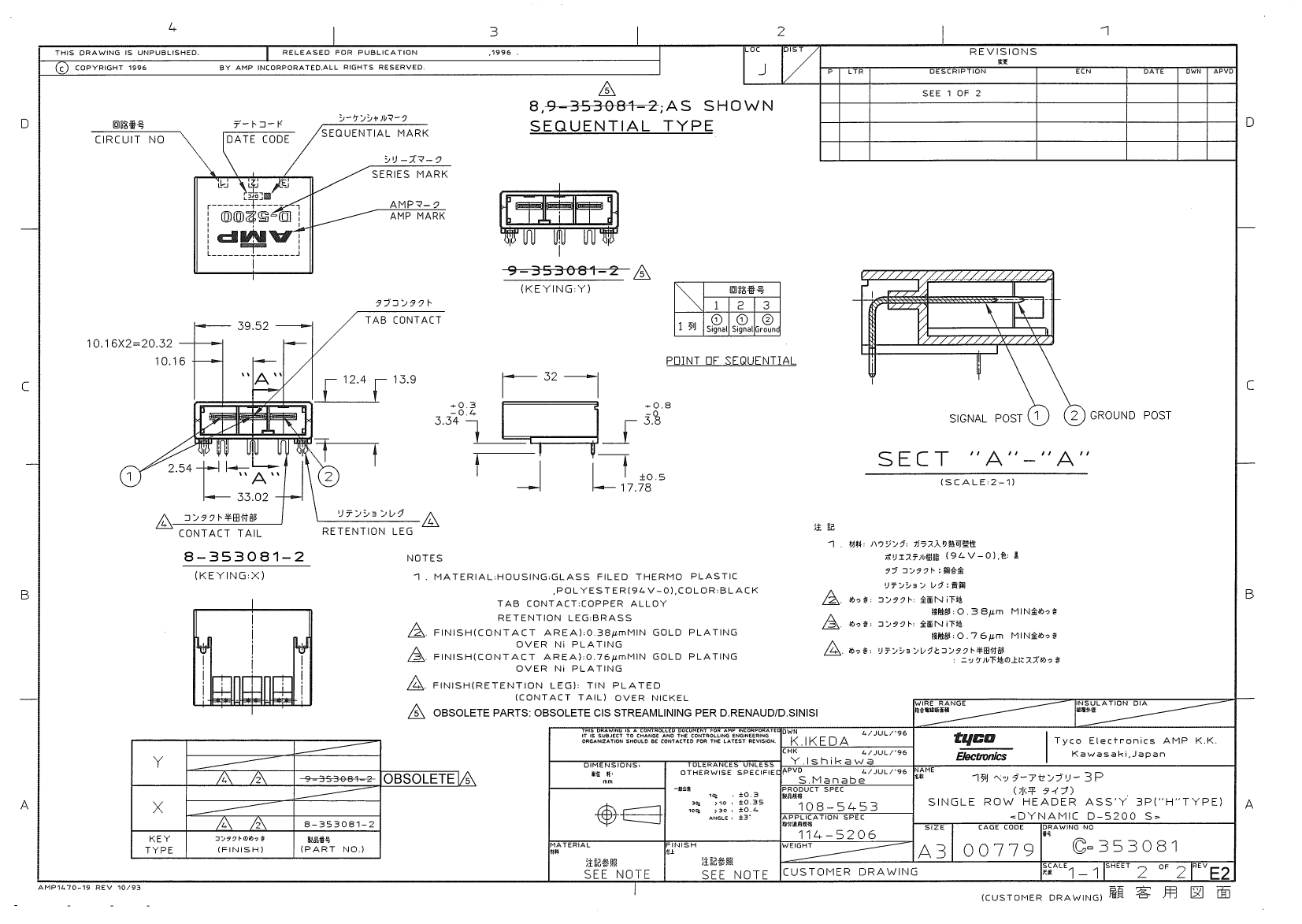

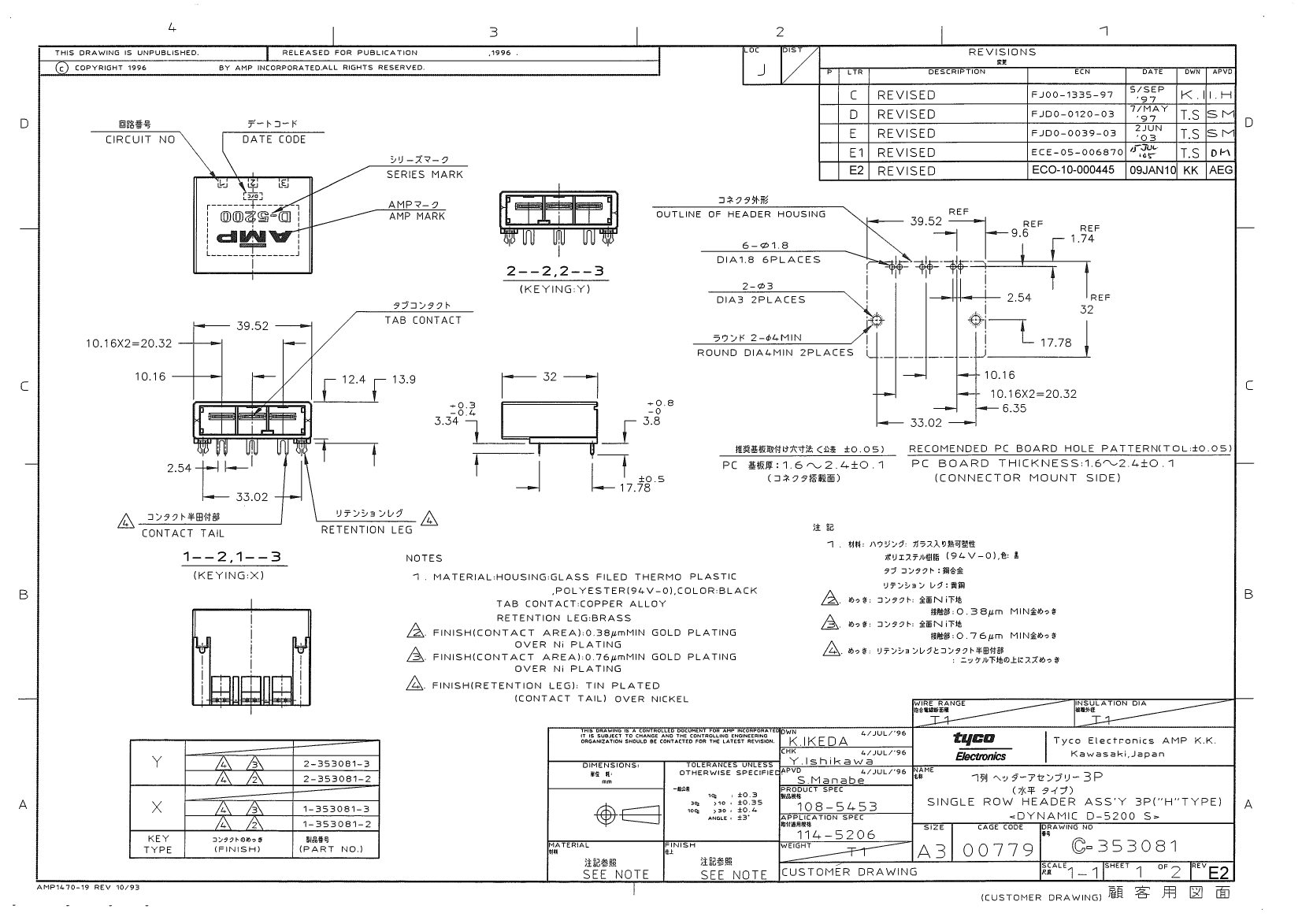

Preview

Download Datasheet

View All

2-353081-2 Related Products

	2-353081-2	1-353081-3	2-353081-3
Description	Rectangular Power Connector, 3 Contact(s), Male, Solder Terminal, Receptacle	DYNAMIC D-5200 HDR H ASSY 3P	DYNAMIC D-5200 HDR H ASSY 3P
Is it Rohs certified?	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant
Other features	POLARIZED	POLARIZED	POLARIZED
Board mount options	SOLDERABLE RETENTION CLIPS	SPLIT BOARD LOCK	SPLIT BOARD LOCK
body width	0.547 inch	0.547 inch	0.547 inch
subject depth	1.26 inch	1.26 inch	1.26 inch
body length	1.556 inch	1.556 inch	1.556 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR
Contact arrangement	S0P3	S0P3	S0P3
Contact to complete cooperation	NOT APPLICABLE	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE
Contact material	NOT APPLICABLE	COPPER ALLOY	COPPER ALLOY
Contact resistance	2 mΩ	2 mΩ	2 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
DIN compliance	NO	NO	NO
Durability	25 Cycles	25 Cycles	25 Cycles
empty shell	YES	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
maximum insertion force	9.7856 N	9.7856 N	9.7856 N
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLACK	BLACK	BLACK
MIL compliance	NO	NO	NO
Mixed contacts	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
Maximum operating temperature	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Plating thickness	15u inch	15u inch	15u inch
Guideline	UL	UL	UL
Terminal length	0.149 inch	0.149 inch	0.149 inch
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	3	3	3
UL Flammability Code	94V-0	94V-0	94V-0
Evacuation force-minimum value	.973 N	.973 N	.973 N
Brand Name	-	AMP	AMP
Is it lead-free?	-	Lead free	Lead free
Dielectric withstand voltage	-	3000VAC V	3000VAC V
Manufacturer's serial number	-	353081	353081
reliability	-	COMMERCIAL	COMMERCIAL
Shell material	-	GLASS FILLED POLYETHYLENE	GLASS FILLED POLYETHYLENE
Base Number Matches	-	1	1
