1-794108-0 datasheet, PDF - EEWORLD Datasheet

1-794108-0: Description24P MINI UMNL R/A HDR ASSY SN; CategoryThe connector The connector; File Size123KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

1-794108-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1-794108-0	-	-	View	Buy Now

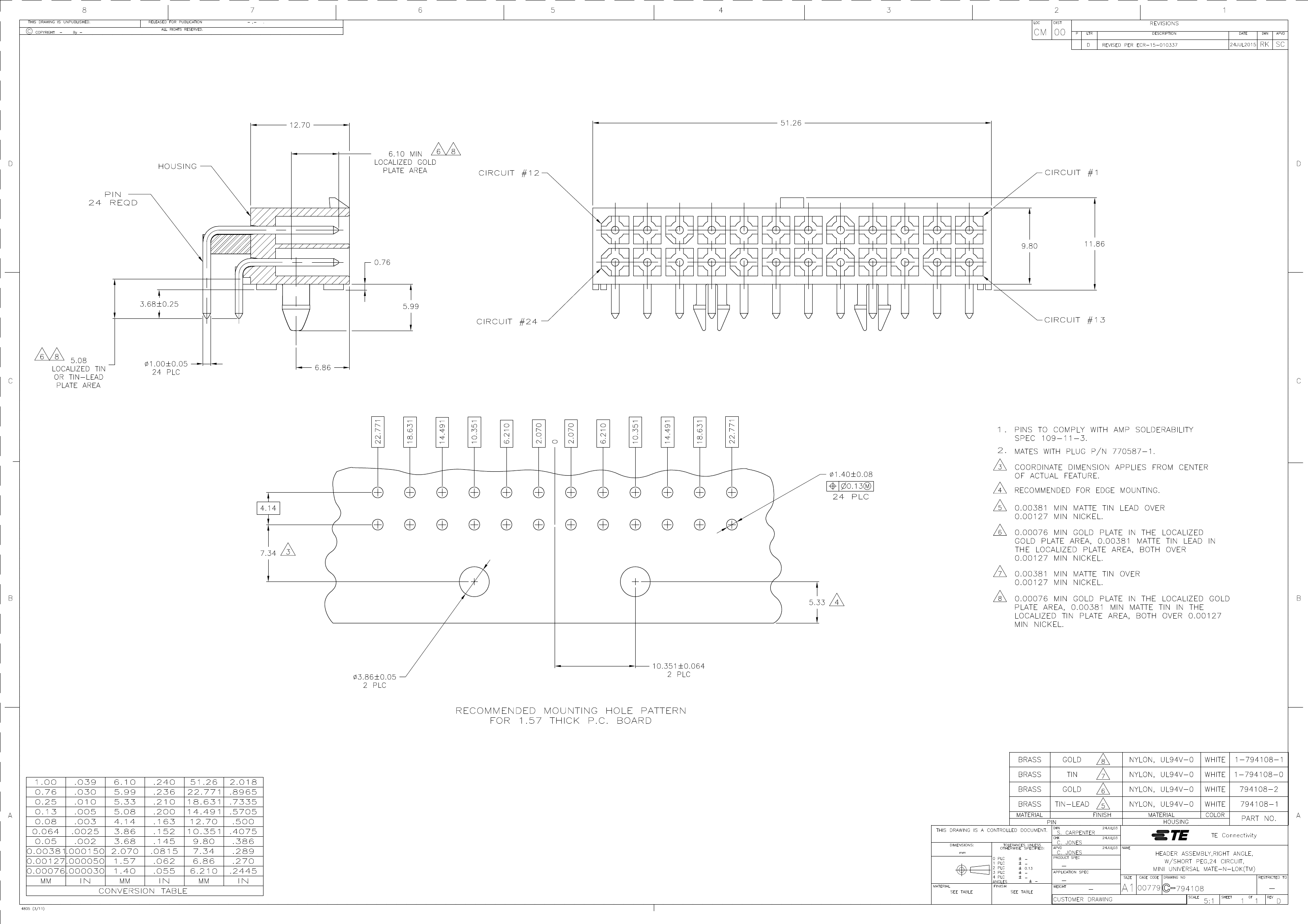

24P MINI UMNL R/A HDR ASSY SN

Parameter Name	Attribute value
Brand Name	AMP
Is it Rohs certified?	conform to
Maker	TE Connectivity
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Samacsys Confidence	4
Samacsys Status	Released
Samacsys PartID	191561
Samacsys Pin Count	24
Samacsys Part Category	Connector
Samacsys Package Category	Other
Samacsys Footprint Name	1-794108-0-2
Samacsys Released Date	2018-11-11 21:59:54
Is Samacsys	N
Other features	MATE-N-LOK
Connector type	COMBINATION LINE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	BRASS
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Plug information	770587-1
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	POLYAMIDE
Termination type	SOLDER
Total number of contacts	24
UL Flammability Code	94V-0
Base Number Matches	2

	1-794108-0	10082201-402K12LF	794108-2
Description	24P MINI UMNL R/A HDR ASSY SN	Board Connector, 12 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle,	24P MINI UMNL R/A HDR ASSY AU
Is it Rohs certified?	conform to	conform to	incompatible
Reach Compliance Code	compliant	compliant	_compli
Connector type	COMBINATION LINE CONNECTOR	BOARD CONNECTOR	COMBINATION LINE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	SN ON NI	GOLD (30) OVER NICKEL
Contact point gender	MALE	MALE	MALE
Contact material	BRASS	PHOSPHOR BRONZE	BRASS
Installation type	BOARD	BOARD	BOARD
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	24	12	24
Brand Name	AMP	-	AMP
Maker	TE Connectivity	-	TE Connectivity
Is Samacsys	N	-	N
Other features	MATE-N-LOK	-	MATE-N-LOK
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	-
DIN compliance	NO	-	NO
empty shell	NO	-	NO
Filter function	NO	-	NO
IEC compliance	NO	-	NO
JESD-609 code	e3	e3	-
MIL compliance	NO	-	NO
Plug information	770587-1	-	770587-1
Mixed contacts	NO	-	NO
Options	GENERAL PURPOSE	-	GENERAL PURPOSE
Shell material	POLYAMIDE	-	POLYAMIDE
UL Flammability Code	94V-0	-	94V-0
Base Number Matches	2	-	1
