2214870-1: DescriptionMiniSAS HD 1x4 Rec Assy w/ weld; CategoryThe connector; File Size1006KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

2214870-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2214870-1	-	-	View	Buy Now

2214870-1 Overview

MiniSAS HD 1x4 Rec Assy w/ weld

2214870-1 Parametric

Parameter Name	Attribute value
shell	with
Connector type	female end
Connector System	cable to board
Connectors and terminals terminate to	A printed circuit board
Product grouping	Mini-SAS HD
Outlet configuration	Mini-SAS HD
Stackable	no
Number of Positions	144
Rows	4
Number of ports	4
PCB mounting direction	right angle
Plug configuration	Mini-SAS HD
Terminal base material	copper alloy
PCB mounting fixation type	M2 screw
PCB installation and fixation	with
PCB installation method	Through hole solderless connection
Connector mounting type	Panel, board mounting
Centerline (Pitch)	.75 mm [ .029 in ]
Shell color	black
Shell material	LCP (Liquid Crystal Polymer)
Height above PC board	12.78 mm [ .503 in ]
PCB thickness (recommended)	.97 mm [ .038 in ]
Working group temperature range	-55 – 85 °C [ -67 – 185 °F ]
High temperature shell	yes
Circuit Application	Signal
UL flammability rating	UL 94V-0
Encapsulation method	Packaging, boxes and pallets
Package quantity	15

Preview

Download Datasheet

View All

8

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY - TE CONNECTIVITY LTD.

7

20

6

5

4

3

LOC

2

DIST

1

REVISIONS

P

LTR

DESCRIPTION

DATE

DWN

APVD

C

COPYRIGHT

20

AG

00

A

B

REVISED PER ECO-14-018497

REVISED PER ECO-15-013876

17DEC2014

19JUN2016

AP

JY

DG

SH

38

D1

C1

D

0.13

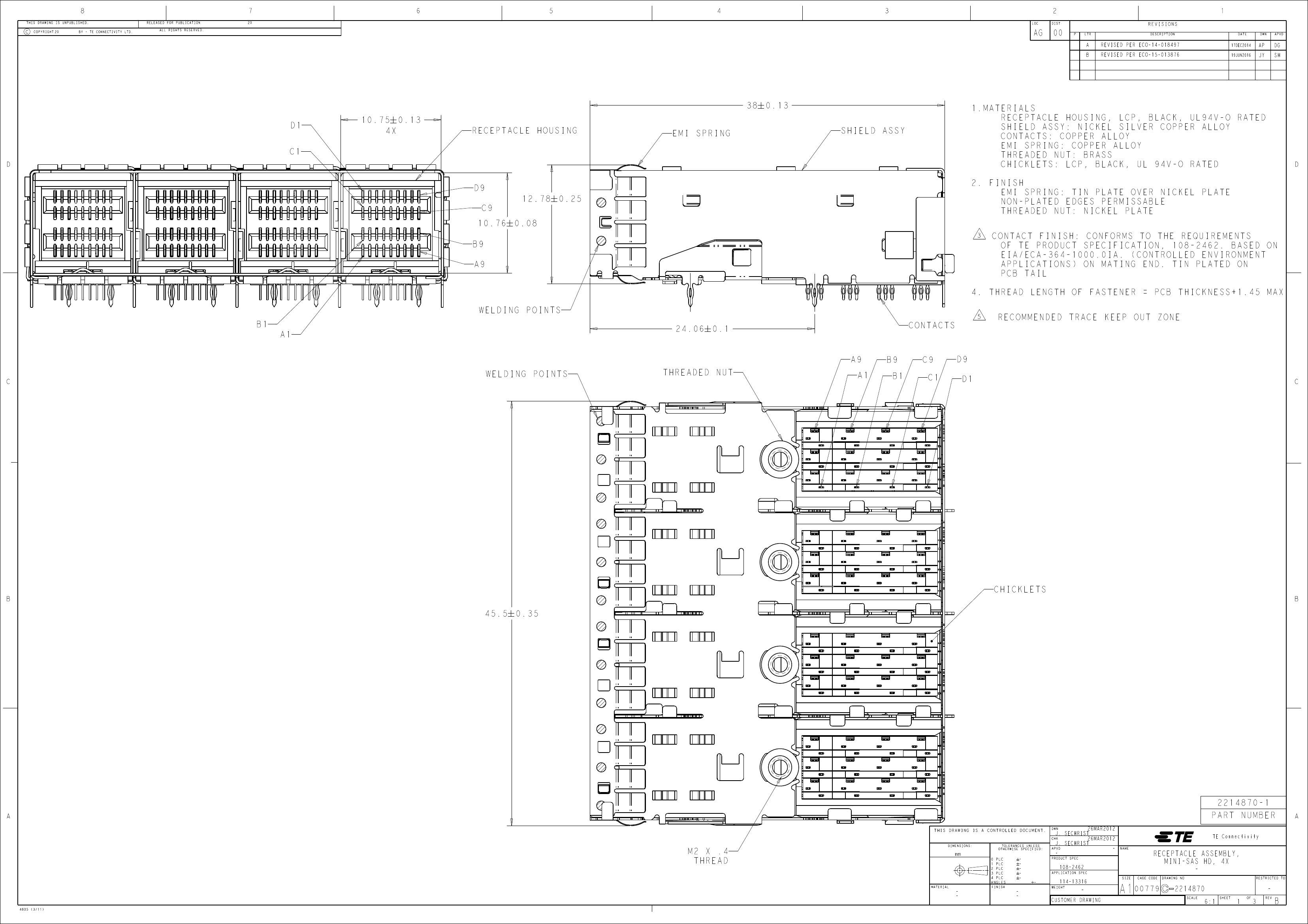

SHIELD ASSY

10.75

4X

0.13

RECEPTACLE HOUSING

EMI SPRING

1.MATERIALS

RECEPTACLE HOUSING, LCP, BLACK, UL94V-O RATED

SHIELD ASSY: NICKEL SILVER COPPER ALLOY

CONTACTS: COPPER ALLOY

EMI SPRING: COPPER ALLOY

THREADED NUT: BRASS

CHICKLETS: LCP, BLACK, UL 94V-O RATED

2. FINISH

EMI SPRING: TIN PLATE OVER NICKEL PLATE

NON-PLATED EDGES PERMISSABLE

THREADED NUT: NICKEL PLATE

3

D

D9

C9

10.76

B9

A9

12.78

0.08

0.25

CONTACT FINISH: CONFORMS TO THE REQUIREMENTS

OF TE PRODUCT SPECIFICATION, 108-2462. BASED ON

EIA/ECA-364-1000.0IA. (CONTROLLED ENVIRONMENT

APPLICATIONS) ON MATING END. TIN PLATED ON

PCB TAIL

4. THREAD LENGTH OF FASTENER = PCB THICKNESS+1.45 MAX

WELDING POINTS

B1

A1

24.06

0.1

A9

A1

B9

B1

CONTACTS

D9

D1

C

5

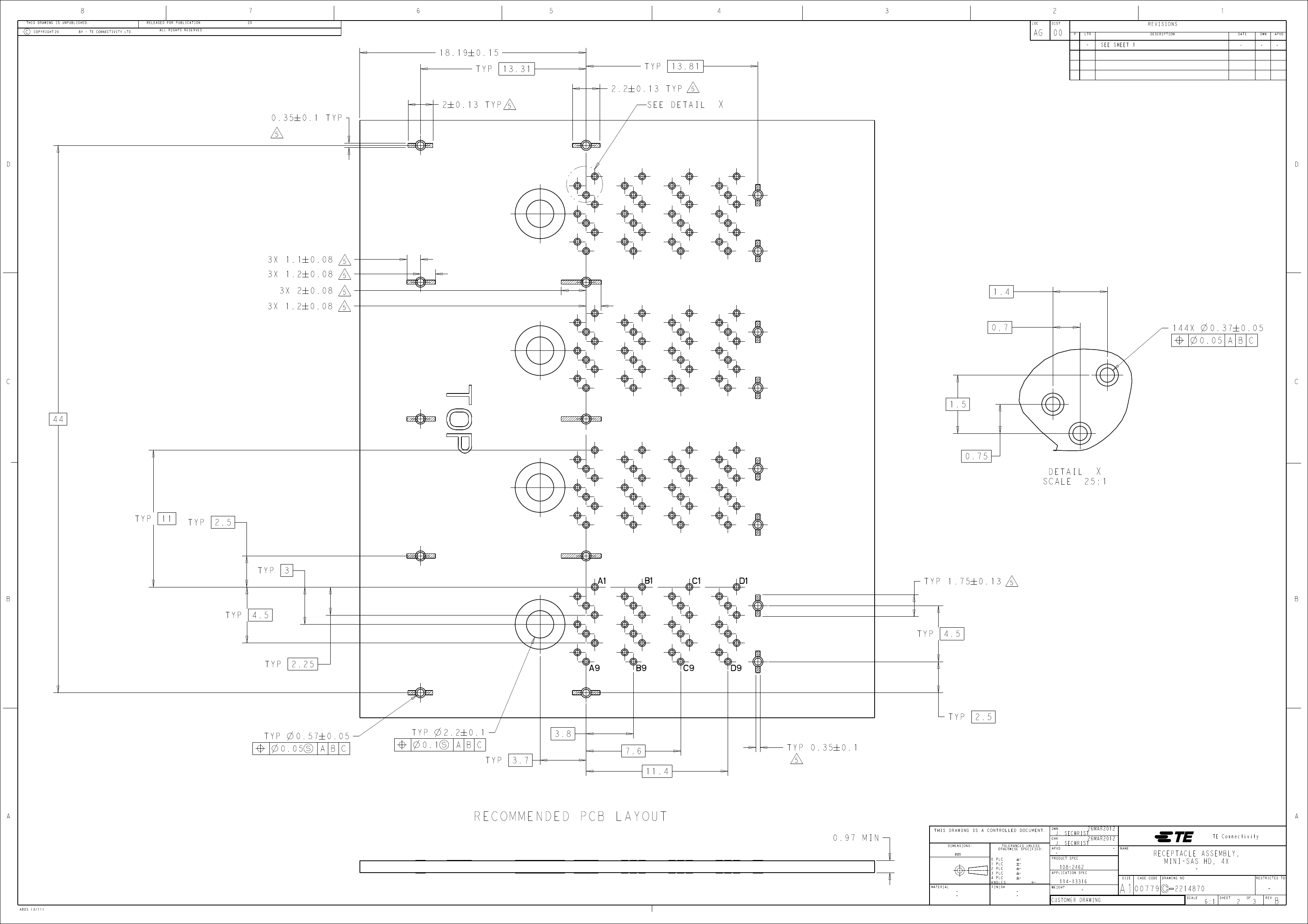

RECOMMENDED TRACE KEEP OUT ZONE

C

WELDING POINTS

THREADED NUT

C9

C1

B

CHICKLETS

45.5

0.35

B

A

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

PART NUMBER

J. SECHRIST

-

26MAR2012

-

NAME

2214870-1

A

TE Connectivity

M2 X .4

THREAD

MATERIAL

mm

APVD

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

PRODUCT SPEC

APPLICATION SPEC

108-2462

-

WEIGHT

114-13316

-

CUSTOMER DRAWING

A1

00779

SIZE

CAGE CODE

RECEPTACLE ASSEMBLY,

MINI-SAS HD, 4X

-

DRAWING NO

RESTRICTED TO

2214870

SCALE

4805 (3/11)

6:1

SHEET

1

OF

3

REV

-

B
