2007394-5

Description
(2007394-5) SFP+assy 2x4 Spring Fingers 4
CategoryThe connector    The connector
File Size4MB，4 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric Compare View All

2007394-5 Online Shopping

Suppliers Part Number Price MOQ In stock
2007394-5 - - View Buy Now

2007394-5 Overview

(2007394-5) SFP+assy 2x4 Spring Fingers 4

2007394-5 Parametric

Parameter NameAttribute value
Brand NameTE Connectivity
Is it lead-free?Lead free
Is it Rohs certified?conform to
Objectid8003528700
Reach Compliance Codeunknown
Samacsys DescriptionSFP, SFP+ & zSFP+, Cage Assembly with Integrated Connector, Data Rate (Max) 16 Gb/s, Internal/External EMI Springs, SFP+, With Lightpipe, 2 x 4
Samacsys ManufacturerTE Connectivity
Samacsys Modified On2023-08-02 14:28:15
YTEOL7.78
Board mount optionsBOARD LOCK
body width1.007 inch
subject depth2.504 inch
body length2.26 inch
Connector typeTELECOM AND DATACOM CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedNOT APPLICABLE
Contact point genderFEMALE
Contact materialNOT SPECIFIED
contact modeSTAGGERED
Contact styleTELCOM, MODULAR
DIN complianceNO
Electromagnetic interference shieldingNO
empty shellYES
Filter functionNO
IEC complianceNO
Insulator colorBLACK
insulator materialLIQUID CRYSTAL POLYMER
MIL complianceNO
Power Connector Ratings115/230VAC
Mixed contactsNO
Installation option 1MOUNTING FLANGE
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number4+4
Number of ports8
Number of rows loaded2+2
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternSTAGGERED
Panel mountingNO
Plating thickness30u inch
GuidelineUL
Shell materialNICKEL SILVER
Terminal length0.118 inch
Terminal pitch0.8 mm
Termination typePRESS FIT
Total number of contacts160
UL Flammability Code94V-0

Preview

Download Datasheet
8
THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
BY -
ALL RIGHTS RESERVED.
7
20
6
5
4
3
LOC
2
DIST
1
REVISIONS
P
LTR
DESCRIPTION
DATE
DWN
APVD
C
COPYRIGHT
20
GP
00
D
REVISED PER ECO-15-017919
06APR2016
AP
RP
T11
T10
INNER LIGHT
PIPE
8X 14
EMI SPRING
( 63.6 )
( 63.25 )
D
T20
8X 8.95
T1
4X ( 6.6 )
( 25.58 )
( 25.16 )
( 25.5 )
0.15
D
L10
L11
L20
C
L1
OUTER LIGHT
PIPE
( 3 ) TYP
( 11.5 )
(8)
TYP
( 1.95 ) TYP
CAGE ASSEMBLY
CONTACT
C
2007394
-5 AS SHOWN
( 57.41 )
1
MATERIALS:
CAGE ASSEMBLY- NICKEL SILVER ALLOY
PER ASTM B 122.
EMI SPRING- COPPER ALLOY.
INSERT- LCP, BLACK, UL 94V-0.
HOUSING- BLACK LCP, UL 94V-O RATED.
CHICKLET- BLACK LCP, UL 94V-O RATED.
LIGHT PIPE- POLYCARBONATE, CLEAR.
CONTACT- COPPER ALLOY.
DATUM AND BASIC DIMENSIONS ESTABLISHED
BY CUSTOMER.
6
7
FOR HOLE SIZE AND PLATINGS, SEE
APPLICATION SPEC 114-13219.
THE ENTIRE AREA OF THE CONNECTOR
FOOTPRINT, INDICATED BY THE DASHED LINE,
TO BE CONSIDERED THE KEEPOUT AREA FOR
COMPONENTS AND SIGNAL TRACES, TOP SIDE
ONLY. TOP SIDE TRACES ALLOWED WITHIN
CONNECTOR HOLE PATTERN.
LIGHT PIPE PAD LAYOUT IS FOR 0805 LOW
PROFILE LED PACKAGE WITH A HEIGHT OF
0.8mm.
EMI SPRING FINISH: 0.8µm MINIMUM MATTE
TIN OVER 0.8µm MINIMUM NICKEL, NONPLATED
EDGES PERMISSIBLE.
ADDITIONAL COMPONENT LOCATED WITHIN LATCH
PLATE FOR EMI SUPPRESSION.
B
2
8
3. MINIMUM PCB THICKNESS OF 1.5.
4
9
B
5
CONTACT FINISH: CONFORMS TO THE
REQUIREMENTS OF TE CONNECTIVITY
PRODUCT SPECIFICATION 108-2331,
BASED ON EIA/ECA-364-1000.01A,
(CONTROLLED ENVIRONMENT APPLICATIONS)
ON MATING INTERFACE, TIN-LEAD ON
NEEDLE EYE.
CONTACT FINISH: CONFORMS TO THE
REQUIREMENTS OF TE CONNECTIVITY
PRODUCT SPECIFICATION 108-2331,
BASED ON EIA/ECA-364-1000.01A,
(CONTROLLED ENVIRONMENT APPLICATIONS)
ON MATING INTERFACE, TIN ON NEEDLE EYE.
10
YES
10
5
OUTER 2 LIGHT PIPES
INNER 2 LIGHT PIPES
NO LIGHT PIPES
4 LIGHT PIPES
NO LIGHT PIPES
1-2007394-8
1-2007394-7
1-2007394-6
1-2007394-5
2007394 -8
2007394 -7
2007394 -6
2007394 -5
2007394 -4
2007394 -3
2007394 -2
2007394 -1
PART NUMBER
TE Connectivity
NO
OUTER LIGHT PIPE
SUPERSEDED
INNER LIGHT PIPE
A
5
OUTER 2 LIGHT PIPES
INNER 2 LIGHT PIPES
NO LIGHT PIPES
4 LIGHT PIPES
NO
4
OUTER 2 LIGHT PIPES
INNER 2 LIGHT PIPES
4 LIGHT PIPES
DESCRIPTION
10OCT2007
10OCT2007
10OCT2007
NAME
ENHANCED EMI
THIS DRAWING IS A CONTROLLED DOCUMENT.
DIMENSIONING AND TOLERANCING
PER ASME Y14.5M-2009
DIMENSIONS:
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
FINISH
DWN
CHK
A
M.SHIRK
D.SZCZESNY
D.SZCZESNY
108-2331
mm
APVD
HOUSING
CHICKLET
MATERIAL
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
0.10
0.10
0.10
0.10
-
PRODUCT SPEC
APPLICATION SPEC
-
WEIGHT
114-13219
1
4805 (3/11)
4
5
9
-
CUSTOMER DRAWING
A1
00779
SIZE

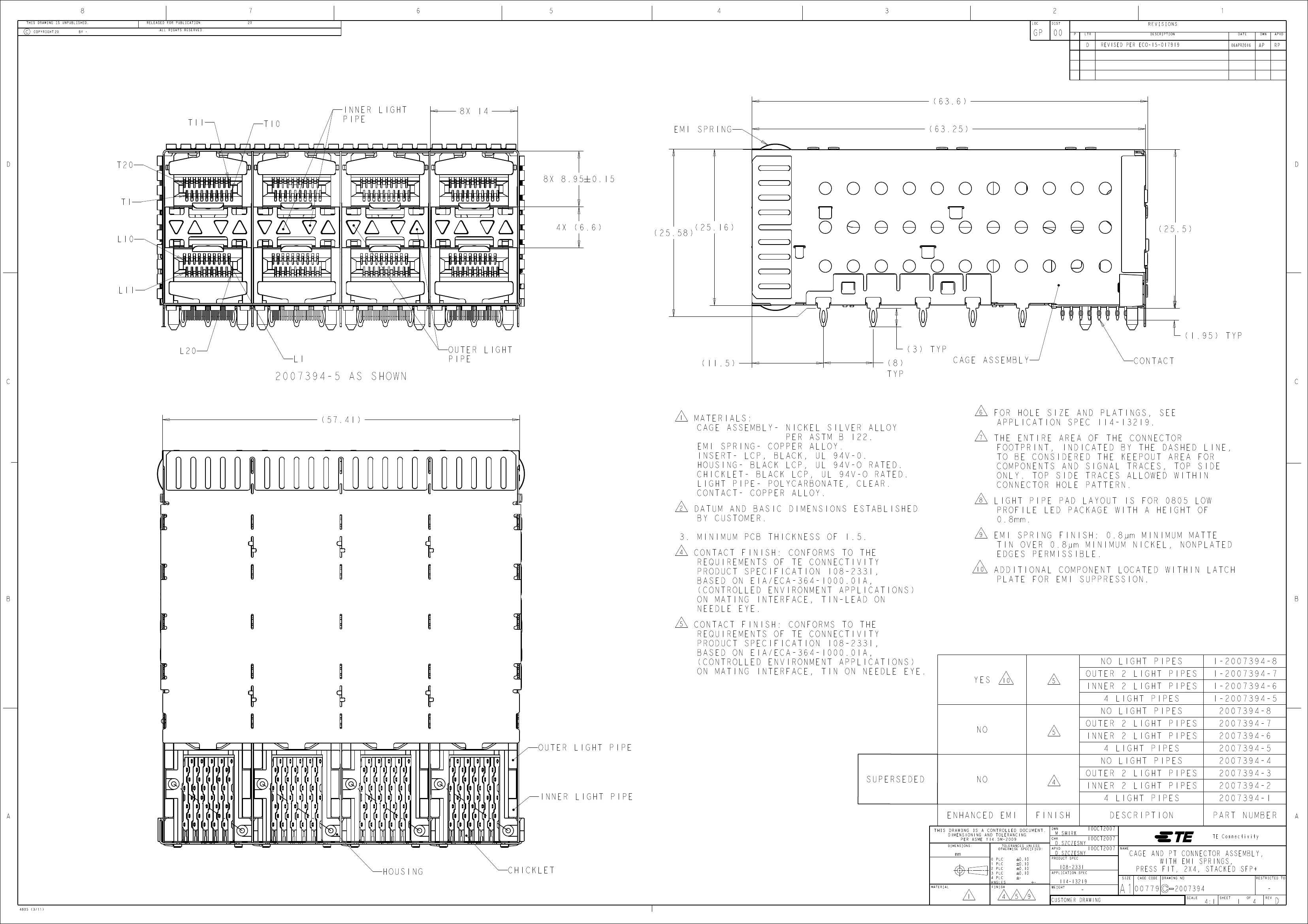

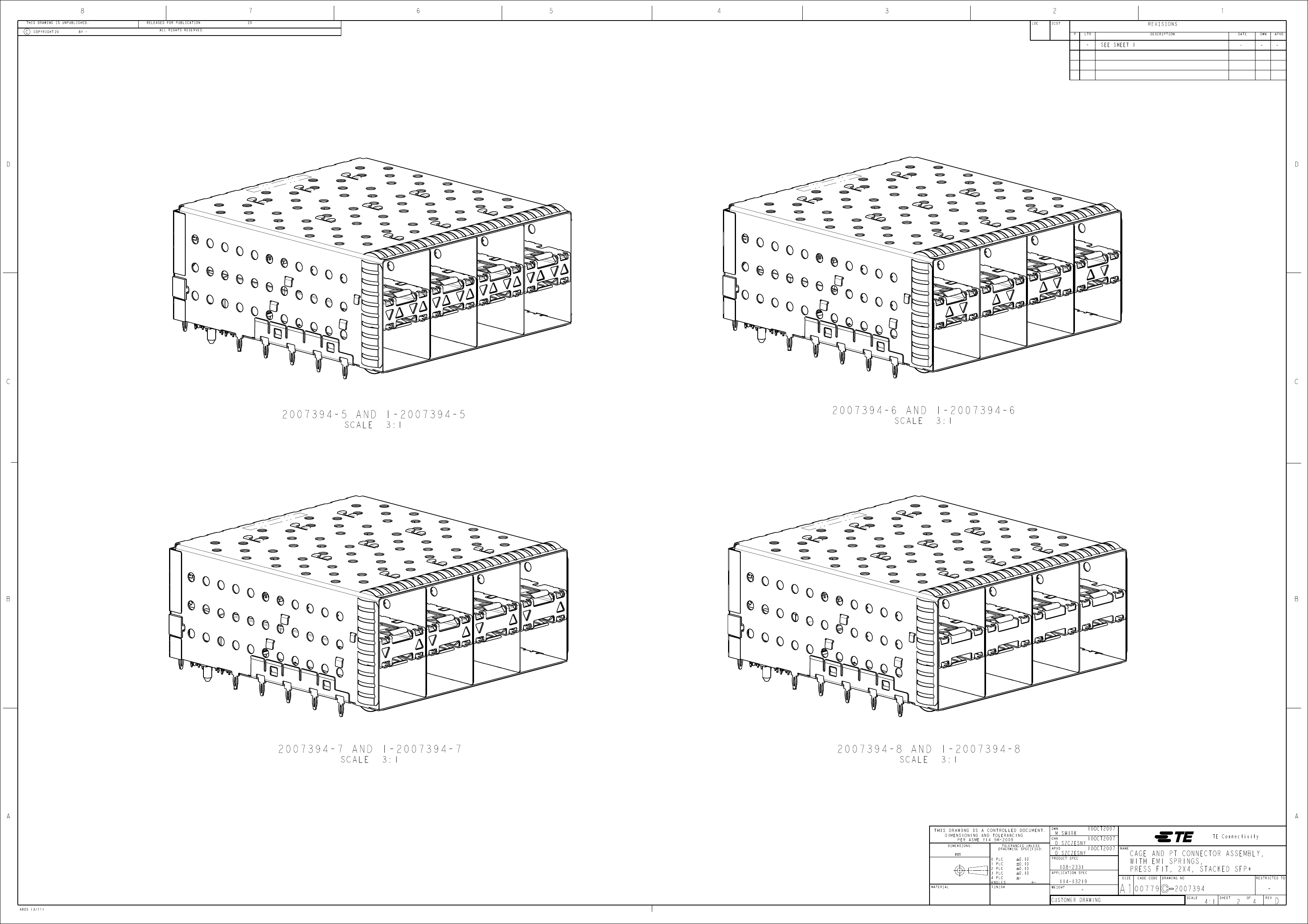

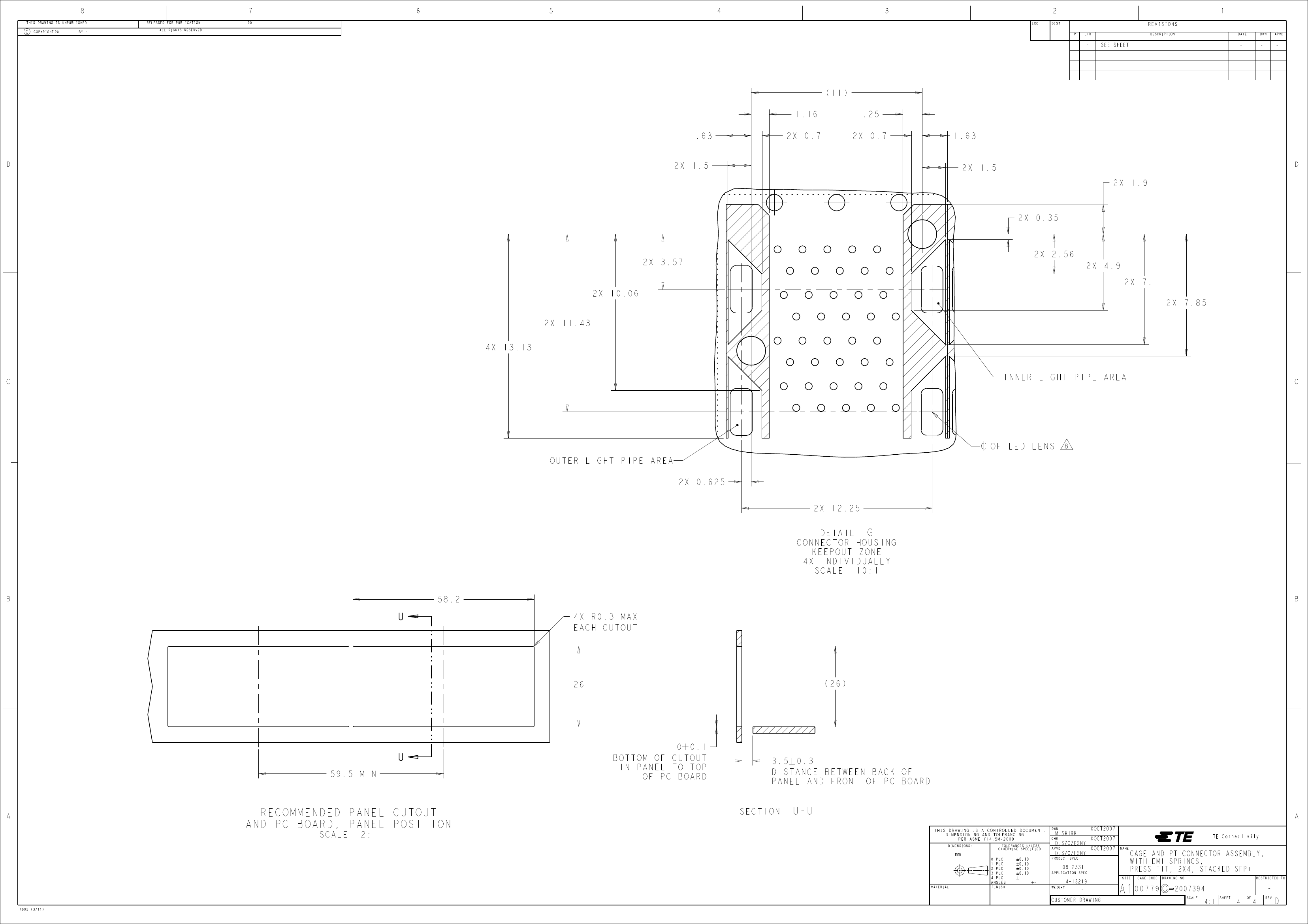

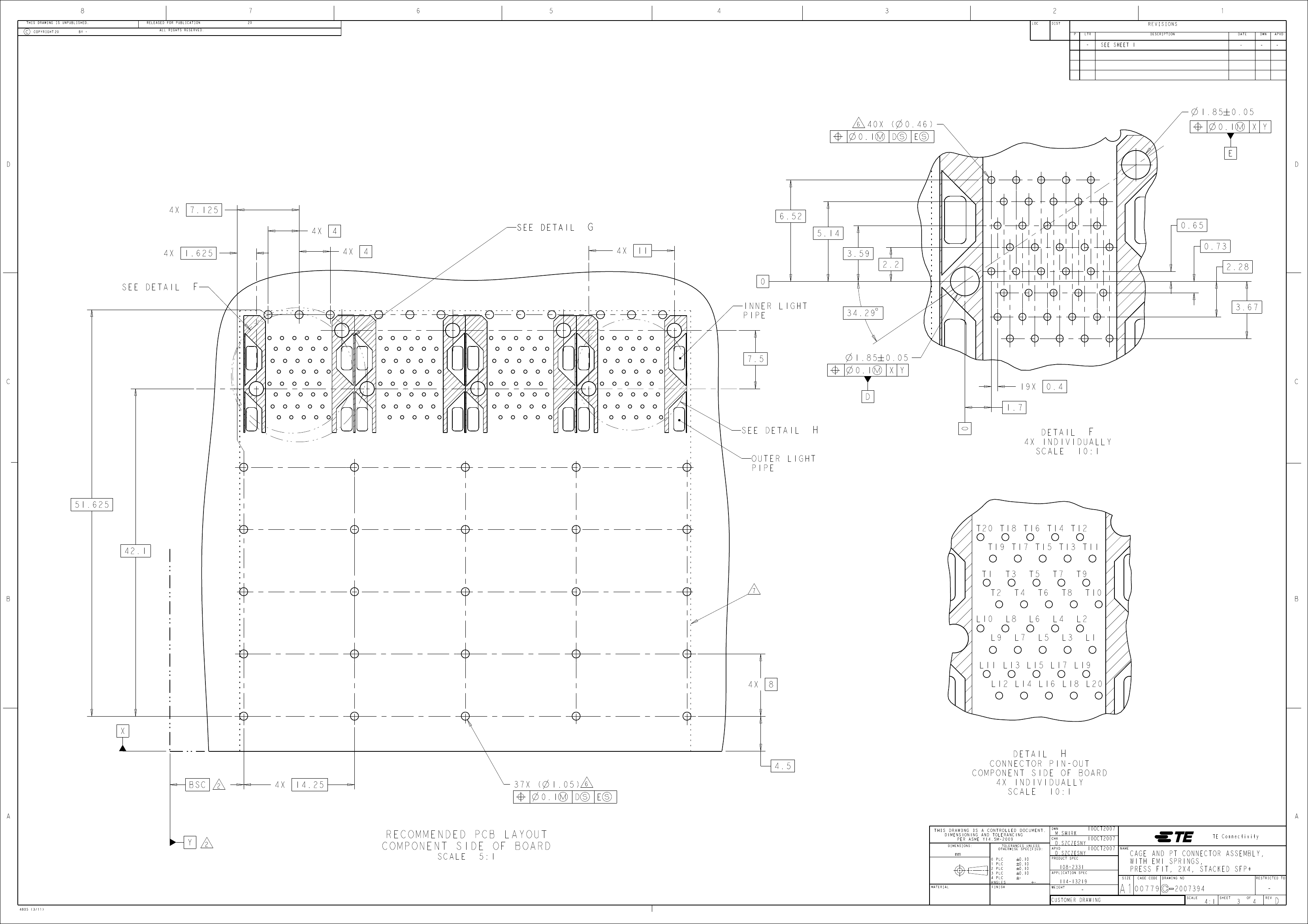

CAGE AND PT CONNECTOR ASSEMBLY,
WITH EMI SPRINGS,
PRESS FIT, 2X4, STACKED SFP+
CAGE CODE
DRAWING NO
RESTRICTED TO
2007394
SCALE
4:1
SHEET
1
OF
4
REV
-
D

2007394-5 Related Products

2007394-5 1-2007394-7 1-2007394-6 1-2007394-8
Description (2007394-5) SFP+assy 2x4 Spring Fingers 4 SFP+ assy 2x4 EMI Spg Outer LP Sn Enhanc SFP+ assy2x4 EMI Spg Inner LP Sn Enhance SFP+ assy 2x4 EMI Sprg No Lp Sn Enhanced
Number of ports 8 8 8 8
Dimensions - SFP+ SFP+ SFP+
cage type - stack stack stack
Radiator included - no no no
Connector System - cable to board cable to board cable to board
Sealable - no no no
Connectors and terminals terminate to - A printed circuit board A printed circuit board A printed circuit board
Port matrix configuration - 2 x 4 2 x 4 2 x 4
Number of Positions - 160 160 160
Data rate (max) (Gb/s) - 16 16 16
Terminal contact plating material - Palladium nickel alloy gold plating Palladium nickel alloy gold plating Palladium nickel alloy gold plating
Terminal contact plating thickness (µm) - .76 .76 .76
Tail plating material - tin tin tin
PCB Termination Methods - Through hole - solderless connection Through hole - solderless connection Through hole - solderless connection
PCB installation method - Through hole solderless connection Through hole solderless connection Through hole solderless connection
Connector mounting type - board mounting board mounting board mounting
cage material - nickel silver nickel silver nickel silver
Centerline (Pitch) - .8 mm [ .0315 in ] .8 mm [ .0315 in ] .8 mm [ .0315 in ]
PCB thickness (recommended) - 1.5 mm [ .059 in ] 1.5 mm [ .059 in ] 1.5 mm [ .059 in ]
tail length - 3 mm [ .118 in ] 3 mm [ .118 in ] 3 mm [ .118 in ]
Working group temperature range - -55 – 105 °C [ -67 – 221 °F ] -55 – 105 °C [ -67 – 221 °F ] -55 – 105 °C [ -67 – 221 °F ]
Pluggable I/O Applications - EMI enhanced EMI enhanced EMI enhanced
Circuit Application - Signal Signal Signal
Compatible radiators - no no no
UL flammability rating - UL 94V-0 UL 94V-0 UL 94V-0
Encapsulation method - tray tray tray
EMI containment feature types - external spring external spring external spring
Light pipe included - yes yes no
