477-009-112-311 datasheet, PDF

Datasheet> All Categories > The connector> 477-009-112-311

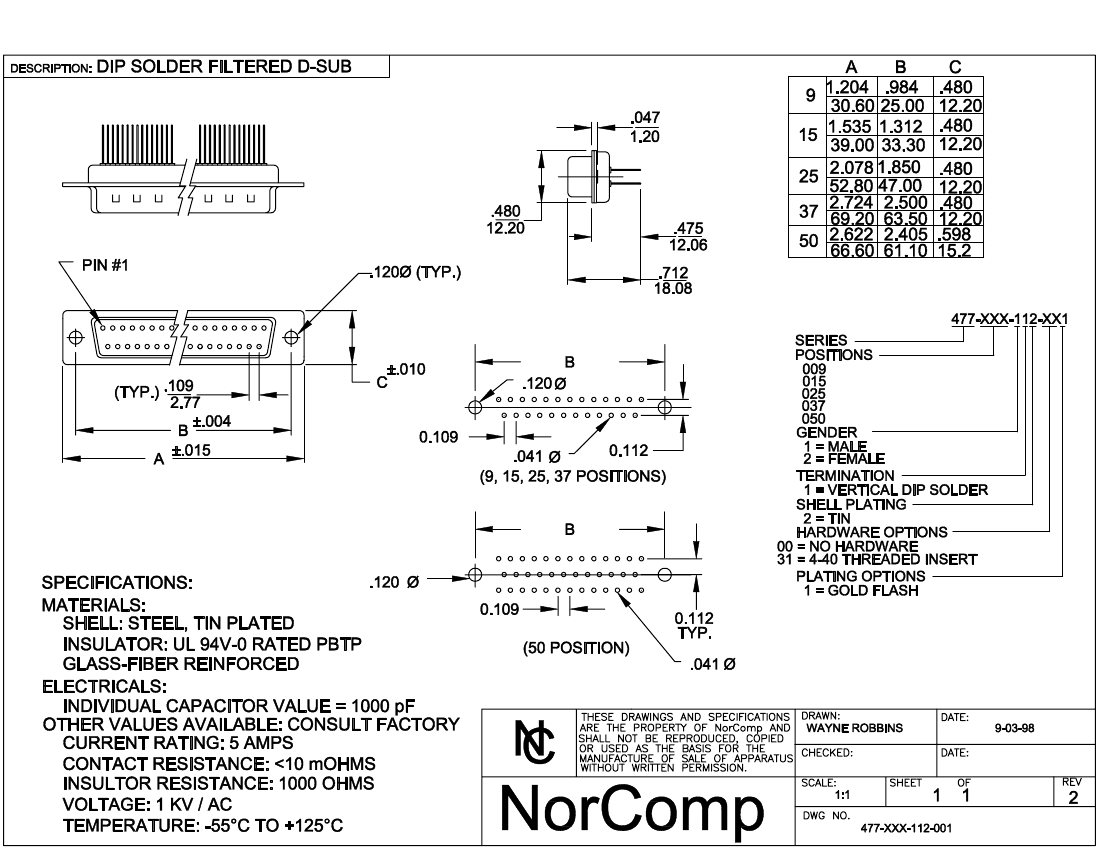

477-009-112-311: Descriptionconn db9 male filtered dip sld; CategoryThe connector; File Size168KB，1 Pages; ManufacturerNorComp; Websitehttps://www.norcomp.net

Download Datasheet Parametric Compare View All

477-009-112-311 Overview

conn db9 male filtered dip sld

477-009-112-311 Parametric

Parameter Name	Attribute value
Datasheets
477-yyy-112-001
Standard Package	5
Category	Connectors, Interconnects
Family	D-Sub Connectors
Packaging	-
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Number of Positions	9
Number of Rows	2
Shell Size, Connector Layou	1 (DE, E)
Contact Type	Signal
Mounting Type	Through Hole
Flange Feature	Housing/Shell (4-40)
Terminati	Solde
Features	Filter, Grounding Indents
Shell Material, Finish	Steel, Tin Plated
Contact Finish	Gold
Contact Finish Thickness	Flash
Ingress Protecti	-
Operating Temperature	-55°C ~ 125°C
Voltage Rating	-
Current Rating	5A
Housing Material	Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Col	-
Associated Produc	160-09MA-ND - DUST COVER FOR DB9 MALE
Other Names	477009112311

Preview

Download Datasheet

View All

477-009-112-311 Related Products

	477-009-112-311	477-009-112-001	477-015-112-001	477-015-112-311	477-025-112-001	477-037-112-001	477-025-112-311	477-037-112-311	477-050-112-001	477-050-112-311
Description	conn db9 male filtered dip sld	conn db9 male filtered dip sld	conn db15 male filtered dip sld	conn db15 male filtered dip sld	conn db25 male filtered dip sld	conn db37 male filtered dip sld	conn db25 male filtered dip sld	conn db37 male filtered dip sld	conn db50 male filtered dip sld	conn db50 male filtered dip sld
Standard Package	5	5	5	5	5	5	5	5	5	5
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	D-Sub Connectors	D-Sub Connectors	D-Sub Connectors	D-Sub Connectors	D-Sub Connectors	D-Sub Connectors	D-Sub Connectors	D-Sub Connectors	D-Sub Connectors	D-Sub Connectors
Connector Style	D-Sub	D-Sub	D-Sub	D-Sub	D-Sub	D-Sub	D-Sub	D-Sub	D-Sub	D-Sub
Connector Type	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins
Number of Positions	9	9	15	15	25	37	25	37	50	50
Number of Rows	2	2	2	2	2	2	2	2	3	3
Shell Size, Connector Layou	1 (DE, E)	1 (DE, E)	2 (DA, A)	2 (DA, A)	3 (DB, B)	4 (DC, C)	3 (DB, B)	4 (DC, C)	5 (DD, D)	5 (DD, D)
Contact Type	Signal	Signal	Signal	Signal	Signal	Signal	Signal	Signal	Signal	Signal
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Flange Feature	Housing/Shell (4-40)	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded)	Housing/Shell (4-40)	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded)	Housing/Shell (4-40)	Housing/Shell (4-40)	Housing/Shell (Unthreaded)	Housing/Shell (4-40)
Terminati	Solde	Solde	Solde	Solde	Solde	Solde	Solde	Solde	Solde	Solde
Features	Filter, Grounding Indents	Filter, Grounding Indents	Filter, Grounding Indents	Filter, Grounding Indents	Filter, Grounding Indents	Filter, Grounding Indents	Filter, Grounding Indents	Filter, Grounding Indents	Filter, Grounding Indents	Filter, Grounding Indents
Shell Material, Finish	Steel, Tin Plated	Steel, Tin Plated	Steel, Tin Plated	Steel, Tin Plated	Steel, Tin Plated	Steel, Tin Plated	Steel, Tin Plated	Steel, Tin Plated	Steel, Tin Plated	Steel, Tin Plated
Contact Finish	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold
Contact Finish Thickness	Flash	Flash	Flash	Flash	Flash	Flash	Flash	Flash	Flash	Flash
Operating Temperature	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C
Current Rating	5A	5A	5A	5A	5A	5A	5A	5A	5A	5A
Housing Material	Polybutylene Terephthalate (PBT), Polyester, Glass Filled	Polybutylene Terephthalate (PBT), Polyester, Glass Filled	Polybutylene Terephthalate (PBT), Polyester, Glass Filled	Polybutylene Terephthalate (PBT), Polyester, Glass Filled	Polybutylene Terephthalate (PBT), Polyester, Glass Filled	Polybutylene Terephthalate (PBT), Polyester, Glass Filled	Polybutylene Terephthalate (PBT), Polyester, Glass Filled	Polybutylene Terephthalate (PBT), Polyester, Glass Filled	Polybutylene Terephthalate (PBT), Polyester, Glass Filled	Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Associated Produc	160-09MA-ND - DUST COVER FOR DB9 MALE	160-09MA-ND - DUST COVER FOR DB9 MALE	NOR1041-ND - DUST CAP 15POS MALE W/LANYARD160-15MA-ND - DUST COVER FOR DB15 MALET2042A-ND - POST FOR SLIDE LOCKS	NOR1041-ND - DUST CAP 15POS MALE W/LANYARD160-15MA-ND - DUST COVER FOR DB15 MALET2042A-ND - POST FOR SLIDE LOCKS	160-25MA-ND - DUST COVER FOR DB25 MALE	160-37MA-ND - DUST COVER FOR D-SUB37 MALE	160-25MA-ND - DUST COVER FOR DB25 MALE	160-37MA-ND - DUST COVER FOR D-SUB37 MALE	160-50MA-ND - DUST COVER FOR D-SUB50 MALE	160-50MA-ND - DUST COVER FOR D-SUB50 MALE
Other Names	477009112311	477009112001	477015112001	477015112311	477025112001	477037112001	477025112311	477037112311	477050112001	477050112311
