2-640445-3 datasheet, PDF - EEWORLD Datasheet

2-640445-3: Description23P MTA156 HDR ASSY FL/STR SN; CategoryThe connector The connector; File Size159KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

2-640445-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2-640445-3	-	-	View	Buy Now

23P MTA156 HDR ASSY FL/STR SN

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Other features	AMP
body width	0.3 inch
subject depth	0.425 inch
body length	3.588 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	3 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	2200VAC V
Durability	25 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
Insulator color	NATURAL
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.156 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	FRICTION LOCK
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	7 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.125 inch
Terminal pitch	3.96 mm
Termination type	SOLDER
Total number of contacts	23
UL Flammability Code	94V-0
Base Number Matches	1

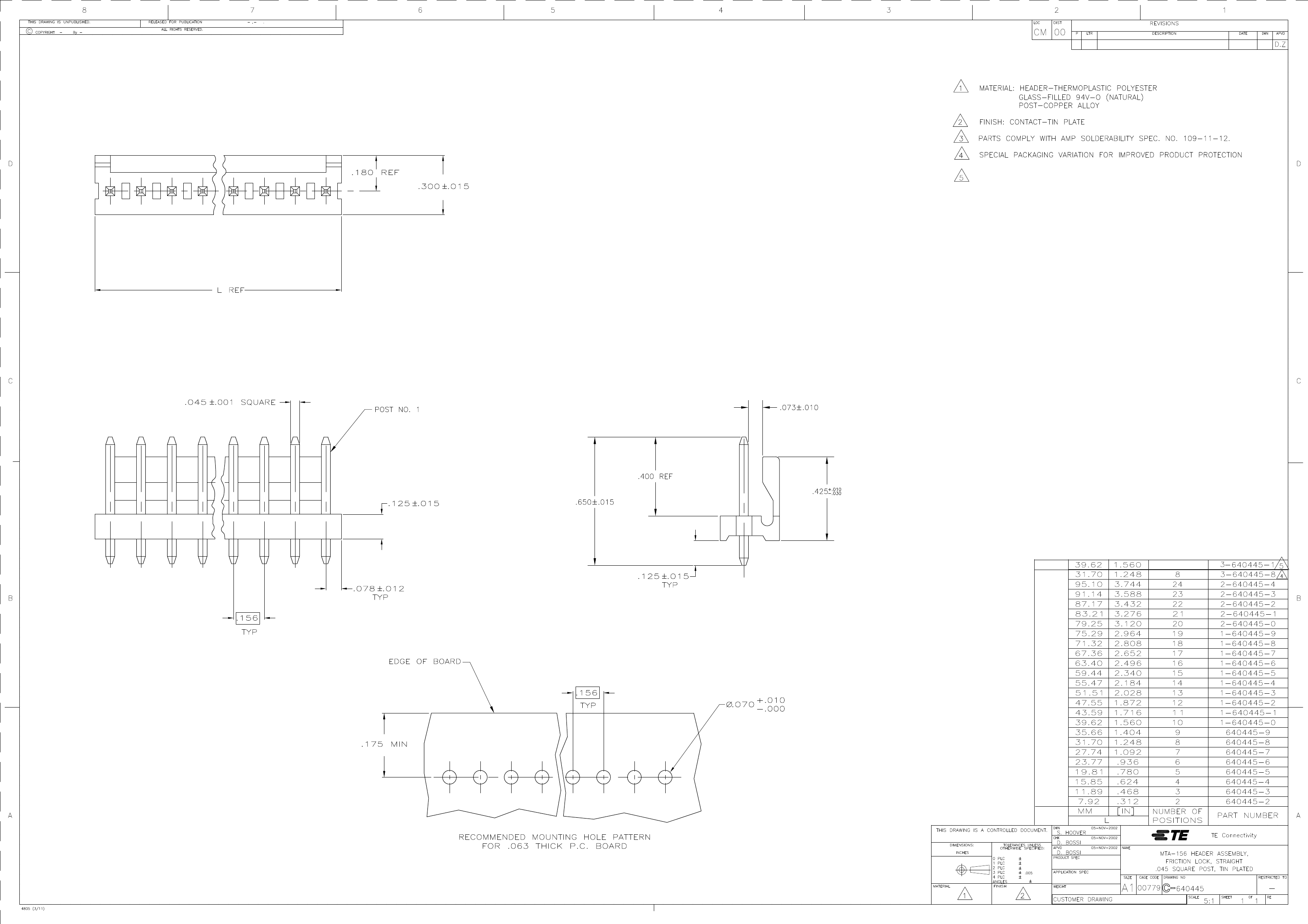

AD5 ECR-16-010246

15JULY16

A.Q

PRELIMINARY-NOT FOR PRODUCTION

POS.2

NONE

OMIT POS.

AD5
