2198339-6 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 2198339-6

Preview

2198339-6: DescriptionzSFP+ STACKED 2X6 RECEPTACLE ASSEMBLY; CategoryThe connector The connector; File Size225KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

2198339-6 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2198339-6	-	-	View	Buy Now

2198339-6 Overview

zSFP+ STACKED 2X6 RECEPTACLE ASSEMBLY

2198339-6 Parametric

Parameter Name	Attribute value
Brand Name	TE Connectivity
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	unknow
ECCN code	EAR99
Samacsys Descripti	zSFP+ STACKED 2X6 RECEPTACLE ASSEMBLY
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact material	NOT SPECIFIED
Manufacturer's serial number	2198339

Preview

Download Datasheet

View All

4

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

20

3

2

LOC

DIST

1

C

COPYRIGHT

20

-

REVISIONS

P

LTR

DESCRIPTION

DATE

DWN

APVD

A

RELEASED

21NOV2013

JW

SH

D

1

MATERIAL:

CONTACT:COPPER ALLOY

HOUSING:THERMOPLASTIC

FINISH :

CONTACT AREA:GOLD FLASH OVER PALLADIUM-NICKEL

OR GOLD PLATING,0.76um MIN TOTAL

SOLDER AREA: GOLD FLASH

UNDERPLATING:2.54um MIN NICKEL OVER ALL

2

3

C

4

11.00

9.35

0.08

( 7.87 )

FINISH :

CONTACT AREA:GOLD FLASH OVER PALLADIUM-NICKEL

OR GOLD PLATING,0.38um MIN TOTAL

SOLDER AREA: GOLD FLASH

UNDERPLATING:2.54um MIN NICKEL OVER ALL

PART NUMBER AND DATE CODE APPROXIMATELY

MARKED IN THIS AREA.

C

4

1.16

2.92

5.33

5.35

1.10

0.90

0.80

TYP.

0.40

9.60

0.80

TYP

1.40

0.05

B

4.24

B

1.40

0.05

0.71

SECTION

7.87

3

2

2170088-2

2170088-1

TE PART NO.

TE Connectivity

B-B

DWN

CHK

THIS DRAWING IS A CONTROLLED DOCUMENT.

A

DIMENSIONS:

mm

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

0.25

0.13

-

28MAR2011

MANQIAN WANG

APVD

28MAR2011

MANQIAN WANG

PRODUCT SPEC

APPLICATION SPEC

ALEX SHOAL

28MAR2011

NAME

FINISH

A

108-60099

114-13120

-

1

1471-9 (3/11)

-

2

3

WEIGHT

-

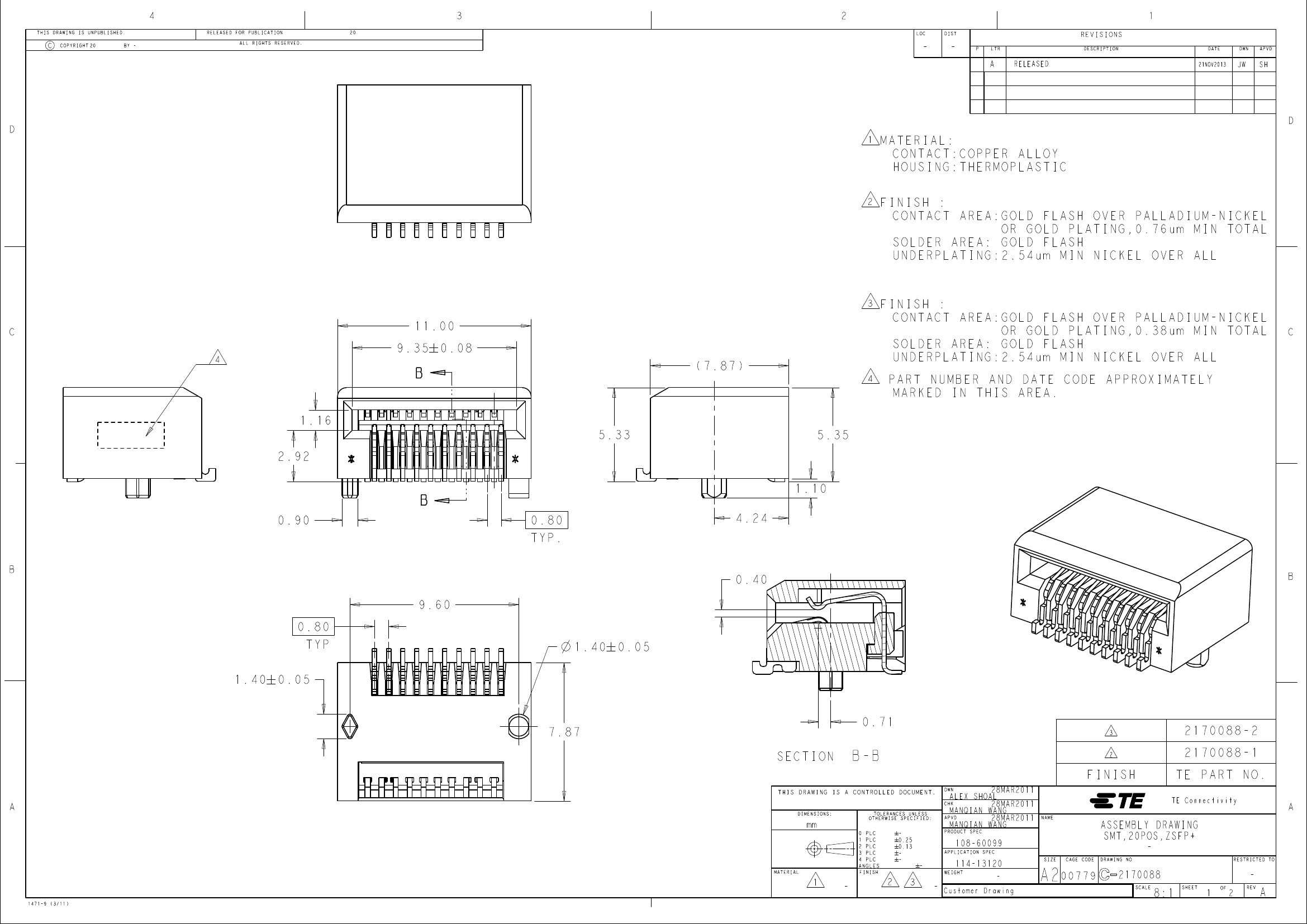

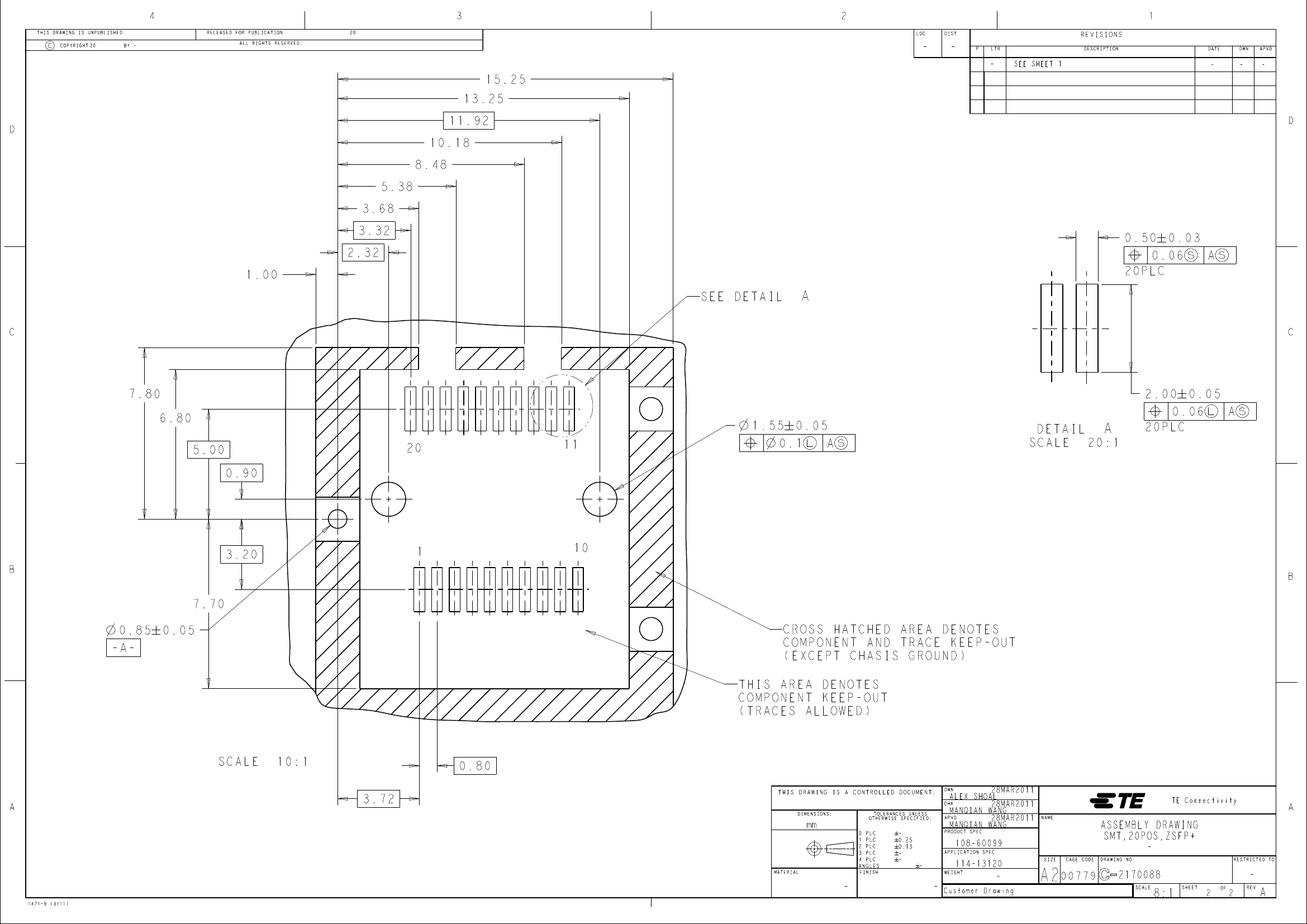

Customer Drawing

A2

00779

SIZE

CAGE CODE

ASSEMBLY DRAWING

SMT,20POS,ZSFP+

-

DRAWING NO

RESTRICTED TO

2170088

SCALE

8:1

SHEET

1

OF

2

REV

-

A

2198339-6 Related Products

	2198339-6	2170088-2	2170088-1	VS-720-LPC-CBD-622.080	2198339-2	2198318-6	2180324-6	2180324-2
Description	zSFP+ STACKED 2X6 RECEPTACLE ASSEMBLY	(2170088-2) ZSFP+ Connector,15u"	(2170088-1) ZSFP+ Connector,30u"	SAW Oscillator, 622.08MHz Nom	zSFP+ STACKED 2X6 RECEPTACLE ASSEMBLY	Telecom and Datacom Connector, 40 Contact(s), Press Fit Terminal	Telecom and Datacom Connector, 160 Contact(s), Press Fit Terminal	(2180324-2) zSFP+ STACKED 2X4 RECEPTACLE ASSEMBLY
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknow	compliant	compliant	compliant	unknow	compliant	compliant	compliant
Brand Name	TE Connectivity	TE Connectivity	TE Connectivity	-	TE Connectivity	-	-	TE Connectivity
Connector type	TELECOM AND DATACOM CONNECTOR	-	TELECOM AND DATACOM CONNECTOR	-	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	-	NOT APPLICABLE	-	NOT SPECIFIED	NOT SPECIFIED	NOT APPLICABLE	NOT APPLICABLE
Contact material	NOT SPECIFIED	-	NOT APPLICABLE	-	NOT SPECIFIED	NOT SPECIFIED	NOT APPLICABLE	NOT APPLICABLE
Objectid	-	1424906863	1424906862	7400622587	-	1474147168	8003528812	8003528808
Samacsys Description	-	TE CONNECTIVITY - 2170088-2 - Pluggable I/O Connector, zSFP+, 20 Contacts, 1 x 1 (Single), Surface Mount	SFP, SFP+ & zSFP+, Connector, Data Rate (Max) 32 Gb/s, SFP+, Surface Mount Mount, Cable-to-Board, 20 Position, .031 in [.8 mm] Centerline	-	-	40 (20 x 2) Position zSFP+ Receptacle with Cage, Ganged (2x1) Connector Press-Fit Through Hole, Right Angle	Configuration Features: Number of Positions 160 \| Port Matrix Configuration 2 x 4 \| Number of Ports 8 \| Lightpipe Style Standard \| Contact Features: Tail Plating Material Tin \| Contact Mating Area Plating Material Gold or Gold Flash over Palladium Nickel \| Contact Mating Area Plating Material Thickness .76 MICM \| Contact Mating Area Plating Material Thickness 29.92 MICIN \| Dimensions: PCB Thickness (Recommended) 1.5 MM \| PCB Thickness (Recommended) .059 INCH \| Electrical Characteristics: Data Rate (Max) 32	Configuration Features: Lightpipe Style Standard \| Port Matrix Configuration 2 x 4 \| Number of Positions 160 \| Number of Ports 8 \| Contact Features: Tail Plating Material Tin \| Contact Mating Area Plating Material Gold or Gold Flash over Palladium Nickel \| Contact Mating Area Plating Material Thickness 29.92 MICIN \| Contact Mating Area Plating Material Thickness .76 MICM \| Dimensions: PCB Thickness (Recommended) .059 INCH \| PCB Thickness (Recommended) 1.5 MM \| Electrical Characteristics: Data Rate (Max) 32
Samacsys Manufacturer	-	TE Connectivity	TE Connectivity	-	-	TE Connectivity	TE Connectivity	TE Connectivity
Samacsys Modified On	-	2020-10-07 00:36:05	2022-05-20 06:27:17	-	-	2023-12-26 08:58:54	2024-04-03 11:24:51	2024-04-03 11:24:51
Maximum operating temperature	-	85 °C	85 °C	70 °C	-	105 °C	105 °C	105 °C
Minimum operating temperature	-	-55 °C	-55 °C	-	-	-55 °C	-55 °C	-55 °C
YTEOL	-	-	7.75	4.5	-	7.97	7.78	7.78
