2143331-3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 2143331-3

2143331-3: Description1x6 QSFP Kit Assy Sqr LP, Networking HS; CategoryThe connector; File Size4MB，6 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

2143331-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2143331-3	-	-	View	Buy Now

2143331-3 Overview

1x6 QSFP Kit Assy Sqr LP, Networking HS

2143331-3 Parametric

Parameter Name	Attribute value
Dimensions	QSFP+
Radiator included	yes
cage type	Linkage
Connector System	cable to board
Sealable	no
Connectors and terminals terminate to	A printed circuit board
Port matrix configuration	1 x 6
Number of ports	6
Light pipe configuration	both sides
Number of rear EONs per port post	1
Data rate (max) (Gb/s)	28
Radiator type	Pin
Radiator height category	networking
Radiator height	13.5 mm [ .531 in ]
Radiator surface coating	anodized black
PCB terminal termination area plating materials	tin
PCB Termination Methods	Through hole - solderless connection
Connector mounting type	board mounting
cage material	nickel silver
PCB thickness (recommended)	1.45 mm [ .057 in ]
tail length	2.2 mm [ .086 in ]
Working group temperature range	-55 – 105 °C [ -67 – 221 °F ]
Suitable for pluggable I/O products	QSFP cable assembly, QSFP MSA compatible transceiver
Pluggable I/O Applications	standard
Circuit Application	Signal
UL flammability rating	UL 94V-0
Encapsulation method	boxes and trays
EMI containment feature types	Seals for customer applications
Light pipe included	yes
Enhanced functionality	standard

Preview

Download Datasheet

View All

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

2010

LOC

DIST

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

2010

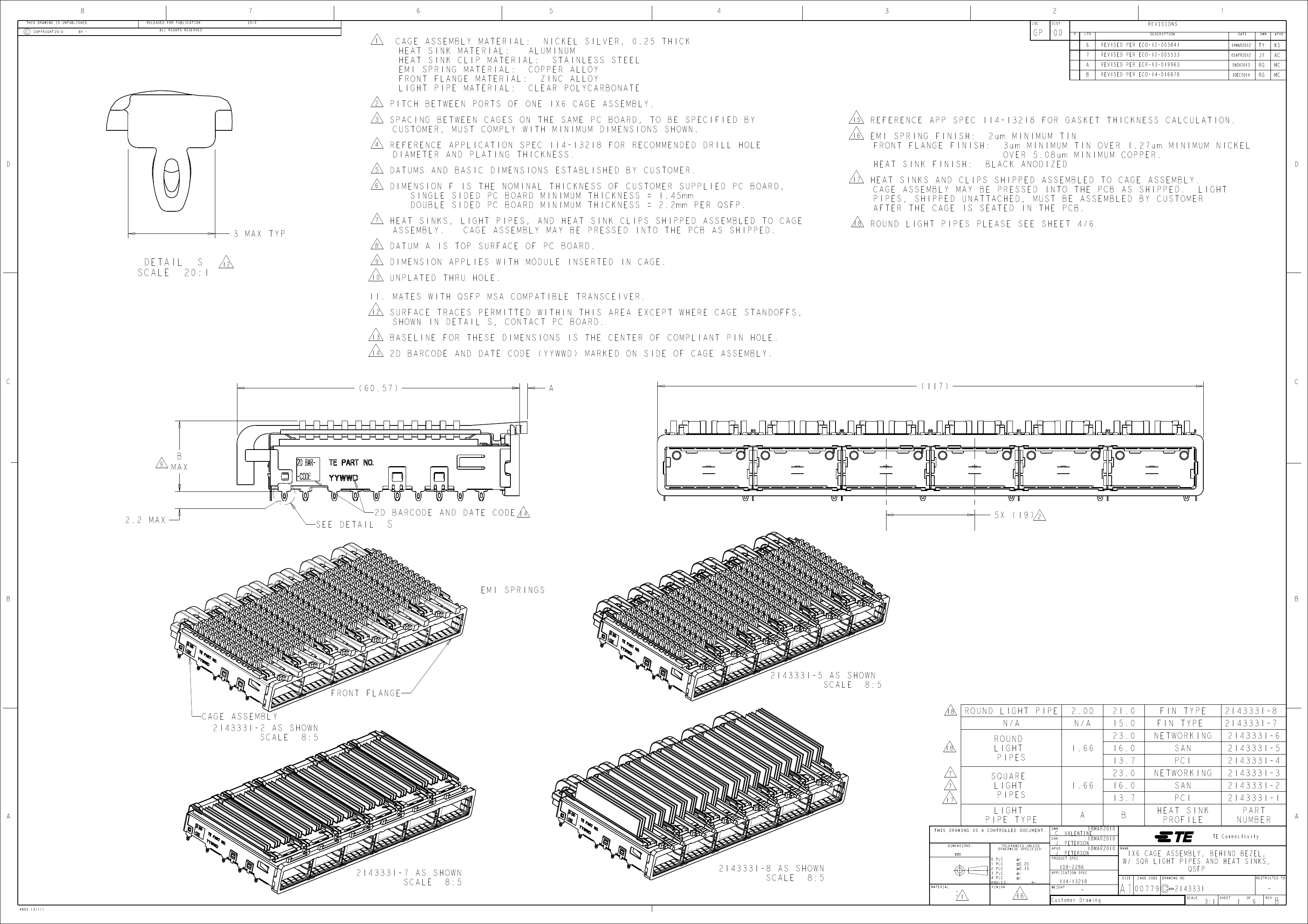

CAGE ASSEMBLY MATERIAL: NICKEL SILVER, 0.25 THICK

HEAT SINK MATERIAL:

ALUMINUM

HEAT SINK CLIP MATERIAL: STAINLESS STEEL

EMI SPRING MATERIAL: COPPER ALLOY

FRONT FLANGE MATERIAL: ZINC ALLOY

LIGHT PIPE MATERIAL: CLEAR POLYCARBONATE

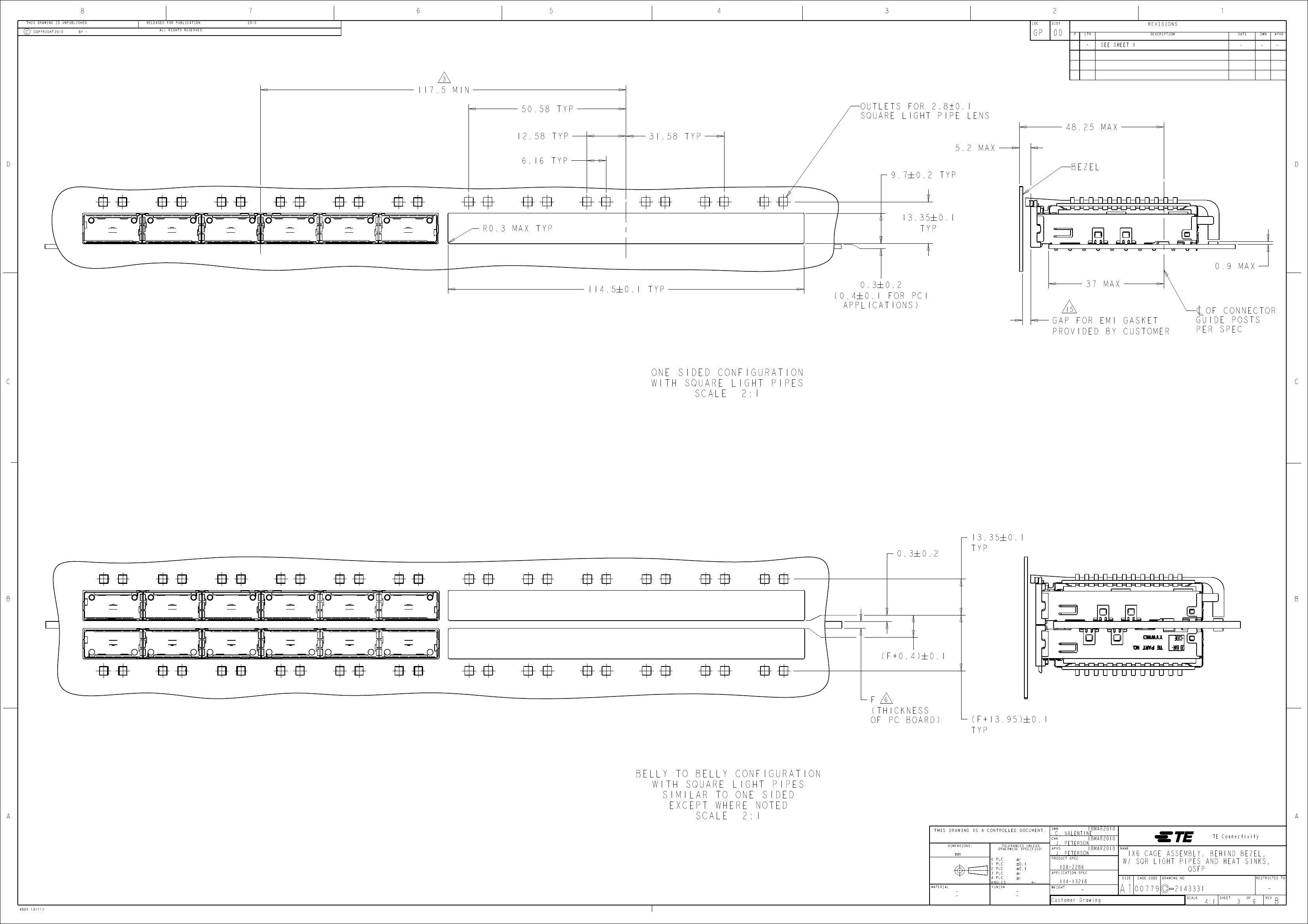

PITCH BETWEEN PORTS OF ONE 1X6 CAGE ASSEMBLY.

SPACING BETWEEN CAGES ON THE SAME PC BOARD, TO BE SPECIFIED BY

CUSTOMER, MUST COMPLY WITH MINIMUM DIMENSIONS SHOWN.

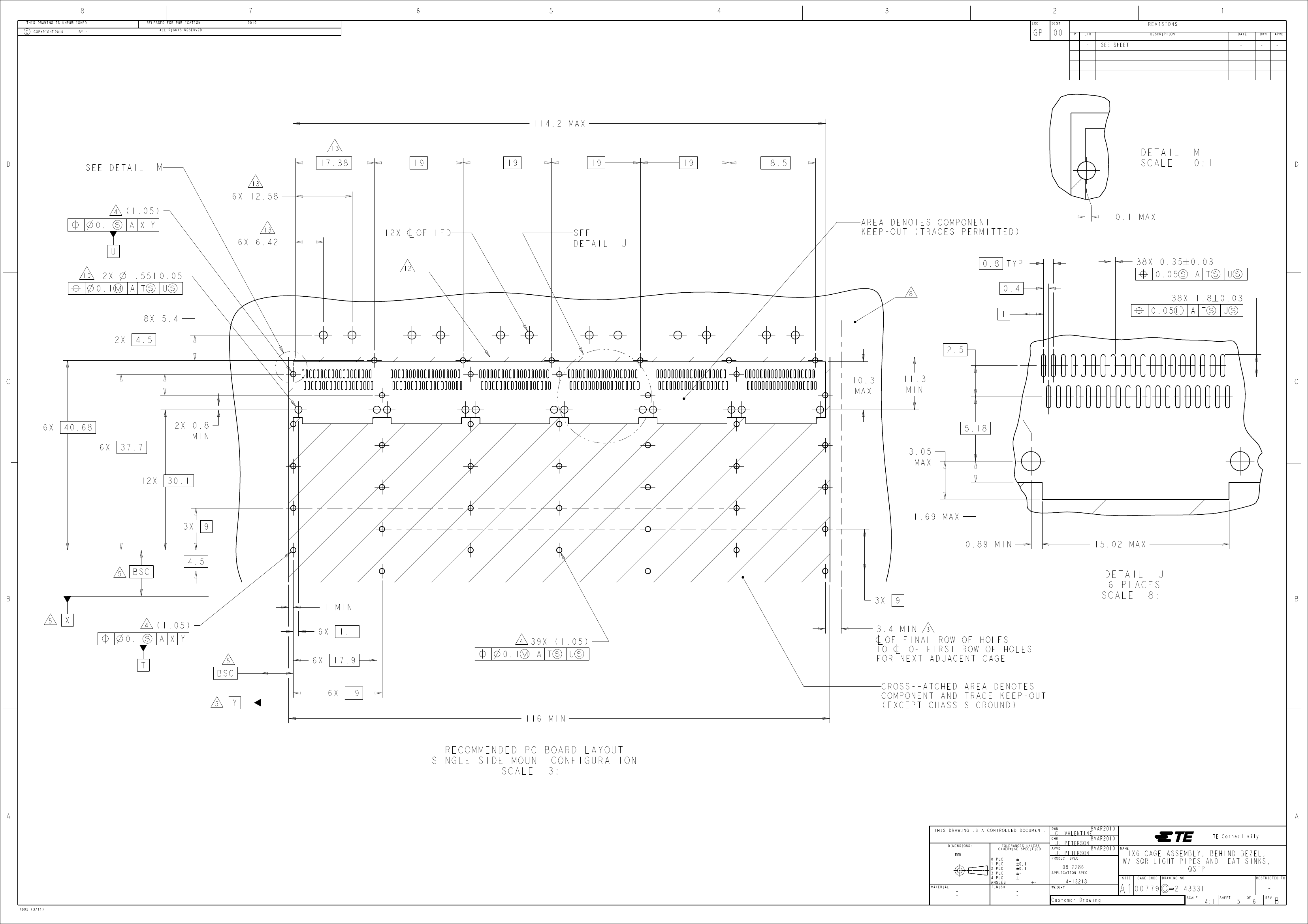

REFERENCE APPLICATION SPEC 114-13218 FOR RECOMMENDED DRILL HOLE

DIAMETER AND PLATING THICKNESS.

DATUMS AND BASIC DIMENSIONS ESTABLISHED BY CUSTOMER.

DIMENSION F IS THE NOMINAL THICKNESS OF CUSTOMER SUPPLIED PC BOARD,

SINGLE SIDED PC BOARD MINIMUM THICKNESS = 1.45mm

DOUBLE SIDED PC BOARD MINIMUM THICKNESS = 2.2mm PER QSFP.

HEAT SINKS, LIGHT PIPES, AND HEAT SINK CLIPS SHIPPED ASSEMBLED TO CAGE

ASSEMBLY.

CAGE ASSEMBLY MAY BE PRESSED INTO THE PCB AS SHIPPED.

DATUM A IS TOP SURFACE OF PC BOARD.

DIMENSION APPLIES WITH MODULE INSERTED IN CAGE.

UNPLATED THRU HOLE.

REVISED PER ECO-12-003841

REVISED PER ECO-12-005533

REVISED PER ECR-13-019963

REVISED PER ECO-14-016878

14MAR2012

05APR2012

5NOV2013

3DEC2014

REFERENCE APP SPEC 114-13218 FOR GASKET THICKNESS CALCULATION.

EMI SPRING FINISH: 2um MINIMUM TIN

FRONT FLANGE FINISH: 3um MINIMUM TIN OVER 1.27um MINIMUM NICKEL

OVER 5.08um MINIMUM COPPER.

HEAT SINK FINISH: BLACK ANODIZED

HEAT SINKS AND CLIPS SHIPPED ASSEMBLED TO CAGE ASSEMBLY.

CAGE ASSEMBLY MAY BE PRESSED INTO THE PCB AS SHIPPED. LIGHT

PIPES, SHIPPED UNATTACHED, MUST BE ASSEMBLED BY CUSTOMER

AFTER THE CAGE IS SEATED IN THE PCB.

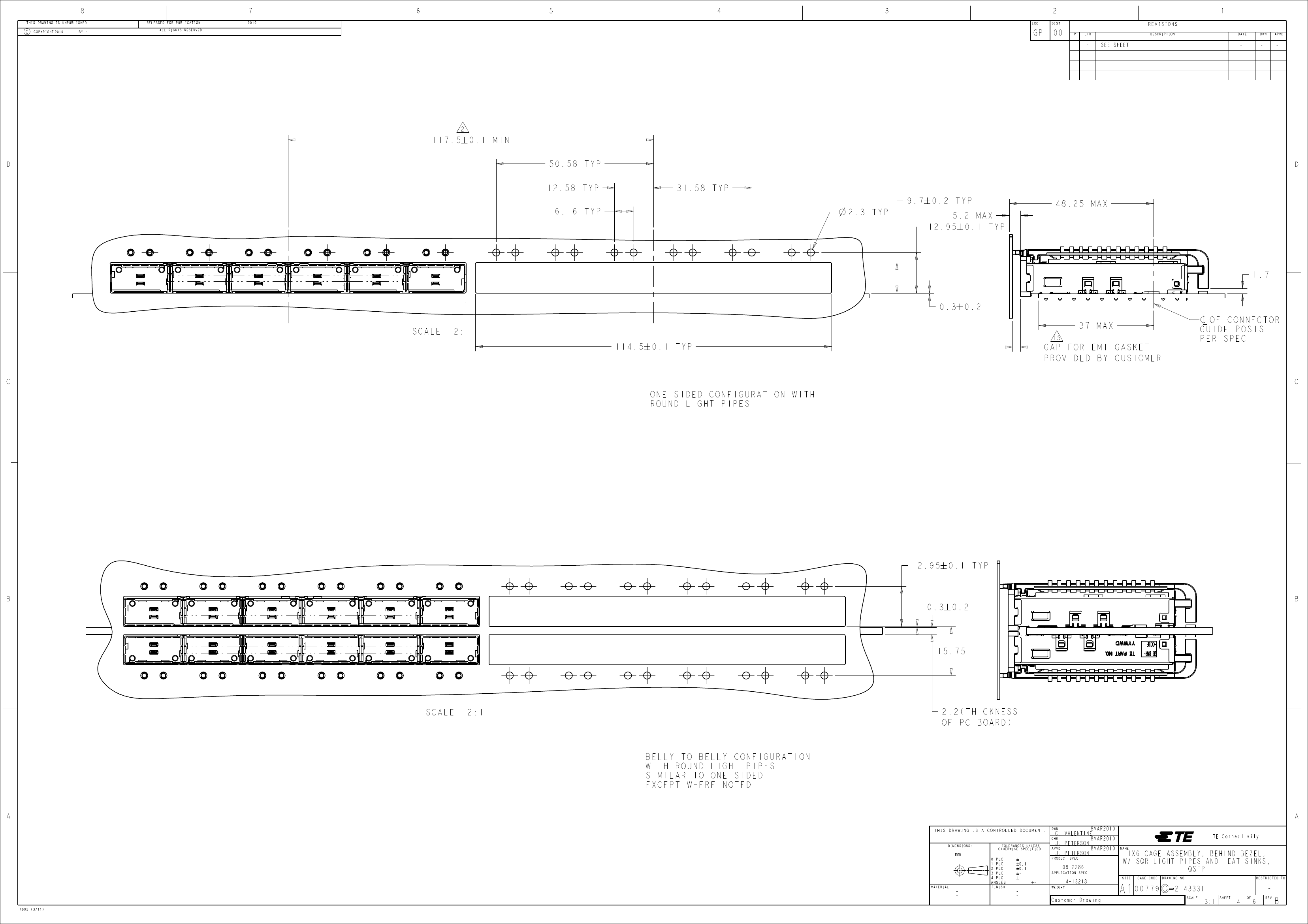

ROUND LIGHT PIPES PLEASE SEE SHEET 4/6

3 MAX TYP

DETAIL

SCALE

20:1

11. MATES WITH QSFP MSA COMPATIBLE TRANSCEIVER.

SURFACE TRACES PERMITTED WITHIN THIS AREA EXCEPT WHERE CAGE STANDOFFS,

SHOWN IN DETAIL S, CONTACT PC BOARD.

BASELINE FOR THESE DIMENSIONS IS THE CENTER OF COMPLIANT PIN HOLE.

2D BARCODE AND DATE CODE (YYWWD) MARKED ON SIDE OF CAGE ASSEMBLY.

( 117 )

( 60.57 )

MAX

2.2 MAX

SEE DETAIL

2D BARCODE AND DATE CODE

5X ( 19 )

EMI SPRINGS

FRONT FLANGE

CAGE ASSEMBLY

2143331-2 AS SHOWN

SCALE

8:5

2143331-5 AS SHOWN

SCALE

8:5

ROUND LIGHT PIPE

N/A

ROUND

LIGHT

PIPES

SQUARE

LIGHT

PIPES

LIGHT

PIPE TYPE

2.00

N/A

21.0

15.0

23.0

16.0

13.7

23.0

16.0

13.7

1.66

NETWORKING

SAN

PCI

SAN

PCI

FIN TYPE

2143331-8

2143331-7

2143331-6

2143331-5

2143331-4

2143331-3

2143331-2

2143331-1

PART

NUMBER

1.66

DWN

CHK

NETWORKING

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

C. VALENTINE

J. PETERSON

108-2286

18MAR2010

NAME

HEAT SINK

PROFILE

TE Connectivity

APVD

2143331-7 AS SHOWN

SCALE

8:5

4805 (3/11)

2143331-8 AS SHOWN

SCALE

8:5

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.20

0.15

PRODUCT SPEC

APPLICATION SPEC

WEIGHT

114-13218

Customer Drawing

00779

SIZE

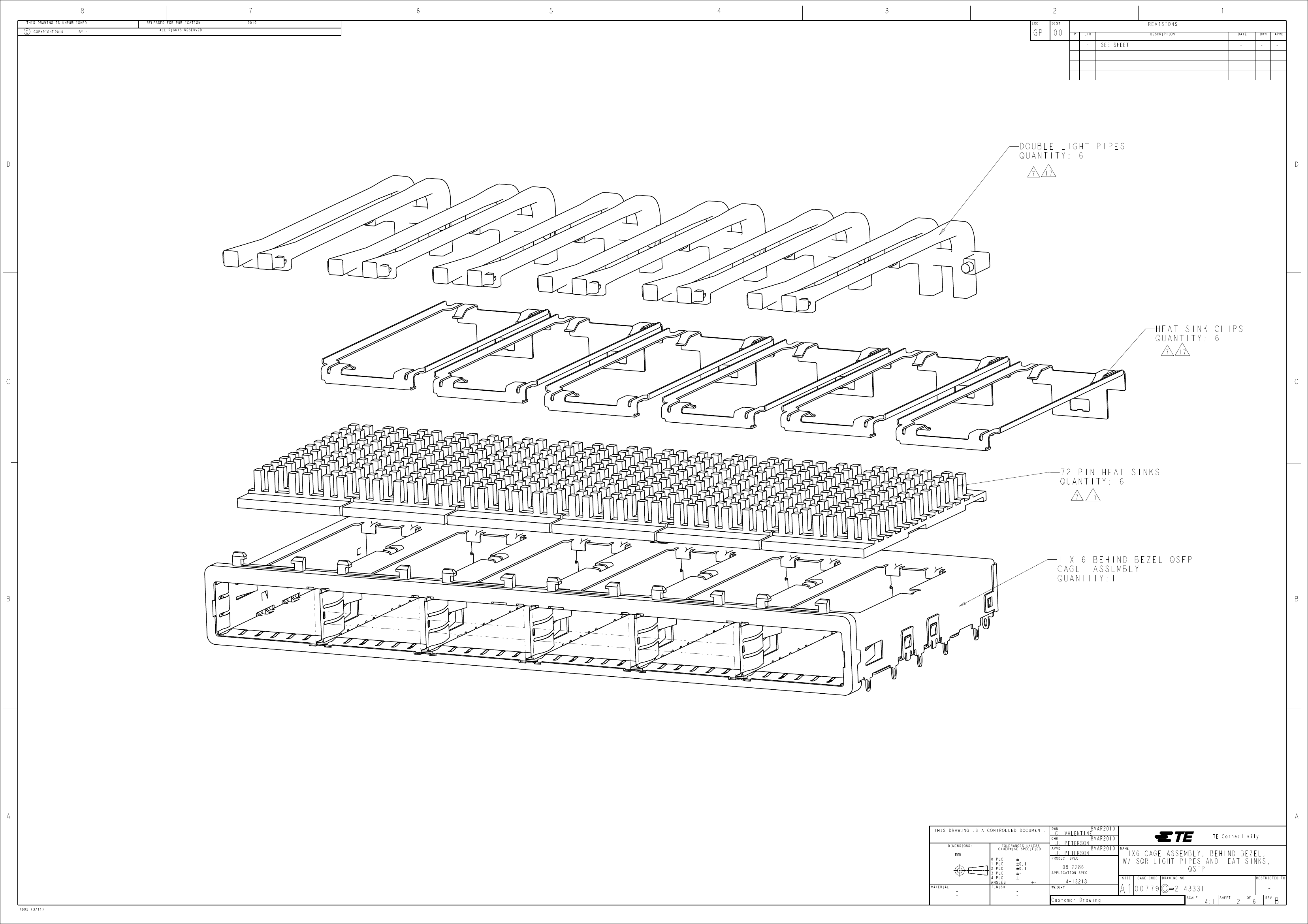

1X6 CAGE ASSEMBLY, BEHIND BEZEL,

W/ SQR LIGHT PIPES AND HEAT SINKS,

QSFP

CAGE CODE

DRAWING NO

RESTRICTED TO

2143331

SCALE

3:1

SHEET

REV

2143331-3 Related Products

	2143331-3	2143331-1
Description	1x6 QSFP Kit Assy Sqr LP, Networking HS	1x6 QSFP Kit Assy Sqr LP, PCI Htsnk
Dimensions	QSFP+	QSFP+
Radiator included	yes	yes
cage type	Linkage	Linkage
Connector System	cable to board	cable to board
Sealable	no	no
Connectors and terminals terminate to	A printed circuit board	A printed circuit board
Port matrix configuration	1 x 6	1 x 6
Number of ports	6	6
Light pipe configuration	both sides	both sides
Number of rear EONs per port post	1	1
Data rate (max) (Gb/s)	28	28
Radiator type	Pin	Pin
Radiator height category	networking	PCI
Radiator height	13.5 mm [ .531 in ]	4.2 mm [ .165 in ]
Radiator surface coating	anodized black	anodized black
PCB terminal termination area plating materials	tin	tin
PCB Termination Methods	Through hole - solderless connection	Through hole - solderless connection
Connector mounting type	board mounting	board mounting
cage material	nickel silver	nickel silver
PCB thickness (recommended)	1.45 mm [ .057 in ]	1.45 mm [ .057 in ]
tail length	2.2 mm [ .086 in ]	2.2 mm [ .086 in ]
Working group temperature range	-55 – 105 °C [ -67 – 221 °F ]	-55 – 105 °C [ -67 – 221 °F ]
Suitable for pluggable I/O products	QSFP cable assembly, QSFP MSA compatible transceiver	QSFP cable assembly, QSFP MSA compatible transceiver
Pluggable I/O Applications	standard	standard
Circuit Application	Signal	Signal
UL flammability rating	UL 94V-0	UL 94V-0
Encapsulation method	boxes and trays	boxes and trays
EMI containment feature types	Seals for customer applications	Seals for customer applications
Light pipe included	yes	yes
Enhanced functionality	standard	standard
