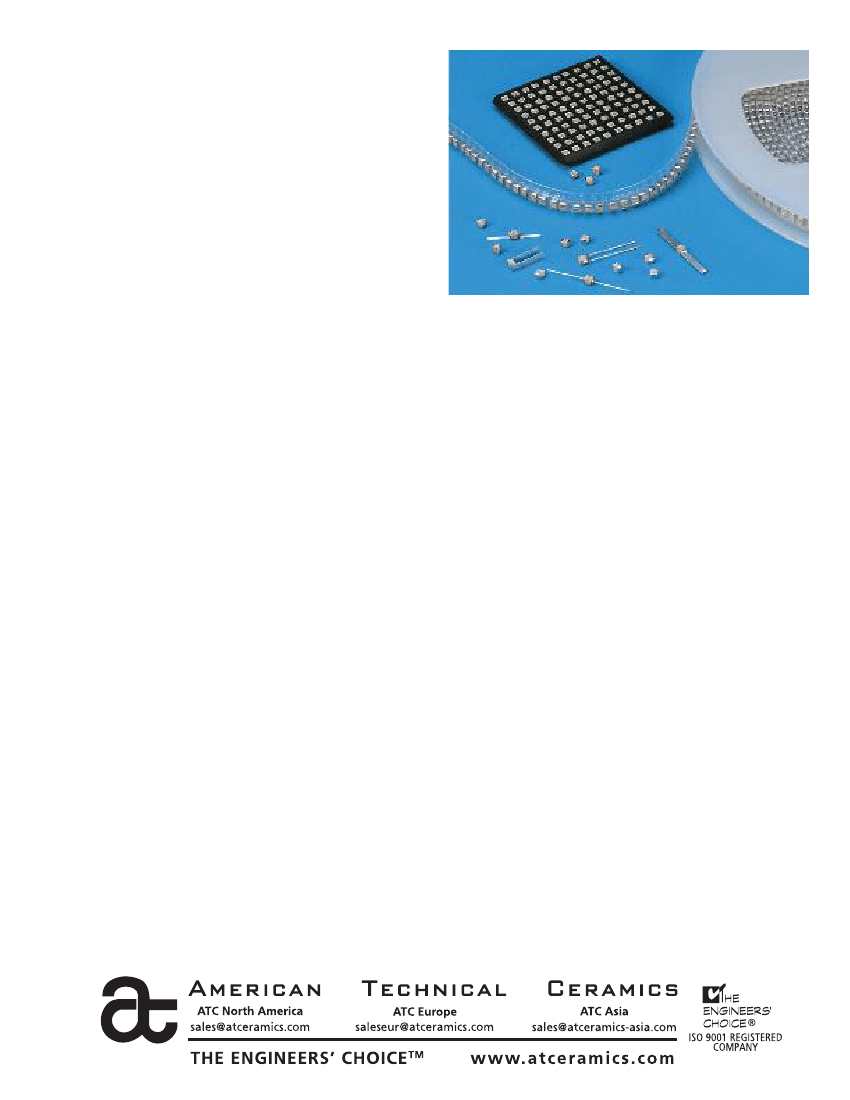

IR above +125°C is derated by one order of magnitude.
ENVIRONMENTAL TESTS
ATC 100 B Series Capacitors are designed and manufactured to
meet and exceed the requirements of EIA-198, MIL-PRF-55681
and MIL-PRF-123.
WORKING VOLTAGE (WVDC):
See Capacitance Values Table, page 2.
DIELECTRIC WITHSTANDING VOLTAGE (DWV):
250% of WVDC for capacitors rated at 500 volts DC or less for 5 seconds.
150% of WVDC for capacitors rated at 1250 volts DC or less for 5 seconds.
120% of WVDC for capacitors rated above 1250 volts DC for 5 seconds.
THERMAL SHOCK:
MIL-STD-202, Method 107, Condition A.
MOISTURE RESISTANCE:
MIL-STD-202, Method 106.
LOW VOLTAGE HUMIDITY:
MIL-STD-202, Method 103, Condition A, with 1.5 Volts DC applied
while subjected to an environment of 85°C with 85% relative hu-
midity for
240 hours min.
RETRACE:
Less than ±(0.02% or 0.02 pF), whichever is greater.
AGING EFFECTS:
None
PIEZOELECTRIC EFFECTS:
None
(No capacitance variation with voltage or pressure).
CAPACITANCE DRIFT:
±(0.02% or 0.02 pF), whichever is greater.
OPERATING TEMPERATURE RANGE:
0.1 to 330 pF: from -55°C to +175°C
360 to 1000 pF: from -55°C to +125°C
LIFE TEST:
MIL-STD-202, Method 108, for 2000 hours, at 125°C.
Voltage Applied:
200% of WVDC for capacitors rated at 500 volts DC or less.
120% of WVDC for capacitors rated at 1250 volts DC or less.
100% of WVDC for capacitors rated above 1250 volts DC.
TERMINATION STYLES:
Available in various surface mount and leaded styles.
See Mechanical Configurations, page 3.
TERMINAL STRENGTH:
Terminations for chips and pellets with-
stand a pull of 5 lbs. min., 15 lbs. typical, for 5 seconds in direction
perpendicular to the termination surface of the capacitor. Test per MIL-
STD-202, method 211.
ATC # 001-807 Rev. Q; 9/14
ATC 100 B Capacitance Values
RATED WVDC CAP. CAP.
CAP. CAP.
TOL.
CODE (pF)
STD.
EXT. CODE (pF)
0R1
0R2
0R3
0R4
0R5
0R6
0R7
0R8
0R9
1R0
1R1
1R2
1R3
1R4
1R5
1R6
1R7
1R8
1R9
2R0
2R1
2R2
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
1.9
2.0
2.1
2.2
B
EXTENDED VOLTAGE
B, C
2R4
2R7
3R0
3R3
3R6
3R9
4R3
4R7
5R1
5R6
6R2
6R8
7R5
8R2
9R1
100
110
120
130
150
160
180
TOL.
RATED WVDC CAP. CAP.
STD.
EXT. CODE (pF)
200
220
240
270
300
330
360
390
430
470
510
560
620
680
750
820
910
101
111
121
131
20
22
24
27
30
33
36
39
43
47
51
56
62
68
75
82
91
100
110
120
130
TOL.
RATED WVDC CAP. CAP.
STD.
EXT. CODE (pF)
151
161
181
201
221
241
271
301
331
361
391
431
471
511
561
621
681
751
821
911
102
VOLTAGE
150
160
180
200
220
240
270
300
330
360
390
430
470
510
560
620
680
750
820
910
1000
TOL.
RATED WVDC
STD.
EXT.
VOLT
B, C,
D
500
1500
2.4
2.7
3.0
3.3
3.6
3.9 B, C,
4.3
D
4.7
5.1
5.6
6.2
500
6.8
7.5 B, C, J,
8.2 K, M
9.1
10
11
12
13 F, G, J,
15
K, M
16
18
EXTENDED VOLTAGE
300
1000
EXT
200
F, G, J,
K, M
1500
EXTENDED VOLTAGE
EXTENDED VOLTAGE
EXTENDED
F, G, J,
K, M
100
VOLT
EXT
50
300
300
1000
VRMS = 0.707 X WVDC
• SPECIAL VALUES, TOLERANCES, HIGHER WVDC AND MATCHING AVAILABLE. PLEASE CONSULT FACTORY.
NOTE: EXTENDED WVDC DOES NOT APPLY TO CDR PRODUCTS.
ATC PART NUMBER CODE
ATC100 B 91 0 J W 500 X
Series
Case Size
Capacitance Code:
First 2 significant digits for capacitance.
R=Decimal Point
Indicates number of zeros following digits
of capacitance in picofarads except for decimal values.
Capacitance Tolerance
T
Packaging
T - Tape and Reel, 1000 pc. qty.*
TV - Vertical Orientation of Product,
Tape and Reel, 1000 pc. qty.*
I - Special Packaging. Consult Factory.
*
Consult ATC for other quantities
ATC Cap-Pac
®
packaging (100 pc. qty. std.) is also
available.
For this option, leave last field blank.
CAPACITANCE TOLERANCE
Code
B
C
D
F
G
J
K
M
Laser Marking
WVDC
Termination Code
Tol.
±0.1 pF ±0.25 pF ±0.5 pF ±1% ±2% ±5% ±10% ±20%
The above part number refers to a 100 B Series (case size B) 91 pF capacitor,
J tolerance (±5%), 500 WVDC, with W termination (Tin /Lead, Solder Plated over Nickel Barrier), laser marking and Tape and Reel packaging.
ATC accepts orders for our parts using designations
with
or
without
the
“ATC” prefix. Both methods of defining the part number are equivalent, i.e.,
part numbers referenced with the “ATC” prefix are interchangeable to parts
referenced without the “ATC” prefix. Customers are free to use either in
specifying or procuring parts from American Technical Ceramics.
For additional information and catalogs contact your ATC
representative or call direct at (+1-631) 622-4700.
Consult factory for additional performance data.
A M E R I C A N
ATC North America
sales@atceramics.com
T E C H N I C A L
ATC Europe
saleseur@atceramics.com
C E R A M I C S
ATC Asia
sales@atceramics-asia.com
2
w w w.a t c er a m ic s .co m
EXT
500
1500
600
VOLT

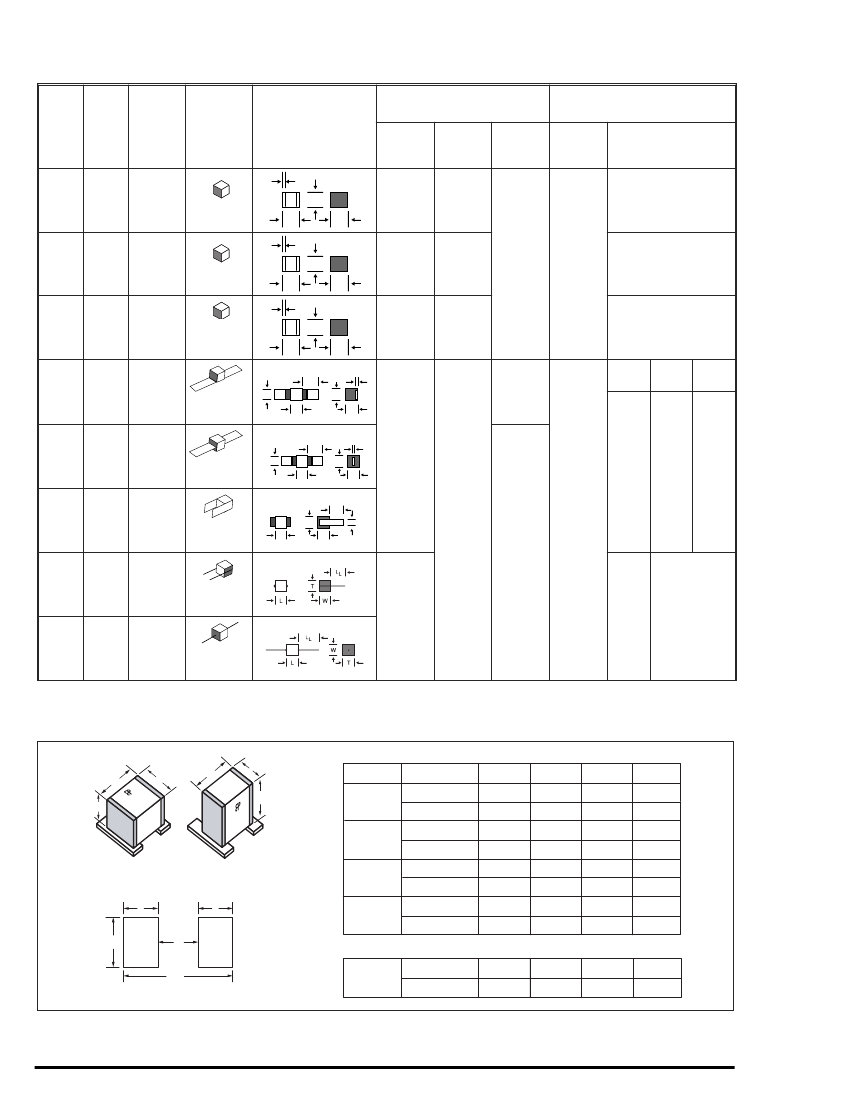

ATC 100 B Capacitors: Mechanical Configurations
ATC
SERIES
& CASE
SIZE
ATC
TERM.
CODE
OUTLINES
MIL-PRF-
55681
CASE SIZE
& TYPE
BODY DIMENSIONS
INCHES (mm)
LENGTH
(L)
WIDTH
(W)
THICKNESS
(T)
LEAD AND TERMINATION
DIMENSIONS AND MATERIALS
OVERLAP
(Y)
MATERIALS
W/T IS A
TERMINATION SURFACE
Y
100B
W
CDR14BG
B
Solder Plate
Y
W
L
T
.110
+.020 -.010 .110 ±.015
(2.79
(2.79 ±0.38)
+0.51 -0.25)
.110
+.035 -.010 .110 ±.015
(2.79
(2.79 ±0.38)
+0.89 -0.25)
.110
+.020 -.010 .110 ±.015
(2.79
(2.79 ±0.38)
+0.51 -0.25)
.110
+.020 -.010 .110 ±.015
(2.79 ±0.38)
(2.79
+0.51 -0.25)
TL
Tin / Lead, Solder Plated over
Nickel Barrier Termination
100B
P
CDR14BG
B
Pellet
Y
L
W
T
Heavy Tin/ Lead Coated,
over
Nickel Barrier Termination
.102 (2.59) .015 (0.38)
max.
±.010 (0.25)
100B
T
N/A
B
RoHS Compliant
Tin Plated over
Nickel Barrier Termination
Solderable
Nickel Barrier
Y
W
L
T
RoHS Compliant
Gold Plated over
Nickel Barrier Termination
Length
( LL )
Width Thickness
( WL )
( TL )
100B
CA
CDR13BG
B
Gold Chip
W
L
T
100B
MS
CDR21BG
B
Microstrip
B
Axial Ribbon
WL
LL
L
W
T
TL
.120 (3.05)
max.
100B
AR
CDR22BG
WL
LL
L
W
T
.135 ±.015
(3.43 ±0.38)
.250
(6.35)
min.
.110 ±.015
(2.79 ±0.38)
.102 (2.59)
max.
.093
±.005
(2.36
±0.13)
.004
±.001
(.102
±.025)
100B
RR
CDR24BG
B
Radial Ribbon
L
W
LL
T
WL
N/A
100B
RW
CDR23BG
B
Radial Wire
.145 ±.020
(3.68 ±0.51)
.500
(12.7)
min.
#26 AWG.,
.016 (.406) dia.
nominal
100B
AW
CDR25BG
B
Axial Wire
Additional lead styles available: Narrow Microstrip (NM), Narrow Axial Ribbon (NA) and Vertical Narrow Microstrip (H). Other lead lengths are available; consult factory.
All leads are high purity silver attached with high temperature solder and are
RoHS
compliant. For a complete military catalog, request American Technical Ceramics
document ATC 001-818.
A M E R I C A N
ATC North America
sales@atceramics.com
T E C H N I C A L
ATC Europe
saleseur@atceramics.com
C E R A M I C S
ATC Asia
sales@atceramics-asia.com
3
w w w.a t c er a m ic s .co m
ATC 100 B Non-Magnetic Capacitors: Mechanical Configurations
ATC
SERIES
& CASE
SIZE
ATC
TERM.
CODE
OUTLINES
MIL-PRF-
55681
CASE SIZE
& TYPE
W/T IS A
TERMINATION SURFACE
Y
BODY DIMENSIONS
INCHES (mm)
LENGTH
(L)
WIDTH
(W)
THICKNESS
(T)
LEAD AND TERMINATION
DIMENSIONS AND MATERIALS
OVERLAP
(Y)
MATERIALS
100B
WN
Meets
Require-
ments
B
Non-Mag
Solder Plate
Y
W
L
T
.110
+.025 -.010 .110 ±.015
(2.79
(2.79 ±0.38)
+0.64 -0.25)
Tin /Lead, Solder Plated over
Non-Magnetic Barrier
Termination
100B
PN
Meets
Require-
ments
B
Non-Mag
Pellet
B
Non-Mag
Y
W
L
T
.110
Heavy Tin/Lead Coated, over
+.035 -.010 .110 ±.015 .102 (2.59) .015 (0.38)
Non-Magnetic Barrier
max.
±.010 (0.25)
(2.79
(2.79 ±0.38)
Termination
+0.89 -0.25)
.110
+.025 -.010 .110 ±.015
(2.79
(2.79 ±0.38)
+0.64 -0.25)
TL
100B
TN
Meets
Require-
ments
RoHS Compliant
Tin Plated over
Non-Magnetic Barrier
Termination
.120 (3.05)
max.
Length
( LL )
Width Thickness
( WL )
( TL )
W
L
T
Solderable
Barrier
WL
100B
MN
Meets
Require-
ments
LL
Non-Mag
Microstrip
L
W
T
TL
100B
AN
Meets
Require-
ments
Non-Mag
Axial Ribbon
WL
LL
L
W
T
135 ±.015
(3.43 ±0.38)
.250
(6.35)
min.
.110 ±.015
(2.79 ±0.38)
.102 (2.59)
max.
N/A
.093
±.005
(2.36
±0.13)
.004
±.001
(.102
±.025)
100B
FN
Meets
Require-
ments
B
Non-Mag
Radial Ribbon
B
Non-Mag
Radial Wire
L
W
LL
T
WL
100B
RN
Meets
Require-
ments
.145 ±.020
(3.68 ±0.51)
100B
BN
Meets
Require-
ments
.500
(12.7)
min.
#26 AWG.,
.016 (.406) dia.
nominal
B
Non-Mag
Axial Wire
Additional lead styles available: Narrow Microstrip (DN), Narrow Axial Ribbon (GN) and Vertical Narrow Microstrip (HN). Other lead lengths are available; consult factory.
All leads are high purity silver attached with high temperature solder and are
The red and black concept is an important concept in TEMPEST technology. An important step in TEMPEST design is the red and black engineering. In fact, TEMPEST can be considered as an EMC design based...
Annoying Technology 3
Li Ming is very annoyed. He has to punch in when he goes to work, punch in when he leaves work, and even punch in when he takes the bus.
But it's even more annoying recently. The...
I have never figured out how to obtain the mechanical components of such an aircraft. I often see this kind of DIY and think it is very cool.But the complex mechanical structure stops most of us from ...
1 Introduction
This article mainly introduces how to light up the LED tricolor lamp based on the HPM6750 EVK Mini board driver, so that users can quickly become familiar with the principle of the Xian...
As we all know, msp430 is famous for its low power consumption. At present, since our system is powered by batteries, we have also designed a solution based on msp430. Please refer to the attached cir...
As the title says, there are a group of friends in the forum who want to do BLDC and plan to start in 2017. So I want to investigate first, [size=5][color=#0000ff][b]1. First of all, make sure you are...
Assume that data is read from 8-bit AD (if it is a higher-bit AD, the data type can be defined as int), the subroutine is get_ad();
1. Limited secondary filtering
/* A value can be adjust...[Details]
As a wireless broadband metropolitan area network standard, WiMAX technology has greater advantages than previous 3.5GHz MMDS products in terms of non-line-of-sight transmission and spectrum utiliz...[Details]
Floating-point digital signal processing has become a constant requirement for precision technology, often in applications requiring high accuracy in areas such as aviation, industrial machinery, a...[Details]
In recent years, the market for mobile/portable devices such as smartphones and laptops has continued to grow rapidly. While these products continue to integrate more new features to enhance the ...[Details]
1. Introduction
Light control circuit plays a vital role in urban street lamps or corridor lighting. With light control circuit, the lights can be automatically turned on and off according to ...[Details]
1 Introduction
Solar street lights are mainly composed of four parts: solar photovoltaic cell components, batteries, charge and discharge controllers, and lighting fixtures. The bo...[Details]
This paper establishes a fuel cell engine test platform based on the NI integrated hardware and software environment. This platform can realize the test and control of fuel cell engines and their a...[Details]
The automotive lighting and signal control system is responsible for controlling the vehicle's lighting, signal lights, electric horns, reversing and brake buzzers. Traditional automotive lighting...[Details]
The typical fault troubleshooting listed below is for reference of maintenance personnel.
When the computer is turned on, the indicator light is off and there is no screen display
Mainte...[Details]
Overview
In spectral measurement, photomultiplier tubes (PMT) and charge-coupled devices (CCD) are often used as photoelectric converters. PMT is used in slow-changing, high-precision spectral...[Details]
Continuity test
A variety of devices need to be checked for continuity, including cable assemblies, printed circuit boards, and connectors to ensure that these components have the expected contin...[Details]
This article discusses the six design steps of LED lighting system design in detail: (1) determine the lighting requirements; (2) determine the design goals and estimate the optics; (3) the efficie...[Details]
Leakage current is generated by parasitic resistance paths between the measurement circuit and a nearby voltage source. This current can significantly reduce the accuracy of low current measurement...[Details]
The power supply is the core component of a computer. Although it is not of high value, all computer components rely on the switching power adapter to provide energy, so the stability of a power su...[Details]
In industry, voltage 0…5 (10) V or current 0 (4)…20 mA is usually used as a method for analog signal transmission, which is also a method often used by programmable controllers. So what are the dif...[Details]
PCB Design
京公网安备 11010802033920号
EEWORLD
