2057183-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 2057183-4

2057183-4: Description1x4 QSFP Kit Assy, LP&HS, PCI; CategoryThe connector; File Size2MB，5 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

2057183-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2057183-4	-	-	View	Buy Now

2057183-4 Overview

1x4 QSFP Kit Assy, LP&HS, PCI

2057183-4 Parametric

Parameter Name	Attribute value
Dimensions	QSFP+
Radiator included	yes
cage type	Linkage
Connector System	cable to board
Sealable	no
Connectors and terminals terminate to	A printed circuit board
Port matrix configuration	1 x 4
Number of ports	4
Light pipe configuration	double circle
Number of rear EONs per port post	1
Radiator type	Pin
Radiator height category	PCI
Radiator height	4.2 mm [ .165 in ]
Radiator surface coating	anodized black
PCB terminal termination area plating materials	tin
PCB Termination Methods	Through hole - solderless connection
Connector mounting type	board mounting
cage material	nickel silver
PCB thickness (recommended)	1.45 mm [ .057 in ]
tail length	2.05 mm [ .081 in ]
Working group temperature range	-55 – 105 °C [ -67 – 221 °F ]
Suitable for pluggable I/O products	QSFP cable assembly, QSFP MSA compatible transceiver
Pluggable I/O Applications	standard
Circuit Application	Signal
UL flammability rating	UL 94V-0
Encapsulation method	boxes and trays
EMI containment feature types	Seals for customer applications
Light pipe included	yes
Enhanced functionality	standard

Preview

Download Datasheet

View All

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

2008

LOC

DIST

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

2008

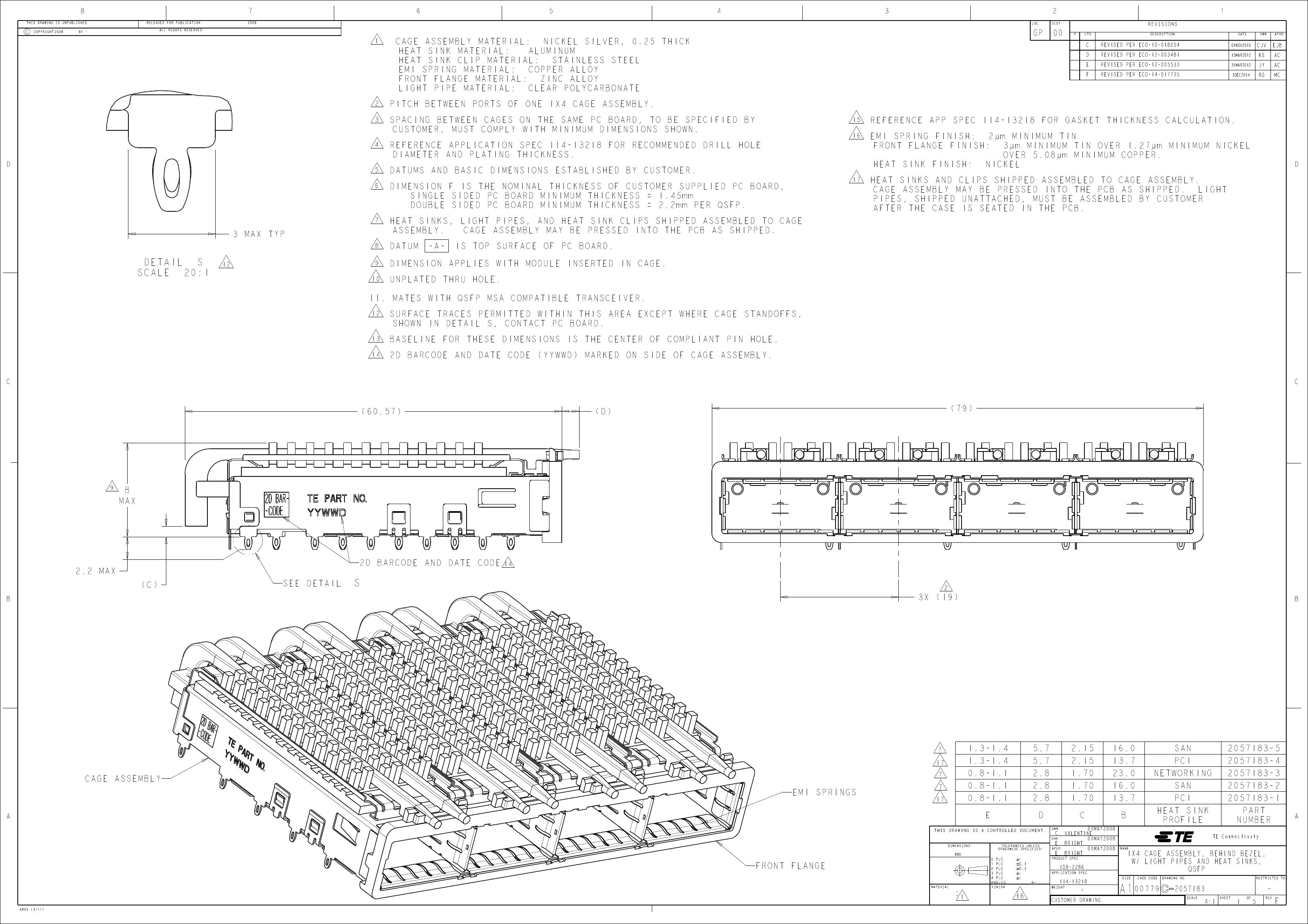

CAGE ASSEMBLY MATERIAL: NICKEL SILVER, 0.25 THICK

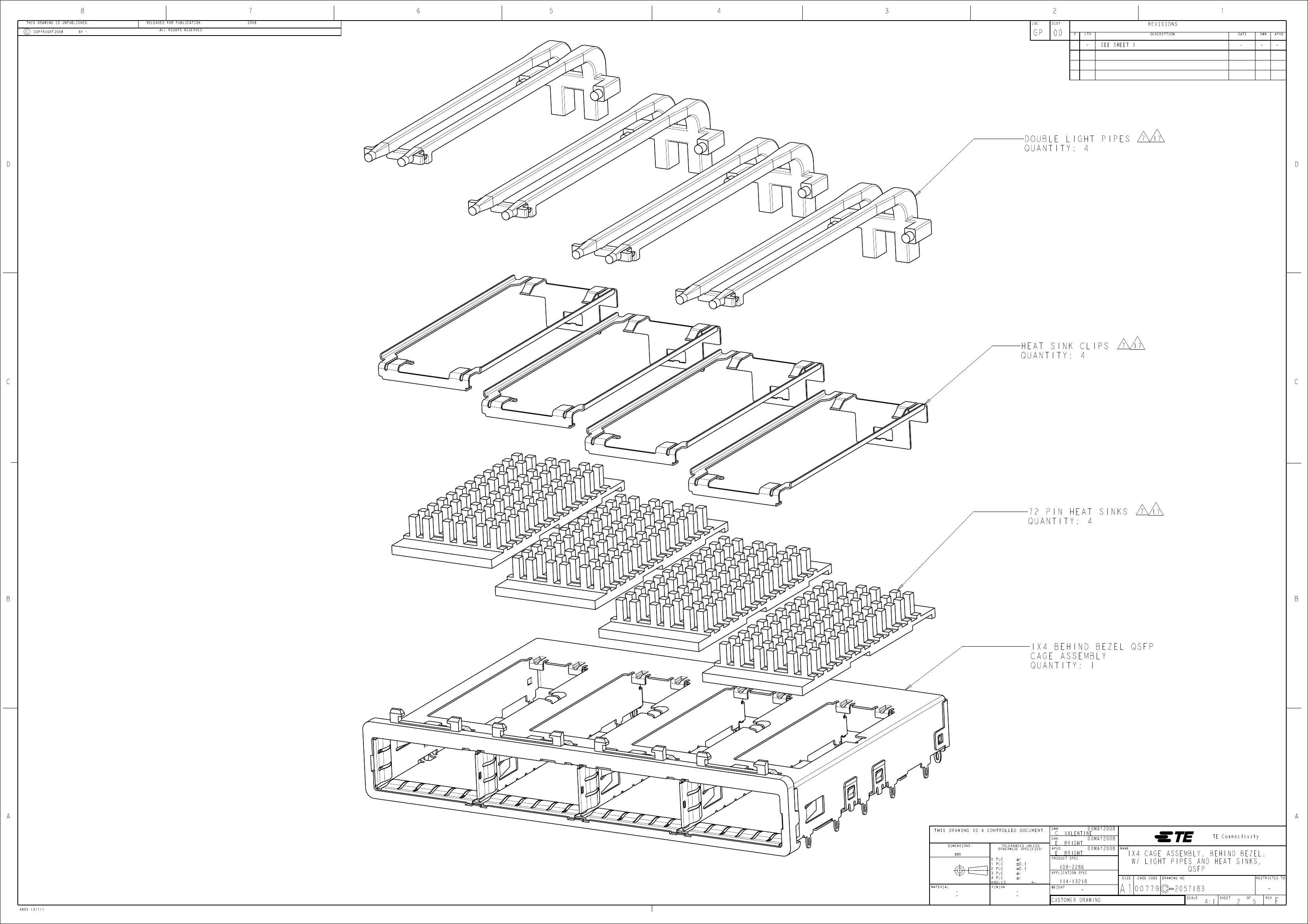

HEAT SINK MATERIAL:

ALUMINUM

HEAT SINK CLIP MATERIAL: STAINLESS STEEL

EMI SPRING MATERIAL: COPPER ALLOY

FRONT FLANGE MATERIAL: ZINC ALLOY

LIGHT PIPE MATERIAL: CLEAR POLYCARBONATE

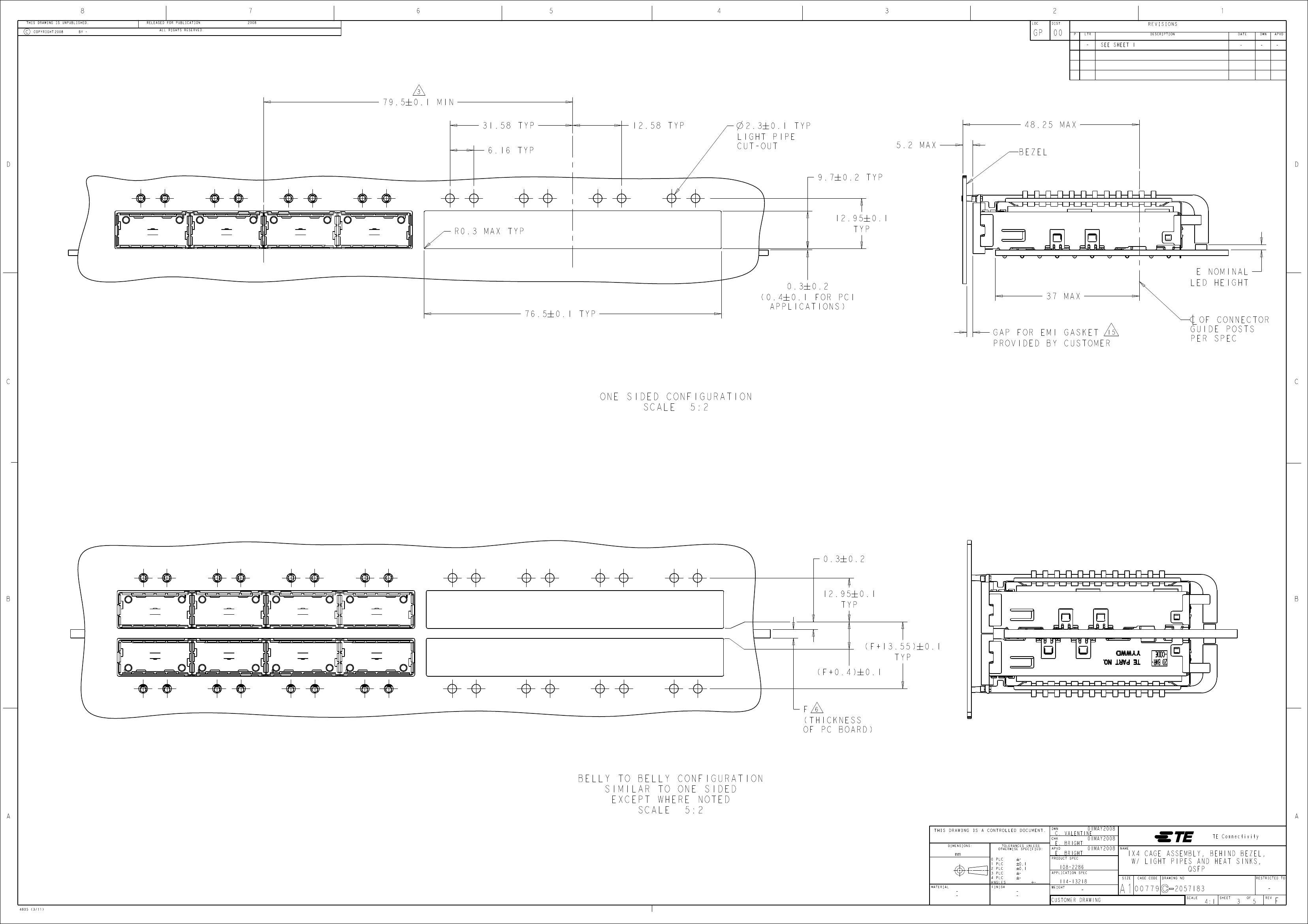

PITCH BETWEEN PORTS OF ONE 1X4 CAGE ASSEMBLY.

SPACING BETWEEN CAGES ON THE SAME PC BOARD, TO BE SPECIFIED BY

CUSTOMER, MUST COMPLY WITH MINIMUM DIMENSIONS SHOWN.

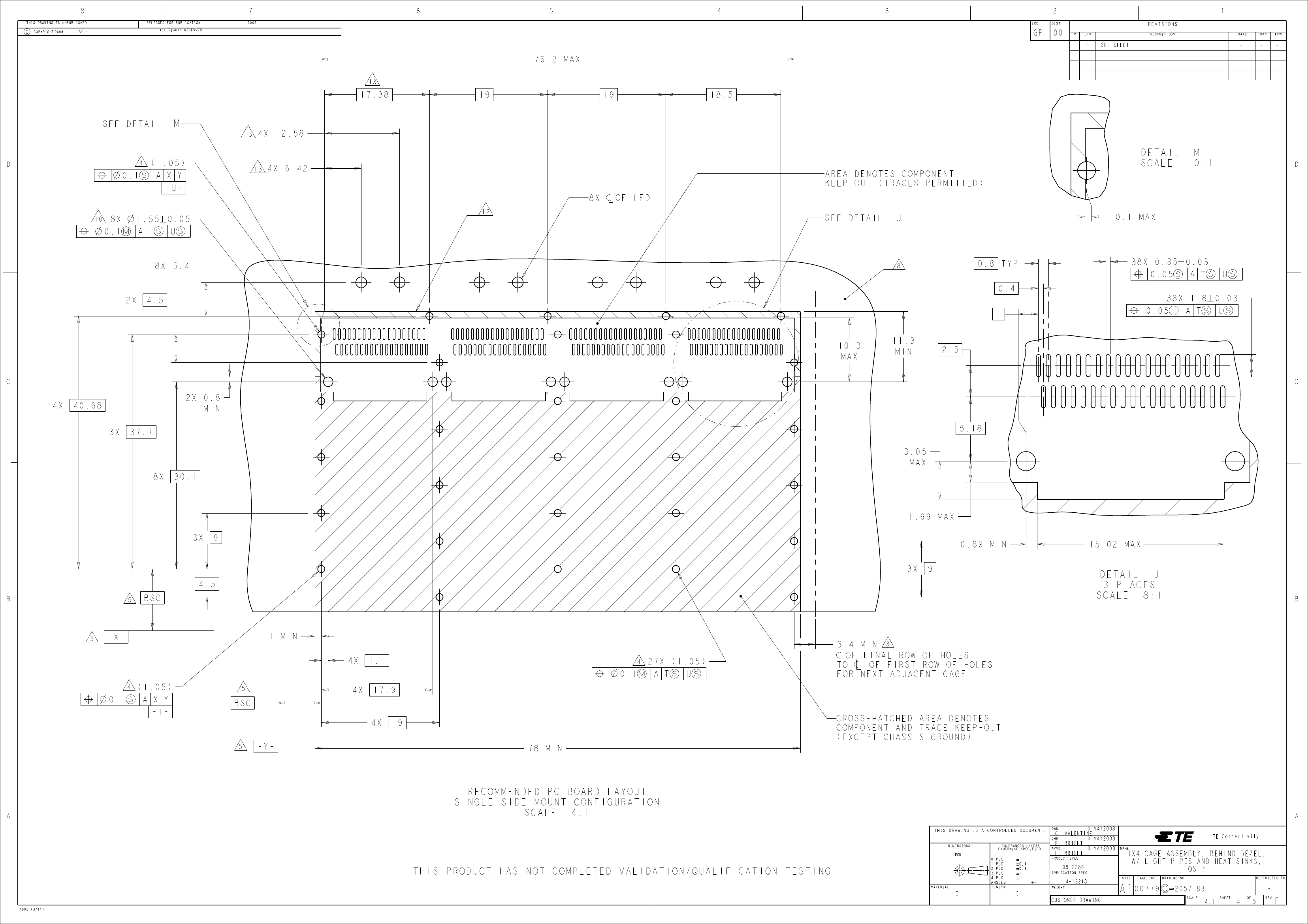

REFERENCE APPLICATION SPEC 114-13218 FOR RECOMMENDED DRILL HOLE

DIAMETER AND PLATING THICKNESS.

DATUMS AND BASIC DIMENSIONS ESTABLISHED BY CUSTOMER.

DIMENSION F IS THE NOMINAL THICKNESS OF CUSTOMER SUPPLIED PC BOARD,

SINGLE SIDED PC BOARD MINIMUM THICKNESS = 1.45mm

DOUBLE SIDED PC BOARD MINIMUM THICKNESS = 2.2mm PER QSFP.

HEAT SINKS, LIGHT PIPES, AND HEAT SINK CLIPS SHIPPED ASSEMBLED TO CAGE

ASSEMBLY.

CAGE ASSEMBLY MAY BE PRESSED INTO THE PCB AS SHIPPED.

DATUM

-A-

IS TOP SURFACE OF PC BOARD.

DIMENSION APPLIES WITH MODULE INSERTED IN CAGE.

UNPLATED THRU HOLE.

REVISED PER ECO-10-018054

REVISED PER ECO-12-003481

REVISED PER ECO-12-005533

REVISED PER ECO-14-017735

04NOV2010

15MAR2012

31MAR2012

3DEC2014

CJV

EJB

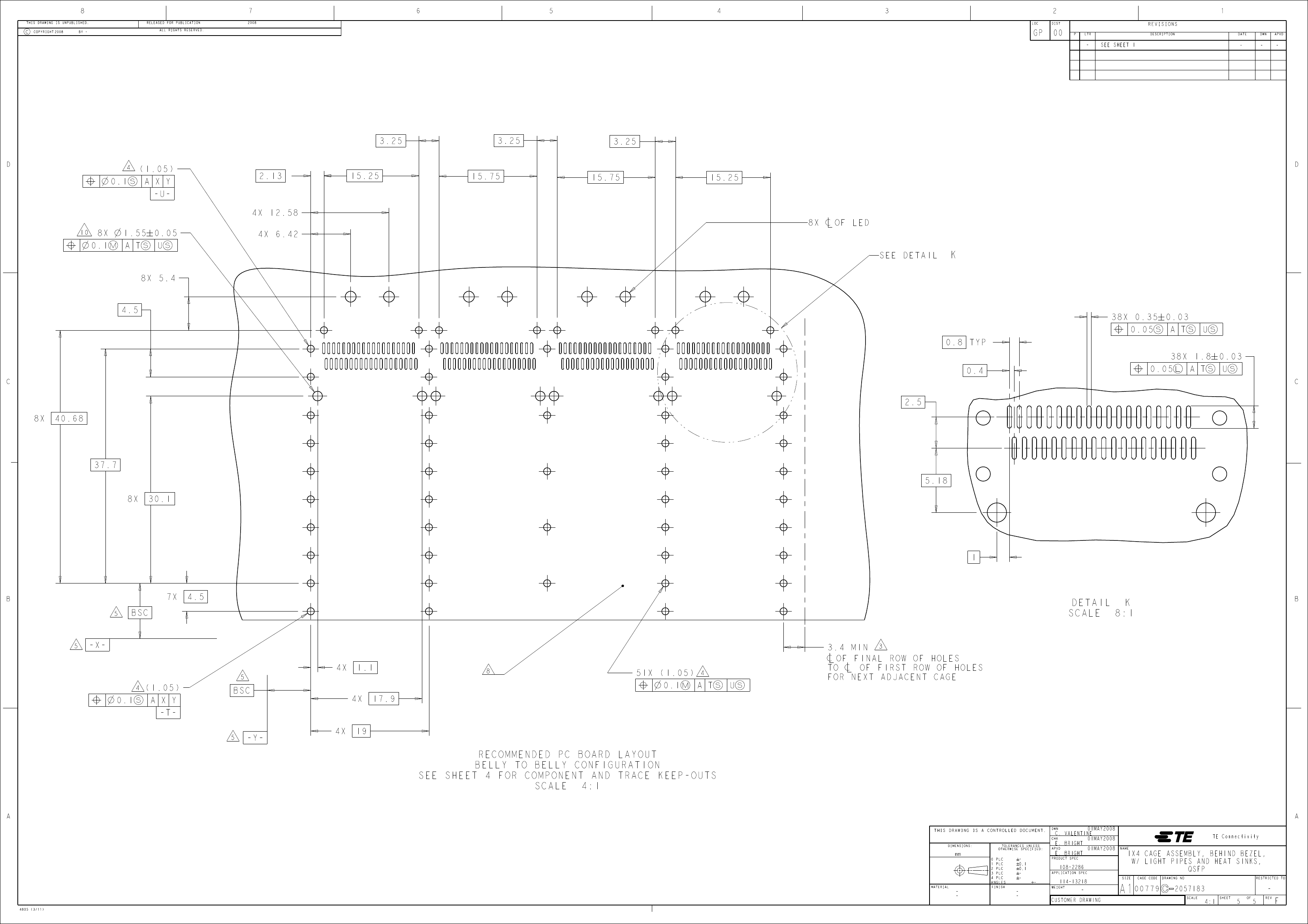

REFERENCE APP SPEC 114-13218 FOR GASKET THICKNESS CALCULATION.

EMI SPRING FINISH: 2µm MINIMUM TIN

FRONT FLANGE FINISH: 3µm MINIMUM TIN OVER 1.27µm MINIMUM NICKEL

OVER 5.08µm MINIMUM COPPER.

HEAT SINK FINISH: NICKEL

HEAT SINKS AND CLIPS SHIPPED ASSEMBLED TO CAGE ASSEMBLY.

CAGE ASSEMBLY MAY BE PRESSED INTO THE PCB AS SHIPPED. LIGHT

PIPES, SHIPPED UNATTACHED, MUST BE ASSEMBLED BY CUSTOMER

AFTER THE CASE IS SEATED IN THE PCB.

3 MAX TYP

DETAIL

SCALE

20:1

11. MATES WITH QSFP MSA COMPATIBLE TRANSCEIVER.

SURFACE TRACES PERMITTED WITHIN THIS AREA EXCEPT WHERE CAGE STANDOFFS,

SHOWN IN DETAIL S, CONTACT PC BOARD.

BASELINE FOR THESE DIMENSIONS IS THE CENTER OF COMPLIANT PIN HOLE.

2D BARCODE AND DATE CODE (YYWWD) MARKED ON SIDE OF CAGE ASSEMBLY.

( 60.57 )

(D)

( 79 )

MAX

2.2 MAX

(C)

2D BARCODE AND DATE CODE

SEE DETAIL

3X ( 19 )

1.3-1.4

0.8-1.1

5.7

2.8

DWN

CHK

2.15

1.70

C. VALENTINE

E. BRIGHT

108-2286

01MAY2008

2.15

16.0

13.7

23.0

16.0

13.7

SAN

NETWORKING

SAN

PCI

2057183-5

2057183-4

2057183-3

2057183-2

2057183-1

PART

NUMBER

CAGE ASSEMBLY

EMI SPRINGS

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

HEAT SINK

PROFILE

TE Connectivity

NAME

APVD

FRONT FLANGE

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.1

PRODUCT SPEC

APPLICATION SPEC

WEIGHT

114-13218

CUSTOMER DRAWING

00779

SIZE

1X4 CAGE ASSEMBLY, BEHIND BEZEL,

W/ LIGHT PIPES AND HEAT SINKS,

QSFP

CAGE CODE

DRAWING NO

RESTRICTED TO

2057183

SCALE

4805 (3/11)

4:1

SHEET

REV

2057183-4 Related Products

	2057183-4	2057183-5	2057183-2
Description	1x4 QSFP Kit Assy, LP&HS, PCI	1x4 QSFP Kit Assy, LP&HS, SAN	1x4 QSFP Kit Assy, LP& HS, SAN
Dimensions	QSFP+	QSFP+	-
Radiator included	yes	yes	-
cage type	Linkage	Linkage	-
Connector System	cable to board	cable to board	-
Sealable	no	no	-
Connectors and terminals terminate to	A printed circuit board	A printed circuit board	-
Port matrix configuration	1 x 4	1 x 4	-
Number of ports	4	4	-
Light pipe configuration	double circle	double circle	-
Number of rear EONs per port post	1	1	-
Radiator type	Pin	Pin	-
Radiator height category	PCI	SAN	-
Radiator height	4.2 mm [ .165 in ]	6.5 mm [ .256 in ]	-
Radiator surface coating	anodized black	anodized black	-
PCB terminal termination area plating materials	tin	tin	-
PCB Termination Methods	Through hole - solderless connection	Through hole - solderless connection	-
Connector mounting type	board mounting	board mounting	-
cage material	nickel silver	nickel silver	-
PCB thickness (recommended)	1.45 mm [ .057 in ]	1.45 mm [ .057 in ]	-
tail length	2.05 mm [ .081 in ]	2.05 mm [ .081 in ]	-
Working group temperature range	-55 – 105 °C [ -67 – 221 °F ]	-55 – 105 °C [ -67 – 221 °F ]	-
Suitable for pluggable I/O products	QSFP cable assembly, QSFP MSA compatible transceiver	QSFP cable assembly, QSFP MSA compatible transceiver	-
Pluggable I/O Applications	standard	standard	-
Circuit Application	Signal	Signal	-
UL flammability rating	UL 94V-0	UL 94V-0	-
Encapsulation method	boxes and trays	boxes and trays	-
EMI containment feature types	Seals for customer applications	Seals for customer applications	-
Light pipe included	yes	yes	-
Enhanced functionality	standard	standard	-
