ATC800C200MTN3600XC

Description
Ceramic Capacitor, Multilayer, Ceramic, 3600V, 20% +Tol, 20% -Tol, C0G, 30ppm/Cel TC, 0.00002uF, Surface Mount, CHIP, ROHS COMPLIANT
CategoryPassive components    capacitor
File Size207KB,4 Pages
ManufacturerATC [American Technical Ceramics]
Environmental Compliance
Download Datasheet Parametric View All

ATC800C200MTN3600XC Overview

Ceramic Capacitor, Multilayer, Ceramic, 3600V, 20% +Tol, 20% -Tol, C0G, 30ppm/Cel TC, 0.00002uF, Surface Mount, CHIP, ROHS COMPLIANT

ATC800C200MTN3600XC Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Objectid1468291623
package instruction,
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresSTANDARDS: MIL-PRF-123, MIL-PRF-55681
capacitance0.00002 µF
Capacitor typeCERAMIC CAPACITOR
dielectric materialsCERAMIC
JESD-609 codee3
Manufacturer's serial numberATC800C
Installation featuresSURFACE MOUNT
multi-layerYes
negative tolerance20%
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package shapeRECTANGULAR PACKAGE
method of packingTRAY
positive tolerance20%
Rated (DC) voltage (URdc)3600 V
surface mountYES
Temperature characteristic codeC0G
Temperature Coefficient30ppm/Cel ppm/°C
Terminal surfaceTin (Sn)
Terminal shapeWRAPAROUND

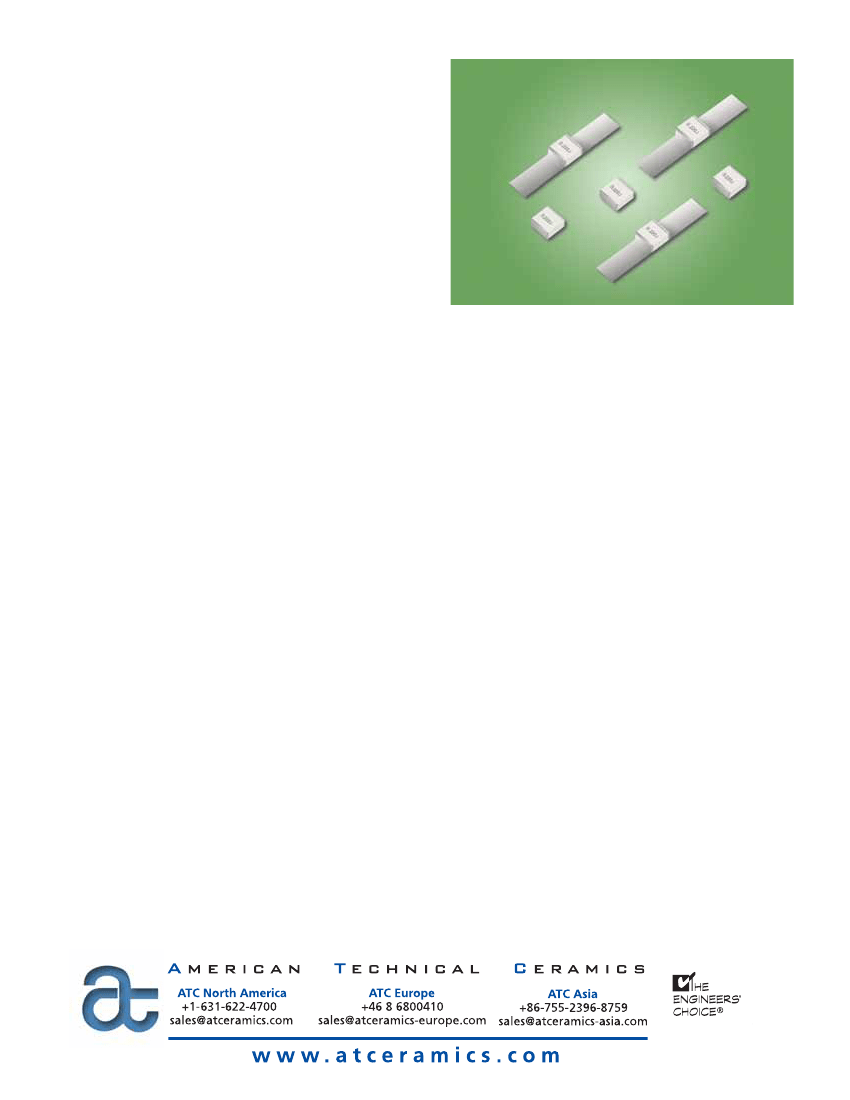

ATC800C200MTN3600XC Preview

ATC 800 C Series
NPO Ceramic
High RF Power
Multilayer Capacitors
• Case C Size
(.250" x .250")
• High Q
• Low ESR/ESL
• High RF Power
• 3600 WVDC
ATC’s 800 C Series offers superb performance in demanding high
RF power applications requiring consistent and reliable operation.
The combination of highly conductive metal electrode systems,
optimized case geometries, and proprietary dielectrics, yields the
lowest ESR. ATC’s new NPO low loss rugged dielectrics are
designed to provide superior heat transfer in high RF power
applications. Ultra-low ESR and superior thermal performance
insure that the 800 C Series products are your best choice for high
RF power applications from VHF through microwave frequencies.
Typical functional applications: Bypass, Coupling, Tuning, Impedance
Matching and DC Blocking.
Typical circuit applications: HF/RF Power Amplifiers, Transmitters,
Antenna Tuning, Plasma Chambers and Medical (MRI coils).
• Capacitance Range: 1 pF to 51 pF
and 1000 pF to 2700 pF
• Ultra-Stable Performance
• High RF Current/Voltage
• High Reliability
ELECTRICAL AND MECHANICAL
SPECIFICATIONS
QUALITY FACTOR (Q):
Greater than 5,000 (1.0 pF to 2700 pF) @ 1 MHz.
TEMPERATURE COEFFICIENT OF CAPACITANCE (TCC):
0 ±30 PPM/°C (-55°C to +125°C)
INSULATION RESISTANCE (IR):
1 pF to51 pF:
10
5
Megohms min. @ +25°C at rated WVDC.
10
4
Megohms min. @ +125°C at rated WVDC.
Max. test voltage is 500 VDC.
WORKING VOLTAGE (WVDC):
See Capacitance Values Table, p 2.
DIELECTRIC WITHSTANDING VOLTAGE (DWV):
1 pF to 51 pF: 120% of rated WVDC for 5 secs.
ENVIRONMENTAL TESTS
ATC 800 C Series Capacitors are designed and manufactured to
meet and exceed the requirements of EIA-198, MIL-PRF-55681 and
MIL-PRF-123.
RETRACE:
Less than ±(0.02% or 0.02 pF), whichever is greater.
AGING EFFECTS:
None
PIEZOELECTRIC EFFECTS:
None
(No capacitance variation with voltage or pressure).
THERMAL SHOCK:
MIL-STD-202, Method 107, Condition A.
MOISTURE RESISTANCE:
MIL-STD-202, Method 106.
CAPACITANCE DRIFT:
±(0.02% or 0.02 pF), whichever is
greater.
LOW VOLTAGE HUMIDITY:
MIL-STD-202, Method 103, Condition A, with 1.5 Volts DC applied
while subjected to an environment of 85°C with 85% relative
humidity for 240 hours min.
OPERATING TEMPERATURE RANGE:
From -55°C to +125°C (No derating of working voltage).
TERMINATION STYLES:
See Mechanical Configurations, page 3.
LIFE TEST:
MIL-STD-202, Method 108, for 2000 hours, at 125°C.
Voltage applied.
1 pF to 51 pF: at WVDC
TERMINAL STRENGTH:
Terminations for chips withstand a pull
of 10 lbs. min., 20 lbs. typical, for 5 seconds in direction
perpendicular to the termination surface of the capacitor. Test per
MIL-STD-202, method 211.
ISO 9001
REGISTERED
COMPANY
ATC # 001-1076 Rev. C; 8/10
ATC 800 C Capacitance Values
CAP.
CODE
1R0
1R1
1R2
1R3
1R4
1R5
1R6
1R7
1R8
1R9
2R0
2R1
2R2
2R4
2R7
3R0
3R3
3R6
CAP.
(pF)
1.0
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
1.9
2.0
2.1
2.2
2.4
2.7
3.0
3.3
3.6
TOL.
RATED
WVDC
CAP.
CODE
3R9
4R3
4R7
5R1
5R6
6R2
6R8
7R5
8R2
9R1
100
110
120
130
150
160
180
200
CAP.
(pF)
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
13
15
16
18
20
TOL.
RATED
WVDC
CAP.
CODE
220
240
270
300
330
360
390
430
470
510
102
112
122
152
182
222
242
272
CAP.
(pF)
22
24
27
30
33
36
39
43
47
51
1000
1100
1200
1500
1800
2200
2400
2700
TOL.
RATED
WVDC
B, C, D
F, G, J,
K, M
3600
B, C, D
3600
3600
F, G, J,
K, M
F, G, J,
K, M
300
CAPACITANCE TOLERANCE
Code
B
C
D
F
G
J
K
M
Tol.
±0.1 pF ±0.25 pF ±0.5 pF ±1% ±2% ±5% ±10% ±20%
ATC PART NUMBER CODE
ATC800 C 22 0
Series
Case Size
Capacitance Code:
First 2 significant digits for capacitance.
R=Decimal Point
Indicates number of zeros following digits
of capacitance in picofarads except for decimal values.
Capacitance Tolerance
J
TN 3600 X
C
Packaging
C - ATC Matrix Tray (Standard)
Laser Marking
WVDC
Termination Code
The above part number refers to a 800 C Series (case size C) 22 pF capacitor, J tolerance (±5%),
3600 WVDC, with TN termination (RoHS Compliant, Tin Plated over Non-Magnetic Barrier Termination), laser marking and plastic Matrix Tray packaging.
ATC accepts orders for our parts using designations
with
or
without
the
“ATC” prefix. Both methods of defining the part number are equivalent, i.e.,
part numbers referenced with the “ATC” prefix are interchangeable to parts
referenced without the “ATC” prefix. Customers are free to use either in
specifying or procuring parts from American Technical Ceramics.
For additional information and catalogs contact your ATC
representative or call direct at (+1-631) 622-4700.
