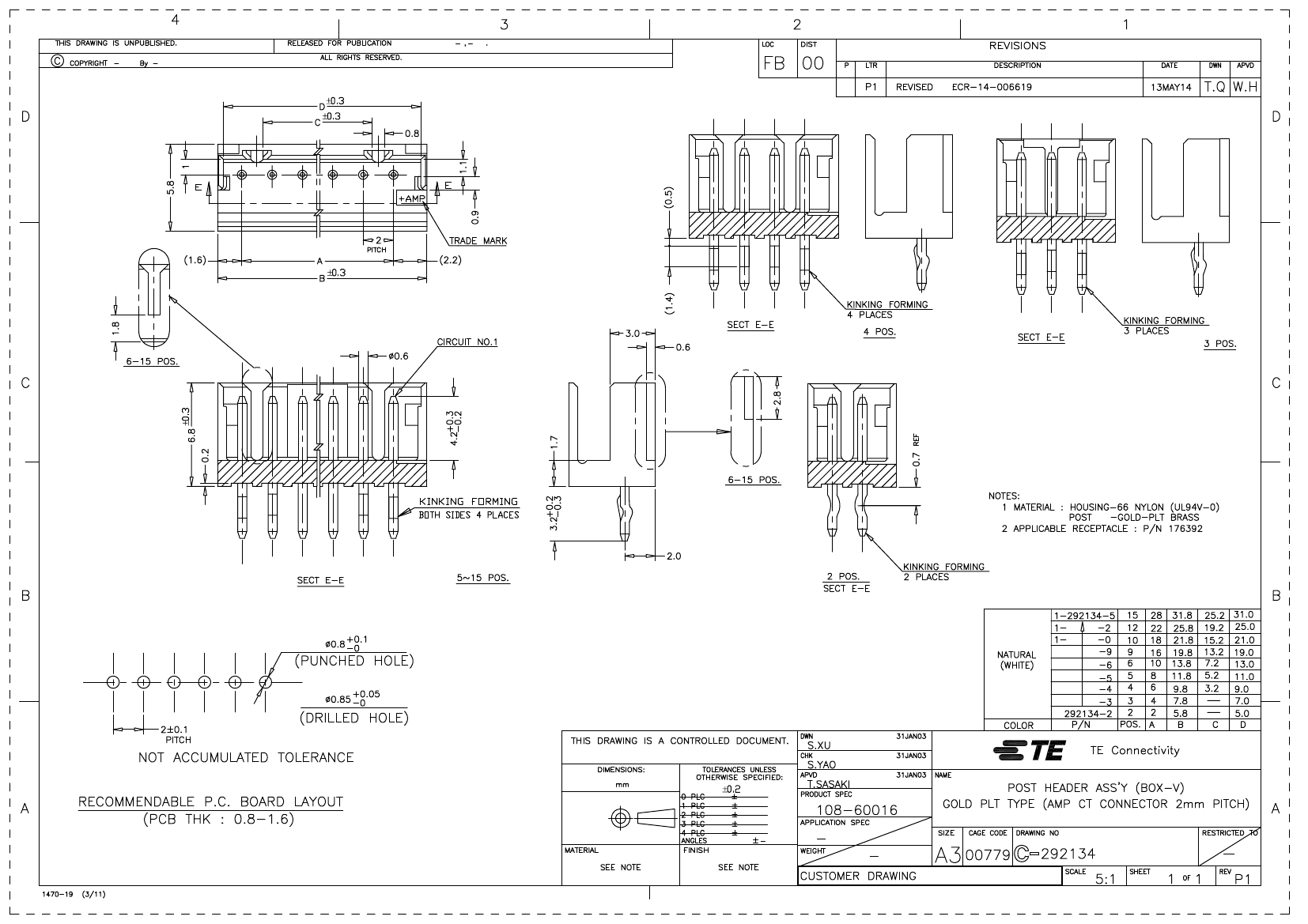

CT BOX HDR ASSY V 4P AU W/KINK
| Parameter Name | Attribute value |
| Brand Name | AMP |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Reach Compliance Code | compli |
| ECCN code | EAR99 |
| Other features | ROHS COMPLIANT |
| body width | 0.228 inch |
| subject depth | 0.268 inch |
| body length | 0.386 inch |
| Body/casing type | PLUG |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact point gender | MALE |
| Contact material | NOT SPECIFIED |
| contact mode | RECTANGULAR |
| Contact resistance | 20 mΩ |
| Contact style | RND PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 1000VAC V |
| Durability | 30 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| Insulation resistance | 1000000000 Ω |
| Insulator color | BLACK |
| insulator material | NYLON |
| MIL compliance | NO |
| Plug contact pitch | 0.079 inch |
| Mixed contacts | NO |
| Installation option 1 | LOCKING |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 1 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -40 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| Plating thickness | 40u inch |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 3 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal length | 0.126 inch |
| Terminal pitch | 2 mm |
| Termination type | SOLDER |
| Total number of contacts | 4 |
| UL Flammability Code | 94V-0 |
| Base Number Matches | 1 |
| 292134-4 | VCC1-E1K-12M544 | 292134-6 | 292134-9 | 1-292134-2 | 292134-5 | 292134-2 | 292134-3 | 1-292134-0 | |
|---|---|---|---|---|---|---|---|---|---|
| Description | CT BOX HDR ASSY V 4P AU W/KINK | CMOS Output Clock Oscillator, 12.544MHz Nom | CT BOX HDR ASSY V 6P AU W/KINK | CT BOX HDR ASSY V 9P AU W/KINK | CT BOX HDR ASSY V 12P AU W/KIN | CT BOX HDR ASSY V 5P AU W/KINK | CT BOX HDR ASSY V 2P AU W/KINK | CT BOX HDR ASSY V 3P AU W/KINK | CT BOX HDR ASSY V 10P AU W/KIN |
| Is it Rohs certified? | conform to | conform to | conform to | conform to | conform to | conform to | conform to | conform to | conform to |
| Reach Compliance Code | compli | compliant | compli | compli | compliant | compli | compliant | compliant | compliant |
| Maximum operating temperature | 105 °C | 70 °C | 105 °C | 105 °C | 105 °C | 105 °C | 105 °C | 105 °C | 105 °C |
| Minimum operating temperature | -40 °C | -10 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C |
| Brand Name | AMP | - | AMP | AMP | AMP | AMP | AMP | AMP | AMP |
| Is it lead-free? | Lead free | - | Lead free | Lead free | Lead free | - | - | Lead free | Lead free |
| ECCN code | EAR99 | - | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Other features | ROHS COMPLIANT | TRI-STATE; ENABLE/DISABLE FUNCTION; ALTERNATE PACKAGE ALSO AVAILABLE | ROHS COMPLIANT | - | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT |
| body width | 0.228 inch | - | 0.228 inch | 0.228 inch | 0.228 inch | 0.228 inch | 0.228 inch | 0.228 inch | 0.228 inch |
| subject depth | 0.268 inch | - | 0.268 inch | 0.268 inch | 0.268 inch | 0.268 inch | 0.268 inch | 0.268 inch | 0.268 inch |
| body length | 0.386 inch | - | 0.543 inch | - | 1.016 inch | 0.465 inch | 0.228 inch | 0.307 inch | 0.858 inch |
| Body/casing type | PLUG | - | PLUG | PLUG | PLUG | PLUG | PLUG | PLUG | PLUG |
| Connector type | BOARD CONNECTOR | - | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Contact point gender | MALE | - | MALE | MALE | MALE | MALE | MALE | MALE | MALE |
| Contact material | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| contact mode | RECTANGULAR | - | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact resistance | 20 mΩ | - | 20 mΩ | 20 mΩ | 20 mΩ | 20 mΩ | 20 mΩ | 20 mΩ | 20 mΩ |
| Contact style | RND PIN-SKT | - | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT |
| DIN compliance | NO | - | NO | NO | NO | NO | NO | NO | NO |
| Dielectric withstand voltage | 1000VAC V | - | 1000VAC V | 1000VAC V | 1000VAC V | 1000VAC V | 1000VAC V | 1000VAC V | 1000VAC V |
| Durability | 30 Cycles | - | 30 Cycles | 30 Cycles | 30 Cycles | 30 Cycles | 30 Cycles | 30 Cycles | 30 Cycles |
| Filter function | NO | - | NO | NO | NO | NO | NO | NO | NO |
| IEC compliance | NO | - | NO | NO | NO | NO | NO | NO | NO |
| Insulation resistance | 1000000000 Ω | - | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω |
| Insulator color | BLACK | - | BLACK | - | BLACK | BLACK | BLACK | BLACK | BLACK |
| insulator material | NYLON | - | NYLON | NYLON | NYLON | NYLON | NYLON | NYLON | NYLON |
| MIL compliance | NO | - | NO | NO | NO | NO | NO | NO | NO |
| Plug contact pitch | 0.079 inch | - | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch |
| Mixed contacts | NO | - | NO | NO | NO | NO | NO | NO | NO |
| Installation option 1 | LOCKING | - | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING |
| Installation method | STRAIGHT | - | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | - | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD |
| Number of connectors | ONE | - | ONE | ONE | ONE | ONE | ONE | ONE | ONE |
| PCB row number | 1 | - | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of rows loaded | 2 | - | 2 | 1 | 2 | 1 | 1 | 1 | 2 |
| Options | GENERAL PURPOSE | - | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR | - | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Plating thickness | 40u inch | - | 40u inch | - | 40u inch | 40u inch | 40u inch | 40u inch | 40u inch |
| polarization key | POLARIZED HOUSING | - | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING |
| Rated current (signal) | 3 A | - | 3 A | 3 A | 3 A | 3 A | 3 A | 3 A | 3 A |
| Guideline | UL | - | UL | UL | UL | UL | UL | UL | UL |
| reliability | COMMERCIAL | - | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal length | 0.126 inch | - | 0.126 inch | 0.126 inch | 0.126 inch | 0.126 inch | 0.126 inch | 0.126 inch | 0.126 inch |
| Terminal pitch | 2 mm | - | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm |
| Termination type | SOLDER | - | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 4 | - | 6 | 9 | 12 | 5 | 2 | 3 | 10 |
| UL Flammability Code | 94V-0 | - | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
| Base Number Matches | 1 | - | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
