2110412-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 2110412-2

2110412-2: Description1x3 QSFP Kit Assy Sqr LP, SAN Htsnk; CategoryThe connector; File Size2MB，5 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

2110412-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2110412-2	-	-	View	Buy Now

2110412-2 Overview

1x3 QSFP Kit Assy Sqr LP, SAN Htsnk

2110412-2 Parametric

Parameter Name	Attribute value
Dimensions	QSFP+
Radiator included	yes
cage type	Linkage
Connector System	cable to board
Sealable	no
Connectors and terminals terminate to	A printed circuit board
Port matrix configuration	1 x 3
Number of ports	3
Light pipe configuration	both sides
Number of rear EONs per port post	1
Data rate (max) (Gb/s)	28
Radiator type	Pin
Radiator height category	SAN
Radiator height	6.5 mm [ .256 in ]
Radiator surface coating	anodized black
PCB terminal termination area plating materials	tin
PCB Termination Methods	Through hole - solderless connection
Connector mounting type	board mounting
cage material	nickel silver
PCB thickness (recommended)	1.45 mm [ .057 in ]
tail length	2.05 mm [ .08 in ]
Working group temperature range	-55 – 105 °C [ -67 – 221 °F ]
Suitable for pluggable I/O products	QSFP cable assembly, QSFP MSA compatible transceiver
Pluggable I/O Applications	standard
Circuit Application	Signal
UL flammability rating	UL 94V-0
Encapsulation method	boxes and trays
EMI containment feature types	Seals for customer applications
Light pipe included	yes
Enhanced functionality	standard

Preview

Download Datasheet

View All

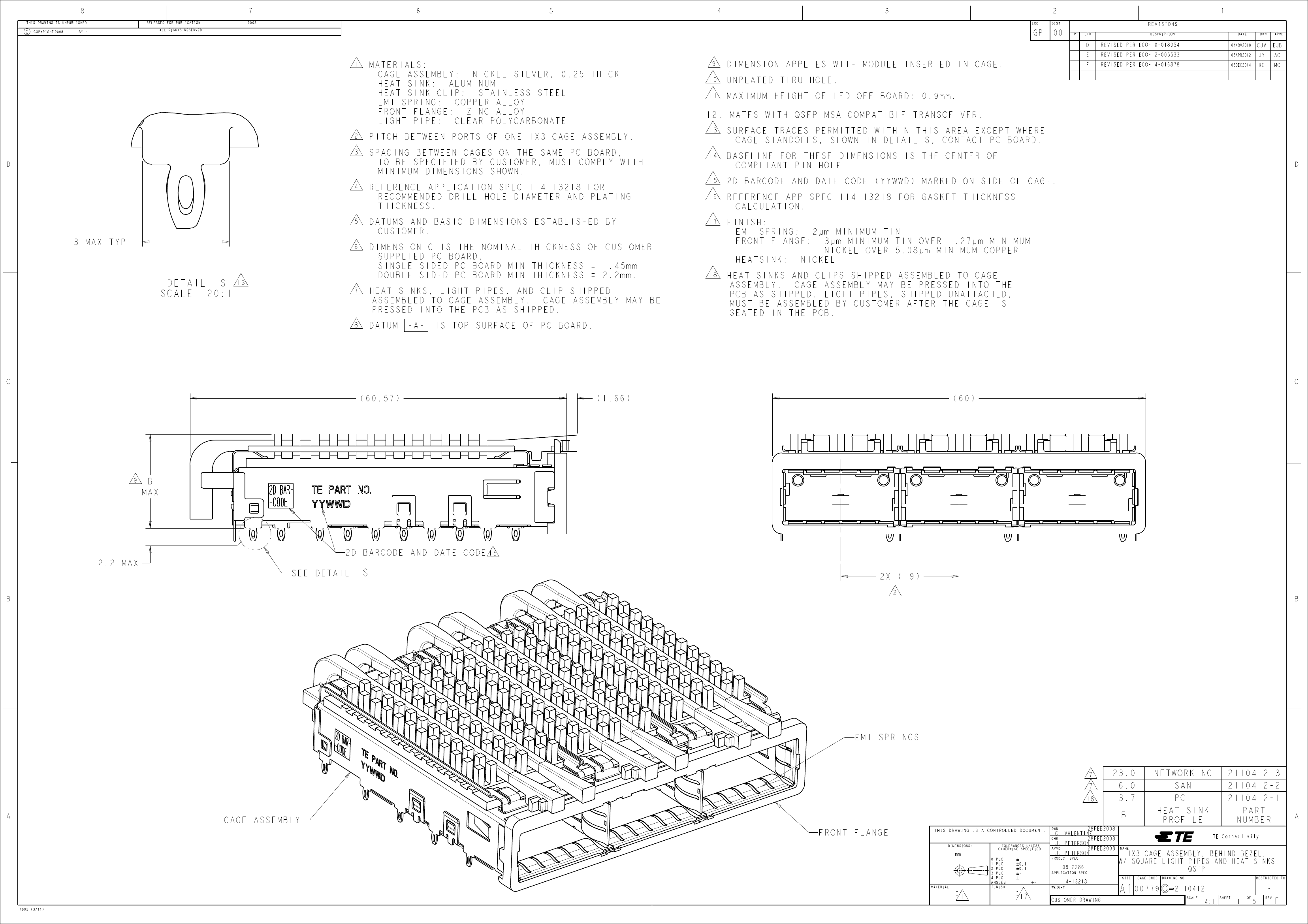

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

2008

LOC

DIST

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

2008

REVISED PER ECO-10-018054

REVISED PER ECO-12-005533

REVISED PER ECO-14-016878

04NOV2010

05APR2012

03DEC2014

CJV

EJB

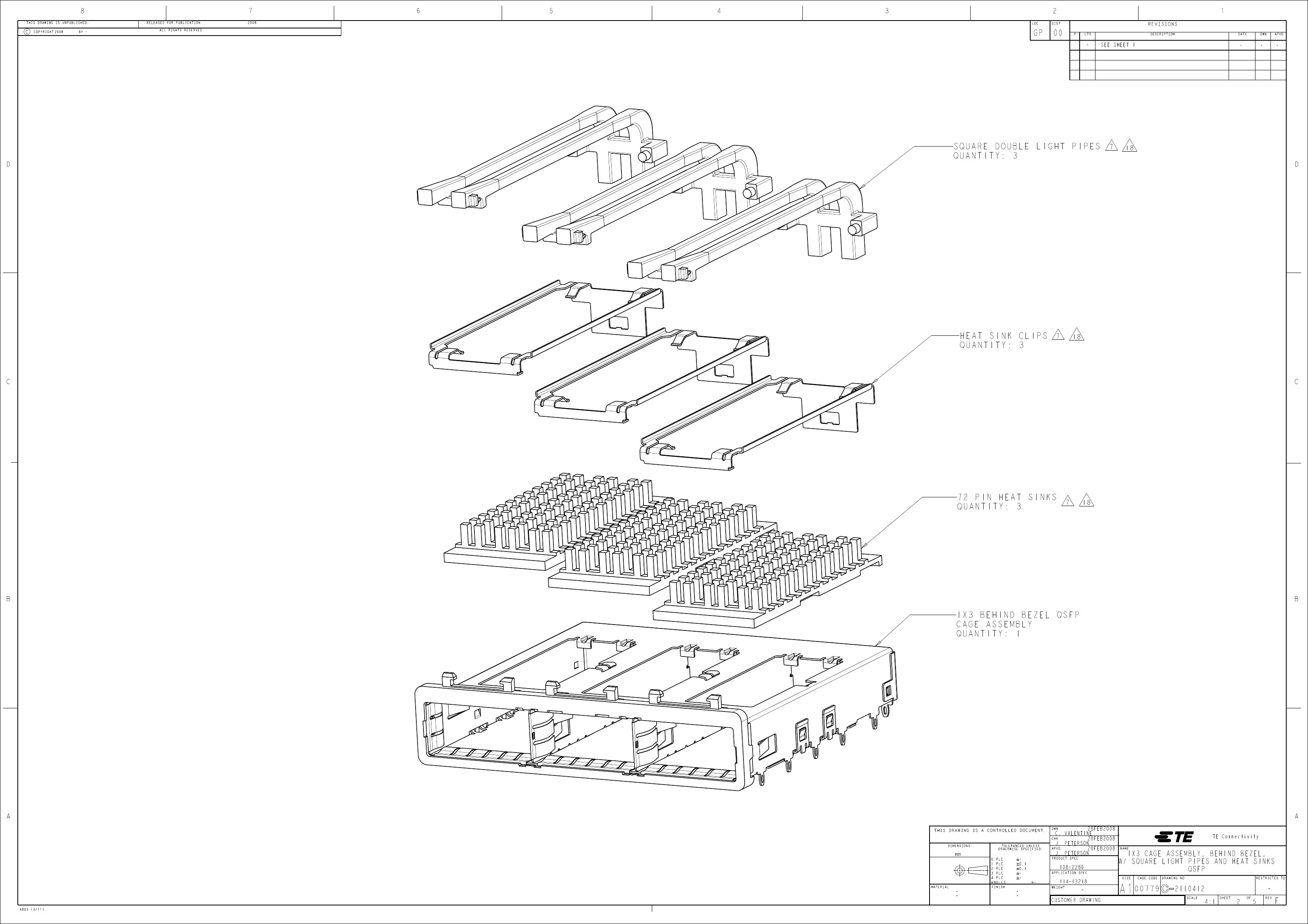

MATERIALS:

CAGE ASSEMBLY: NICKEL SILVER, 0.25 THICK

HEAT SINK: ALUMINUM

HEAT SINK CLIP: STAINLESS STEEL

EMI SPRING: COPPER ALLOY

FRONT FLANGE: ZINC ALLOY

LIGHT PIPE: CLEAR POLYCARBONATE

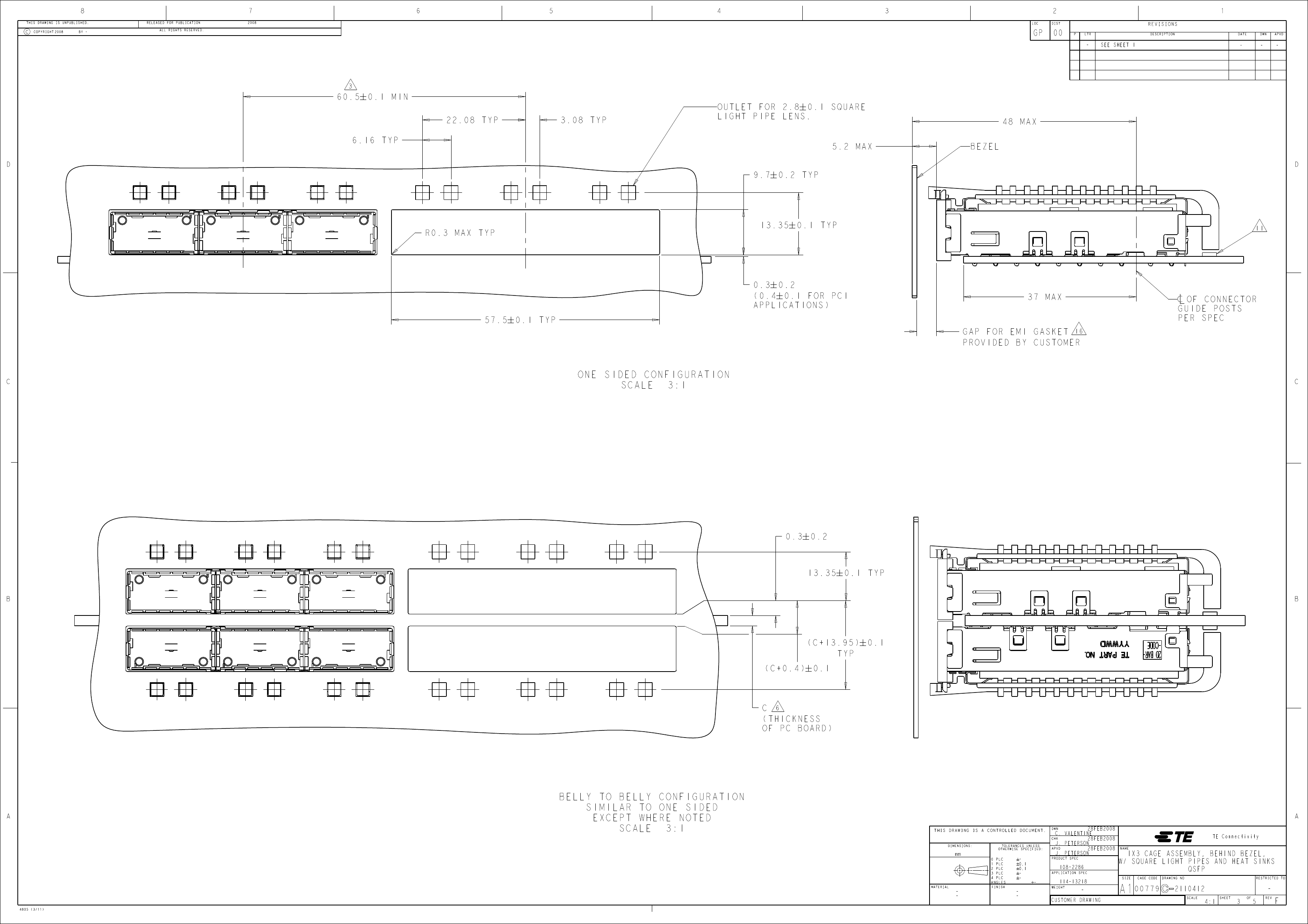

PITCH BETWEEN PORTS OF ONE 1X3 CAGE ASSEMBLY.

SPACING BETWEEN CAGES ON THE SAME PC BOARD,

TO BE SPECIFIED BY CUSTOMER, MUST COMPLY WITH

MINIMUM DIMENSIONS SHOWN.

REFERENCE APPLICATION SPEC 114-13218 FOR

RECOMMENDED DRILL HOLE DIAMETER AND PLATING

THICKNESS.

DATUMS AND BASIC DIMENSIONS ESTABLISHED BY

CUSTOMER.

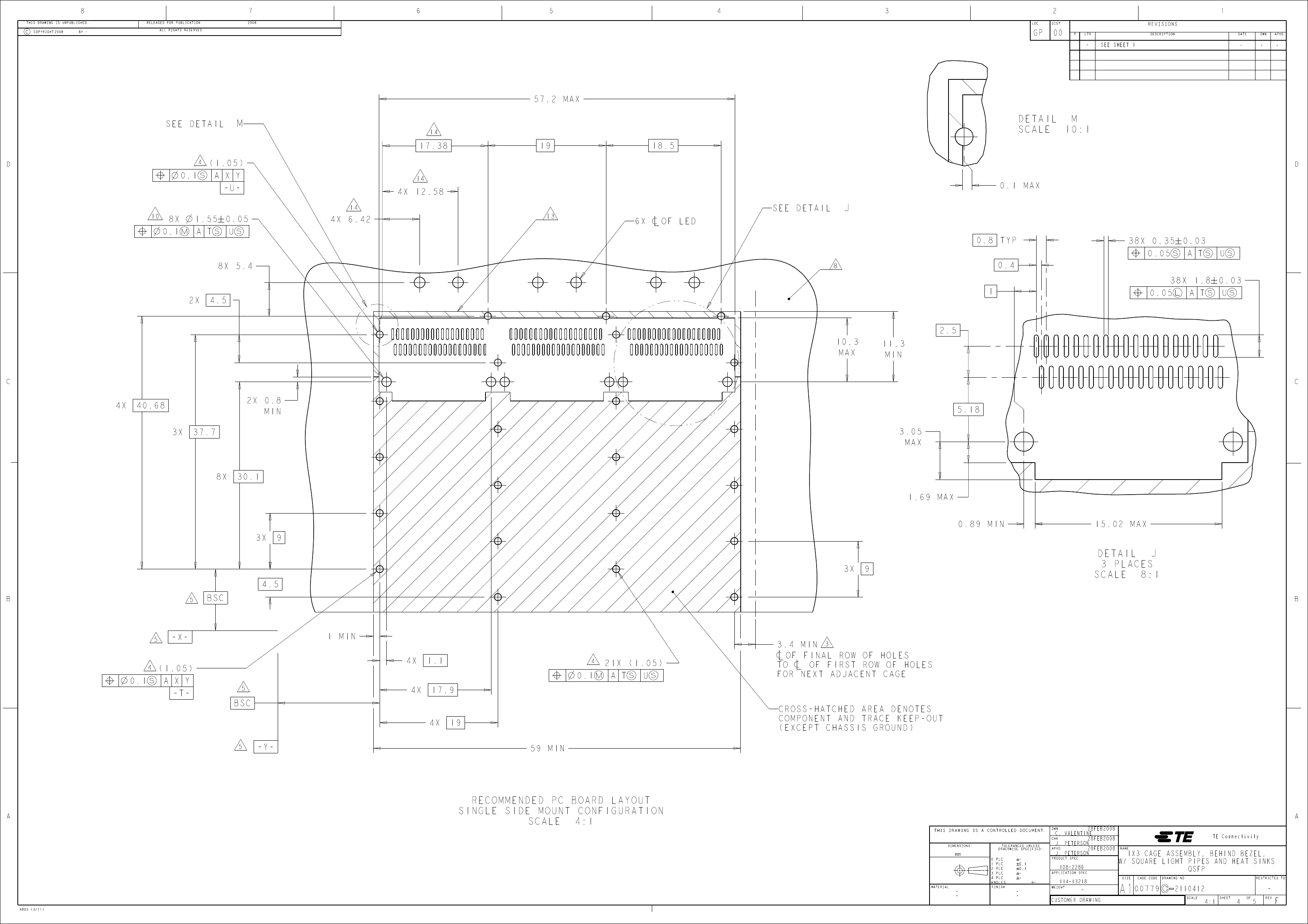

DIMENSION C IS THE NOMINAL THICKNESS OF CUSTOMER

SUPPLIED PC BOARD,

SINGLE SIDED PC BOARD MIN THICKNESS = 1.45mm

DOUBLE SIDED PC BOARD MIN THICKNESS = 2.2mm.

HEAT SINKS, LIGHT PIPES, AND CLIP SHIPPED

ASSEMBLED TO CAGE ASSEMBLY. CAGE ASSEMBLY MAY BE

PRESSED INTO THE PCB AS SHIPPED.

DATUM

-A-

IS TOP SURFACE OF PC BOARD.

DIMENSION APPLIES WITH MODULE INSERTED IN CAGE.

UNPLATED THRU HOLE.

MAXIMUM HEIGHT OF LED OFF BOARD: 0.9mm.

12. MATES WITH QSFP MSA COMPATIBLE TRANSCEIVER.

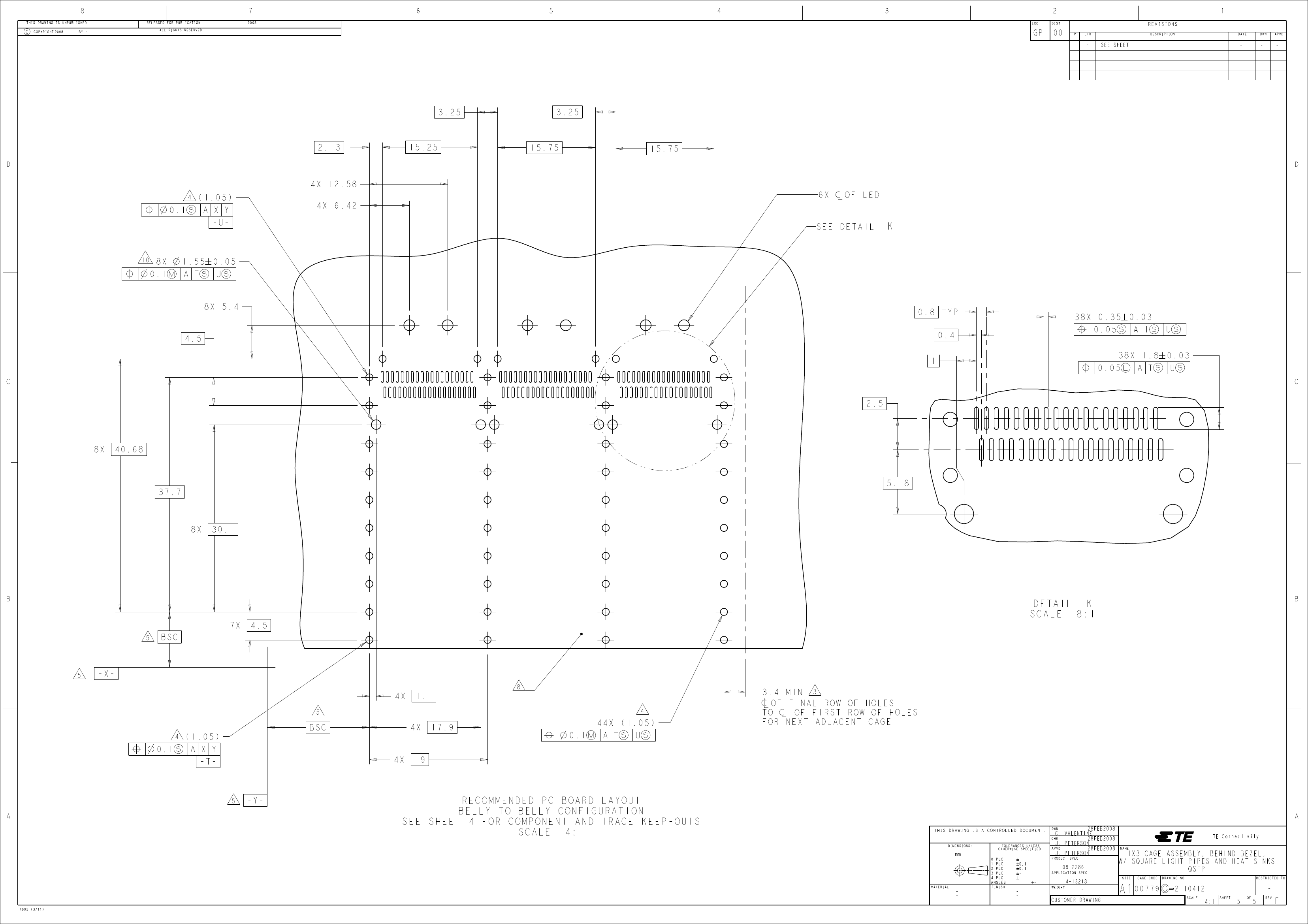

SURFACE TRACES PERMITTED WITHIN THIS AREA EXCEPT WHERE

CAGE STANDOFFS, SHOWN IN DETAIL S, CONTACT PC BOARD.

BASELINE FOR THESE DIMENSIONS IS THE CENTER OF

COMPLIANT PIN HOLE.

2D BARCODE AND DATE CODE (YYWWD) MARKED ON SIDE OF CAGE.

REFERENCE APP SPEC 114-13218 FOR GASKET THICKNESS

CALCULATION.

FINISH:

EMI SPRING: 2µm MINIMUM TIN

FRONT FLANGE: 3µm MINIMUM TIN OVER 1.27µm MINIMUM

NICKEL OVER 5.08µm MINIMUM COPPER

HEATSINK: NICKEL

HEAT SINKS AND CLIPS SHIPPED ASSEMBLED TO CAGE

ASSEMBLY. CAGE ASSEMBLY MAY BE PRESSED INTO THE

PCB AS SHIPPED. LIGHT PIPES, SHIPPED UNATTACHED,

MUST BE ASSEMBLED BY CUSTOMER AFTER THE CAGE IS

SEATED IN THE PCB.

3 MAX TYP

DETAIL

SCALE

20:1

( 60.57 )

( 1.66 )

( 60 )

MAX

2.2 MAX

2D BARCODE AND DATE CODE

SEE DETAIL

2X ( 19 )

EMI SPRINGS

23.0

16.0

13.7

NETWORKING

SAN

PCI

2110412-3

2110412-2

2110412-1

PART

NUMBER

CAGE ASSEMBLY

FRONT FLANGE

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

C. VALENTINE

J. PETERSON

108-2286

28FEB2008

NAME

HEAT SINK

PROFILE

TE Connectivity

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.1

PRODUCT SPEC

APPLICATION SPEC

1X3 CAGE ASSEMBLY, BEHIND BEZEL,

W/ SQUARE LIGHT PIPES AND HEAT SINKS

QSFP

WEIGHT

114-13218

CUSTOMER DRAWING

00779

SIZE

CAGE CODE

DRAWING NO

RESTRICTED TO

2110412

SCALE

4805 (3/11)

4:1

SHEET

REV
