215876-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 215876-1

215876-1: Description6/6 PCB MOD.JACK SE; CategoryThe connector The connector; File Size878KB，4 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

215876-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	215876-1	-	-	View	Buy Now

215876-1 Overview

6/6 PCB MOD.JACK SE

215876-1 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
Factory Lead Time	11 weeks
Other features	LOW PROFILE
Board mount options	PEG
body width	0.453 inch
subject depth	0.713 inch
body length	0.52 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact style	TELCOM, MODULAR
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	750 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	23.5744 N
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
Plating thickness	50u inch
Rated current (signal)	1.5 A
Guideline	CSA, UL
reliability	COMMERCIAL
Shell material	POLYBUTYLENE TEREPHTHALATE
Terminal length	0.122 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	6
UL Flammability Code	94V-0
Base Number Matches	2

Preview

Download Datasheet

View All

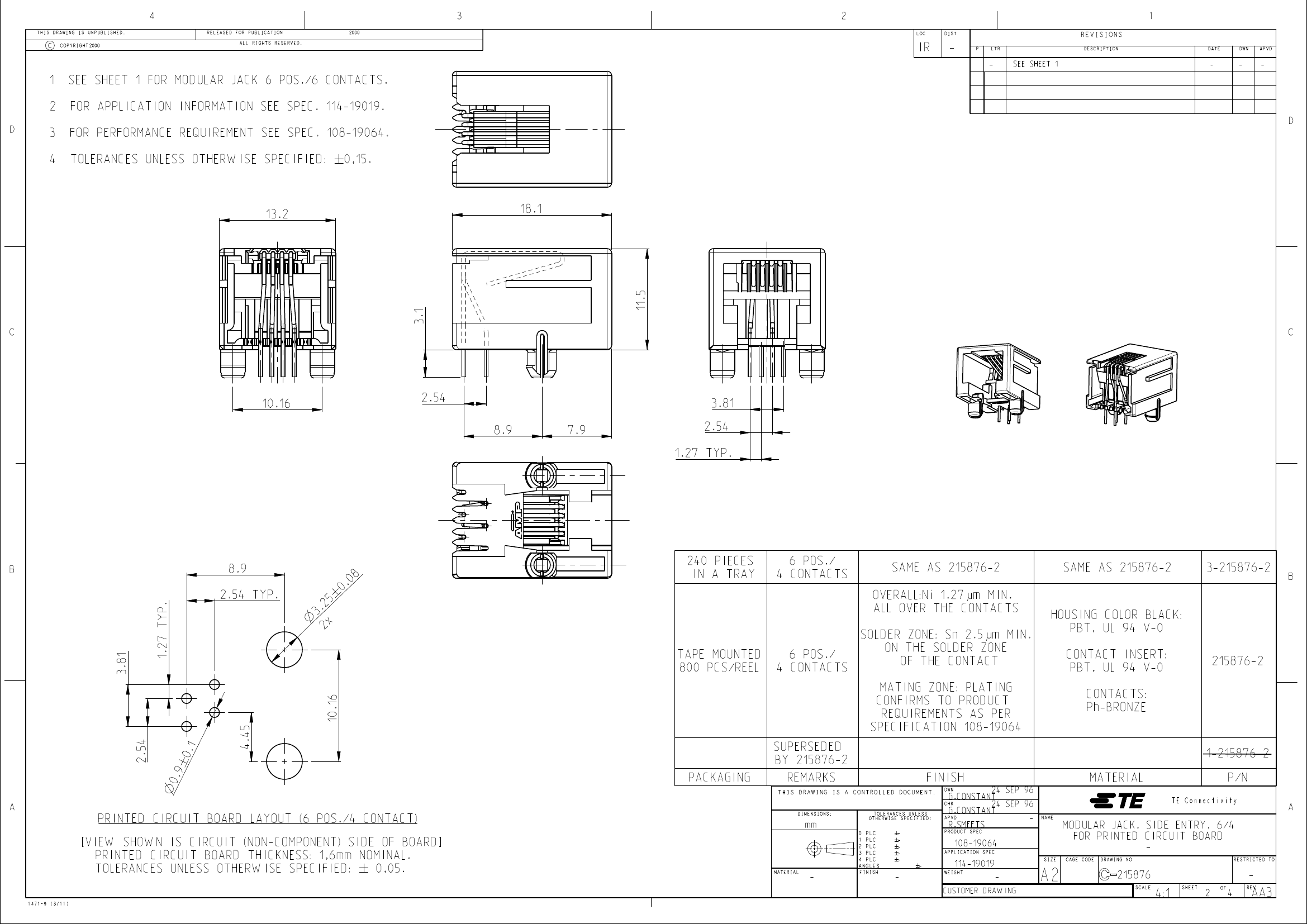

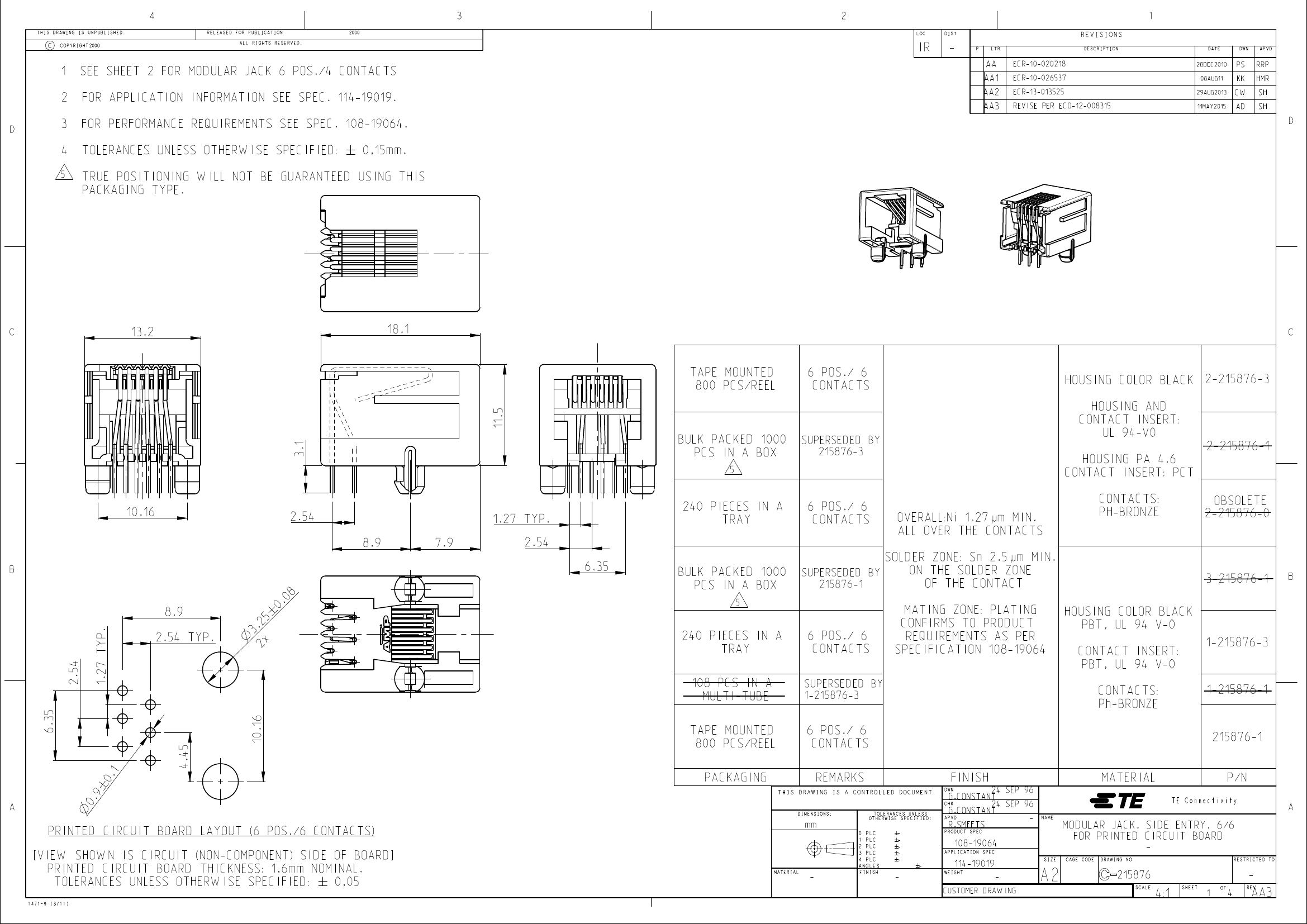

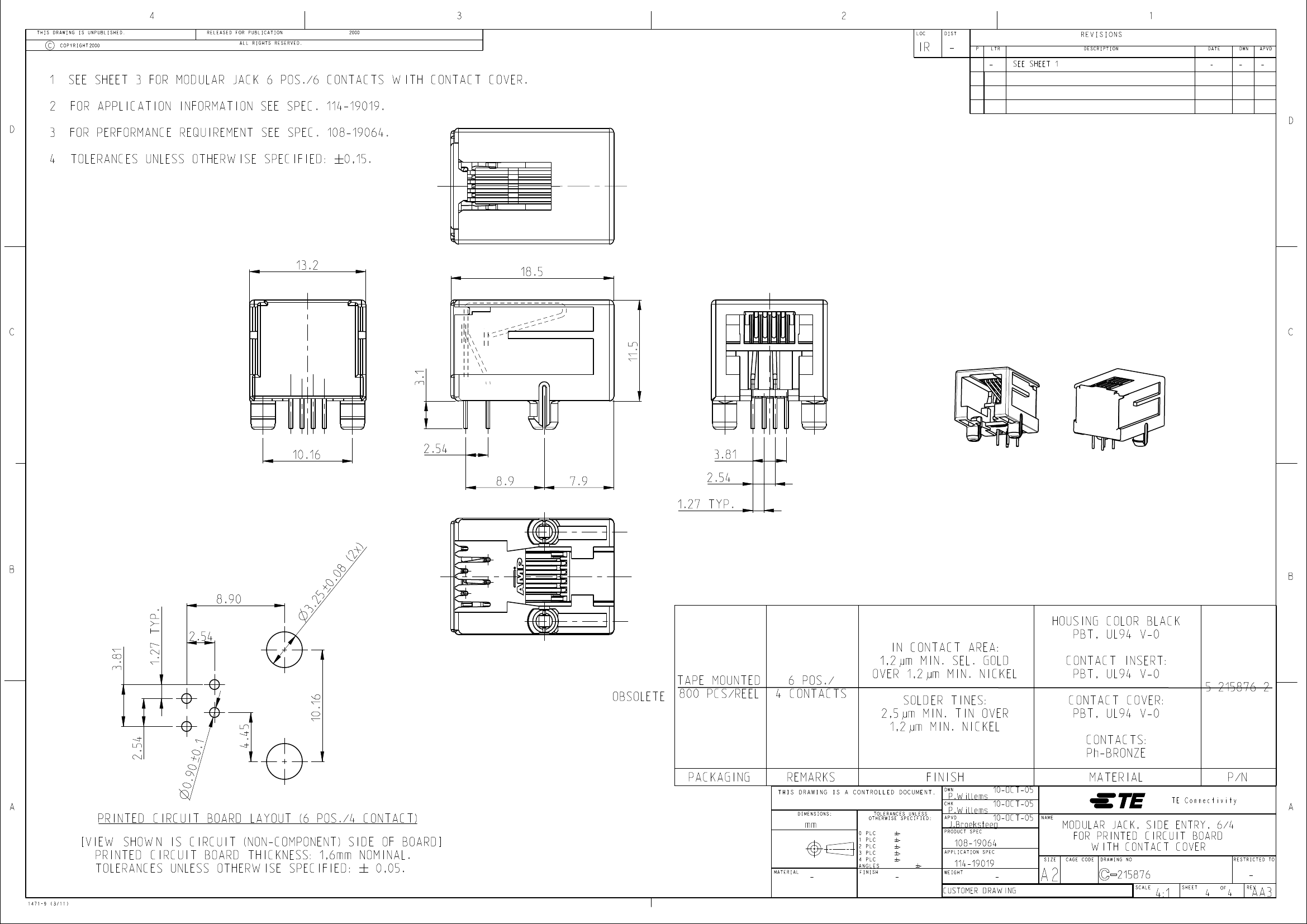

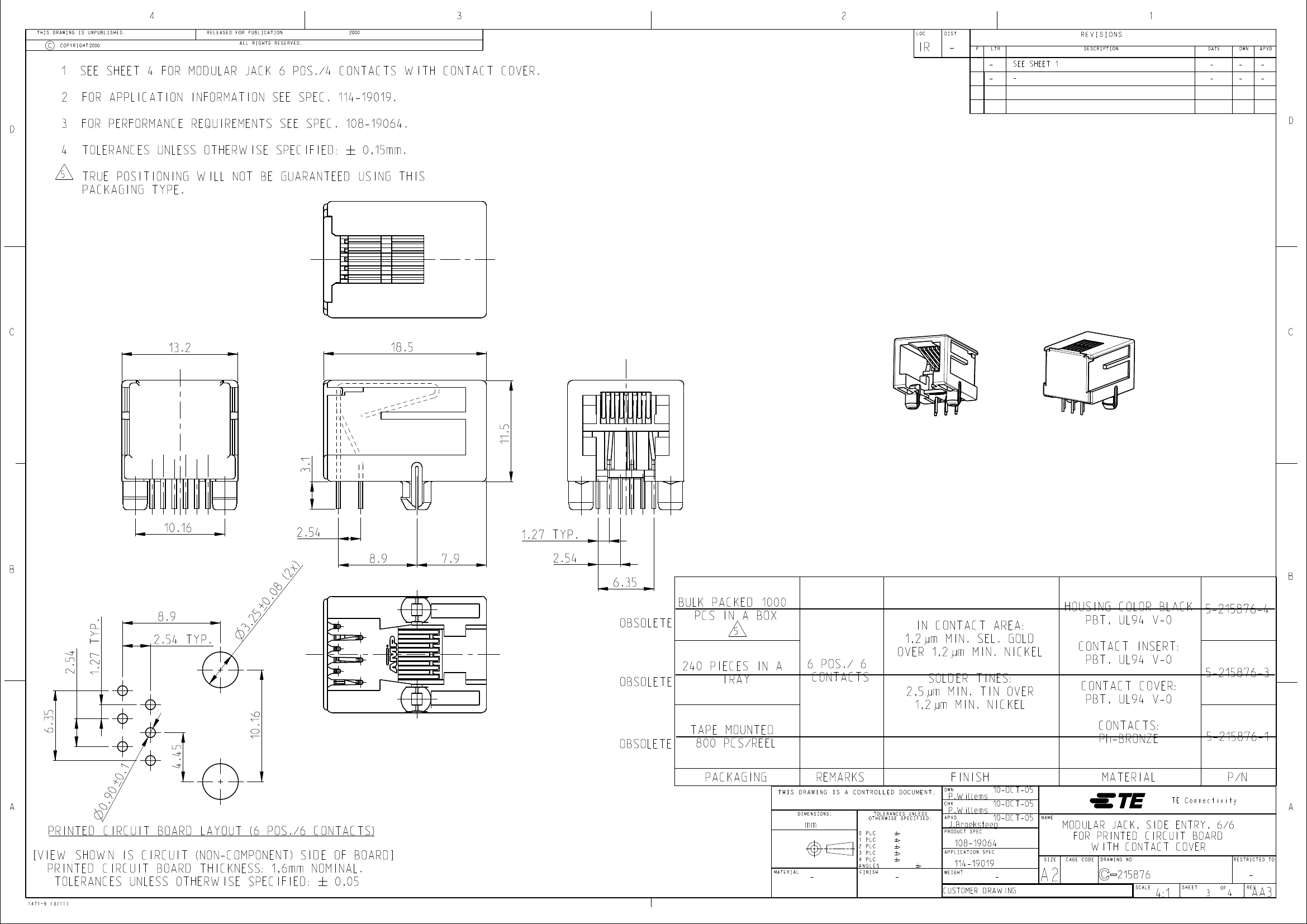

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

2000

LOC

DIST

2000

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

SEE SHEET 2 FOR MODULAR JACK 6 POS./4 CONTACTS

FOR APPLICATION INFORMATION SEE SPEC. 114-19019.

FOR PERFORMANCE REQUIREMENTS SEE SPEC. 108-19064.

TOLERANCES UNLESS OTHERWISE SPECIFIED:

0,15mm.

AA2

AA1

ECR-10-020218

ECR-10-026537

ECR-13-013525

REVISE PER ECO-12-008315

28DEC2010

08AUG11

29AUG2013

11MAY2015

RRP

HMR

AA3

TRUE POSITIONING WILL NOT BE GUARANTEED USING THIS

PACKAGING TYPE.

13.2

18.1

TAPE MOUNTED

800 PCS/REEL

11.5

6 POS./ 6

CONTACTS

HOUSING COLOR BLACK 2-215876-3

HOUSING AND

CONTACT INSERT:

UL 94-V0

HOUSING PA 4.6

CONTACT INSERT: PCT

OVERALL:Ni 1.27µm MIN.

ALL OVER THE CONTACTS

CONTACTS:

PH-BRONZE

BULK PACKED 1000

PCS IN A BOX

SUPERSEDED BY

215876-3

3.1

2-215876-1

10.16

2.54

8.9

7.9

1.27 TYP.

2.54

6.35

240 PIECES IN A

TRAY

6 POS./ 6

CONTACTS

OBSOLETE

2-215876-0

8.9

1.27 TYP.

2.54 TYP.

BULK PACKED 1000

PCS IN A BOX

SOLDER ZONE: Sn 2.5µm MIN.

ON THE SOLDER ZONE

SUPERSEDED BY

OF THE CONTACT

215876-1

MATING ZONE: PLATING

CONFIRMS TO PRODUCT

REQUIREMENTS AS PER

SPECIFICATION 108-19064

HOUSING COLOR BLACK

PBT, UL 94 V-0

CONTACT INSERT:

PBT, UL 94 V-0

CONTACTS:

Ph-BRONZE

3-215876-1

2.54

240 PIECES IN A

TRAY

108 PCS IN A

MULTI-TUBE

6 POS./ 6

CONTACTS

SUPERSEDED BY

1-215876-3

1-215876-1

215876-1

6.35

10.16

4.45

TAPE MOUNTED

800 PCS/REEL

PACKAGING

6 POS./ 6

CONTACTS

REMARKS

FINISH

MATERIAL

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

G.CONSTANT

24 SEP 96

NAME

P/N

TE Connectivity

PRINTED CIRCUIT BOARD LAYOUT (6 POS./6 CONTACTS)

[VIEW SHOWN IS CIRCUIT (NON-COMPONENT) SIDE OF BOARD]

PRINTED CIRCUIT BOARD THICKNESS: 1,6mm NOMINAL.

TOLERANCES UNLESS OTHERWISE SPECIFIED: # 0,05

1471-9 (3/11)

MATERIAL

APVD

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

PRODUCT SPEC

R.SMEETS

APPLICATION SPEC

108-19064

114-19019

WEIGHT

CUSTOMER DRAWING

SIZE

MODULAR JACK, SIDE ENTRY, 6/6

FOR PRINTED CIRCUIT BOARD

CAGE CODE

DRAWING NO

RESTRICTED TO

215876

SCALE

4:1

SHEET

REV

AA3
