2-1971906-6 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2-1971906-6

2-1971906-6: DescriptionHEADER ASSY 12POS,KEYING-B,NEW GIC3.3; CategoryThe connector The connector; File Size400KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

2-1971906-6 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2-1971906-6	-	-	View	Buy Now

2-1971906-6 Overview

HEADER ASSY 12POS,KEYING-B,NEW GIC3.3

2-1971906-6 Parametric

Parameter Name	Attribute value
Brand Name	TE Connectivity
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	compliant
Board mount options	PEG
body width	0.457 inch
body length	0.862 inch
Connector type	PCB CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Durability	30 Cycles
Insulation resistance	500000000 Ω
Insulator color	BLUE
insulator material	GLASS FILLED POLYAMIDE
Plug contact pitch	0.13 inch
Match contact row spacing	0.205 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-30 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.207 mm
Plating thickness	79u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	4 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	3.302 mm
Termination type	SOLDER KINKED LEADS
Total number of contacts	12
Base Number Matches	1

Preview

Download Datasheet

View All

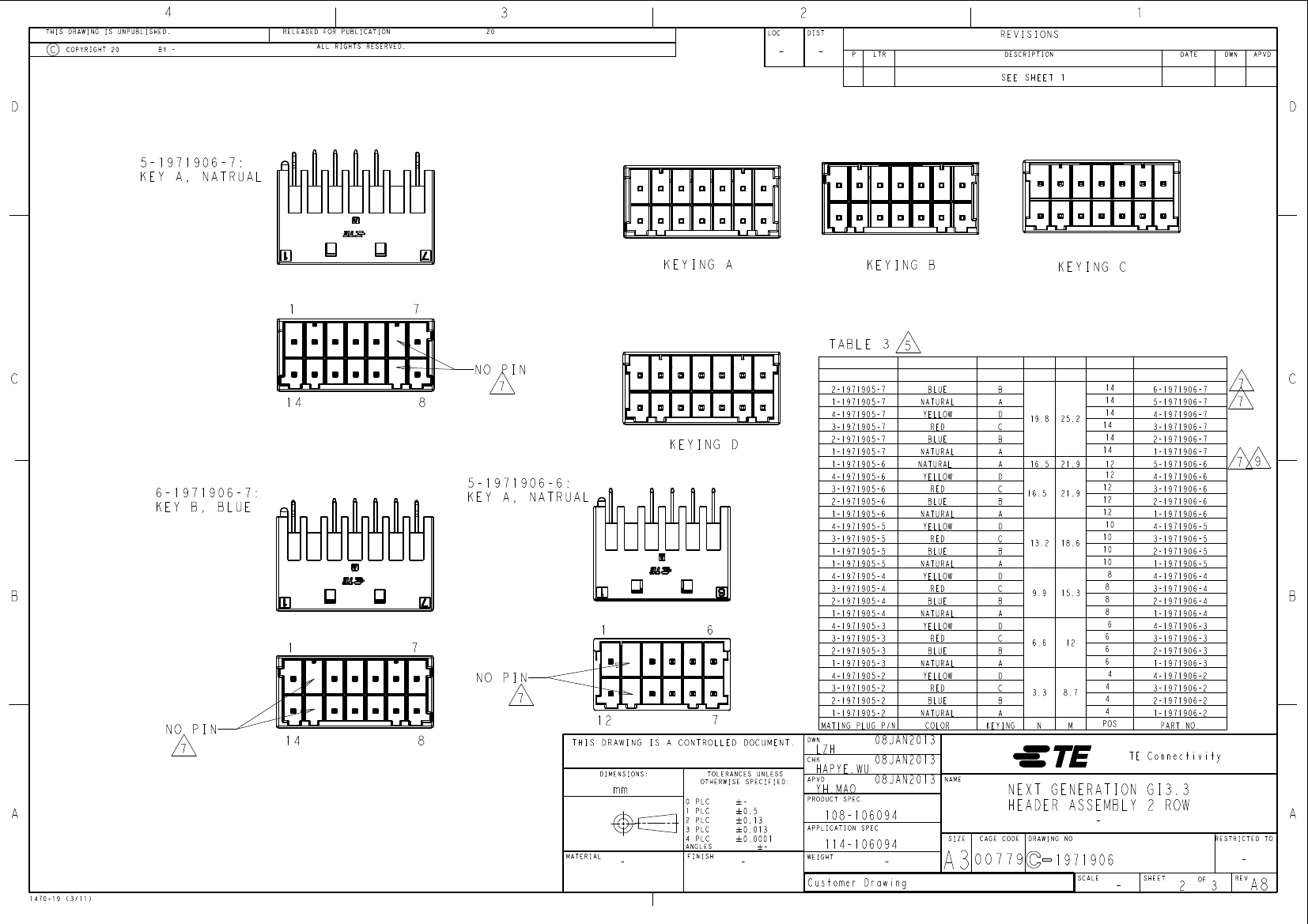

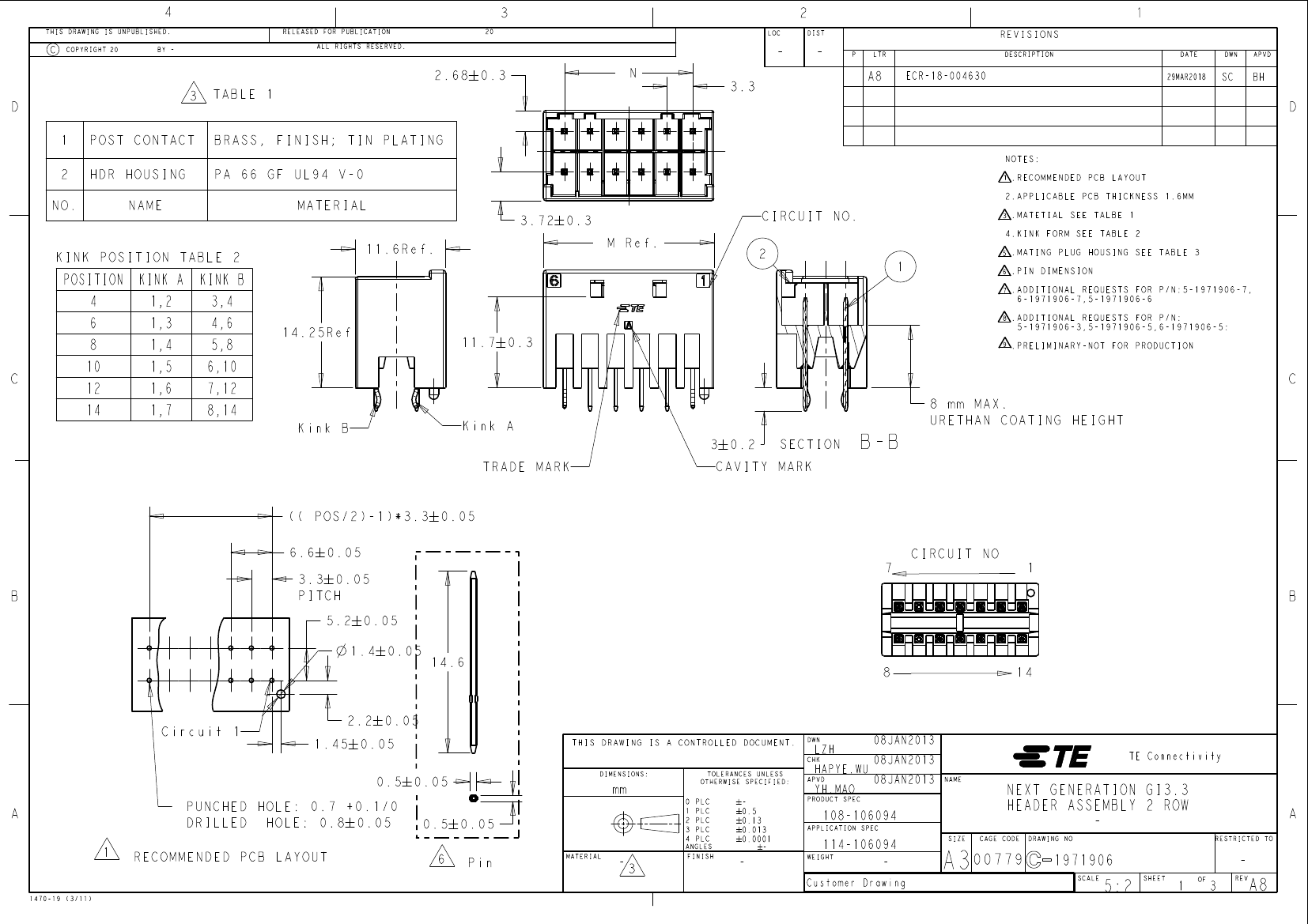

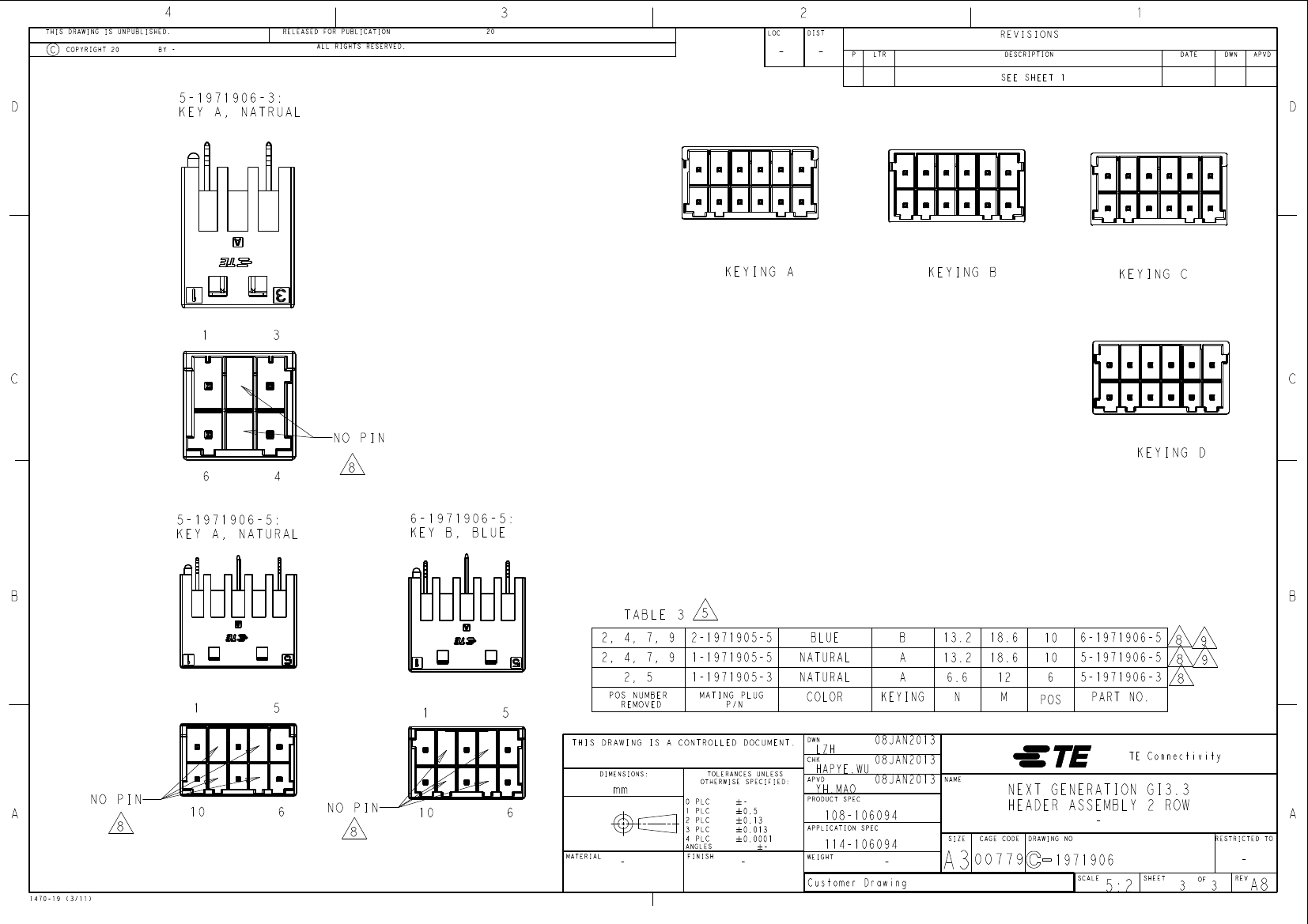

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

LOC

DIST

NO.

POST CONTACT

HDR HOUSING

NAME

TABLE 1

BRASS, FINISH; TIN PLATING

PA 66 GF UL94 V-0

MATERIAL

11.6 Ref.

2.68

0.3

3.3

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

ECR-18-004630

29MAR2018

NOTES:

.RECOMMENDED PCB LAYOUT

2.APPLICABLE PCB THICKNESS 1.6MM

3.72

0.3

M Ref.

CIRCUIT NO.

.MATETIAL SEE TALBE 1

4.KINK FORM SEE TABLE 2

KINK POSITION TABLE 2

.MATING PLUG HOUSING SEE TABLE 3

.PIN DIMENSION

.ADDITIONAL REQUESTS FOR P/N:5-1971906-7,

6-1971906-7,5-1971906-6

.ADDITIONAL REQUESTS FOR P/N:

5-1971906-3,5-1971906-5,6-1971906-5:

.PRELIMINARY-NOT FOR PRODUCTION

POSITION

KINK A

1,2

1,3

KINK B

3,4

4,6

5,8

14.25 Ref.

1,5

1,6

1,7

1,4

11.7

0.3

6,10

7,12

8,14

Kink B

Kink A

TRADE MARK

(( POS/2)-1)*3.3 # 0.05

6.6

0.05

CIRCUIT NO

0.2

SECTION

8 mm MAX.

URETHAN COATING HEIGHT

CAVITY MARK

B-B

3.3 0.05

PITCH

5.2

0.05

1.4

0.05

14.6

Circuit 1

2.2

1.45

0.05

THIS DRAWING IS A CONTROLLED DOCUMENT.

DWN

CHK

0.05

0.5

0.05

0.5

0.05

LZH

HAPYE.WU

08JAN2013

NAME

TE Connectivity

DIMENSIONS:

1470-19 (3/11)

PUNCHED HOLE: 0.7 +0.1/0

DRILLED HOLE: 0.8 # 0.05

RECOMMENDED PCB LAYOUT

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

APVD

MATERIAL

ANGLES

PLC

FINISH

0.5

0.13

0.013

0.0001

PRODUCT SPEC

YH.MAO

APPLICATION SPEC

108-106094

SIZE

114-106094

WEIGHT

Customer Drawing

00779

CAGE CODE

NEXT GENERATION GI3.3

HEADER ASSEMBLY 2 ROW

DRAWING NO

RESTRICTED TO

1971906

SCALE

5:2

SHEET

REV

2-1971906-6 Related Products

	2-1971906-6	1-1971906-5	3-1971906-4	4-1971906-4	2-1971906-5	4-1971906-5	3-1971906-5	1-1971906-6	3-1971906-6	4-1971906-6
Description	HEADER ASSY 12POS,KEYING-B,NEW GIC3.3	HEADER ASSY 10POS,KEYING-A,NEW GIC3.3	HEADER ASSY 8POS,KEYING-C,NEW GIC3.3	HEADER ASSY 8POS,KEYING-D,NEW GIC3.3	(2-1971906-5) HEADER ASSY 10POS,KEYING-B,NEW GIC3.3	HEADER ASSY 10POS,KEYING-D,NEW GIC3.3	HEADER ASSY 10POS,KEYING-C,NEW GIC3.3	HEADER ASSY 12POS,KEYING-A,NEW GIC3.3	HEADER ASSY 12POS,KEYING-C,NEW GIC3.3	HEADER ASSY 12POS,KEYING-D,NEW GIC3.3
Brand Name	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Board mount options	PEG	PEG	PEG	PEG	LOCATING POST	PEG	PEG	PEG	PEG	PEG
body width	0.457 inch	0.457 inch	0.457 inch	0.457 inch	0.457 inch	0.457 inch	0.457 inch	0.457 inch	0.457 inch	0.457 inch
body length	0.862 inch	0.732 inch	0.602 inch	0.602 inch	0.73 inch	0.732 inch	0.732 inch	0.862 inch	0.862 inch	0.862 inch
Connector type	PCB CONNECTOR	PCB CONNECTOR	PCB CONNECTOR	PCB CONNECTOR	PCB CONNECTOR	PCB CONNECTOR	PCB CONNECTOR	PCB CONNECTOR	PCB CONNECTOR	PCB CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT APPLICABLE	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT APPLICABLE	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Durability	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω
Insulator color	BLUE	NATURAL	RED	YELLOW	BLUE	YELLOW	RED	NATURAL	RED	YELLOW
insulator material	GLASS FILLED POLYAMIDE	GLASS FILLED POLYAMIDE	GLASS FILLED POLYAMIDE	GLASS FILLED POLYAMIDE	GLASS FILLED POLYAMIDE66	GLASS FILLED POLYAMIDE	GLASS FILLED POLYAMIDE	GLASS FILLED POLYAMIDE	GLASS FILLED POLYAMIDE	GLASS FILLED POLYAMIDE
Plug contact pitch	0.13 inch	0.13 inch	0.13 inch	0.13 inch	0.13 inch	0.13 inch	0.13 inch	0.13 inch	0.13 inch	0.13 inch
Match contact row spacing	0.205 inch	0.205 inch	0.205 inch	0.205 inch	0.205 inch	0.205 inch	0.205 inch	0.205 inch	0.205 inch	0.205 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	5.207 mm	5.207 mm	5.207 mm	5.207 mm	5.207 mm	5.207 mm	5.207 mm	5.207 mm	5.207 mm	5.207 mm
Plating thickness	79u inch	79u inch	79u inch	79u inch	2u inch	79u inch	79u inch	79u inch	79u inch	79u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	4 A	4 A	4 A	4 A	4 A	4 A	4 A	4 A	4 A	4 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL	UL	UL
Terminal length	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch
Terminal pitch	3.302 mm	3.302 mm	3.302 mm	3.302 mm	3.3 mm	3.302 mm	3.302 mm	3.302 mm	3.302 mm	3.302 mm
Termination type	SOLDER KINKED LEADS	SOLDER KINKED LEADS	SOLDER KINKED LEADS	SOLDER KINKED LEADS	SOLDER	SOLDER KINKED LEADS	SOLDER KINKED LEADS	SOLDER KINKED LEADS	SOLDER KINKED LEADS	SOLDER KINKED LEADS
Total number of contacts	12	10	8	8	10	10	10	12	12	12
Maker	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	-	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity
Dielectric withstand voltage	1500VAC V	1500VAC V	1500VAC V	1500VAC V	-	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Base Number Matches	1	1	1	1	-	1	1	1	1	1
