2-406541-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 2-406541-1

2-406541-1: DescriptionMJ,INV,1X1,2PNL G,.100"ST,SN; CategoryThe connector; File Size206KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

2-406541-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2-406541-1	-	-	View	Buy Now

2-406541-1 Overview

MJ,INV,1X1,2PNL G,.100"ST,SN

2-406541-1 Parametric

Parameter Name	Attribute value
Modular socket and plug interface types	RJ45
Modular socket and plug products	RJ type sockets and plugs
Connector type	socket
Grounding options	PCB and panel grounding
Connectors and terminals terminate to	A printed circuit board
Connector and connector component types	Connector
keying	no
Port configuration	single port
Port matrix configuration	1 x 1
Connector terminal density	standard
Status Indicator	none
Number of Positions	8
Number of loading locations	8
PCB mounting direction	right angle
Number of panel grounding lugs	2
PCB ground lug quantity	2
Panel ground location	side, top
shielding material	copper alloy
Shield plating materials	nickel
Modular socket pin orientation	Reverse - Latching
shape	standard
PCB ground lug location	-3.43 mm [ -.135 in ]
Shielding plating coating	satin
PCB terminal termination area plating materials	tin
Terminal base material	nickel
Contact Current Rating (Max) (A)	.2, 1.5
Terminal contact plating material	gold
Terminal base material	Phosphor bronze
Thickness of plating material in terminal bonding area	.36 µm [ 15 µin ]
Connector product type	Connector components
PCB termination area electroplated coating	matte
PCB Termination Methods	Through Hole - Solder
Panel mount features	Without
Connector mounting type	Panel
access location	side
Centerline (Pitch)	1.02 mm [ .04 in ]
Shell color	black
Shell material	high temperature thermoplastic
PCB thickness (recommended)	1.57 mm [ .062 in ]
PCB tail length	2.54 mm [ .1 in ]
Connector height	13.34 mm [ .525 in ]
Working group temperature range	-40 – 85 °C [ -40 – 185 °F ]
shield	yes
Circuit Application	Signal
UL flame retardant rating	UL 94V-0
performance category	Category 5
Package quantity	441
Encapsulation method	Tray, boxes and trays
Comment	With kinked legs, recommended applications: Fast Ethernet, 10Base-T Ethernet and 10/100 Base-T Ethernet (Cat 5 on two pairs 1/2, 3/6).

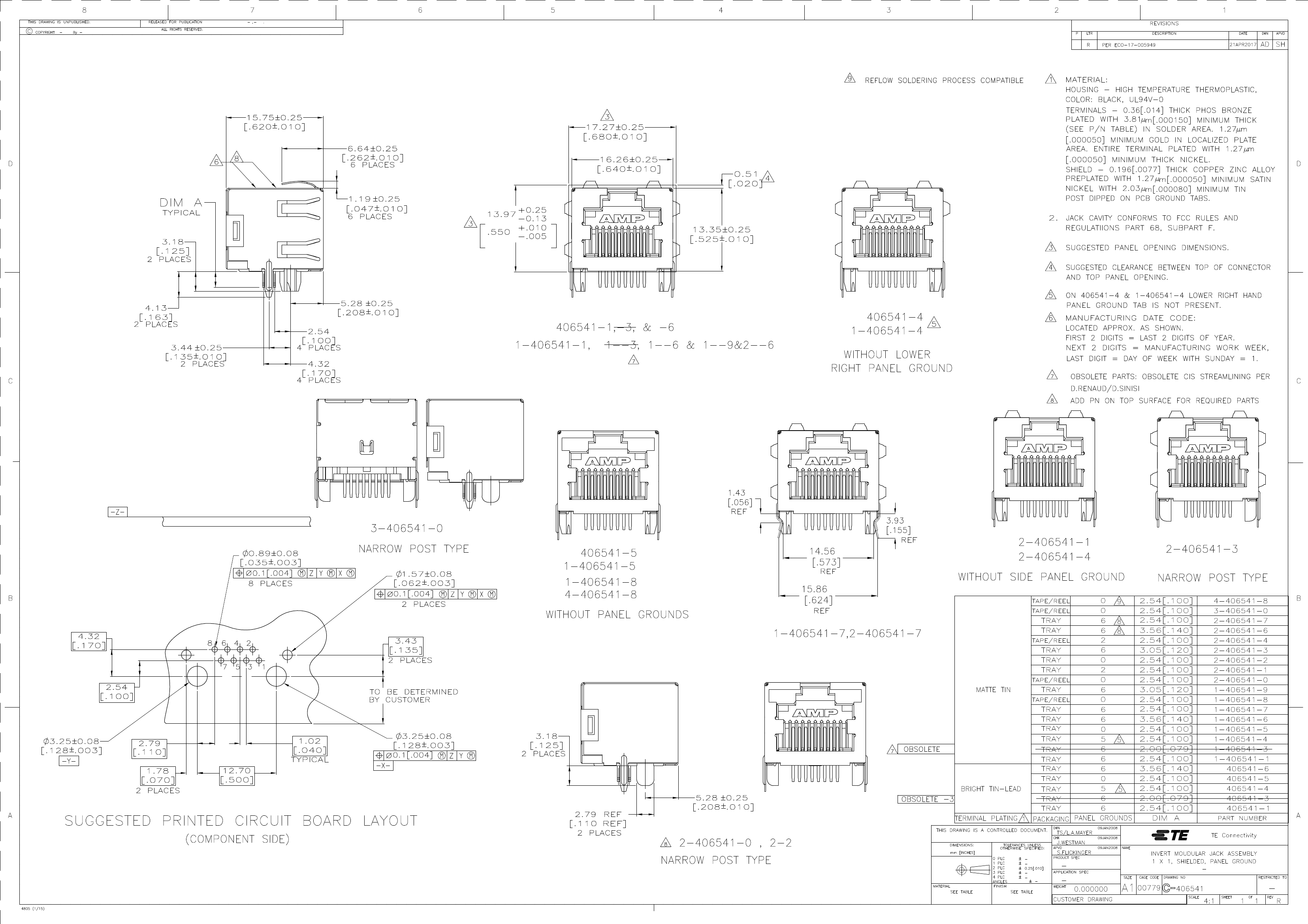

Preview

Download Datasheet

View All
