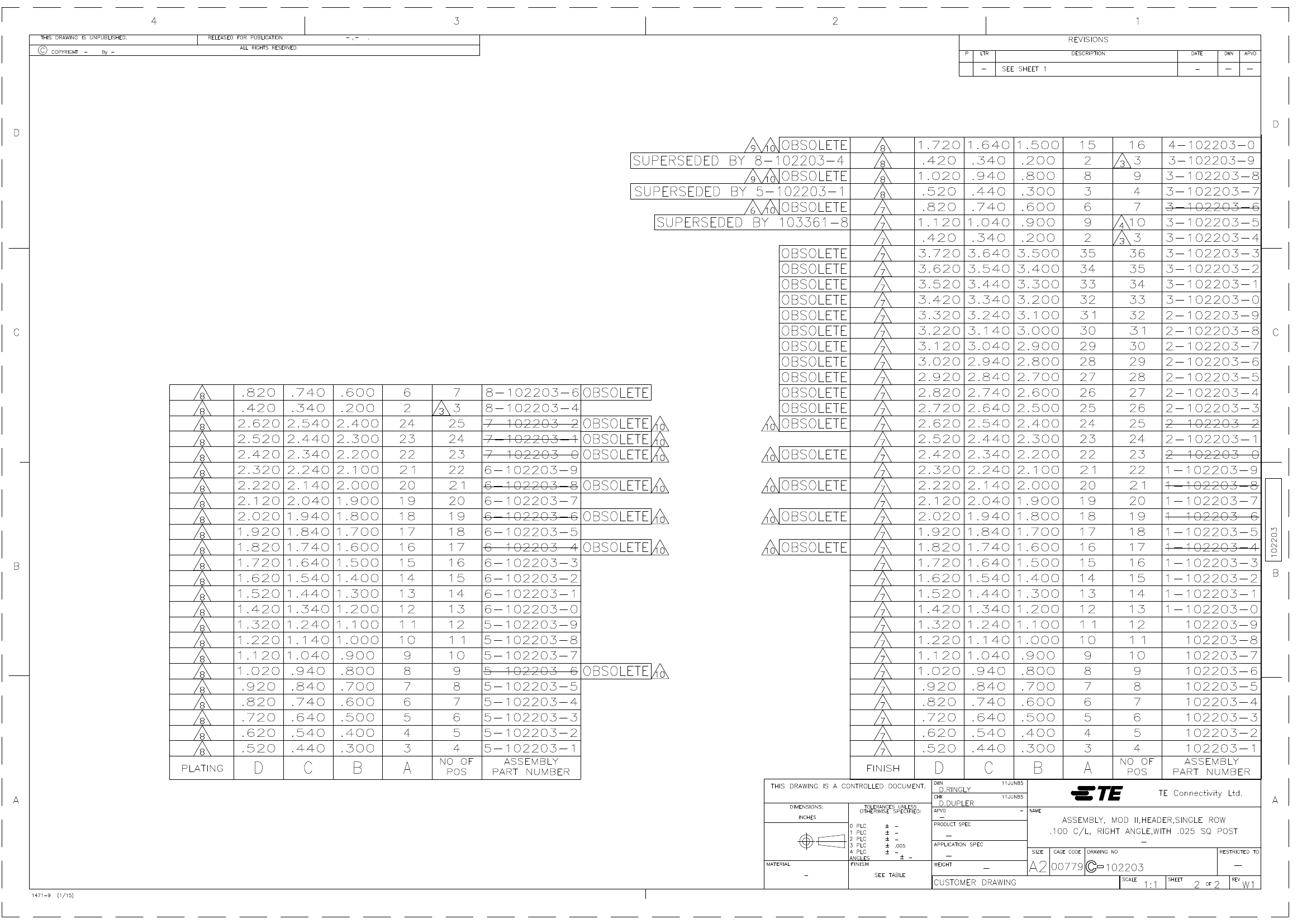

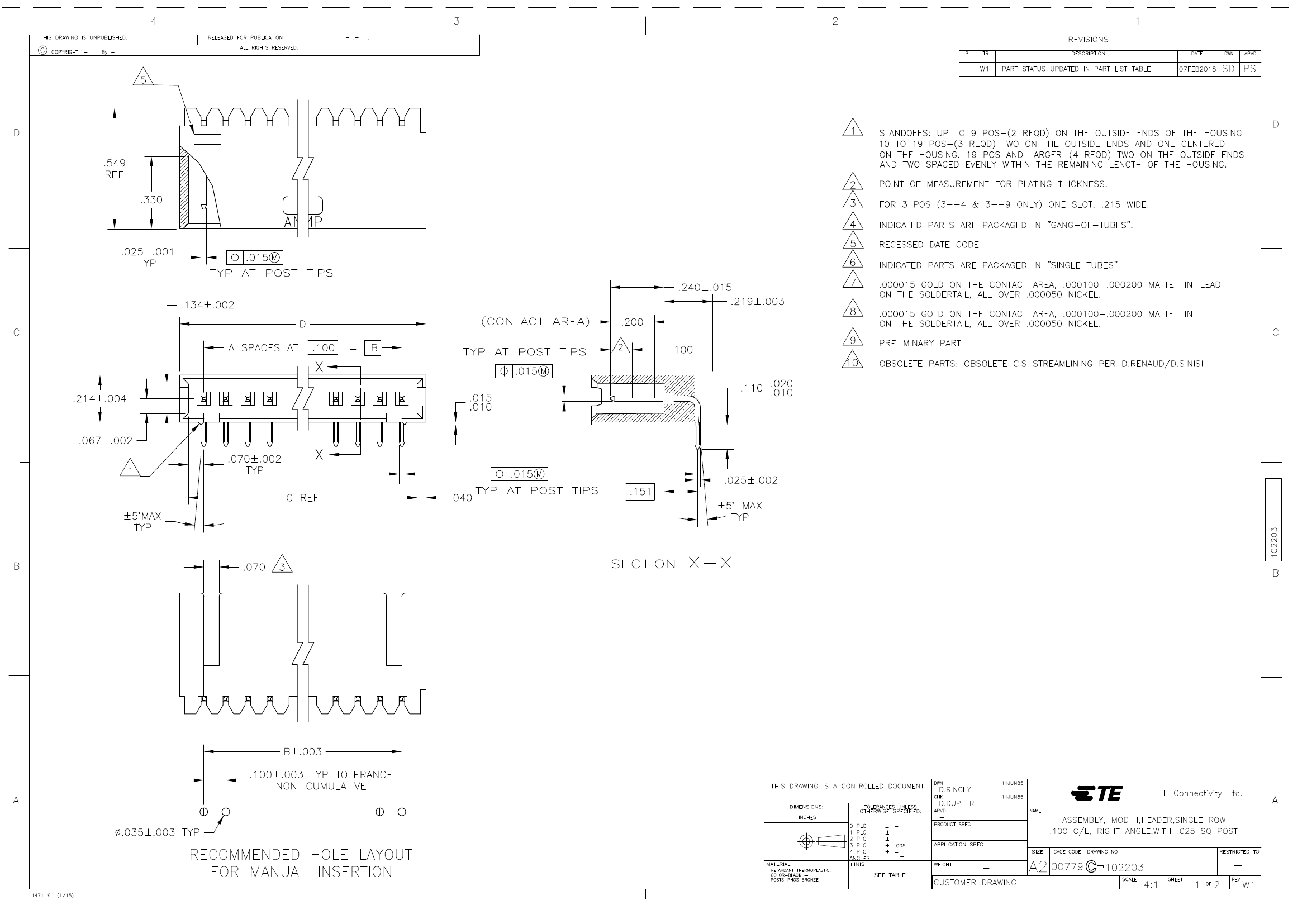

16 MODII HDR SRRA SHRD LF
| Parameter Name | Attribute value |
| PCB Connector Component Types | PCB mounting header |
| Connectors and terminals terminate to | A printed circuit board |
| Connector type | with hood |
| Line spacing | 2.54 mm [ .1 in ] |
| sealing ring | Without |
| shape | standard |
| stabilizing device | Without |
| plate support | with |
| stress relief | Without |
| Connector terminal load status | Fully loaded |
| PCB mounting direction | right angle |
| Number of Positions | 16 |
| Rows | 1 |
| keying | no |
| Medium pressure resistance | 750 Vrms |
| Cylinder size | .64 mm [ .025 in ] |
| Terminal base material | Phosphor bronze |
| PCB terminal termination area plating materials | tin |
| Solder tail terminal plating material surface coating | matte |
| Terminal base material | nickel |
| Terminal protection | with |
| Terminal shape | square |
| Terminal type | Pin |
| Contact Current Rating (Max) (A) | 3 |
| Terminal Contact Plating Thickness (µin) | 15 |
| Terminal contact plating material | gold |
| Terminal protection type | with hood |
| PCB Termination Methods | Through hole |
| Termination cylinder length | 2.79 mm [ .11 in ] |
| Terminal Plating Thickness (µin) | 100 – 200 |
| Terminal plating materials | Nickel base plated with matte tin |
| PCB installation and fixation | Without |
| Panel mount features | Without |
| Engage connector latch | Without |
| PCB installation method | Through hole |
| Joint alignment type | polarization |
| joint alignment | with |
| Centerline (Pitch) | 2.54 mm [ .1 in ] |
| Shell type | 4- Noodles |
| Shell material | thermoplastic |
| Shell color | black |
| Hooded end dimensions | 1.778 mm [ .07 in ] |
| PCB thickness (recommended) | 1.4 mm [ .055 in ] |
| Joint post length | 6.1 mm [ .24 in ] |
| Working group temperature range (°C) | -65 – 105 |
| High temperature shell | no |
| High speed serial data connector | no |
| approved standards | CSA LR7189, UL E28476 |
| UL flammability rating | UL 94V-0 |
| Package quantity | 12 |
| Encapsulation method | Tube |
