DF12E(4.0)-36DP-0.5V(81) datasheet, PDF

Datasheet> All Categories > The connector> The connector> DF12E(4.0)-36DP-0.5V(81)

DF12E(4.0)-36DP-0.5V(81): Descriptionconn header 36pos 4mm smd 0.5mm; CategoryThe connector The connector; File Size229KB，11 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/; Environmental Compliance

Download Datasheet Parametric View All

DF12E(4.0)-36DP-0.5V(81) Overview

conn header 36pos 4mm smd 0.5mm

DF12E(4.0)-36DP-0.5V(81) Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Hirose
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	W/O METAL FITTING, TAPE PKG.
Board mount options	PEG
body width	0.15 inch
subject depth	0.31 inch
body length	0.441 inch
Body/casing type	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	50 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	150VAC V
Durability	50 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	500000000 Ω
Insulator color	BEIGE
insulator material	POLYAMIDE
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.02 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-45 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.6068 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	0.3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	36
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.

All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

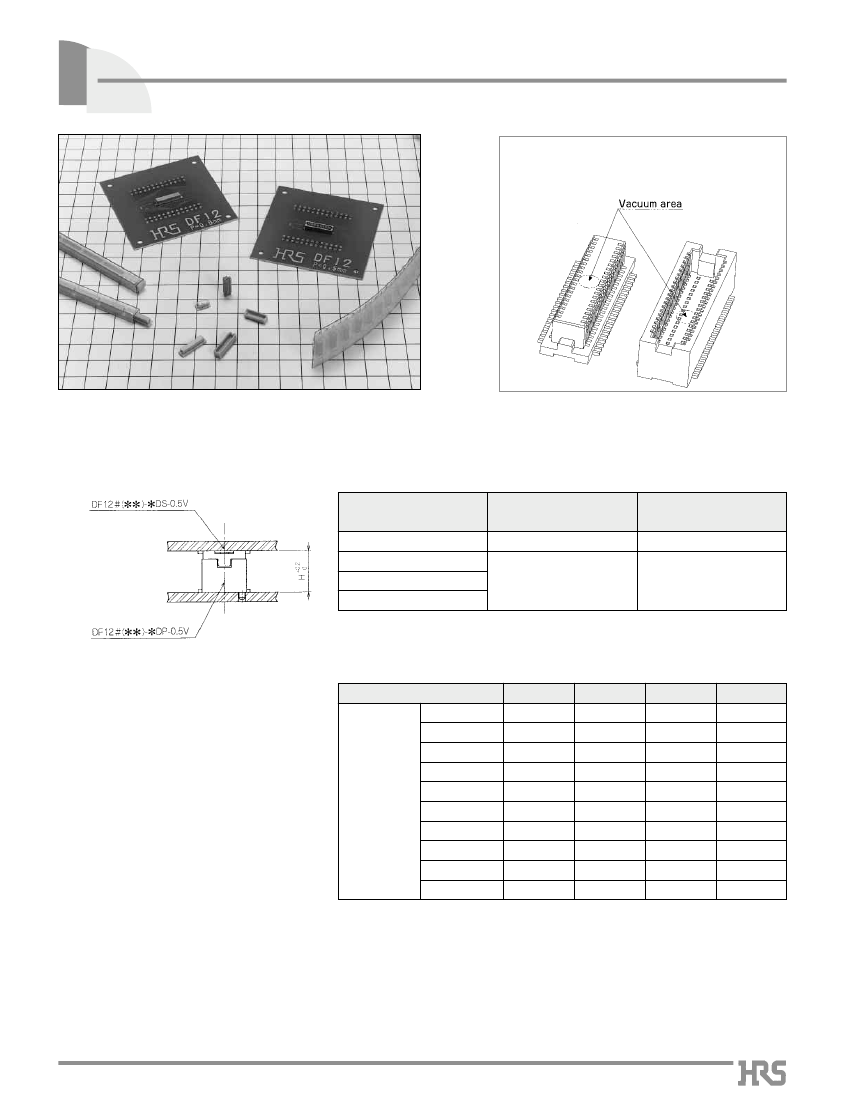

0.5mm Pitch SMT Board to Board Connector

DF12 Series

Correspond to automatic mounting

The vacuum pick-up area secures the automatic mounting

machine for pick and place.

sFeatures

1. Broad Variations of Stacking Height

In addition to 0.5mm pitch ultra-miniature size connector, the stacking height of 3mm, 3.5mm, 4mm, and 5mm are provided.

Header/Receptacle

DF12#(3.0)-*DP-0.5V

DF12#(3.5)-*DP-0.5V

DF12#(4.0)-*DP-0.5V

DF12#(5.0)-*DP-0.5V

DF12#(3.0)-*DS-0.5V

3.0

–––––––

DF12#-*DS-0.5V

–––––––

3.5

4.0

5.0

Combination

stacking height

Combination

stacking height

Note 1 : (

) of the product name DF12# (

) indicates the stacking height.

Note 2 : The stacking height doesn't include the soldering paste thickness.

[Stacking Height Variation]

Stacking Height

10 contacts

14 contacts

20 contacts

30 contacts

32 contacts

Number of Contacts

36 contacts

40 contacts

50 contacts

60 contacts

80 contacts

3.0mm

3.5mm

–––––––

4.0mm

–––––––

5.0mm

–––––––

2. Corresponding to Automatic Mounting

The connector has the vacuum pick-up area to enable automatic mounting with the embossed tape packaging.

3. Metal Fitting Available

The product including the metal fitting to prevent solder peeling is provided, considering the mounting on FPC.

sApplications

Mobile phone, LCD(Liquid Crystal Display), Note PC
