2102061-9: DescriptionMezalok, Socket, 114 p, 18 mm, 50 Au, TL; CategoryThe connector The connector; File Size250KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

2102061-9 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2102061-9	-	-	View	Buy Now

2102061-9 Overview

Mezalok, Socket, 114 p, 18 mm, 50 Au, TL

2102061-9 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	_compli
Factory Lead Time	33 weeks
body width	0.371 inch
subject depth	0.551 inch
body length	1.005 inch
Body/casing type	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	NATURAL
insulator material	LIQUID CRYSTAL POLYMER (LCP)
MIL compliance	NO
Plug contact pitch	0.05 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	6
Number of rows loaded	6
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	114
Base Number Matches	1

Preview

Download Datasheet

View All

8

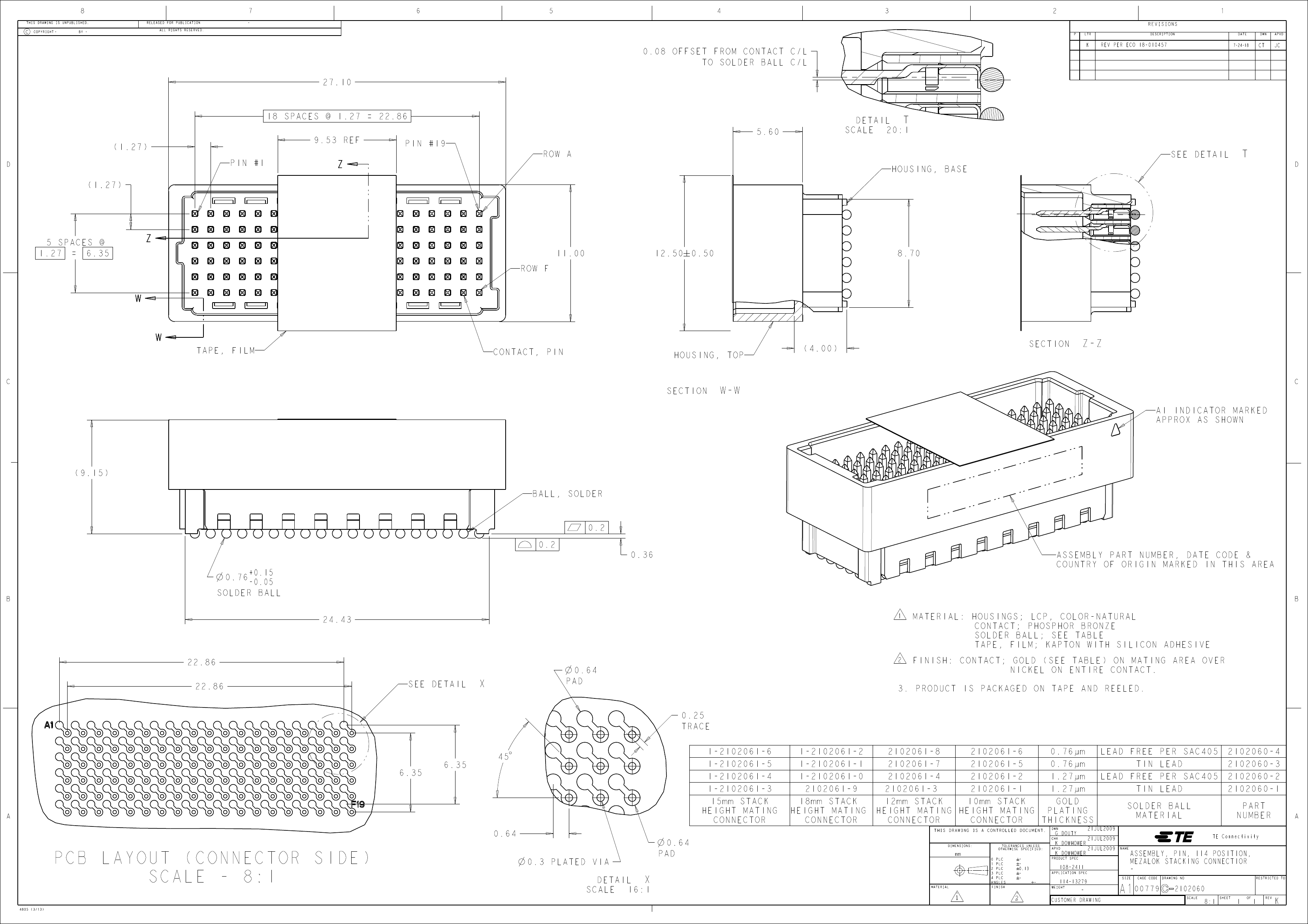

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

7

-

6

5

4

3

2

REVISIONS

P

LTR

DESCRIPTION

1

DATE

DWN

APVD

C

COPYRIGHT

-

0.08

27.10

OFFSET FROM CONTACT C/L

TO SOLDER BALL C/L

K

REV PER ECO 18-010457

7-24-18

CT

JC

18 SPACES

( 1.27 )

D

@ 1.27 =

9.53

REF

22.86

PIN #19

5.60

ROW A

DETAIL

T

SCALE

20:1

SEE DETAIL

HOUSING, BASE

PIN #1

( 1.27 )

T

D

5 SPACES

@

1.27

= 6.35

ROW F

11.00

12.50 # 0.50

8.70

TAPE, FILM

C

CONTACT, PIN

HOUSING, TOP

(4.00)

SECTION

Z-Z

SECTION

W-W

A1 INDICATOR MARKED

APPROX AS SHOWN

C

( 9.15 )

BALL, SOLDER

0.36

+0.15

-0.05

SOLDER BALL

0.76

24.43

1

ASSEMBLY PART NUMBER, DATE CODE

COUNTRY OF ORIGIN MARKED IN THIS AREA

&

B

MATERIAL: HOUSINGS; LCP, COLOR-NATURAL

CONTACT; PHOSPHOR BRONZE

SOLDER BALL; SEE TABLE

TAPE, FILM; KAPTON WITH SILICON ADHESIVE

FINISH: CONTACT; GOLD (SEE TABLE) ON MATING AREA OVER

NICKEL ON ENTIRE CONTACT.

22.86

SEE DETAIL

X

0.64

PAD

2

3. PRODUCT IS PACKAGED ON TAPE AND REELED.

0.25

TRACE

6.35

45 $

1-2102061-6

1-2102061-5

1-2102061-4

15mm STACK

HEIGHT MATING

CONNECTOR

1-2102061-3

1-2102061-2

1-2102061-1

1-2102061-0

18mm STACK

HEIGHT MATING

CONNECTOR

2102061-9

2102061-8

2102061-7

2102061-3

2102061-4

2102061-6

2102061-5

2102061-2

10mm STACK

HEIGHT MATING

CONNECTOR

2102061-1

0.76µm

1.27µm

LEAD FREE PER SAC405

TIN LEAD

SOLDER BALL

MATERIAL

TIN LEAD

2102060-4

2102060-3

2102060-2

2102060-1

PART

NUMBER

TE Connectivity

A

12mm STACK

HEIGHT MATING

CONNECTOR

0.64

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

GOLD

PLATING

THICKNESS

DWN

CHK

A

PCB LAYOUT (CONNECTOR SIDE)

SCALE - 8:1

4805 (3/13)

0.3 PLATED VIA

DETAIL

X

SCALE

16:1

0.64

PAD

G DOUTY

K DOWHOWER

108-2411

21JUL2009

NAME

mm

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

0.13

-

PRODUCT SPEC

APPLICATION SPEC

-

1

-

2

-

WEIGHT

114-13279

-

CUSTOMER DRAWING

A1

00779

SIZE

ASSEMBLY, PIN, 114 POSITION,

MEZALOK STACKING CONNECTIOR

-

CAGE CODE

DRAWING NO

RESTRICTED TO

2102060

SCALE

8:1

SHEET

1

OF

1

REV

K
