535516-2 datasheet, PDF - EEWORLD Datasheet

535516-2: Description20 MODII 2PC HDR DR SHRD; CategoryThe connector The connector; File Size132KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

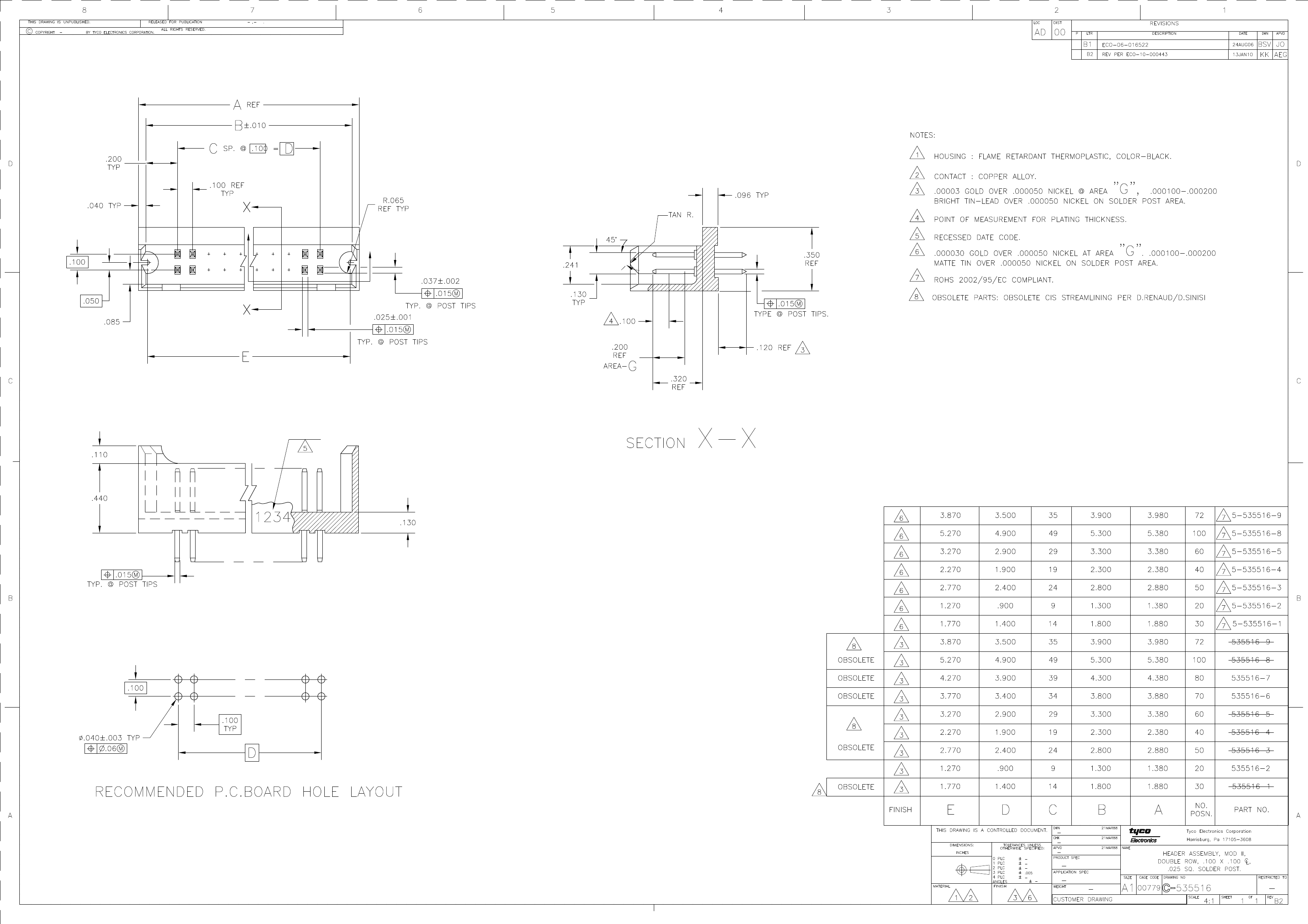

Download Datasheet Parametric View All

535516-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	535516-2	-	-	View	Buy Now

20 MODII 2PC HDR DR SHRD

Parameter Name	Attribute value
Brand Name	AMP
Is it Rohs certified?	incompatible
Maker	TE Connectivity
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	12 weeks 2 days
Other features	0.025 SQ SOLDER POST
body width	0.35 inch
subject depth	0.55 inch
body length	1.38 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	12 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	750VAC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	2.224 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	535516
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	GUIDE PIN
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	HOUSING SIDE
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.12 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	20
Evacuation force-minimum value	.2085 N
Base Number Matches	1
