GC15002-450B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> GC15002-450B

GC15002-450B: DescriptionVariable Capacitance Diode, Very High Frequency, 1pF C(T), 22V, Silicon, ROHS COMPLIANT, PLASTIC PACKAGE-2; CategoryDiscrete semiconductor diode; File Size384KB，4 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com; Environmental Compliance

Download Datasheet Parametric View All

GC15002-450B Overview

Variable Capacitance Diode, Very High Frequency, 1pF C(T), 22V, Silicon, ROHS COMPLIANT, PLASTIC PACKAGE-2

GC15002-450B Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	R-PBCC-N2
Contacts	2
Reach Compliance Code	compli
ECCN code	EAR99
Minimum breakdown voltage	22 V
Configuration	SINGLE
Diode Capacitance Tolerance	10%
Nominal diode capacitance	1 pF
Diode component materials	SILICON
Diode type	VARIABLE CAPACITANCE DIODE
frequency band	VERY HIGH FREQUENCY
JESD-30 code	R-PBCC-N2
JESD-609 code	e4
Number of components	1
Number of terminals	2
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	22 V
surface mount	YES
Terminal surface	GOLD
Terminal form	NO LEAD
Terminal location	BOTTOM
Maximum time at peak reflow temperature	40
Base Number Matches	1

Preview

Download Datasheet

View All

GC15001 – GC15013

TUNING DIODES

Frequency Linear Tuning Varactors

RoHS Compliant

DESCRIPTION

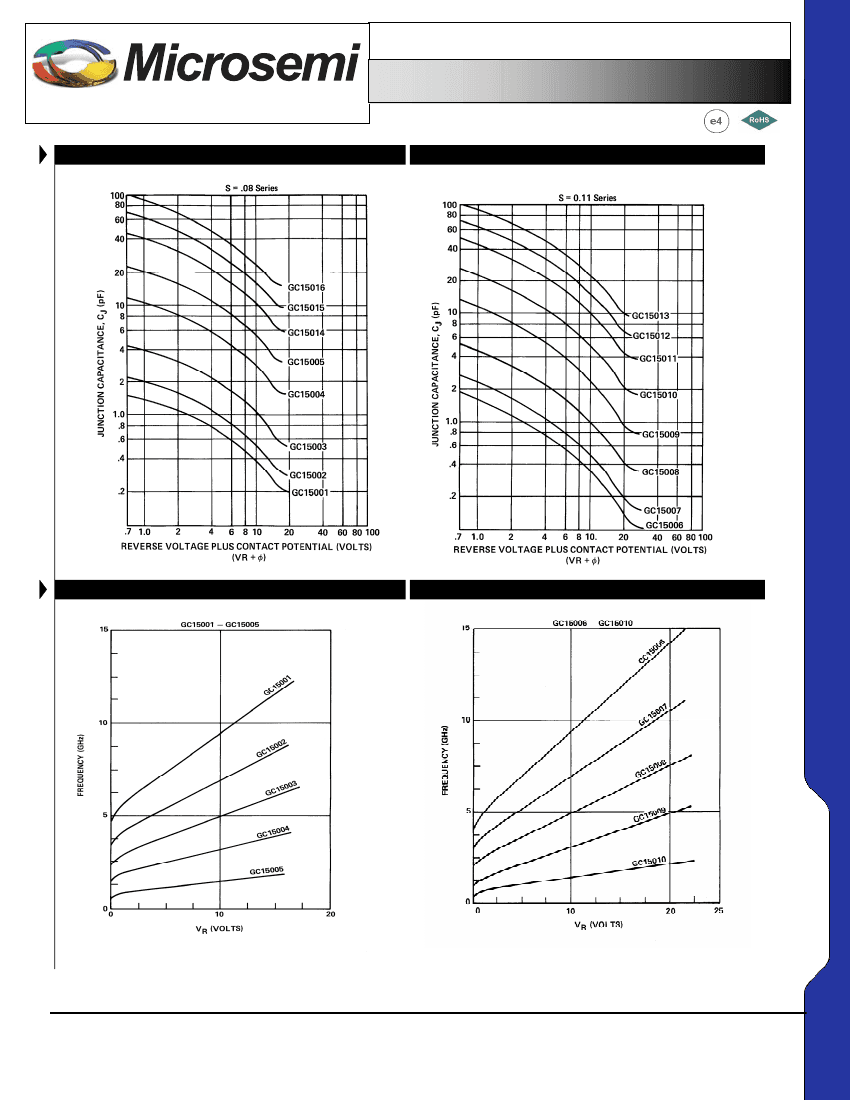

A Frequency Linear Tuning Varactor (FLTVAR™) is a silicon

epitaxial mesa device, designed to provide wideband Linear Tuning

in VCO and filter applications.

These diodes feature superior passivation for high reliability, low

leakage current, and low surface noise. They offer Q values well

above ion-implanted hyperabrupt diodes.

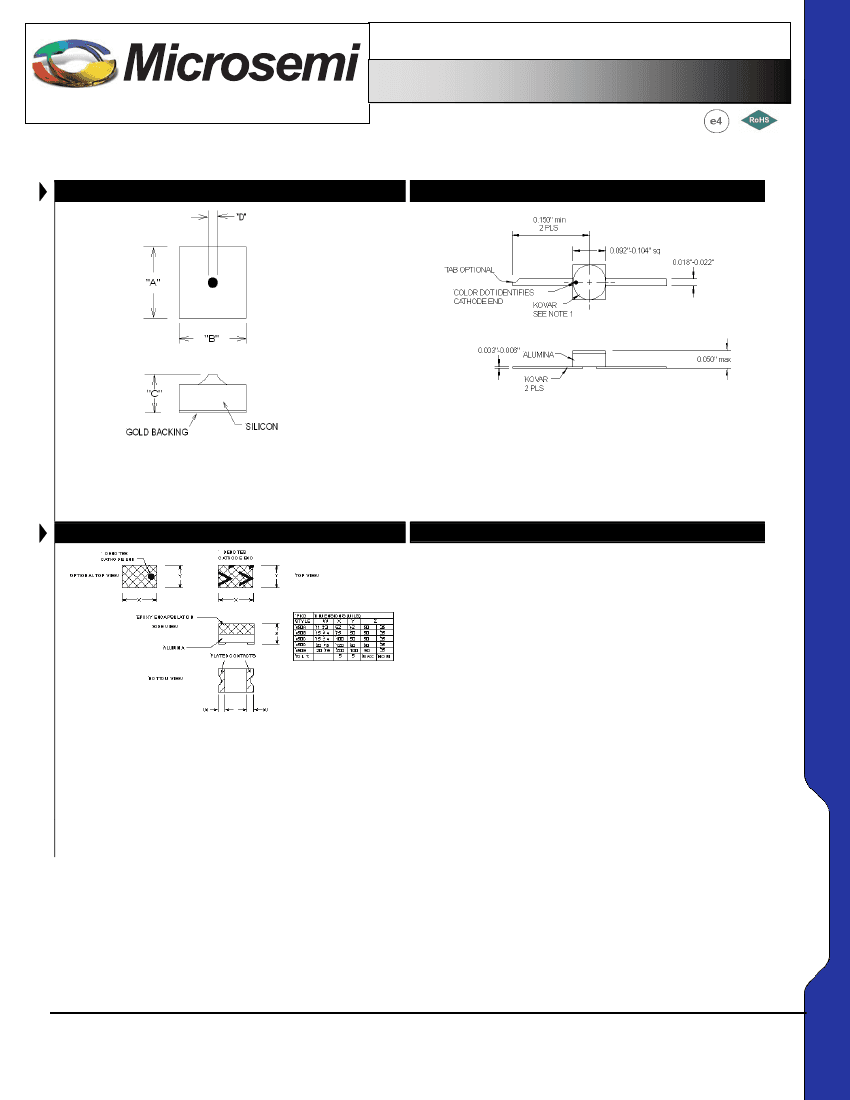

The specifications below apply to chips, or to chips mounted on

carriers. Although these chips can be provided in any of our standard

packages, this is not recommended for the lower capacitance diodes,

because the parallel parasitic capacitance of the package degrades

linearity at high bias voltages.

This series of diodes meets RoHS requirements per EU Directive

2002/95/EC. The standard terminal finish is gold unless otherwise specified.

Consult the factory if you have special requirements.

KEY FEATURES



Wideband Linear Tuning



Very Low Phase Noise



Exceptional Q.



Computer Controlled Grown

Junction Epitaxy



Functional through Ku Band



Octave Tuning



RoHS Compliant

www.MICROSEMI.com

Most products are supplied with a Gold

finish and are suitable for RoHS

complaint assembly. Consult factory for

details.

APPLICATIONS

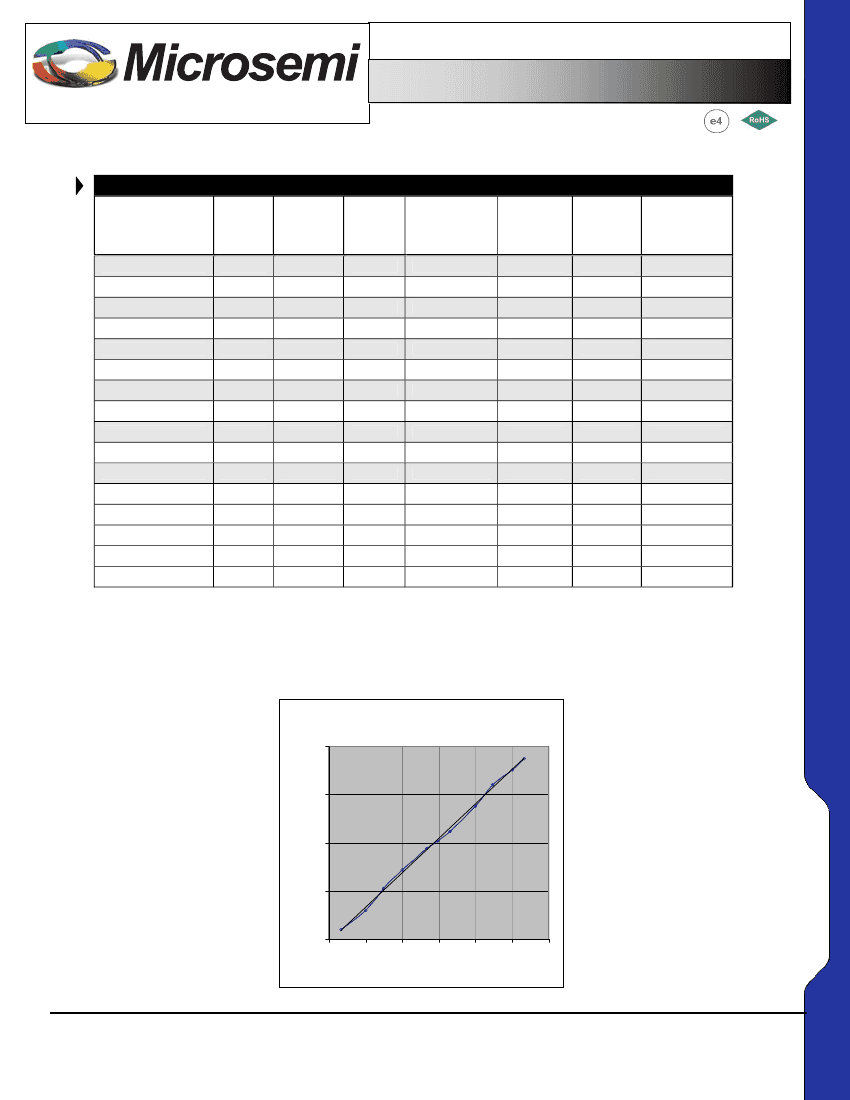

The GC15000 series of frequency-linear tuning varactors are used in

VCO’s, filters, amplifiers and modulators for wide band tuning through

Ku band. The frequency linear characteristics allow over one octave

linear tuning in suitable circuits, with no need for external

linearization. The combination of high Q and low surface noise

results in low FM noise in VCO applications. They are particularly

useful in modulated VCO’s because of their constant sensitivity, and

high modulation rate capability.

APPLICATIONS/BENEFITS



VCOs



Filters



Modulators



Amplifiers

ABSOLUTE MAXIMUM RATINGS AT 25º C

(UNLESS OTHERWISE SPECIFIED)

Rating

Maximum Leakage Current @

20 Volts

Storage Temperature

Operating Temperature

IMPORTANT:

For the most current data, consult our web site:

www.microsemi.com

Specifications are subject to change, consult the factory for further information.

These devices are ESD sensitive and must be handled use using ESD precautions.

Symbol

STG

Value

-65 to +150

-55 to +125

Unit

ºC

GC15001-GC15013



2006

Rev: 2008-12-08

Microsemi

Microwave Products

75 Technology Drive, Lowell, MA. 01851, 978-442-5600, Fax: 978-937-3748

Page 1
