O-10.000000M-AQO7050-100-2.5-A-T/TR: DescriptionCMOS/LSTTL Output Clock Oscillator, 10MHz Nom, ROHS COMPLIANT, SMD, 4 PIN; CategoryPassive components oscillator; File Size306KB，1 Pages; ManufacturerAuris; Environmental Compliance

Download Datasheet Parametric View All

O-10.000000M-AQO7050-100-2.5-A-T/TR Overview

CMOS/LSTTL Output Clock Oscillator, 10MHz Nom, ROHS COMPLIANT, SMD, 4 PIN

O-10.000000M-AQO7050-100-2.5-A-T/TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1283629549
Reach Compliance Code	unknown
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; SYMMETRY 55/45 ALSO AVAILABLE; TAPE AND REEL
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
Manufacturer's serial number	AQO7050
Installation features	SURFACE MOUNT
Nominal operating frequency	10 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	CMOS/LSTTL
Output load	10 LS TTL, 15 pF
physical size	7.0mm x 5.0mm x 1.8mm
longest rise time	10 ns
Nominal supply voltage	2.5 V
surface mount	YES
maximum symmetry	60/40 %

Preview

Download Datasheet

View All

Oscillator SMD, clock-type

AQO 7050

Features:

- Small size 7x5mm

- Low cost to performance

- Excellent for laptop and handheld PDA´s

- Tristate or power down available

Specifications

Frequency range

Frequency stability *

Operating temperature

Storage temperature

Input

Voltage

Current

AQO 7050

1MHz ~160MHz

±25ppm ~ ±100ppm

0°C ~ +70°C / -40°C ~ +85°C

-40°C ~ +105°C

-55°C ~ +125°C

1.8V / 2,5V / 3,3V / 5.0V

20mA

1~3MHz

35mA

3~32MHz

60mA 32~125MHz

40% ~ 60% , 45% ~ 55%

Rise and fall time

10ns

CMOS

LSTTL

+0.5V(10%VDD)

+0.4V max

+4.5V(90%VDD)

+2.4V min

CMOS/15pF or 10LSTTL ( 30pF ; 50pF optional )

Remarks

Please specify

On enquiry

Please specify

Max

Please specify

Max

Output symmetry

Output

Logic "0" level

Logic "1" level

Output load

* Inclusive of ini tial frequency tolerance at 25°C, operating temperature range, supply voltage change, load variation and 1st year aging.

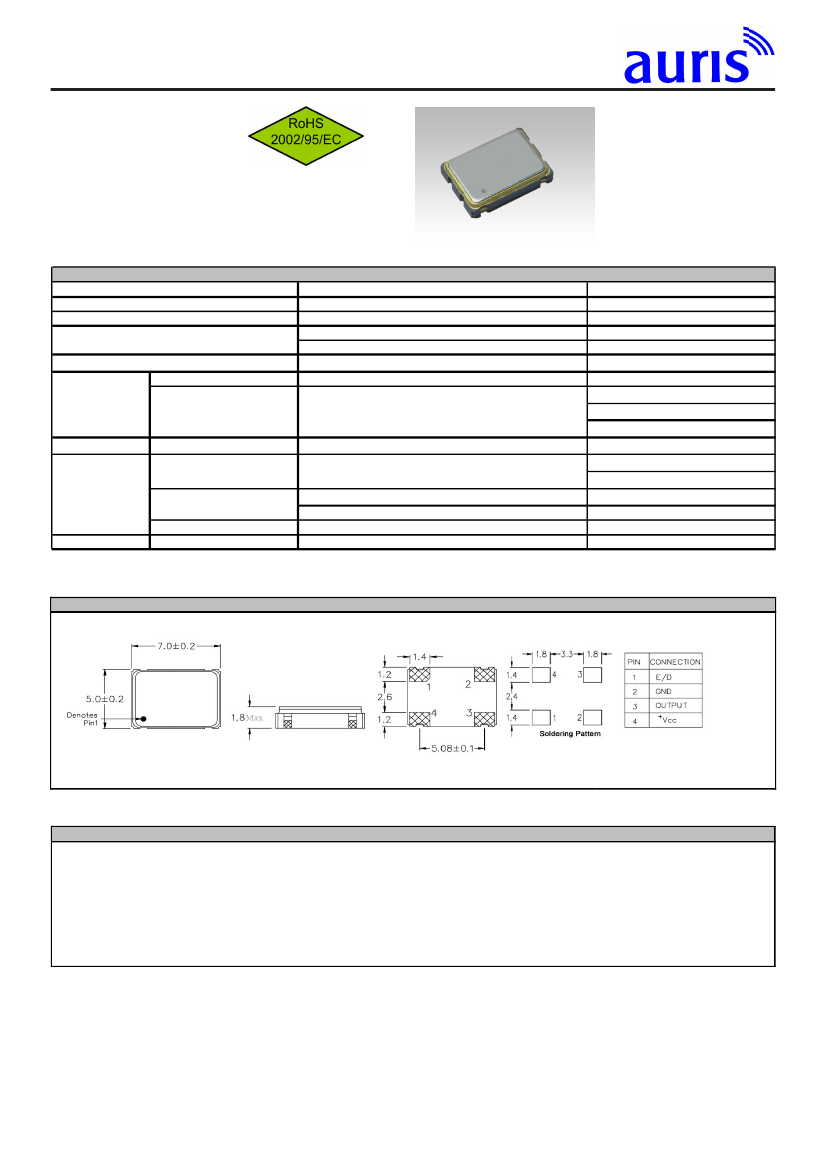

Drawing

AQO 7050

Dimensions in mm

Order key

O

Part

O=Oscillator

- 10.000000M

Frequency

M=MHz

- AQO 7050

Type

AQO=Quartz oscillator

AQO 7050=SMD 7x5

-

50

Tolerance

±ppm

-

5.0

Voltage

5.0=5.0Volt

3.3=3.3Volt

2.5=2.5Volt

1.8=1.8Volt

-

A=

A

Temperature

0°C ~ +70°C

-

Load

blank = 15pF

3 = 30pF

5 = 50pF

/

Option

T

T=Tristate

P=Power down

/

TR

Packaging

TR = tape + reeled

B= -10°C ~ +60°C

C= -10°C ~ +70°C

D= -20°C ~ +70°C

E= -40°C ~ +85°C

F= -40°C ~ +105°C

auris-GmbH

office@auris-gmbh.de www.auris-gmbh.de

All specifications are subject to change without notice.
