Interface Connectors for Factory Automation Network
HR31 Series
Complies with Device Net requirements
Comparison of plug heights (actual size)
qHirose
HR31
10.2
qOther
manufacturer’s product
s

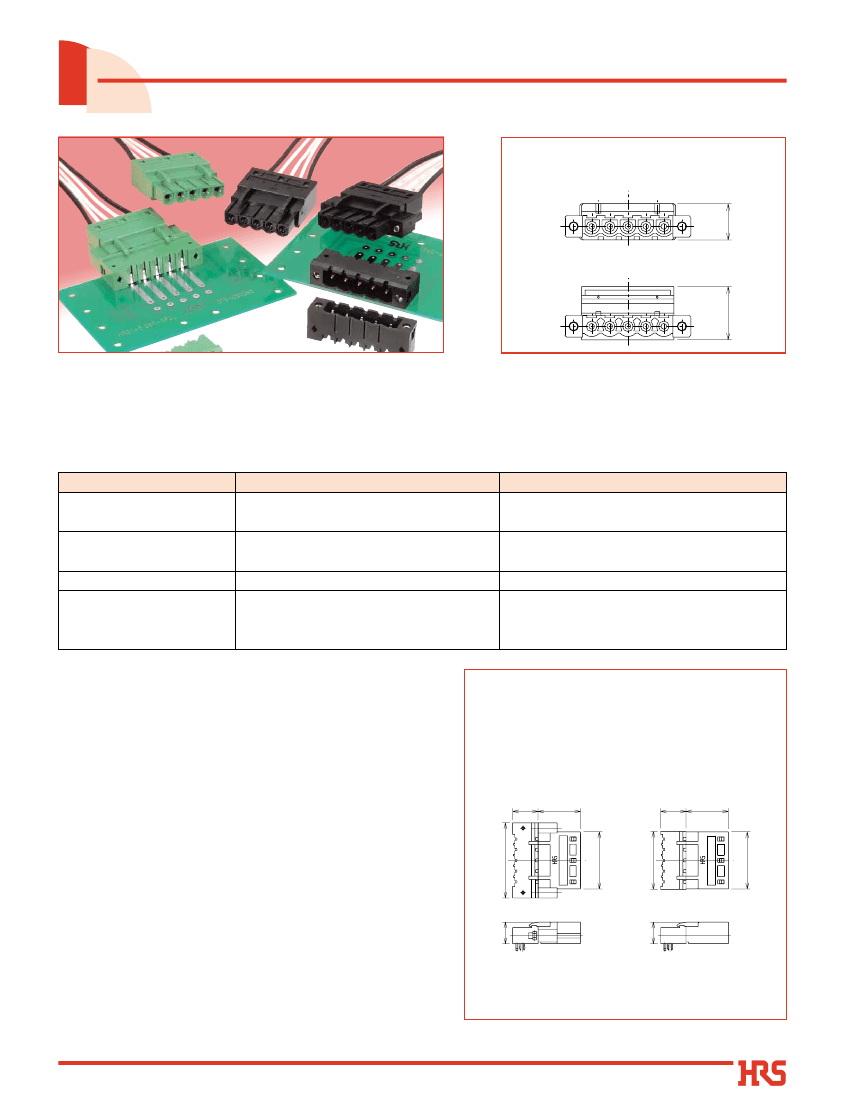

Features
1. Device-Net Compliant
Conforms to requirements of Factory Automation Network Device-Net standards.
Hirose products are distinct from products of made others, as described below.
Feature
Reduced number of termination
operations
High density mounting
Prevention of connection errors
Number of required operations to
secure receptacle assembly to the
board
Made by others
Crimped to commercially available cap connectors,
inserted into housing and fastened by screw.
Plug height : 15 mm
Contact positions not identified.
Connectors are attached by screws from the
opposite side.
Hirose HR31
Crimped and connected to terminal then fastened
simply by inserting into housing.
Plug height is 10.2 mm, allowing use of less space
when mounting several connectors
Permanently identified contact positions
No need for screws, built-in locking pin secures
connector to the board
2 Locking features
The connectors can be supplied with either of the following
locking features:
-Screw lock, using attached screws.
-Snap lock, using built-in feature with a definite click-sensation.
Total space occupied by mated assemblies
3. Commercially available tools may be used
Use crimp tools conforming to JIS C 9711 standards.
Terminated contacts can be removed using 1 mm dia.
steel pin. and re-inserted.
With screw lock
12
20
Without screw lock
12
20
3 4
35.5
27.4
27
3 4
4. Prevention of deformation of the contacts
When fully inserted, the plug contacts are fully protected by
the walls of the insulator body eliminating a risk of
accidental damage.
5
5
15
1 2
10.2
s
Applications
Power units and communications units of factory automation
related devices
10.2
1 2
27
2006.8
1
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
s
Product Specifications
Rating
Current rating
Voltage rating
12A (2.5mm
2
wire)
10A (1.5mm
2
wire)
250V AC, 350V DC
Specification
Operating temperature range
Storage temperature range
-40ç to +100ç
-40ç to +85ç (Note 2)
Item
1.Contact resistance
2.Insulation resistance
3.Withstanding voltage
4.Impulse withstanding voltage
5.Vibration
6.Durability
(insertion/ withdrawal)
7.Temperature cycle
5 m ohms max.
1000 M ohms min.
Conditions
1A DC
500 V DC
2000V AC/one minute
Standard waveform of 4KV, positive/negative, 3 times each
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 5 min.
in each of the 3 directions, 10 cycles each
1000 cycles
Temperature: -40ç
/
Room temperature to +100ç
/
Room temperature
Time: 30
/
10 to 15
/
30
/
10 to 15 (Minutes)
5 cycles
No flashover or insulation breakdown
No flashover or insulation breakdown
No electrical discontinuity of 10
µ
s or more
Contact resistance: 10 m ohms max.
Insulation resistance: 1000 M ohms min.
8.Humidity
Insulation resistance:
10 M ohms min. (Humidity state)
100 M ohms min. (Dry state)
96 hours at temperature of 40ç and humidity of 90% to 95%
s
Materials
Part
Plug
Insulator
Screw
Crimp contact
Socket contact
Insulator
Male contact
Receptacle
Nut
Board retention pin
Steel
Phosphor bronze
PBT
Steel
Contact area: phosphor bronze
Termination area: copper
PBT
Brass
Material
Finish
Color: Black or Green
Nickel plating
Contact area: gold plating
Termination area: tin plating
Color: Black or Green
Contact area: gold plating
Termination are: gold plating
Nickel plating
Tin plating
UL94V-0
UL94V-0
Remarks
s
Ordering information
qConnector
HR31 - 5.08 P A - 5 S C (01)
1
1
Series name
2
Contact pitch
3
Connector type
4
Screw lock type
5
No. of contacts
2
3
4
5
6
7
8
HR31
5.08mm
P: Plug
R: Receptacle
Blank: With screw
A: Without screw
5
6
Contact type
S: Female contact
P: Male contact
7
Terminal type
C: Crimping
DL: Right angle through hole type
D: Straight through hole type
8
Color, plating, board retention pin type
qCrimp
contact
HR31 - SC - 1 1 1 (01)
9
9
10
11
12
10
11
12
13
14
13
Plating type
1: Gold plating
14
Suffix
Series name
HR31
Contact type
SC: female contact
Contact packaging type 1: loose contact
Conductor cross area
1: 1.04 to 2.63mm
2
2: 0.25 to 1.65mm
2
2
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
s

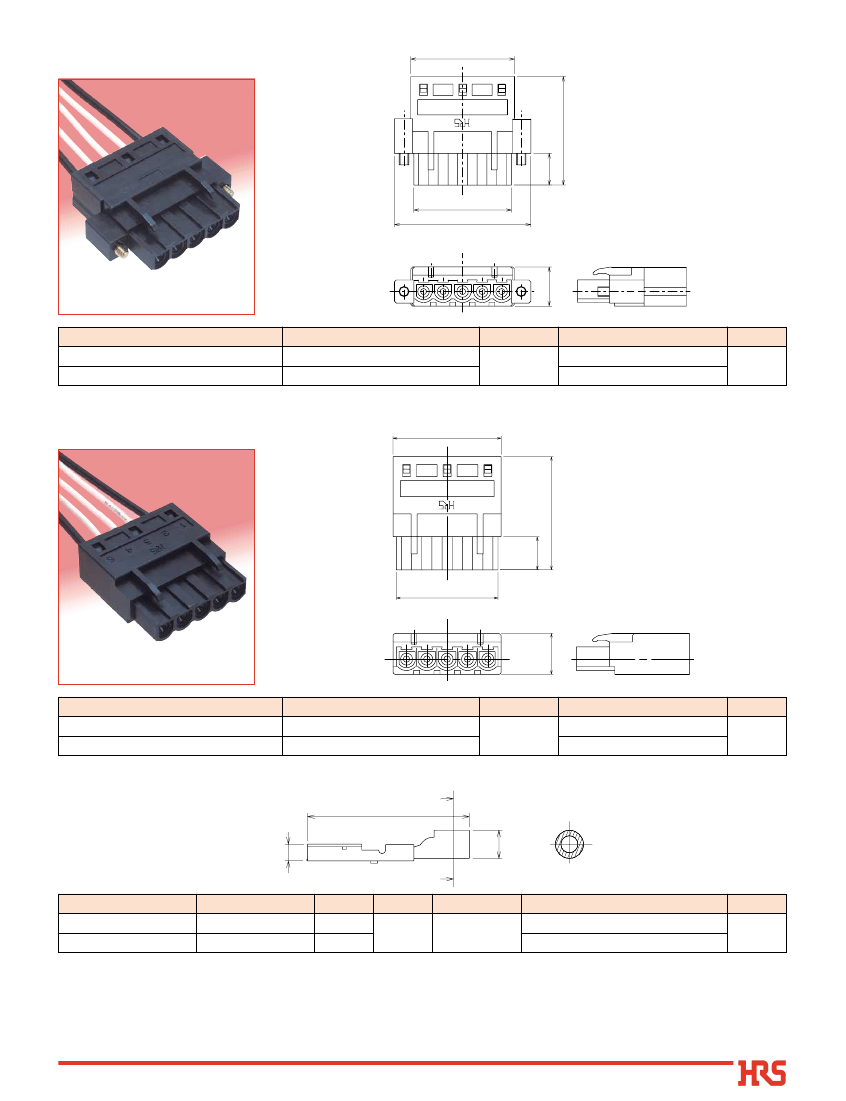

Plug (with screw lock)
27
25.4
35.5
HR31-5.08P-5SC
Part No.
HR31-5.08P-5SC(71)
HR31-5.08P-5SC(72)
CL No.
131-0002-2-71
131-0002-2-72
Weight
8g
Color
Black
Green
RoHS
YES
Plug (without screw lock)
27
25.4
8.3
HR31-5.08PA-5SC
Part No.
HR31-5.08PA-5SC
HR31-5.08PA-5SC(01)
CL No.
131-0009-1
131-0009-1-01
Weight
6g
Color
Black
Green
RoHS
YES
s
Crimp contact
23
2.35
B
10.2
B-B
B
Part No.
HR31-SC-111(71)
HR31-SC-121(71)
CL No.
131-0004-8-71
131-0005-0-71
ØA
4
3.3
Weight
1g
Contact plating
Gold
ØA
Applicable conductor cross area (Note 2)
1.04
to
2.63mm
2
0.2
to
1.65mm
2
28.3
10.2
1
2
3
4
5
8.3
28.3
Note 1: Bag packaging (100 pieces/bag)
Note 2: For a multi-strand conductors
1 2 3 4 5
RoHS
YES
3
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
s

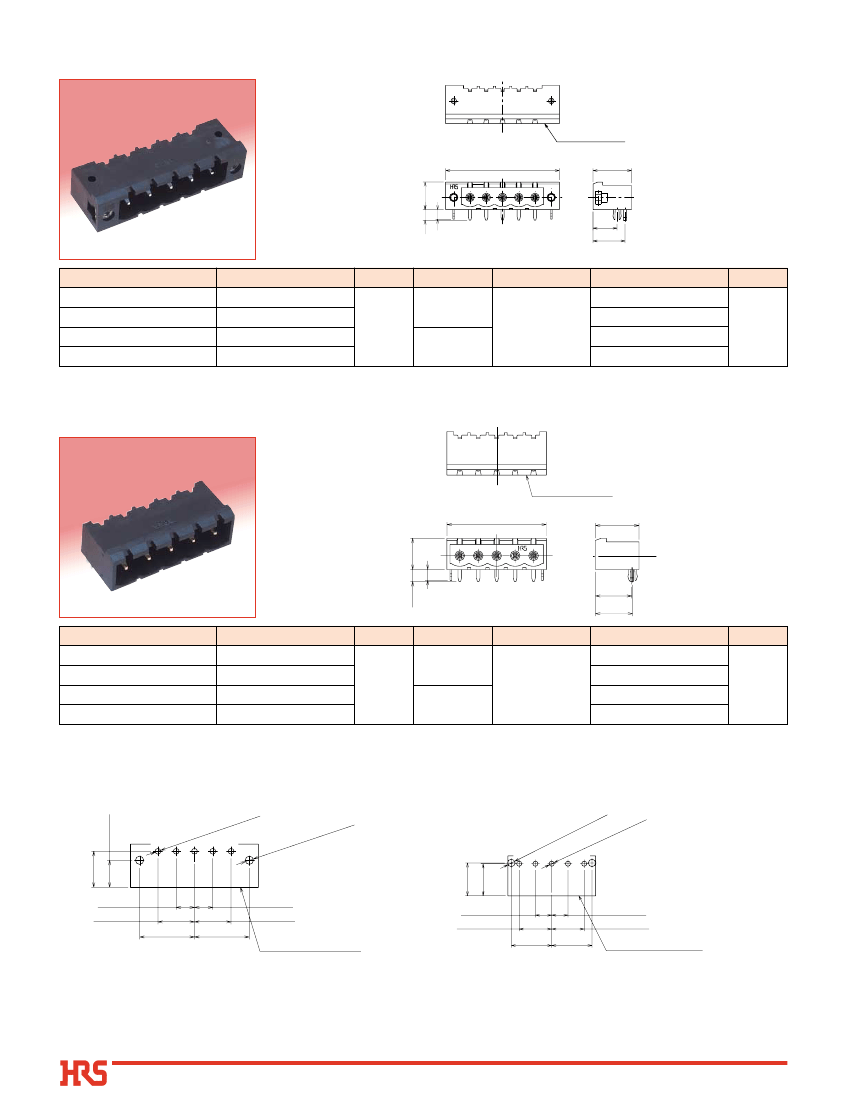

Receptacle (Right angle through hole type with screw lock)
Contact plating
35.5
8.6
1
2
3
4
5
12
7.5
10
HR31-5.08R-5PDL
Part No.
HR31-5.08R-5PDL(72)
HR31-5.08R-5PDL(74)
HR31-5.08R-5PDL(75)
HR31-5.08R-5PDL(76)
CL No.
131-0001-0-72
131-0001-0-74
131-0001-0-75
131-0001-0-76
4g
Green
Weight
Color
Black
Gold
Contact plating
Board retention pin
With
Without
With
Without
YES
RoHS
Receptacle (Right angle through hole type without screw lock)
3.3
3
Contact plating
27.4
1
2
3
4
5
12
8.6
3
HR31-5.08RA-5PDL
Part No.
HR31-5.08RA-5PDL(72)
HR31-5.08RA-5PDL(74)
HR31-5.08RA-5PDL(75)
HR31-5.08RA-5PDL(76)
CL No.
131-0008-9-72
131-0008-9-74
131-0008-9-75
131-0008-9-76
2g
Weight
3.3
10
10.25
Color
Black
Contact plating
Board retention pin
With
RoHS
Gold
Green
Without
With
Without
YES
BPCB
mounting pattern
q
With screw lock
7.5±0.05
+0.1
0
q
Without screw lock
ole)
gh h
hrou
(T
te)
(No
.3
+00.1
2
2-Ø
1.6
5-Ø
oug
(Thr
le)
h ho
10 ±0.05
10.25±0.05
hr
.1
( T
.1
(T
te)
+00
+0
0
No
Ø2.3
(
6
Ø1.
2-
5-
hro
h
ug
ho
le)
h
oug
hol
e)
5.08±0.05
10.16±0.05
15.24±0.05
15.24±0.05
5.08±0.05
10.16±0.05
Connector mounting side
5.08±0.05
10.16±0.05
12.6±0.05 12.6±0.05
10±0.05
5.08±0.05
10.16±0.05
Connector mounting side
(Board thickness =1.6)
(Board thickness =1.6)
Note: Dia. 2.3 through hole is not required on the board when using connectors without the retention pin.
4
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
s

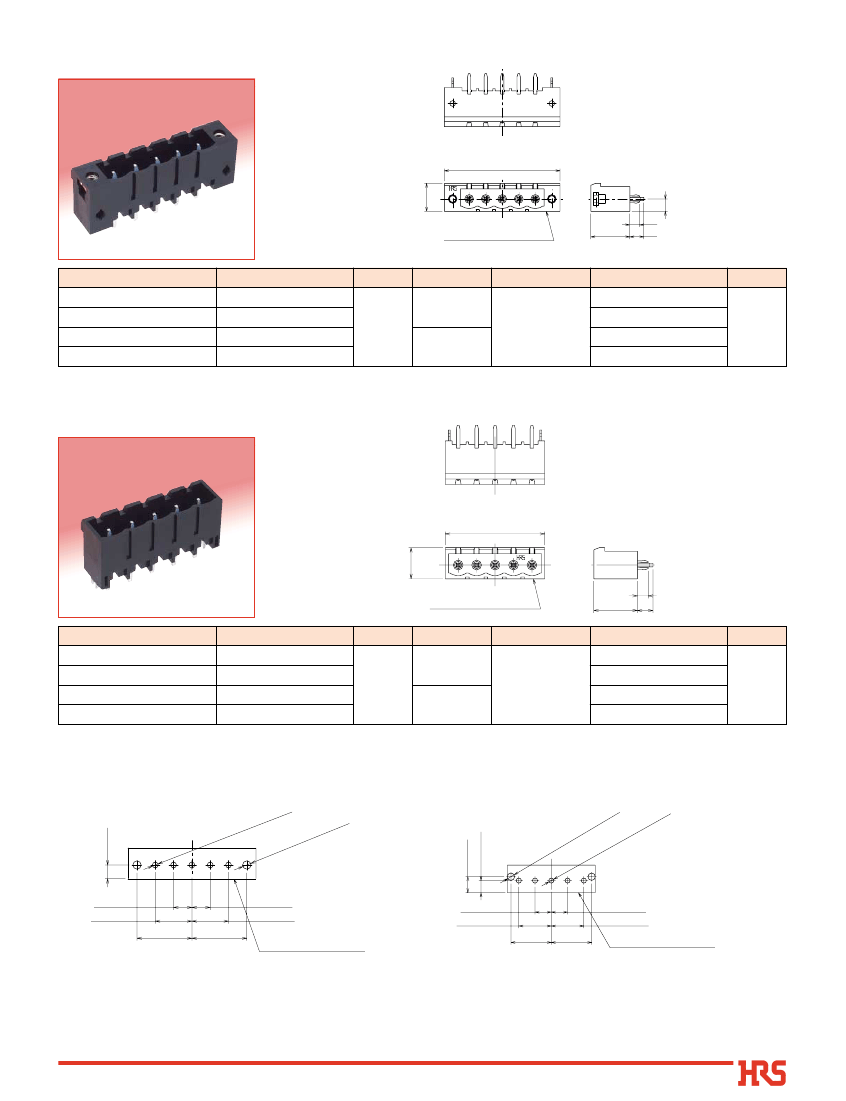

Receptacle (Straight through hole type with screw lock)
35.5
1
2
3
4
5
8.6
Connector mounting side B
12
3
4.3
HR31-5.08R-5PD
Part No.
HR31-5.08R-5PD(72)
HR31-5.08R-5PD(74)
HR31-5.08R-5PD(75)
HR31-5.08R-5PD(76)
CL No.
131-0003-5-72
131-0003-5-74
131-0003-5-75
131-0003-5-76
4g
Green
Weight
Color
Black
Gold
Contact plating
Board retention pin
With
Without
With
Without
YES
RoHS
Receptacle (Straight through hole type without screw lock)
27.4
8.6
1
2
3
4
5
3
HR31-5.08RA-5PD
Part No.
HR31-5.08RA-5PD(72)
HR31-5.08RA-5PD(74)
HR31-5.08RA-5PD(75)
HR31-5.08RA-5PD(76)
CL No.
131-0016-7-72
131-0016-7-74
131-0016-7-75
131-0016-7-76
2g
Weight
Connector mounting side B
12
4.3
Color
Black
Contact plating
Board retention pin
With
3.8
RoHS
Gold
Green
Without
With
Without
YES
BPCB
mounting pattern
q
With screw lock
3.8±0.05
6
Ø1.
.1
+0
0
q
Without screw lock
rou
(Th
gh
e)
hol
oug
ole
hh
)
5.08±0.05
10.16±0.05
15.24±0.05
15.24±0.05
5.08±0.05
10.16±0.05
5.08±0.05
10.16±0.05
12.6±0.05 12.6±0.05
3.8±0.05
5±0.05
5-
hr
te)
(No
3
+00.1
(T
Ø2.
2-
hro
)
.1
(Th
.1
(T
+00
ote .3
+00
(N 2
.6
Ø
Ø1
2-
5-
rou
h
gh
ole
)
h
ug
ho
le)
5.08±0.05
10.16±0.05
Connector mounting side B
Connector mounting side B
(Board thickness =1.6)
(Board thickness =1.6)
Note: Dia. 2.3 through hole is not required on the board when using connectors without the retention pin.
In my application, I only use the WaitCommEvent function of the EV_RXCHAR event to trigger the event when data is received, and then perform the following read function. If no data is received, it wil...
[font=宋体][size=5] [b] [font=楷体,楷体_GB2312]At the beginning of the competition, I was "full of confidence" and the idea was good. After getting the Sensor Tag, I felt a lot of pressure after some unders...
The SPI driver has been changed to SensorTile. The HID and Alert Notification Server routines are working properly. When using the Proximity Reporter routine, the code can run. When judging if (Profil...
As shown in the picture, why are the two ends of the 220V AC connected to one called HOT and the other called NUETRAL? Aren’t they the names of the neutral and live wires of the 220V?...
本人就职的公司正在招聘员工，期待您的加入。北京普拉普斯微电子技术有限公司公司介绍：ProPlusDesign Solutions, Inc., headquartered in San Jose, California, USA, isa leading technology and service provider of advanced device modelingand DFM/DFY s...
For example, Fetion, right? What software and hardware knowledge do I need to do this? For example, what functions, controls, APIs, etc. do I need to use when developing in different languages? What u...
Emergency hand-held lamps powered by 6V maintenance-free batteries are widely used in rural areas. The charger used is a transformer step-down and single diode half-wave rectifier, and the charging...[Details]
Hardware designers have begun to adopt FPGA technology in high-performance DSP designs because it can provide 10-100 times faster computing than PC-based or microcontroller-based solutions. Previou...[Details]
The Portable Digital Data Acquisition System (PDDAS) uses LabVIEW Real-Time and PXI to control the wind tunnel test and record air pressure data from 128 different channels.
"The LabVIEW Real-...[Details]
My colleague and I spent the day chatting in the hotel bar. We had met with several customers. We were both wondering how come these engineers we were meeting knew almost nothing about analog techn...[Details]
Images in science fiction movies often break through the limits of reality, such as in the movie "Minority Report." Tom Cruise uses a multi-touch screen to browse information. Capacitive sensing te...[Details]
With the rapid development of urban economy, elevators are increasingly used as a vertical transportation tool. However, elevator fault detection and maintenance, especially the role of elevator remot...[Details]
In the previous series, we have listed some basic knowledge of C language in Tables 1 to 3. We hope that beginners can strengthen their memory of the above tables and gradually learn to use them wh...[Details]
1. Introduction to CIF Board
Fieldbus integration based on PC system
Whether it is a master or a slave, fieldbus has won unanimous praise in the field of PC-based automation. For more...[Details]
Xiaomi, a well-known Internet phone in mainland China, won a million-unit order contract from China Unicom on November 20 last year, which made Xiaomi famous in mainland China. In April this year...[Details]
LED is the abbreviation of light emitting diode, which is an electric light source made of semiconductor technology. The core part of LED is a chip composed of P-type semiconductor and N-type semi...[Details]
In the analysis of electronic circuits, static analysis (also known as DC analysis) is the basis of circuit analysis. However, it is well known that electronic components are nonlinear, so the anal...[Details]
RS-422 and RS-485 are both serial data interface standards, which were developed and published by the Electronic Industries Association (EIA). RS-422 defines a balanced communication interface with a ...[Details]
Experimental tasks
A DS18B20 is used to form a temperature measurement system. The temperature measurement accuracy reaches 0.1 degrees. The temperature range is between -20 degrees and +50 de...[Details]
It is well known to automotive suppliers that automakers are demanding more from their supply base. For connector suppliers, this means stricter requirements for product performance, stability and ...[Details]
In 2012, more than half of the cars in the European, Japanese and American car markets will be equipped with color displays, navigation systems, satellite communications and other in-vehicle infota...[Details]
_pdf/pg_0001.png)
Embedded System
京公网安备 11010802033920号
EEWORLD_pdf/1.png)
_pdf/2.png)
_pdf/3.png)
_pdf/4.png)
_pdf/5.png)
_pdf/pg_0002.png)
_pdf/pg_0003.png)
_pdf/pg_0004.png)
_pdf/pg_0005.png)
