CM10MD1-24H Overview

CI Module Three Phase Converter Three Phase Inverter 10 Amperes/1200 Volts

CM10MD1-24H Parametric

Parameter Name	Attribute value
Parts packaging code	MODULE
package instruction	FLANGE MOUNT, R-XUFM-X21
Contacts	21
Reach Compliance Code	unknow
Shell connection	ISOLATED
Maximum collector current (IC)	10 A
Collector-emitter maximum voltage	1200 V
Configuration	BRIDGE, 6 ELEMENTS WITH BUILT-IN DIODE AND THREE PHASE DIODE BRIDGE
Gate-emitter maximum voltage	20 V
JESD-30 code	R-XUFM-X21
Number of components	6
Number of terminals	21
Maximum operating temperature	150 °C
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	N-CHANNEL
Certification status	Not Qualified
surface mount	NO
Terminal form	UNSPECIFIED
Terminal location	UPPER
transistor applications	MOTOR CONTROL
Transistor component materials	SILICON
VCEsat-Max	3.4 V
Base Number Matches	1

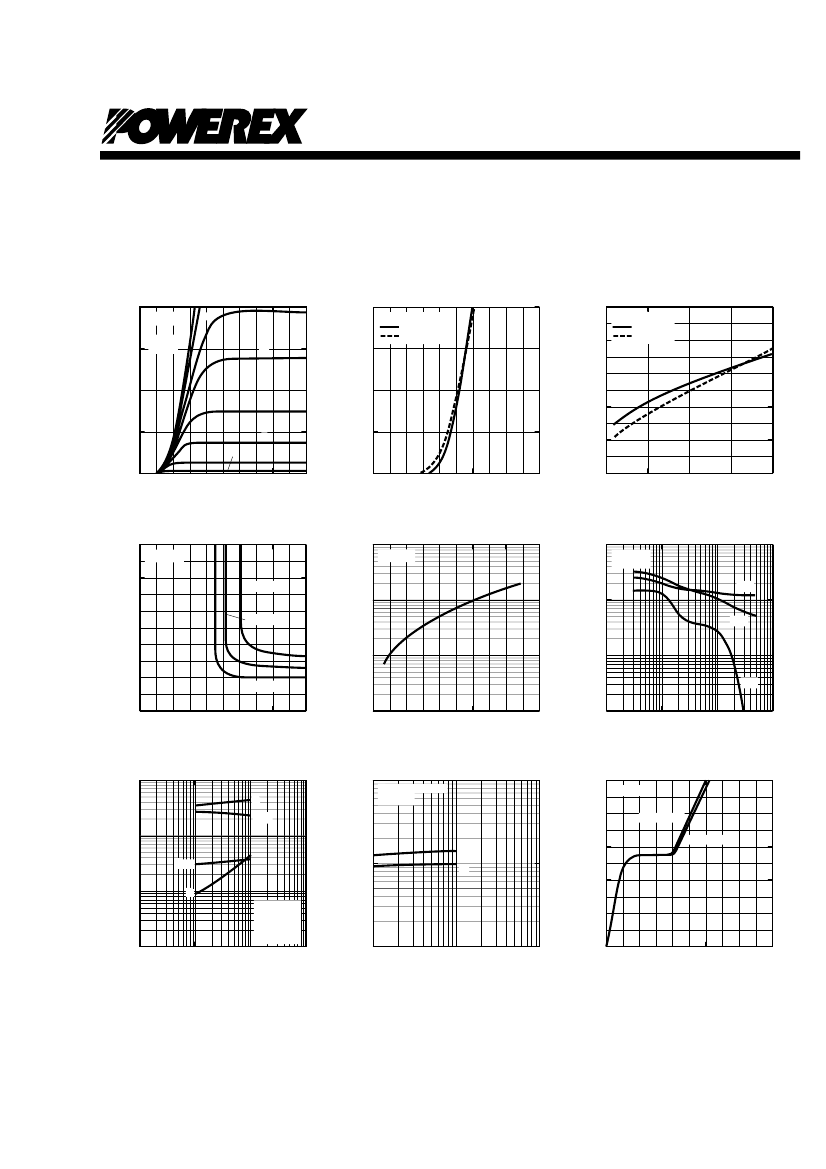

Preview

Download Datasheet

View All

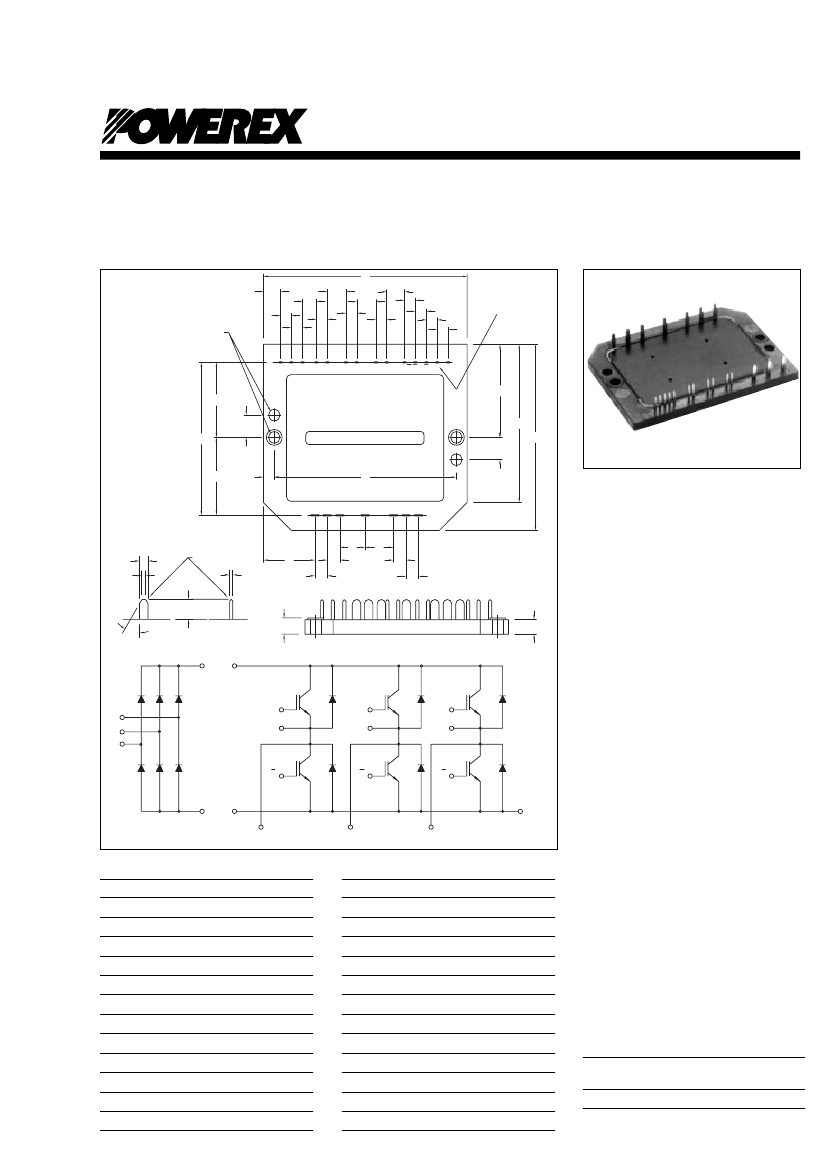

CM10MD1-24H

Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272

CI Module

Three Phase Converter +

Three Phase Inverter

10 Amperes/1200 Volts

(4 PLACES)

NOT

CONNECTED

P1 A

GU EU

GV EV GW EW

GU GV GW

LABEL

"T" THICK

30°

MAIN TERMINAL

CONTROL

TERMINAL

K P1

Description:

Powerex CI Modules are

designed for use in switching

applications. Each module

consists of a three phase diode

converter section and a three

phase IGBT inverter section. All

components and interconnects are

isolated from the heat sinking

baseplate, offering simplified

system assembly and thermal

management.

Features:

□

Low Drive Power

□

Low V

CE(sat)

□

Discrete Super-Fast

Recovery (70ns)

Free-Wheel Diodes

□

High Frequency Operation

(20-25 kHz)

□

Isolated Baseplate for Easy

Heat Sinking

Applications:

□

AC Motor Control

□

Motion/Servo Control

□

General Purpose Inverters

□

Robotics

Ordering Information:

Example: Select the complete nine

digit module part number you

desire from the table below - i.e.

CM10MD1-24H is a 1200V (V

CES

10 Ampere CI Power Module.

Type

Current Rating

Amperes

CES

Volts (x 50)

Outline Drawing and Circuit Diagram

Dimensions

Inches

3.54

2.52

1.26

0.35

3.15

0.20

0.30

0.32

0.48

0.10

0.30

0.19

Millimeters

90.0

64.0

32.0

9.0

80.0

5.0

7.5

8.0

12.28

2.54

7.62

4.8

Dimensions

Inches

0.65

0.49

1.04

2.09

0.08

0.02

2.13

0.04

0.03

0.32

0.21

0.20

Millimeters

16.5

12.5

26.5

53.0

2.0

0.5

54.0

1.0

0.8

8.0

5.3

5.0
